Modular Spectrometers

This is an Echelle Spectrometer designed for diffraction limit operation, that provides a full spectrum coverage without gaps over a tunable 150nm range at a resolution of ~2pm in single pass mode. The spectrometer uses two gratings, two 1.5m f.l. parabolic reflectors and a corrector lens to produce a cross-dispersed echellegram that is recorded on a 3k x 3k cooled CCD camera with 12u pixels, at a dispersion of 1 pm/pixel. The long, thin echellegram is fit to the square CCD format using a 3 section image slicer, to maximize wavelength coverage and resolution.
Input optics include a micrometer adjustable rectangular input slit and a computer controlled source selector that can switch between four available input ports, useful in calibration.
Operational specifications are (for 31.5 l/mm 150x50 mm echelle, single pass)

* Dispersion: 1pm/pixel; (diffraction limit = 1pm)
* Wavelength coverage: 150nm band, position continuously selectable.
No gap coverage up to 800nm. Camera coverage 300nm-900nm.
* Aperture f/25.
* Input slit: rectangular, continuously adjustable 0-500um.
* Source selector to switch between four inputs.
* Calibration facilities for wavelength and intensity.
* Software to transfer raw images to permanent storage at the maximum possible rate, to transform and store as spectra corrected for wavelength & intensity.
Please note that for full frame digitization at 12 bits the transfer rate is 10seconds per frame. Smaller frame sections can be transferred at correspondingly faster rates.

$ 197,506.00

The most powerful TeraHertz FTIR available in the mid and far IR Range, the SPS-300 is our second generation Martin-Puplett/Michelson Interferometer designed and built at Sciencetech's own facilities in London, Canada. With a wide variety of optional upgrades and components to suit any research application, the SPS-300 has been successfully used in Material Research, Biomedical, Medical, Astronomy, Aerospace, Superconductivity, Security, Defense and a wide range of other fields by distinguished customers including the European Space Agency (ESA), the National Aeronautics and Space Agency (NASA), the Max Planck Institute, the Argonne National Labs, The Canadian National Research Council, the Brookhaven National Lab, L'Institute d'Astrophysique Spatiale, Lawrence Berkeley National Lab, and many universities the world over.

The instrument is designed for research applications and therefore features special hardware and software designed to allow the use of samples under many different research environments (High Vacuum, High & Low Temperature, High & low Pressures, High Magnetic fields, etc...) and conduct sensitive and fast "Rapid Scans" with the mirror moving continuously as the detector collects data. Sciencetech also supports the researchers with the design and manufacturing of custom made coupling devices and sophisticated sample chambers to meet specific needs.

Please contact your authorized Sciencetech technical sales representative to discuss how we can build a FTIR designed for your technical specifications.

$ 143,610.00

The 9150 is Sciencetech's largest monochromator with a 1.5m focal length. Under optimum conditions with a 2400 l/mm grating it can achieve a resolution of 0.004 nm in single pass mode. 9150SD includes an optical module that allows the unit to be configured in a double pass mode as well, effectively doubling the focal length to 3m and achievable resolution to 0.002 nm. It utilizes large 102 x 102 mm gratings for high light throughput (f/12 aperture). The 9150SD accommodates one grating on a removable, kinematic mount that allows the user to manually swap one grating for another without losing alignment.
For additional information, please see the technical datasheet.

$ 73,518.00

The 9150 is Sciencetech's longest single path length monochromator with a 1.5 m focal length. Under optimum conditions with a 2400 l/mm grating it can achieve a resolution of 0.004 nm in single pass mode. This model of monochromator accomodates a grating on a removable kinematic mount, allowing the user to manually swap one grating for another without losing alignment. Please note that this product includes one slit, but does not include any additional slits or a grating. These must be purchased separately. Please speak with a technical sales member for assistance in selecting the right components for your system.
Please see the technical datasheet for additional information.

$ 61,057.00

The SciVidi spectroradiometer is an integrated spectrordadiometer system designed to measure bot AC and continuous wave light sources such as solar simulators over a wide spectral range.
The standard SciVidi system includes two spectral dispersion systems with integrated diode array detectors for measuring spectral irradiance from 300-2000nm. The SciVidi is calibrated for spectral irradiance with a Deuterium and calibrated quartz tungsten halogen lamp. The spectroradiometer can measure spectral irradiance in time intervals as short as 500uS and can be synchronized with a TTL pulse. A cosine corrected optical head is connected to the spectroradiometer by a 2m fiber optic.

For a system that meets your specific requirements please contact a Sciencetech technical sales representative.

$ 60,000.00

The 9490 is Sciencetech's second largest monochromator, with a 1m focal length. It can achieve resolutions as high as 0.017nm in its standard "single pass" configuration with a 1200 l/mm grating. Up to twice that resolution is possible with the "double pass" configuration. This model of the 9490 allows the user to switch between the two modes seamlessly by shifting the position of a set of mirrors (easily done by rotating a single knob).
This system includes a single input slit. For additional options and to select the perfect grating(s) for your application, please speak with your Sciencetech technical sales member.
Please see the technical datasheet for more information.

$ 43,722.00

The 9490 monochromator is Sciencetech's second highest resolution monochromator, with 1m focal length. With a 2400 l/mm grating it can achieve resolutions better than 0.01 nm in the standard single pass configuration. This version uses 84 x 84 mm gratings for an aperture of f/9.7.By default the monochromator comes with a single grating kinematic mount. Users can manually swap one grating for another without losing alignment. An optional motorized 3-grating turret is available for automatic grating selection without opening the housing. The 9490 has a flat field output allowing it to operate as a spectrograph using a linear array, multi-channel detector to capture the entire output spectrum continuously. Sciencetech provides a selection of 1" wide CCDs and photo-diode linear array detectors mounted on a multi-axis adjustable focusing platform for use with the 9490.
Some models of the 9490 can be updgraded to dual pass operation (-DP). With the -DP dual pass upgrade option even higher resolution is available by switching to a "double pass" configuration that effectively doubles the focal length to 2m.

Please see the technical datasheet for further information.

$ 40,373.00

The 9490 monochromator is Sciencetech's second highest resolution monochromator, with 1m focal length. With a 2400 l/mm grating it can achieve resolutions better than 0.01 nm in the standard single pass configuration. This version uses 64 x 64 mm gratings for an aperture of f/13. By default the monochromator comes with a single grating kinematic mount. Users can manually swap one grating for another without losing alignment. An optional motorized 3-grating turret is available for automatic grating selection without opening the housing. The 9490 has a flat field output allowing it to operate as a spectrograph using a linear array, multi-channel detector to capture the entire output spectrum continuously. Sciencetech provides a selection of 1" wide CCDs and photo-diode linear array detectors mounted on a multi-axis adjustable focusing platform for use with the 9490.
Some models of the 9490 can be updgraded to dual pass operation (-DP). With the -DP dual pass upgrade option even higher resolution is available by switching to a "double pass" configuration that effectively doubles the focal length to 2m.

Please see the technical datasheet for further information.

$ 38,500.00

The 9040DS is a Double Subtractive design of the half meter 9040. Special care has been taken to design the system to minimize and eliminate stray light whenever possible.
A double subtractive monochromator operates to create a monochromatic light source by the 2nd monochromator cancelling the dispersion caused by the 1st monochromator. This allows a Double Subtractive system to operate as a tunable notch filter for Raman applications.
Please see the technical datasheet for additional information.

$ 22,254.00

The 9040DA double additive half meter spectrometer has been specifically designed for Raman applications, but also functions as a general-purpose monochromator. Special care has been taken to minimize or eliminate stray light wherever possible. The system ships with one input slit. Please speak with a Sciencetech sales representative to determine the optimal loadout for your particular system, including additional input and output ports, slits, motorized options, and grating selection.
Please note that 2 gratings are required for this system, minimum, but are not included.
Please see the technical datasheet for more information.

$ 22,254.00

9055-DX is a motorized double 1/4m monochromator that can be switched between additive and subtractive configurations. Double monochromators have the advantage of extremely low stray light levels by virtue of using two gratings. An intermediate slit between the two units, used to define the wavelengths that pass to the second unit, also masks off light scattered within the body of the first unit. In double additive operation the 9055DX effective focal length (1/2m), dispersion and resolution (1.7nm/mm and .09nm with a 1200 l/mm grating) are doubled compared to a single unit, making this mode useful where high resolution is important. In double subtractive operation there is no dispersion in the output beam and only a single slit image appears at the output instead of a broad spread of spectral images. This allows the system to operate as a tuneable bandpass or notch filter.
This system includes two manual slits (one input and one intermediate). Motorized upgrades and additional slits may be purchased separately.
Gratings also need to be purchased separately, with a minimum of 2 gratings required for the system to operate. Please speak with your Sciencetech technical sales member to ensure proper grating selection.
Please see the technical datasheet for additional information.

The imaging option 9055DX-i uses toroidal optics to compensate for astigmatism inherent in Czerney-Turner type monochromators and spectrographs.

$ 19,322.00

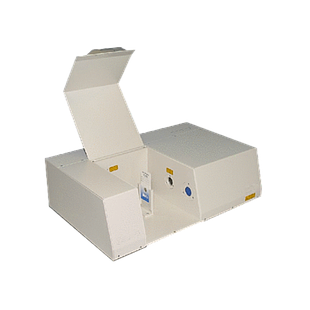

The TEO-200-X series of FTIR spectrometers represent a low cost Fourier transform infrared spectrometers and employ a number of unique features that ensure high performance from a compact instrument. The 200-X measures just 59 X 39 X 19 cm and is regarded as one of the most compact and versatile infrared FTIR spectrophotometers. The design of the 200-X is unique both in terms of optical design and the software and firmware designed specifically to significantly reduce overall analytical times. The interferometer geometry employs a new compact Michelson self compensating optical system that eliminates many of the optical alignment problems found in conventional type optical interferometers. The 200-X design avoids the use of conventional corner cube optics and dynamic alignment. In practice this means that the instrument can be used in the research laboratory, in any university or college environment and if required, can also be used outside laboratory or in remote locations.

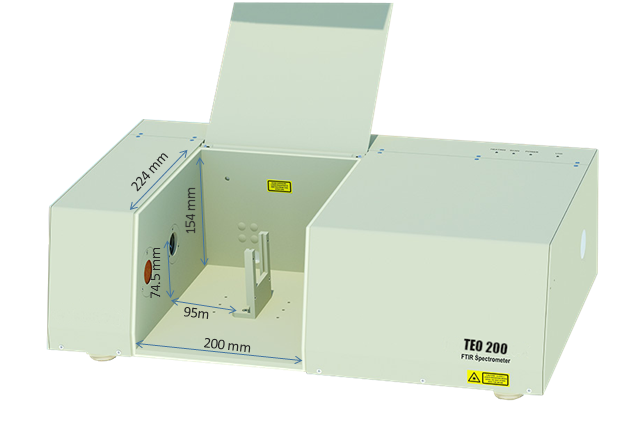

The sample compartment is large and can accommodate all of the normal sample handling requirements relating to FTIR spectroscopy. This unique compartment will also accommodate a wide range of accessories supplied by specialist accessory manufacturers. Overall dimensions are W20 X D26 X H16 cm . The optical axis is 74.5 mm above the base of the sample compartment and there is free space of 90 mm above the optical axis to the underside of the lid.

In order to facilitate the use of more than one beam splitter or detector , provisions have been made to interchange the beam splitter and detector assemblies allowing the 200-X to be used at any wavelength from 15000 to 400 cm-1.

Beam Splitters Range subject to coatings
KBr 7,800 to 380 cm-1
ZnSe 5,000 to 500 cm-1
Fused silica 15,000 to 3,000 cm-1

$ 16,748.00

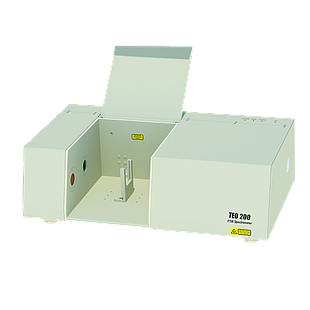

The Model TEO200 benchtop FTIR spectrometer is a low cost Fourier transform infrared spectrometer that employs a number of unique features to achieve high performance from such a compact size. At just 385x265x160mm , it is one of the most compact FTIR systems on the market today.
The TEO200 is unique in terms of its optical geometry and software/firmware design. The optical geometry is simplified by employing a new and remarkably compact Michelson self compensating optical system that eliminates many of the optical alignment problems found in conventional linear and pendulum type optical interferometers. For example, the TEO200 design avoids the use of conventional corner cube optics and dynamic alignment. In practical terms, the instrument can be used inside a research laboratory, or even as a mobile unit in outside environments. Its software and firmware design is also tightly coordinated which significantly reduces overall data acquisition and computational time.
The sealed, desiccated enclosure of the TEO200 eliminates the need for continuous dry nitrogen purging during operation. Other notable features include an air cooled IR source as oppose to water cooled, and the interferometer mechanical bearing does not require gas supply. There are however, three dry nitrogen gas inlets on the rear of the spectrometer for the purging of the detector compartment, sample compartment, and interferometer compartment from moisture, carbon dioxide and other gases.

Please note that there are a variety of spectral ranges available, depending on the detector-beam splitter choices for the system. The price of the system includes this beam splitter, but it must be specified.
KBr 7,000 to 400 cm-1
ZnSe 5,000 to 500 cm-1
CaF2 10,000 to 1,000 cm-1
Quartz 15,000 to 3,000 cm-1

$ 15,698.00

$ 15,050.00

9055-DX is a motorized double 1/4m monochromator that can be switched between additive and subtractive configurations. Double monochromators have the advantage of extremely low stray light levels by virtue of using two gratings. An intermediate slit between the two units, used to define the wavelengths that pass to the second unit, also masks off light scattered within the body of the first unit. In double additive operation the 9055DX effective focal length (1/2m), dispersion and resolution (1.7nm/mm and .09nm with a 1200 l/mm grating) are doubled compared to a single unit, making this mode useful where high resolution is important. In double subtractive operation there is no dispersion in the output beam and only a single slit image appears at the output instead of a broad spread of spectral images. This allows the system to operate as a tuneable bandpass or notch filter.
This system includes two manual slits (one input and one intermediate). Motorized upgrades and additional slits may be purchased separately.
Gratings also need to be purchased separately, with a minimum of 2 gratings required for the system to operate. Please speak with your Sciencetech technical sales member to ensure proper grating selection.
Please see the technical datasheet for additional information.

$ 14,760.00

The 9055DA consists of two 250mm scanning monochromators placed in series in additive mode. Bandpass is determined by the width of an intermediate slit, but the dispersion will be approximately twice that of a single 9055 with a lower cost than larger monochromator systems.
Please see technical datasheet for additional information.

Please note that the 9055DA has been replaced by the 9055DX, with the capability to operate in either Double Additive or Double Subractive modes.

$ 14,760.00

The Sciencetech 9040 is a half meter, high performance monochromator/spectrograph. It supports large size gratings for high light throughput: three sizes are available: 64 x 64mm, 84 x 84 mm, and 102 x 102mm which allow it to achieve apertures of f/6.9, f/5.2 and f/4.0 respectiveley. This version is f/4.0, and suitable for use with 102x102mm sized ruled or holographic reflection gratings.
The 9040 is based on the Czerny-Turner optical configuration. The 9040 supports both single grating and triple grating turrete configurations. This version is the single grating turret version and supports a single large size grating mounted on a rotating turret for wavelength selection. The grating is installed on a removable kinematic mount and can be manually swapped with other gratings without disruption to the optical alignment. The 9040 is also available in double additive and double subtractive versions to obtain even higher resolution or to minimize stray light.
The kinematic single grating mount (that can be exchanged with other gratings) can be upgraded to an automated three or four grating turret (F/# dependent).

$ 14,431.00

The Sciencetech 9040 is a half meter, high performance monochromator/spectrograph. It supports large size gratings for high light throughput: three sizes are available: 64 x 64mm, 84 x 84 mm, and 102 x 102mm which allow it to achieve apertures of f/6.9, f/5.2 and f/4.0 respectiveley. This version is f/5.2, and suitable for use with up to 84x84mm sized ruled or holographic reflection gratings.
The 9040 is based on the Czerny-Turner optical configuration. The 9040 supports both single grating and triple grating turrete configurations. This version is the single grating turret version and supports a single large size grating mounted on a rotating turret for wavelength selection. The grating is installed on a removable kinematic mount and can be manually swapped with other gratings without disruption to the optical alignment. The 9040 is also available in double additive and double subtractive versions to obtain even higher resolution or to minimize stray light.
The kinematic single grating mount (that can be exchanged with other gratings) can be upgraded to an automated three or four grating turret (F/# dependent).

$ 13,744.00

The Sciencetech 9040 is a half meter, high performance monochromator/spectrograph. It supports large size gratings for high light throughput: three sizes are available: 64 x 64mm, 84 x 84 mm, and 102 x 102mm which allow it to achieve apertures of f/6.9, f/5.2 and f/4.0 respectiveley.

The 9040 is based on the Czerny-Turner optical configuration. The 9040 supports both single grating and triple grating turrete configurations. This version is the single grating turret version and supports a single large size grating mounted on a rotating turret for wavelength selection. The grating is installed on a removable kinematic mount and can be manually swapped with other gratings without disruption to the optical alignment.

$ 13,090.00

The TEO-402 is a compact Michelson interferometer module with built-in laser and a broadband IR source. It is designed to be used as a core component in a complete FTIR instrument.
Note that this system does not include a power supply, AD board, or detector.

$ 11,288.00
