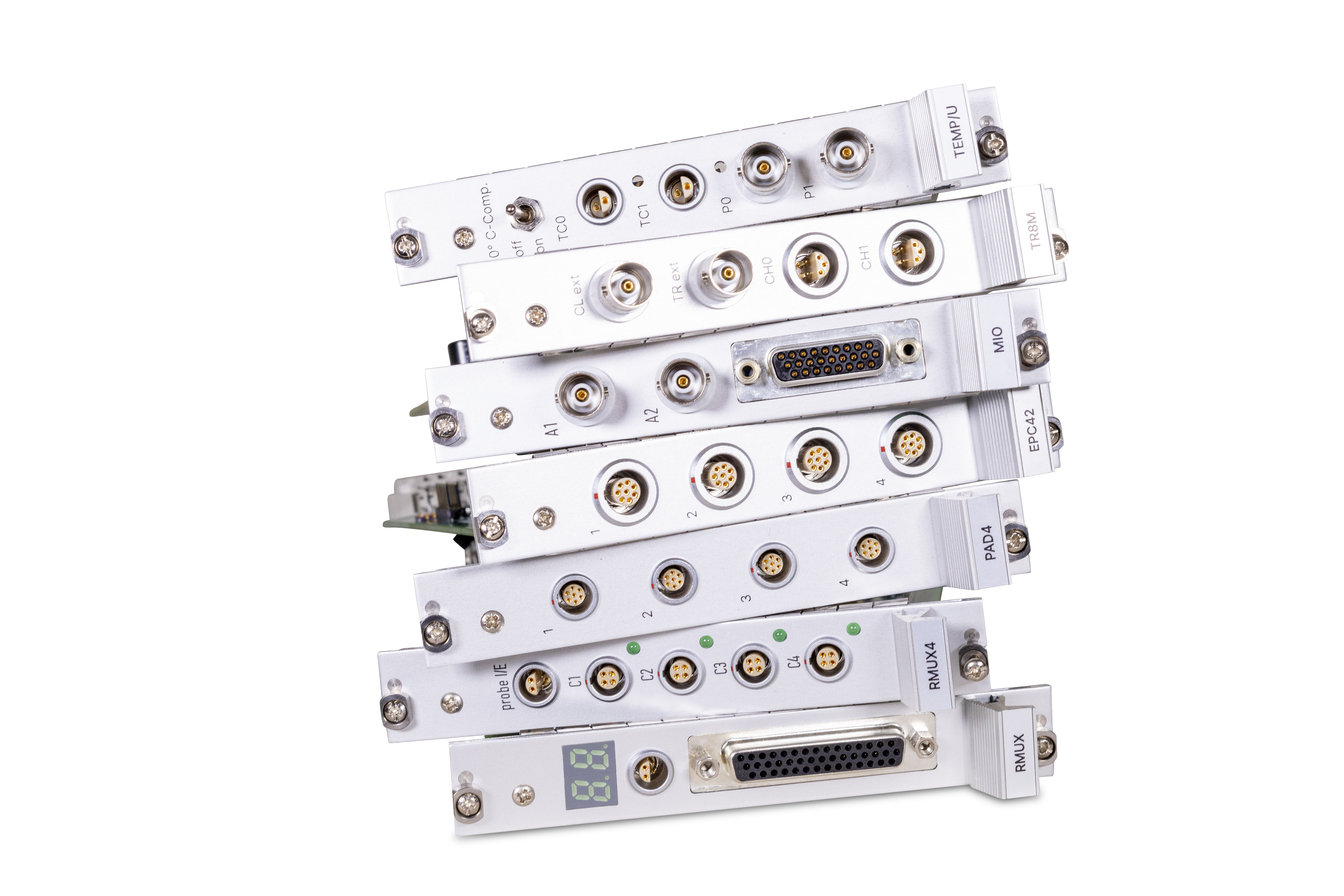

    Addons Cards

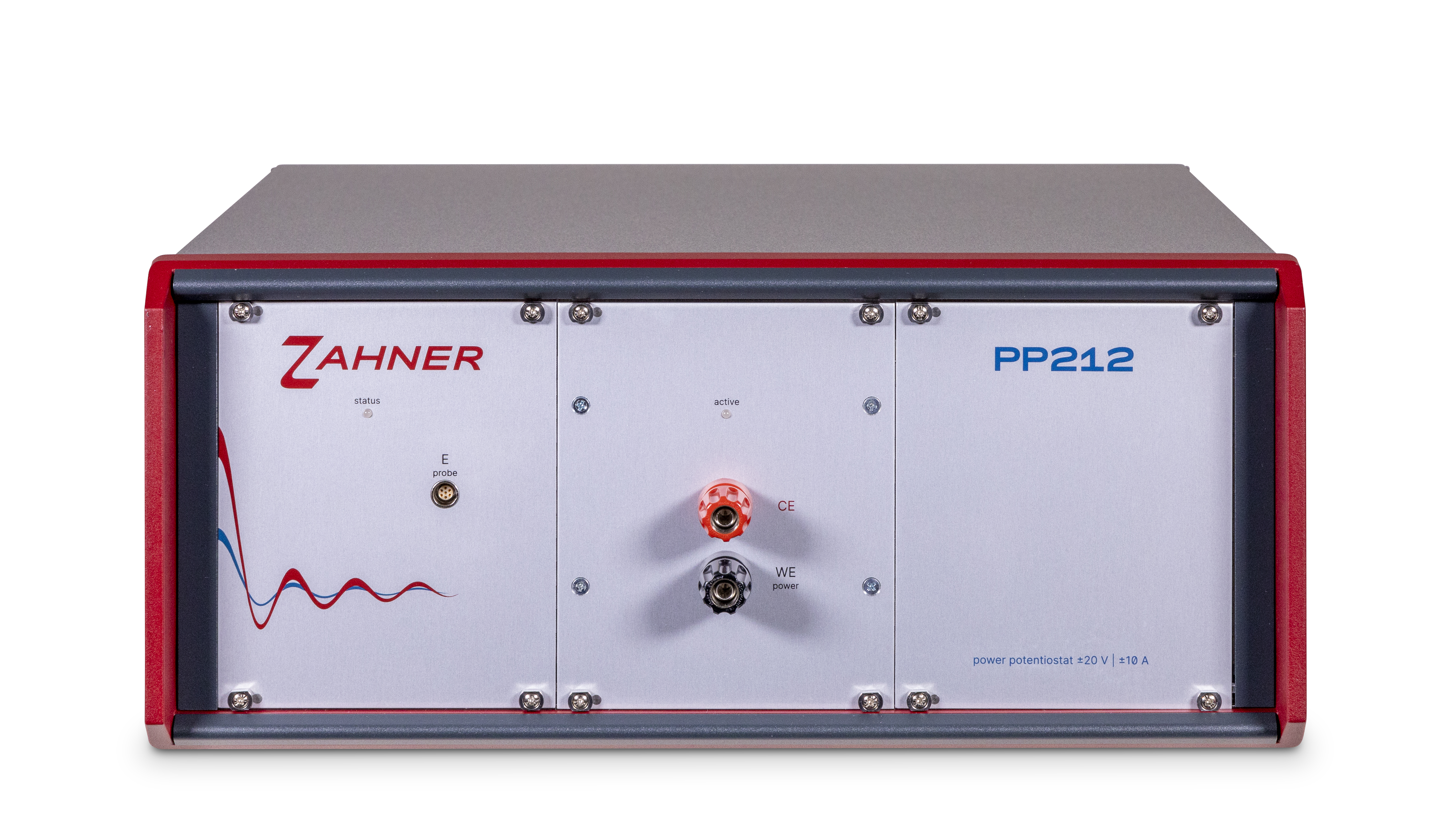

    External Potentiostats

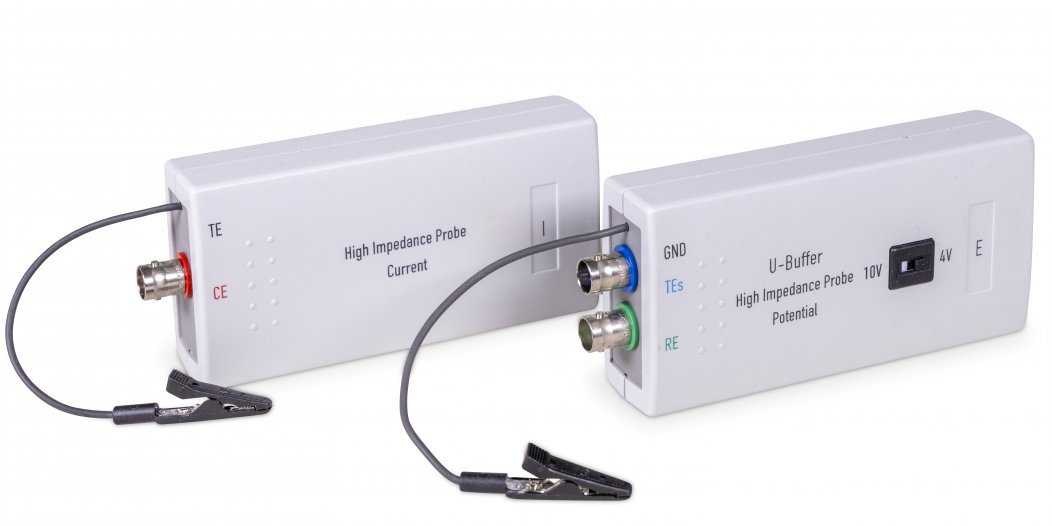

    Probes

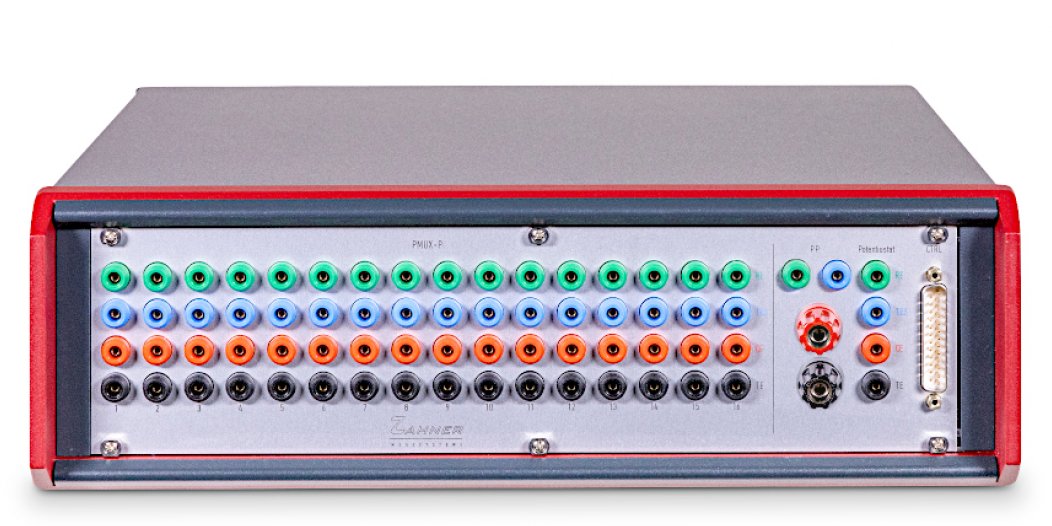

    Multiplexers

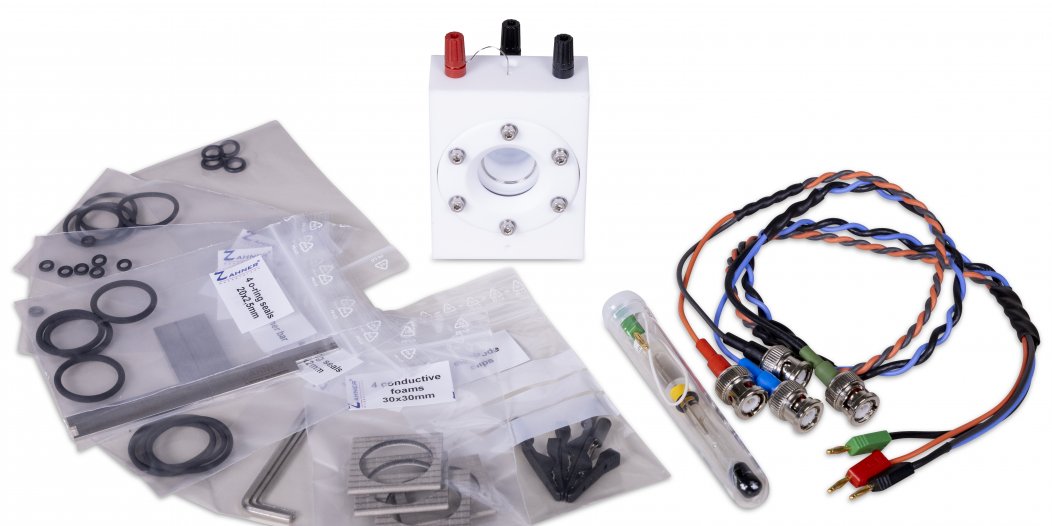

    Extension and Cell Kits
    Photoelectrochemistry & Photovoltaic

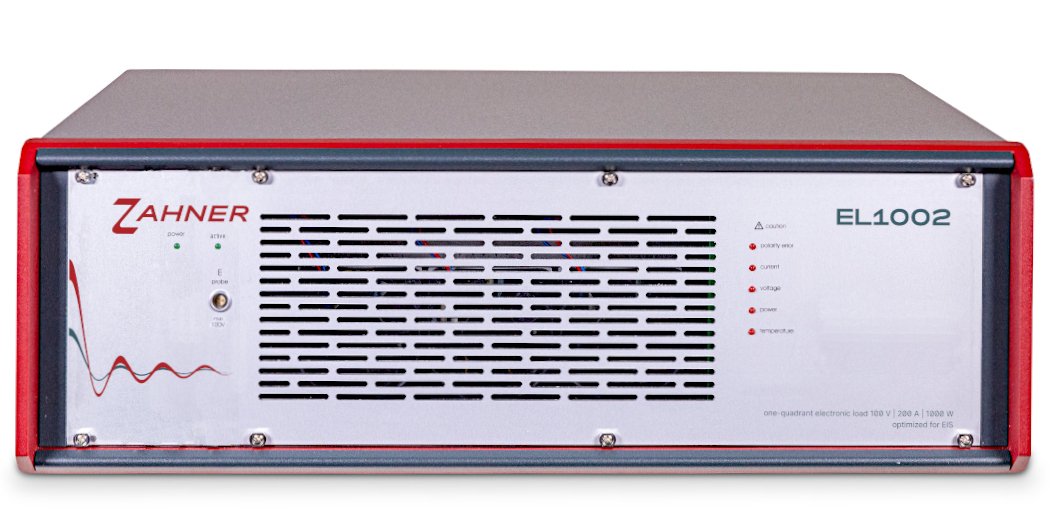

    Electronic Loads
    Upgrades

    Zahner Electrochemical Instruments

    High Quality Expert Instruments

    A Potentiostat is used in with a three electrode cell to perform a myriad of electrochemical experiments, ranging from measuring half-cell potentials, impedance spectroscopy, redox chemistry, and chemical phenomena. These experiments are relevant for corrosion studies, battery chemistry development, materials characterization and more.

    Sciencetech is pleased to represent Zahner in Canada. With 40 years of experience in the field, Zahner’s high-quality electrochemical instruments are backed by years of expertise. Zahner’s systems are an excellent choice for many applications such as corrosion testing, photoelectrochemistry, fuel cell testing, and Li-ion battery testing .

    Zahner potentiostats are designed to provide the highest level of performance in electrochemical experiments and have been proven to be precise and versatile devices for any kind of electrochemical application. Zahner potentiostats can be equipped with multiple plug and play add-on cards, which introduce additional analog and digital input/output signals. This modular function makes Zahner's potentiostats very flexible and allows the possibility to customize the potentiostat to suit the needs of its users.

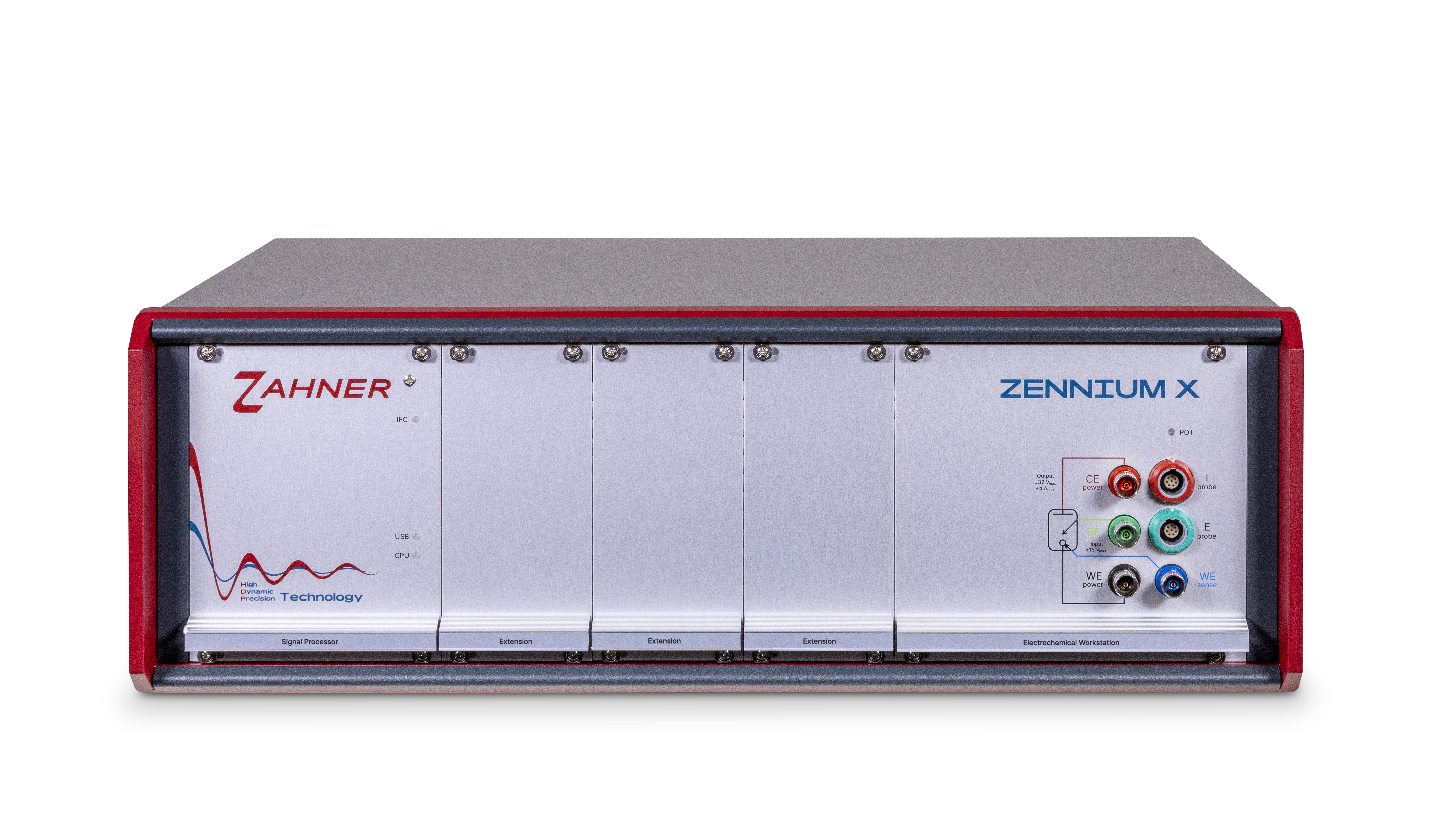

    Zahner Zennium X

    Zennium

    Electrochemical Workstation


    The core of the Zahner instrumentation is an electrochemical workstation. With the Zennium, Zennium E, Zennium-pro, and Zennium-X, there is a workstation available to support the most advanced techniques, as well as a cost-effective option for more straightforward applications. Supported by the Thales software, many different techniques can be accessed from the same software interface, making the Zahner line convenient and easy to use.

    With modular components to add on, accessories for your specific technique can be simply and easily added to your workstation, customizing your setup for your specific requirements.

    CIMPS Instruments

    Photoelectrochemistry


    For photoelectrochemistry, the CIMPS instruments are a powerful choice. With a light source included and kept stable by a control loop, considerations such as non-linearity, ageing, and temperature drift no longer need be considered. The package includes the light source (driven by an included slave potentiostat), optical bench, photoelectrochemical cell, and all required software. For QE and IPCE measurements, consider the CIMPS-QE/IPCE package, including all necessary components to collect QE and IPCE measurements from your sample.

    The Zahner CIMPS measurement system has been designed with focus on the special demands of dynamic photo-electric investigations like IMPS and IMVS, popular today for instance in alternative solar cell research. Besides all traditional electrochemical investigations supported by THALES - like impedance measurements, cyclic voltammetry, current-potential curves, etc. - now mixed photo electric transfer functions, known as Intensity Modulated Photo Spectra(IMPS/IMVS), can be measured.

    Zahner CIMPS

    Electrochemical Workstation Models

    Product Comparison

    With the following electrochemical workstations available as a base, you can perform many measurements with the workstation alone or choose add-ons to customize your capabilities for your specific requirements:

    Contact Us Today
    Get more information or request a quote.
    Contact Us
    Request Quote
    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    CIMPS-QE/IPCE is an extended CIMPS system with the capability to measure quantum efficiency (QE) or incident photon to current efficiency (IPCE). The CIMPS-QE/IPCE extension consists of an easily mountable and portable tuneable light source (TLS). The TLS contains dynamic LEDs, a monochromator and a feedback control which allow accurate light illumination during the measurements without any warm up time.

    Multiple LEDs in the TLS provide higher light intensity across the broad wavelength range and longer operational lifetime as compared to any traditional Xe-lamp. This high light intensity is crucial for IPCE measurements on DSSC, perovskites or organic solar cells or photoelectrodes.

    Like the modular LEDs used in the CIMPS system, the TLS is also able to carry out sine-wave modulation for IPCE measurements and does not require a mechanical chopper. During IPCE measurements, a special indicator is also provided which indicates if the measurement parameters are optimum for IPCE measurement or not. Further information about IPCE measurement is provided in our application note CIMPS-IPCE.

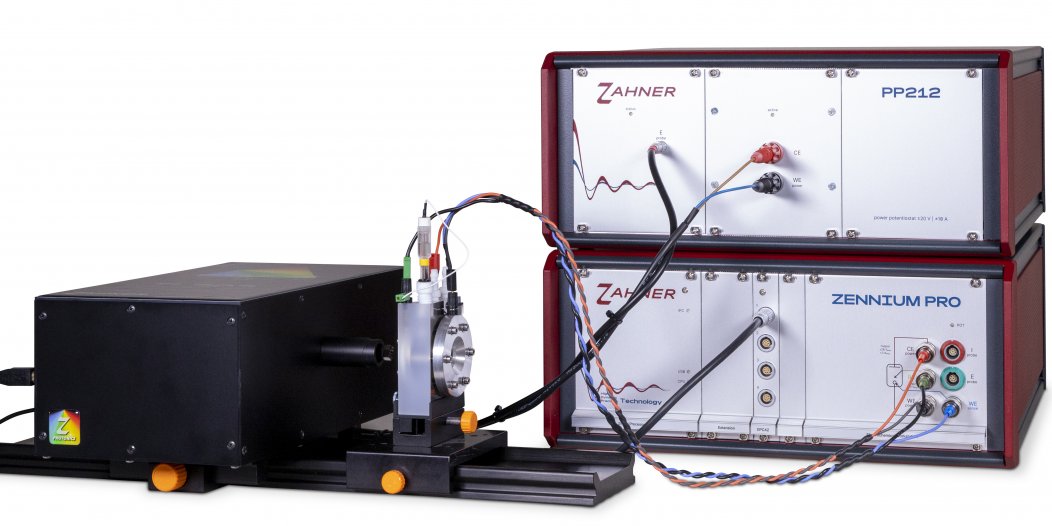

    Fully Integrated QE/IPCE Photo-Electrochemical Workstation with UV
    Extension
    -Zennium pro workstation
    -Frequency range: 10 µHz to 8 MHz
    -Max. current: ± 3 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 28 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision/high-speed CV (option)
    -Floating & grounded mode switchable
    -5 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -Tunable light source TLS03 UV
    -Wavelength range: 295-1020 nm
    -typ. res.: 1 nm@430-720 nm, 15 nm@295-420 nm, 40 nm@735-1020 nm
    -typ. line width: 10 nm@295-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-2 q required, optional
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS-QE/IPCE is an extended CIMPS system with the capability to measure quantum efficiency (QE) or incident photon to current efficiency (IPCE). The CIMPS-QE/IPCE extension consists of an easily mountable and portable tuneable light source (TLS). The TLS contains dynamic LEDs, a monochromator and a feedback control which allow accurate light illumination during the measurements without any warm up time.

    Multiple LEDs in the TLS provide higher light intensity across the broad wavelength range and longer operational lifetime as compared to any traditional Xe-lamp. This high light intensity is crucial for IPCE measurements on DSSC, perovskites or organic solar cells or photoelectrodes.

    Like the modular LEDs used in the CIMPS system, the TLS is also able to carry out sine-wave modulation for IPCE measurements and does not require a mechanical chopper. During IPCE measurements, a special indicator is also provided which indicates if the measurement parameters are optimum for IPCE measurement or not. Further information about IPCE measurement is provided in our application note CIMPS-IPCE.

    Fully Integrated QE/IPCE Photo-Electrochemical Workstation with UV
    Extension
    -Zennium pro workstation
    -Frequency range: 10 µHz to 8 MHz
    -Max. current: ± 3 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 28 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision/high-speed CV (option)
    -Floating & grounded mode switchable
    -5 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -Tunable light source TLS03 UV
    -Wavelength range: 295-1020 nm
    -typ. res.: 1 nm@430-720 nm, 15 nm@295-420 nm, 40 nm@735-1020 nm
    -typ. line width: 10 nm@295-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-2 q required, optional
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 70,748.00 70748.0 USD
    Price Valid only in North America

    CIMPS-QE/IPCE is an extended CIMPS system with the capability to measure quantum efficiency (QE) or incident photon to current efficiency (IPCE). The CIMPS-QE/IPCE extension consists of an easily mountable and portable tuneable light source (TLS). The TLS contains dynamic LEDs, a monochromator and a feedback control which allow accurate light illumination during the measurements without any warm up time.

    Multiple LEDs in the TLS provide higher light intensity across the broad wavelength range and longer operational lifetime as compared to any traditional Xe-lamp. This high light intensity is crucial for IPCE measurements on DSSC, perovskites or organic solar cells or photoelectrodes.

    Like the modular LEDs used in the CIMPS system, the TLS is also able to carry out sine-wave modulation for IPCE measurements and does not require a mechanical chopper. During IPCE measurements, a special indicator is also provided which indicates if the measurement parameters are optimum for IPCE measurement or not. Further information about IPCE measurement is provided in our application note CIMPS-IPCE.

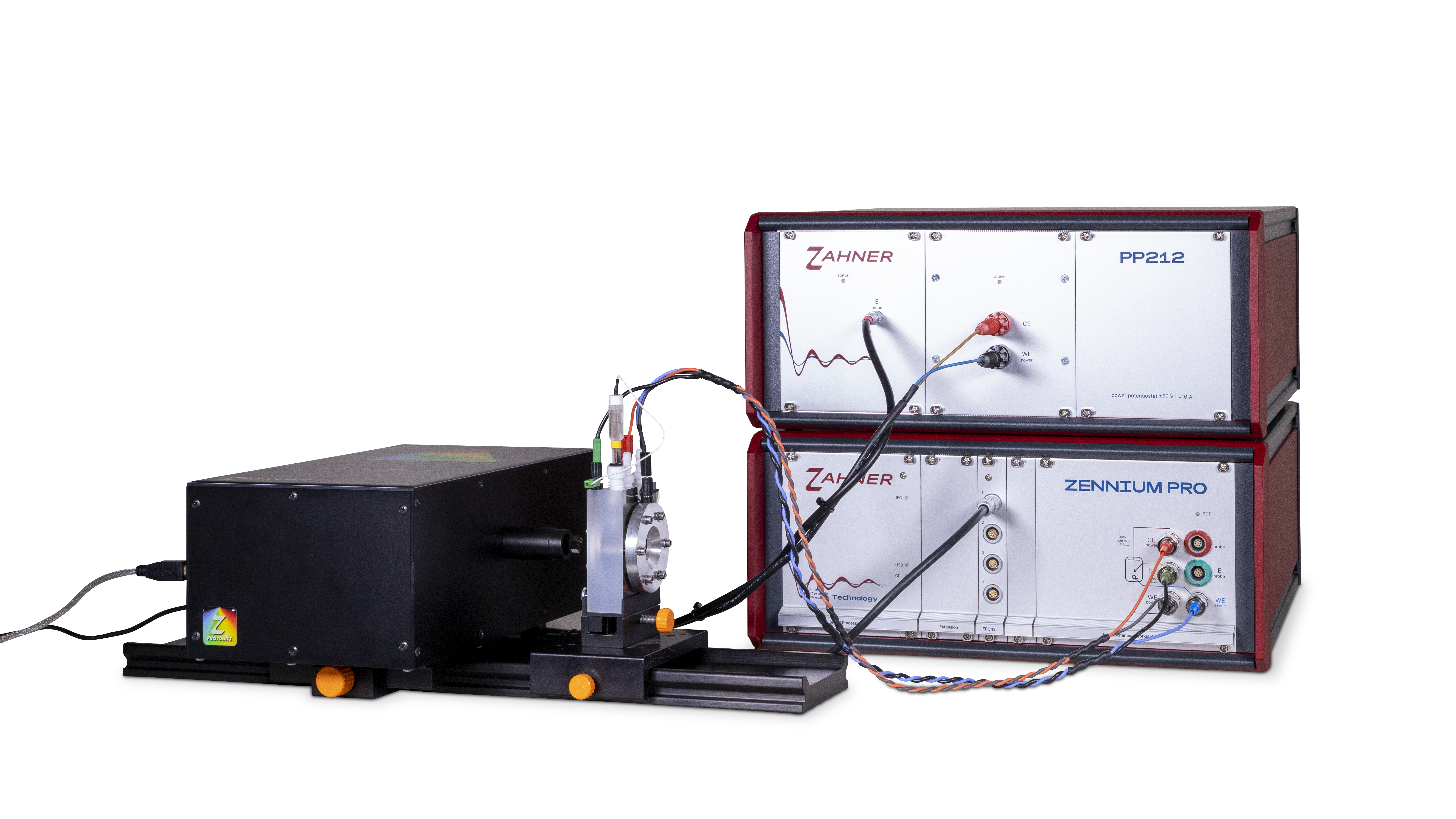

    Fully Integrated QE/IPCE Photo-Electrochemical Workstation
    -Zennium pro workstation
    -Frequency range: 10 µHz to 8 MHz
    -Max. current: ± 3 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 28 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision/ high-speed CV (option)
    -Floating & grounded mode switchable
    -5 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -Tunable light source TLS03
    -Wavelength range: 365-1020 nm
    -typ. res.: 1 nm@430-720 nm, 15 nm@365-420 nm, 40 nm@735-1020 nm
    -typ. line width: 10 nm@365-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-2 required, optional
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS-QE/IPCE is an extended CIMPS system with the capability to measure quantum efficiency (QE) or incident photon to current efficiency (IPCE). The CIMPS-QE/IPCE extension consists of an easily mountable and portable tuneable light source (TLS). The TLS contains dynamic LEDs, a monochromator and a feedback control which allow accurate light illumination during the measurements without any warm up time.

    Multiple LEDs in the TLS provide higher light intensity across the broad wavelength range and longer operational lifetime as compared to any traditional Xe-lamp. This high light intensity is crucial for IPCE measurements on DSSC, perovskites or organic solar cells or photoelectrodes.

    Like the modular LEDs used in the CIMPS system, the TLS is also able to carry out sine-wave modulation for IPCE measurements and does not require a mechanical chopper. During IPCE measurements, a special indicator is also provided which indicates if the measurement parameters are optimum for IPCE measurement or not. Further information about IPCE measurement is provided in our application note CIMPS-IPCE.

    Fully Integrated QE/IPCE Photo-Electrochemical Workstation
    -Zennium pro workstation
    -Frequency range: 10 µHz to 8 MHz
    -Max. current: ± 3 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 28 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision/ high-speed CV (option)
    -Floating & grounded mode switchable
    -5 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -Tunable light source TLS03
    -Wavelength range: 365-1020 nm
    -typ. res.: 1 nm@430-720 nm, 15 nm@365-420 nm, 40 nm@735-1020 nm
    -typ. line width: 10 nm@365-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-2 required, optional
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 63,495.00 63495.0 USD
    Price Valid only in North America

    CIMPS-X Photo-Electrochemical Workstation
    -Zennium X workstation
    -Frequency range: 10 µHz to 12 MHz
    -Max. current: ± 4 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 32 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision high-speed CV
    -Floating & grounded mode switchable
    -10 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS-X Photo-Electrochemical Workstation
    -Zennium X workstation
    -Frequency range: 10 µHz to 12 MHz
    -Max. current: ± 4 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 32 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision high-speed CV
    -Floating & grounded mode switchable
    -10 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 49,534.00 49534.0 USD
    Price Valid only in North America

    Zahner's CIMPS is a highly dynamic LED-based system with an active light feedback loop that ensures a controlled and constant light intensity during the photoelectrochemical or photovoltaic measurements. Fast light sources enable dynamic photoelectrochemical measurements like IMPS/IMVS. The robust control of light intensity allows accurate IMPS/IMVS measurements, giving the system its iconic name ""controlled intensity-modulated photo spectroscopy (CIMPS)"". Further information on our light feedback loop and its benefits is provided in the manuscript ""C in CIMPS"".

    CIMPS-pro Photo-Electrochemical Workstation
    -Zennium pro workstation
    -Frequency range: 10 µHz to 8 MHz
    -Max. current: ± 3 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 28 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision high-speed CV (option)
    -Floating & grounded mode switchable
    -5 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    Zahner's CIMPS is a highly dynamic LED-based system with an active light feedback loop that ensures a controlled and constant light intensity during the photoelectrochemical or photovoltaic measurements. Fast light sources enable dynamic photoelectrochemical measurements like IMPS/IMVS. The robust control of light intensity allows accurate IMPS/IMVS measurements, giving the system its iconic name ""controlled intensity-modulated photo spectroscopy (CIMPS)"". Further information on our light feedback loop and its benefits is provided in the manuscript ""C in CIMPS"".

    CIMPS-pro Photo-Electrochemical Workstation
    -Zennium pro workstation
    -Frequency range: 10 µHz to 8 MHz
    -Max. current: ± 3 A
    -Controlled voltage: ± 15 V / ± 5 V
    -Compliance voltage: ± 28 V
    -HDP technology for outstanding dynamic accuracy
    -ADF technology for high-precision high-speed CV (option)
    -Floating & grounded mode switchable
    -5 slots for additional hardware modules
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -TestBox, SIMPECC, CIMPS cable set, calibration data
    -System is controlled by a Windows8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 38,328.00 38328.0 USD
    Price Valid only in North America

    Electrochemical Workstation

    The Zennium X is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 12 MHz at ±4 A and at a compliance voltage of up to ±32 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.

    The electrochemical measurement capabilites of the Zennium X workstation can be extented by adding up to ten additional plug-in cards such as TEMP/U or PAD4. It is already equipped with an EPC42 which allows to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, the Zennium X electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.

    Frequency range: 10 μHz to 12 MHz
    Max. current: 4 A
    Controlled voltage: 15 V / 5 V
    Compliance voltage: 32 V
    HDP technology for outstanding dynamic accuracy
    ADF technology for high-precision/high-speed CV
    Floating & grounded mode switchable
    10 slots for additional hardware modules
    Accessories: TestBox, cell cable set, calibration data
    ThalesXT software package
    System is controlled by a Windows7/8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    Electrochemical Workstation

    The Zennium X is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 12 MHz at ±4 A and at a compliance voltage of up to ±32 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.

    The electrochemical measurement capabilites of the Zennium X workstation can be extented by adding up to ten additional plug-in cards such as TEMP/U or PAD4. It is already equipped with an EPC42 which allows to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, the Zennium X electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.

    Frequency range: 10 μHz to 12 MHz
    Max. current: 4 A
    Controlled voltage: 15 V / 5 V
    Compliance voltage: 32 V
    HDP technology for outstanding dynamic accuracy
    ADF technology for high-precision/high-speed CV
    Floating & grounded mode switchable
    10 slots for additional hardware modules
    Accessories: TestBox, cell cable set, calibration data
    ThalesXT software package
    System is controlled by a Windows7/8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 34,895.00 34895.0 USD
    Price Valid only in North America

    CIMPS Add-on for QE/IPCE/PCS Measurements
    TLS03/UV
    -Wavelength range: 295-1020 nm
    -Typ. res.: 1 nm@430-720 nm, 15 nm@295-420 nm, 40 nm@735-1020 nm
    -Typ. line width: 10 nm@295-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-1/2 required, optional
    -CIMPS-QE/IPCE software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS Add-on for QE/IPCE/PCS Measurements
    TLS03/UV
    -Wavelength range: 295-1020 nm
    -Typ. res.: 1 nm@430-720 nm, 15 nm@295-420 nm, 40 nm@735-1020 nm
    -Typ. line width: 10 nm@295-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-1/2 required, optional
    -CIMPS-QE/IPCE software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 32,670.00 32670.0 USD
    Price Valid only in North America

    CIMPS Add-on for Photo-Electrochemical Transmittance/Absorbance
    -Backthinned-CCD fiber optic spectrometer
    -PECC-slide with 2 x PECC-2 Q
    -Balanced tungsten-deuterium light source (220-1100 nm)
    -CIMPS-abs software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS Add-on for Photo-Electrochemical Transmittance/Absorbance
    -Backthinned-CCD fiber optic spectrometer
    -PECC-slide with 2 x PECC-2 Q
    -Balanced tungsten-deuterium light source (220-1100 nm)
    -CIMPS-abs software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 28,452.00 28452.0 USD
    Price Valid only in North America

    CIMPS Add-on for QE/IPCE/PCS Measurements
    TLS03
    -Wavelength range: 365-1020 nm
    -Typ. res.: 1 nm@430-720 nm, 15 nm@365-420 nm, 40 nm@735-1020 nm
    -Typ. line width: 10 nm@365-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-1/2 required, optional
    -CIMPS-QE/IPCE software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS Add-on for QE/IPCE/PCS Measurements
    TLS03
    -Wavelength range: 365-1020 nm
    -Typ. res.: 1 nm@430-720 nm, 15 nm@365-420 nm, 40 nm@735-1020 nm
    -Typ. line width: 10 nm@365-720 nm, 50 nm@735-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-1/2 required, optional
    -CIMPS-QE/IPCE software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 25,167.00 25167.0 USD
    Price Valid only in North America

    Electrochemical Workstation

    The Zennium pro is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 8 MHz at ±3 A and at a compliance voltage of up to ±28 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.

    The electrochemical measurement capabilites of the ZENNIUM pro workstation can be extented by adding up to five additional plug-in cards such as TEMP/U or EPC42. For example, the latter makes it possible to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, our Zennium pro electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.

    Frequency range: 10 μHz to 8 MHz
    Max. current: 3 A
    Controlled voltage: 15 V / 5 V
    Compliance voltage: 28 V
    HDP technology for outstanding dynamic accuracy
    ADF technology for high-precision/high-speed CV (option)
    Floating & grounded mode switchable 5 slots for additional hardware modules
    Accessories: TestBox, cell cable set, calibration data
    ThalesXT software package
    System is controlled by a Windows7/8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    Electrochemical Workstation

    The Zennium pro is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 8 MHz at ±3 A and at a compliance voltage of up to ±28 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.

    The electrochemical measurement capabilites of the ZENNIUM pro workstation can be extented by adding up to five additional plug-in cards such as TEMP/U or EPC42. For example, the latter makes it possible to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, our Zennium pro electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.

    Frequency range: 10 μHz to 8 MHz
    Max. current: 3 A
    Controlled voltage: 15 V / 5 V
    Compliance voltage: 28 V
    HDP technology for outstanding dynamic accuracy
    ADF technology for high-precision/high-speed CV (option)
    Floating & grounded mode switchable 5 slots for additional hardware modules
    Accessories: TestBox, cell cable set, calibration data
    ThalesXT software package
    System is controlled by a Windows7/8/10-PC (not included)

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 24,514.00 24514.0 USD
    Price Valid only in North America

    CIMPS Add-on for Photo-Electrochemical Transmittance/Absorbance
    -ILT-960 spectrometer
    -PECC-slide with 2 x PECC-2
    -LSW-1 LED (420-730 nm) or WOW01 tungsten light source (360-1000 nm)
    -CIMPS-abs software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS Add-on for Photo-Electrochemical Transmittance/Absorbance
    -ILT-960 spectrometer
    -PECC-slide with 2 x PECC-2
    -LSW-1 LED (420-730 nm) or WOW01 tungsten light source (360-1000 nm)
    -CIMPS-abs software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 22,814.00 22814.0 USD
    Price Valid only in North America

    The EL1002 single-quadrant potentiostat was designed as an extension for the Zennium series to perform measurements on high power electrochemical systems such as PEM or solid oxide fuel cells. This highly dynamic electronic load was optimized for EIS measurements on frequencies on the order of 10 µHz to 100 kHz at high current densities.

    The EL1002 is suited for power dissipation up to 1 kW at voltages up to 100 V. It can modulate and control currents of up to 200 A. Due to the innovative connection concept of the EL1002, additional power supplies or electronic loads can extend the current range up to 680 A. The EXT-concept allows for outstanding EIS quality at high currents and conserves a good value to price ratio.

    The versatile interconnection capabilities of the EL1002 gives access to measurements at high currents on large-scale batteries, electrolyzers or fuel cells.


    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements up 68 kW
    -Dynamic EIS measurements at high power from 10 µHz bis 100 kHz
    -High bandwitdh and outstanding EIS data quality

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    The EL1002 single-quadrant potentiostat was designed as an extension for the Zennium series to perform measurements on high power electrochemical systems such as PEM or solid oxide fuel cells. This highly dynamic electronic load was optimized for EIS measurements on frequencies on the order of 10 µHz to 100 kHz at high current densities.

    The EL1002 is suited for power dissipation up to 1 kW at voltages up to 100 V. It can modulate and control currents of up to 200 A. Due to the innovative connection concept of the EL1002, additional power supplies or electronic loads can extend the current range up to 680 A. The EXT-concept allows for outstanding EIS quality at high currents and conserves a good value to price ratio.

    The versatile interconnection capabilities of the EL1002 gives access to measurements at high currents on large-scale batteries, electrolyzers or fuel cells.


    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements up 68 kW
    -Dynamic EIS measurements at high power from 10 µHz bis 100 kHz
    -High bandwitdh and outstanding EIS data quality

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 19,339.00 19339.0 USD
    Price Valid only in North America

    CIMPS Add-on for Photo-Electrochemical Light Emission
    -SEL033 NIST traceable sensor
    -ILT-960 spectrometer
    -Integral & spectrally resolved measurements
    -CIMPS-emit software for integral and spectral resolved measurements

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS Add-on for Photo-Electrochemical Light Emission
    -SEL033 NIST traceable sensor
    -ILT-960 spectrometer
    -Integral & spectrally resolved measurements
    -CIMPS-emit software for integral and spectral resolved measurements

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 17,861.00 17861.0 USD
    Price Valid only in North America

    The ZENNIUM XC is a compact potentiostat / galvanostat including a frequency response analyser. It offers 32 bit DC resolution and 24 bit AC resolution across 12 different current ranges, which ensure exceptional accurate and precise measurements. The ZENNIUM XC combines compact design with the high-end measurements hardware.

    A list of main electrochemical measurements possible with the ZENNIUM XC potentiostat is provided here.
    -DC voltage ranges: ±5 V and ±14 V
    -Current up to ±2 A over 12 current ranges
    -EIS frequency range from 10 µHz to 5 MHz
    -AC amplitude of 0 - 6 V or 0 - 2 A for EIS
    -Switchable floating / grounded mode

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    The ZENNIUM XC is a compact potentiostat / galvanostat including a frequency response analyser. It offers 32 bit DC resolution and 24 bit AC resolution across 12 different current ranges, which ensure exceptional accurate and precise measurements. The ZENNIUM XC combines compact design with the high-end measurements hardware.

    A list of main electrochemical measurements possible with the ZENNIUM XC potentiostat is provided here.
    -DC voltage ranges: ±5 V and ±14 V
    -Current up to ±2 A over 12 current ranges
    -EIS frequency range from 10 µHz to 5 MHz
    -AC amplitude of 0 - 6 V or 0 - 2 A for EIS
    -Switchable floating / grounded mode

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 17,108.00 17108.0 USD
    Price Valid only in North America

    CIMPS add-on for dynamic transmittance/reflectance measurements
    -PAD4 card for parallel acquisition of up to 4 sensors
    -4 calibrated sensor: 1x UV, 1x NIR, 2xVIS with filter catalogue
    -White light source
    -CIMPS-dtr/ois software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    CIMPS add-on for dynamic transmittance/reflectance measurements
    -PAD4 card for parallel acquisition of up to 4 sensors
    -4 calibrated sensor: 1x UV, 1x NIR, 2xVIS with filter catalogue
    -White light source
    -CIMPS-dtr/ois software

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 15,331.00 15331.0 USD
    Price Valid only in North America

    Zennium/X/pro to CIMPS/X/pro
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -SIMPECC, CIMPS cable set, calibration data

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    Zennium/X/pro to CIMPS/X/pro
    -EPC42 extension card for controlling PP212
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -SIMPECC, CIMPS cable set, calibration data

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 15,136.00 15136.0 USD
    Price Valid only in North America

    IM6 (with ColdFire Processor and EPC42 Card only) to CIMPS
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -SIMPECC, CIMPS cable set, calibration data

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    IM6 (with ColdFire Processor and EPC42 Card only) to CIMPS
    -LED potentiostat: PP212
    -Current range: ± 10 A
    -Voltage range: ± 20 V
    -Frequency range: DC - 200 kHz
    -LDA2 Light source setup
    -Optical bench
    -Calibrated feedback sensor
    -LSW-1 plug-in LED
    -CIMPS aligner bar
    -ThalesXT software package
    -SIMPECC, CIMPS cable set, calibration data

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 13,724.00 13724.0 USD
    Price Valid only in North America

    TLS03 UV-Upgrade
    -Extension of wavelength range to: 295-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-2 Q required, optional

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    TLS03 UV-Upgrade
    -Extension of wavelength range to: 295-1020 nm
    -Calibration for 1 mm distance
    -Calibration for PECC-2 Q required, optional

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 12,904.00 12904.0 USD
    Price Valid only in North America

    The PP242 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±40 A at a voltage range of up to ±5 V (max. power output 200 W).

    For medium power applications, the PP242 is used as an extension of the ZENNIUM series potentiostat. Most electrochemical techniques which can be performed with the main ZENNIUM potentiostat can also be carried out with the extended power potentiostat PP242 setup.

    Besides an extension, the PP242 power potentiostat can also be used in stand-alone mode for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner Lab software controls the potentiostat during stand-alone operations.

    The Zahner's power potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements
    -Possible integration in a Python work environment
    -Standalone operation for simple DC measurements

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    The PP242 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±40 A at a voltage range of up to ±5 V (max. power output 200 W).

    For medium power applications, the PP242 is used as an extension of the ZENNIUM series potentiostat. Most electrochemical techniques which can be performed with the main ZENNIUM potentiostat can also be carried out with the extended power potentiostat PP242 setup.

    Besides an extension, the PP242 power potentiostat can also be used in stand-alone mode for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner Lab software controls the potentiostat during stand-alone operations.

    The Zahner's power potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements
    -Possible integration in a Python work environment
    -Standalone operation for simple DC measurements

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 8,392.00 8392.0 USD
    Price Valid only in North America

    The PP222 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±20 A at a voltage range of up to ±10 V (max. power output 200 W).

    For medium power applications, the PP222 is used as an extension of the ZENNIUM series potentiostat. Most electrochemical techniques which can be performed with the main ZENNIUM potentiostat can also be carried out with the extended power potentiostat PP222 setup.

    Besides an extension, the PP222 power potentiostat can also be used in stand-alone mode for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner Lab software controls the potentiostat during stand-alone operations.

    The Zahner's power potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements
    -Standalone operation
    -Possible integration in a Python work environment

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    The PP222 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±20 A at a voltage range of up to ±10 V (max. power output 200 W).

    For medium power applications, the PP222 is used as an extension of the ZENNIUM series potentiostat. Most electrochemical techniques which can be performed with the main ZENNIUM potentiostat can also be carried out with the extended power potentiostat PP222 setup.

    Besides an extension, the PP222 power potentiostat can also be used in stand-alone mode for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner Lab software controls the potentiostat during stand-alone operations.

    The Zahner's power potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements
    -Standalone operation
    -Possible integration in a Python work environment

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 8,392.00 8392.0 USD
    Price Valid only in North America

    The PP212 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±10 A at a high voltage range of up to ±20 V (max. power output 200 W).

    For medium power applications, the PP212 is used as an extension of the ZENNIUM series potentiostat. Most electrochemical techniques which can be performed with the main ZENNIUM potentiostat can also be carried out with the extended power potentiostat PP212 setup.

    Besides an extension, the PP212 power potentiostat can also be used in stand-alone mode for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner Lab software controls the potentiostat during stand-alone operations.

    The Zahner's power potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements
    -Stand-alone operation
    -Possible integration in a Python work environment

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    The PP212 is a 4-quadrant power potentiostat designed to apply and sink high currents up to ±10 A at a high voltage range of up to ±20 V (max. power output 200 W).

    For medium power applications, the PP212 is used as an extension of the ZENNIUM series potentiostat. Most electrochemical techniques which can be performed with the main ZENNIUM potentiostat can also be carried out with the extended power potentiostat PP212 setup.

    Besides an extension, the PP212 power potentiostat can also be used in stand-alone mode for standard DC measurements i.e., charging/discharging of batteries. Zahner's new Zahner Lab software controls the potentiostat during stand-alone operations.

    The Zahner's power potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

    -Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements
    -Stand-alone operation
    -Possible integration in a Python work environment

    For pricing information, please request a quotation from sales@sciencetech-inc.com.
    $ 8,392.00 8392.0 USD
    Price Valid only in North America
    Copyright © Sciencetech
