Lamp Power: 30 W
Lamp Type: Deuterium, DT030 (included)
Output Beam Type: Collimated
Output Beam Diameter: 25 mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Power Supply: PS-DT030-A-M (included)

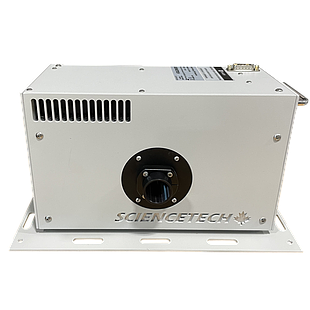

Sciencetech's Research Grade Deuterium Source Packages come with all the components required to operate a research-quality D2 source: power supply, lamp housing, output optics, and lamp.

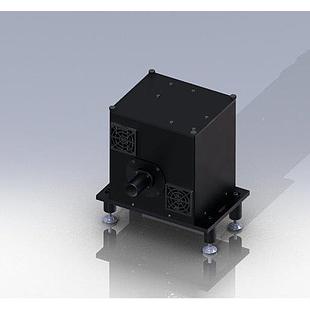

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

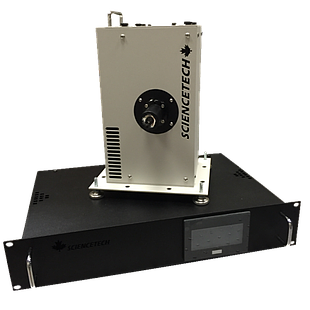

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.
A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
$ 5,649.00
Lamp Power: 30 W
Lamp Type: Deuterium, DT030 (included)
Output Beam Type: Collimated
Output Beam Diameter: 25 mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Power Supply: PS-DT030-A-M (included)
Sciencetech's Research Grade Deuterium Source Packages come with all the components required to operate a research-quality D2 source: power supply, lamp housing, output optics, and lamp.
These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.
Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.
A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
