Low Cost Solar Simulators

SciSun Solar Simulator - Sciencetech

Sciencetech Low Cost Solar Simulators


Sciencetech is proud to offer our newly improved line of Low Cost Solar Simulator Systems, based on small area lenses. Sciencetech offers two lines (SF and SciSun) of solar simulators that produce up to 2 Suns (AM1.5G), depending on the selected model.

These systems are a great choice if low price is a high priority, without having to compromise on important solar simulator specifications.

At the heart of a Sciencetech Solar Simulator, a xenon arc lamp, housing, a special optical assembly, power supply with igniter, filter holder and manual shutter are included. SF solar simulators also include UV fused silica lenses for higher UV emission.

These systems are complete plug-and-play operable and come with easily configurable, touchscreen power supply and control software. Class AAA Solar Simulator spectral matching, spatial non-uniformity, and temporal instability are conformed to ASTM, IEC and JIS standards.

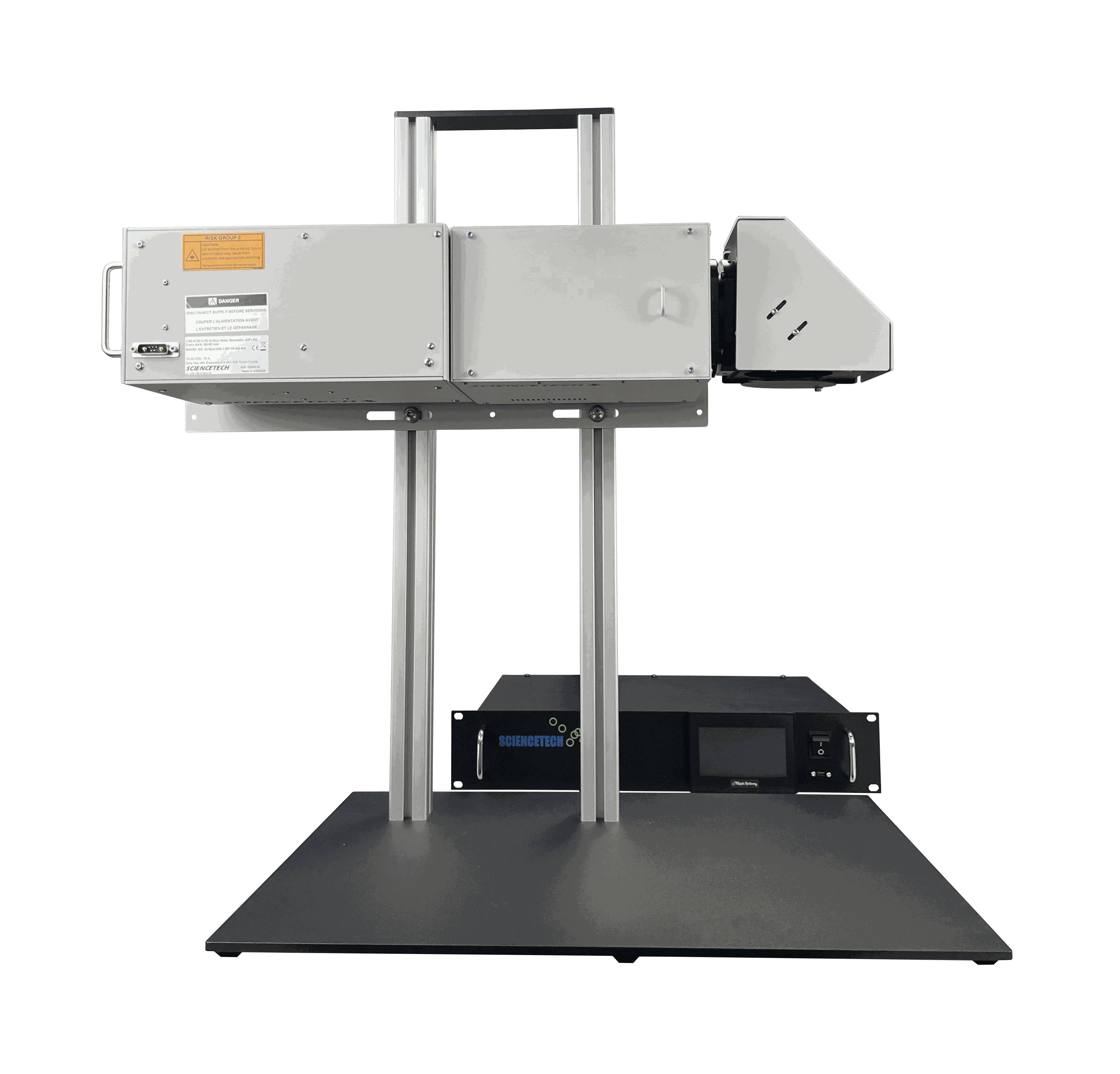

SciSun Solar Simulator Series

(Previously Sciencetech SLB Solar Simulator series)


The most cost-effective solar simulator on the market. The SciSun comes with an adjustable beam turner mounted at the output to direct the beam at any angle: down or up, left or right. Designed for 150 - 300W Xenon arc lamps.



Class AAA solar simulation in accordance with ASTM, IEC, and JIS
2 inch x 2 inch (50mm x 50mm) target area illumination
Up to 2 suns irradiance
Provides a manual variable attenuator to adjust from 0.1–2 suns



AM1.5G or AM0 Spectral Match available

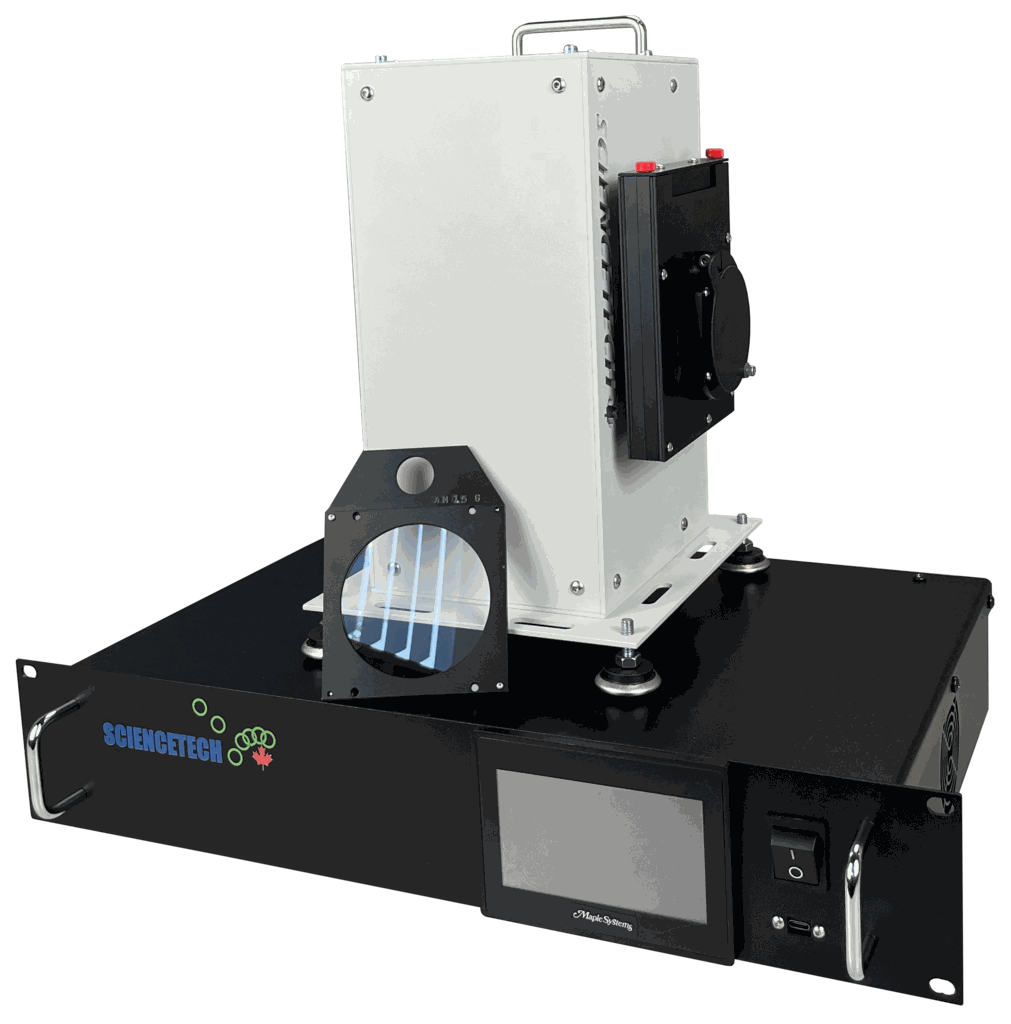

SF Solar Simulator Series



Sciencetech SF Series offers Highly Collimated Beam Solar Simulators for applications requiring a more collimated beam or more UV production. Sciencetech SF Solar Simulator include an arc lamp housing, 1 arc lamp, touchscreen power supply with igniter, and filter holder.


Class AAA solar simulation (AM1.5G)
High collimation: 1 degree half angle collimation
Up to 2 inch (50mm) diameter target area
AM1.5G and AM0 spectral match

Low Cost Solar Simulator Configuration


Product Comparison

Click an image for larger version
Product Uniformity Target Size (mm) Collimation
(half angle)
Working Distance (mm)
With beam turner
Working Distance (mm)
Without beam turner
Power Typical Non-Uniformity Measurement
SF300A < 2 % Class A 25 1 degree 25 - 50 75 - 100 1 Sun AM1.5G SF300A Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SF150B < 5 % Class B 25 1 degree 25 - 50 75 - 100 1 Sun AM1.5G SF150B Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SF300B < 5 % Class B 50 1 degree 25 - 50 75 - 100 1 Sun AM1.5G SF300B Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SciSun-AM1.5G < 2 % Class A 50 × 50 12 degree Use Vertical Stand 365 - 395 1 Sun AM1.5G SciSun-LP-150 Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SciSun-LP-150
Manual Power Supply
< 2 % Class A 50 x 50 12 degree Use Vertical Stand 365 - 395 1 Sun AM1.5G SciSun300 Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SciSun-AM0 < 2 % Class A 50 × 50 12 degree Use Vertical Stand 365 - 395 2 Sun AM1.5G CONTACT
SciSun-LP-300
Manual Power Supply
< 2 % Class A 50 x 50 12 degree Use Vertical Stand 365 - 395 2 Sun AM1.5G CONTACT

Configuration SciSun (standard) SF Model
Arc Lamp Housing with integrated igniter
Xenon Arc Lamp
Filter Holder
Beam Turner
Continuous beam angle variations for 0-360°
Quality Control Report
Touchscreen power supply interface
Power supply control software
Manual variable attenuator
Height adjustable stand
SciSun-AM1.5G and SciSun-AM0 DimensionsSciencetech Low Cost Solar Simulator Specifications
SF-series Dimensions

Contact Us Today
Get more information or request a quote.
X

Product Category

View Filter

x
Clear all x

Filter Option

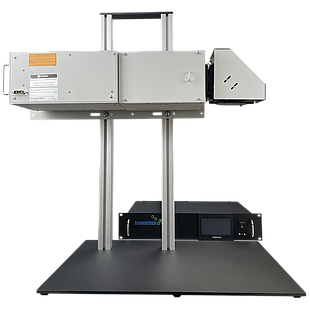

Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
13,930.00
Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
13,930.00 13930.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50×50 mm
Intensity: 2 Suns using 300W, 1 Sun using 150W
ND filter for 1 sun operation included with 300W version
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching is the standard option. For AM0 matching, please see the AM0 SciSun product. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 2 Suns, 150 W produces a maximum intensity of 1 Sun.
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the 300W SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
8,465.00
In stock
Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50×50 mm
Intensity: 2 Suns using 300W, 1 Sun using 150W
ND filter for 1 sun operation included with 300W version
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching is the standard option. For AM0 matching, please see the AM0 SciSun product. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 2 Suns, 150 W produces a maximum intensity of 1 Sun.
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the 300W SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
8,240.00 8240.0 USD
Price Valid only in North America

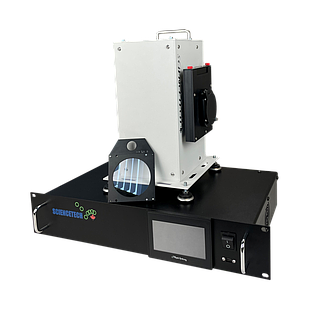

Class: ABA
Spot size: 50 mm (2”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 50 mm (2”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,495.00
In stock
Class: ABA
Spot size: 50 mm (2”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 50 mm (2”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,495.00 6495.0 USD
Price Valid only in North America


Class: AAA
Spot size: 25 mm (1”) diameter at 1 sun*
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,850.00
In stock
Class: AAA
Spot size: 25 mm (1”) diameter at 1 sun*
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,850.00 6850.0 USD
Price Valid only in North America


Class: ABA
Spot size: 25 mm (1”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,314.00
In stock
Class: ABA
Spot size: 25 mm (1”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,314.00 6314.0 USD
Price Valid only in North America
