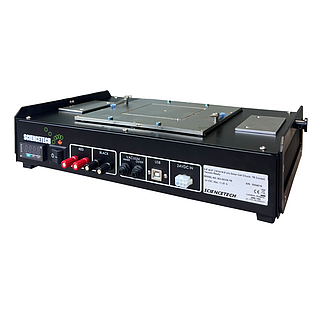

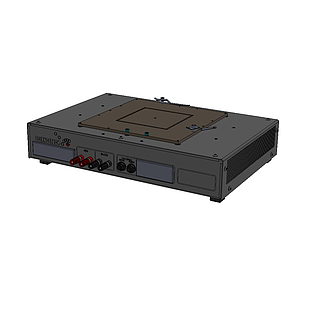

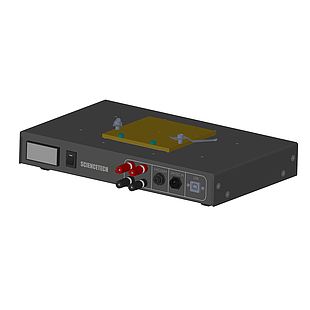

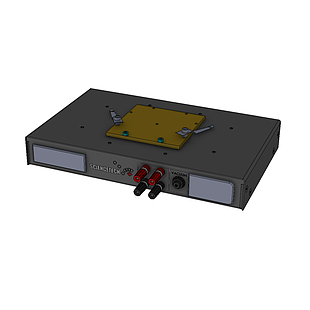

The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W (not including recirculator or temp control unit)
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit

$ 1,979.00

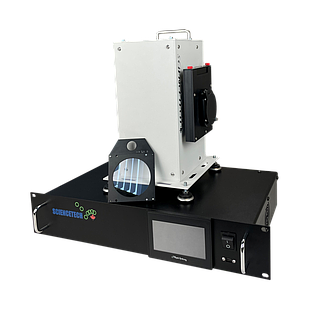

The SF series solar simulator is a low cost solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF includes arc lamp housing, arc lamp, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.5D, and AM1.5G. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Please select desired filters when ordering. Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Classification: AAA to UBA (see specific model), ASTM E927-19
Spot Size: 25 mm (1”) to 50 mm (2") diameter at 1 Sun
Working distance: 100-130mm (4-5”) from exit port
Collimation: 1 degree half angle

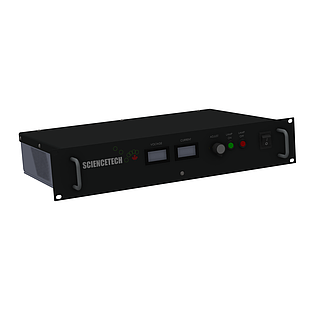

Sciencetech Power Supply: Adjustable Power Supply with Touchscreen Control
Lamp included.
Filter included if selected (None, AM1.5D, AM1.5G, or AM0).

$ 6,899.00

The Global Safe Control Box is a single control unit for up to 12 HFSS power supplies. The control box allows for seamless control and increased safety. All power supplies can be turned on and off at once from the Global Safe Control box.

Also Included with the Global Safe Control Box:

- Two E-STOP buttons that can be located in and around the HFSS. Pressing either E-STOP will immediately cut power to all power supplies connected to the Global Safe Control Box.
- One Proximity Door Sensor (along with a defeater if you do not need to use a door sensor). The inductive door sensor can be easily placed on any door that should not be opened during nominal operation of the system.
- 1 Stack Light (4 colours) to indicate the status of the system (GREEN - System ON and Software Initialized, BLUE - Lamp(s) ON, YELLOW - Active Software Error, RED - E-STOP pressed).

Contact for Pricing

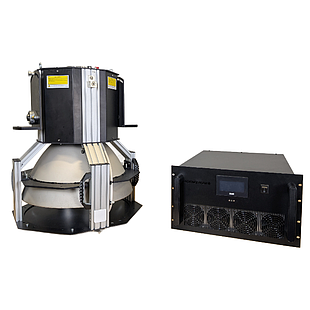

A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 200-240 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

Power Requirements:
200-240 VAC, 50/60 Hz, 31 A , 3 phase (200-240 V phase-to-phase), 4 wires (3P+E)
Includes hardwired 6 ft power cable with L15-50P termination.
Requires a minimum 40 A, 3 phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)

Contact for Pricing

A power supply rack for Sciencetech’s High Flux Solar Simulator system. Each rack can hold up to four power supplies.

Contact for Pricing

The High Flux Solar Simulator (HFSS) Technology Package is a great addition to an HFSS system. It includes:
- A network switch for connecting multiple power supplies and accessories (maximum five power supplies plus two accessories) to a single control computer.
- A webpage-based camera for safely viewing inside the HFSS support structure
- Alignment lasers for easily locating the target plane of the radiative modules.

Contact for Pricing

A height-adjustable stand for downward-facing operation of Sciencetech’s line of High Flux Solar Simulators (HFSS). This stand holds up to four radiative modules (168-9000) when the High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022) is included. Each radiative module requires one High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022). The support structure includes two access doors, each with its own viewport; one on the front and one on the back. It also includes four access panels on each side of the support structure to allow for routing large cables, pipes, etc. in and out of the support structure based on the experiment to be conducted with the HFSS system.

Key Dimensions
Maximum Outer Dimensions (H x W x D)[mm]: 2913 x 1728 x 1728
Interior Dimensions (H x D)[mm]: 1550 x 1550
Four Access Panel Dimensions (H x W)[mm]: 558 x 1054, 305 x 1054, 177 x 1054, 177 x 1054
Target Plane Location (no rotation on each radiative module, normal incidence): 420-825 mm off the floor
Target Plane Location (all lamps angled to same focal point, 18.1° incidence): 505-910 mm off the floor

Contact for Pricing

An E-STOP button add-on for Sciencetech’s High Flux Solar Simulator systems. This E-STOP can be connected to up to four radiative modules.

Contact for Pricing

A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 380-480 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

Power Requirements:
380-480 VAC, 50/60 Hz, 17.4-14.2 A, 3 phase (380-480 V phase-to-phase), 4 wires (3P+E)
Includes one L16-30 power cable.

Contact for Pricing

An add-on to Sciencetech’s High Flux Solar Simulator Radiative Modules to provide lateral, rotational, and tilt adjustment of a single radiative module. This add-on is designed to interface with Sciencetech’s line of High Flux Solar Simulator Downward Facing Stands (i.e. 168-8120). Please add one HFSS-ADJUST-DF for each Radiative Module (i.e. 168-9000 or 168-9001) as well as one total HFSS stand (i.e. 168-8120).

Lateral Adjustment [mm]: ±31
Rotational Adjustment [°]: ±15
Tilt Adjustment [°]: ±30

Please note that the maximum lateral, rotational, and tilt adjustments achievable may be limited further depending on the system configuration. Please discuss your specific requirements with a Sciencetech technical representative.

Contact for Pricing

A single borofloat output window for an HFSS Radiative Module. This output window easily attaches to a radiative module using four screws. It does not completely seal the output of the radiative module due to the requirement for forced air cooling of the arc lamp, but it will protect the interior of the module from direct contamination.

Contact for Pricing

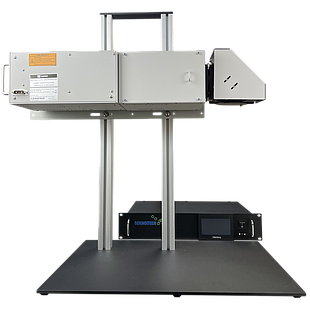

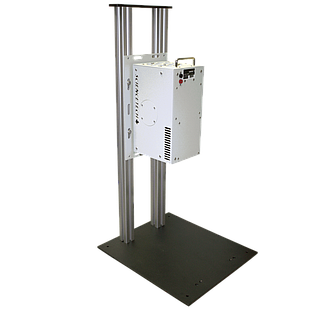

Downward facing stand for the XLH- series lamp housing .
This stand allows for downwards illumination as well as adjusting the location of the uniform plane relative to the baseplate of the downward facing stand.

$ 899.00

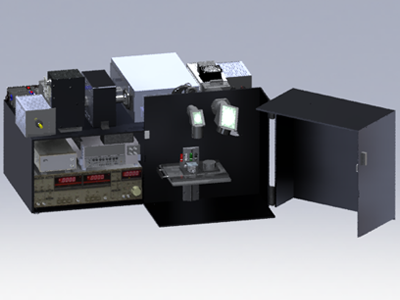

The PTS-2-QE system allows an overall "external" quantum value measurement, which is considered the most important factor in cell testing. It includes all the Spectral Response equipment of the PTS-1, as well as a bias light and additional electronics and software to seamlessly allow user-friendly measurements of Quantum Efficiency.

The PTS-2-QE Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency - IPCE
- AC and DC measurement mode

Each PTS-2 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector.
EQE and IV measurement capabilities verified against a solar reference device certified by a ISO 17025 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site.

A preconfigured computer with software is included with the system. An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system also includes 1 IEC 60320 C5 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 46,000.00

The PTS-3-PTD maintains all the capabilities of the PTS-2-QE but adds the Photothermal Deflection Spectroscopy technique.

The PTS-3-PTD Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency - IPCE
- AC and DC measurement Mode
- PTDS Measurement Capability

Each PTS-3 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector.
EQE and IV measurement capabilities verified against a solar reference device certified by a ISO 170205 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site.

A preconfigured computer with software is included with the system. An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system also includes 1 IEC 60320 C5 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 94,750.00

The PTS-2-IQE system allows an overall external quantum efficiency value measurement as well as internal quantum efficiency measurements using an integrating sphere. It includes all the spectral response equipment of the PTS-1, as well as a bias light and additional electronics and software to seamlessly allow user-friendly measurements of quantum efficiency.

The PTS-2-IQE Includes the capability to perform the following measurements:
- Current Voltage (I-V) Testing
- Spectral Response
- External Quantum Efficiency/IPCE
- Internal Quantum Efficiency
- Reflectance
- AC and DC Measurement Mode

Each PTS-2 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector. EQE/IQE and IV measurement capabilities verified against a solar reference device certified by a ISO 17025 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site. A preconfigured computer with software is included with the system.

An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system includes 1 IEC 60320 C5 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 50,000.00

The PTS-1-SR system includes a lamp and monochromator for a tunable light source, which is coupled to a high sensitivity source meter with measurement software. Designed for researchers who have limited budgets but want to start work immediately, this allows the ability to do baseline studies until additional funding for the full QE or CPM system becomes available.

The PTS-1 Includes the capability to perform the following measurements:

- Spectral Response
- External Quantum Efficiency - IPCE, without Optical Bias
- AC and DC Measurement Mode

Each PTS-1 system is rigorously tested in our London Ontario lab to meet minimum benchmark capabilities. Each system includes a detailed test report including probe beam characterization with a calibrated reference detector. SR measurement capabilities verified against a solar reference device certified by a ISO 17025 accredited laboratory. A SCI-MO device is also characterized and provided with the instrument for operators to verify system operation on site. A preconfigured computer with software is included with the system.

An English user manual is provided.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
This system includes 1 IEC 60320 C5 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9002).

$ 43,000.00

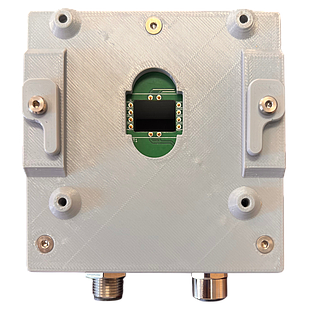

The Sciencetech SSIVT-REF single element silicon detector is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. The SSIVT-REF detector can be used with Sciencetech SSIVT measurement system or Sciencetech SOL-METER solar power meter. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device such as a source meter or Sciencetech SOL-METER. CE compliant.


Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm

$ 625.00

A motorized 6 position filter wheel capable of holding 25mm (1") filters (either square or circular). The filter wheel connects via USB 2.0 to a computer (USB cable included). The filter wheel software includes a stand alone application but also includes development examples for integrating the filter wheel with LabView or C++ software.

Please select the flush mount option for use with Sciencetech monochromator slits, and select the lens tube mount option for all other cases with Sciencetech parts. For custom applications, please contact our sales team to provide more information on your specific application.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 2,050.00

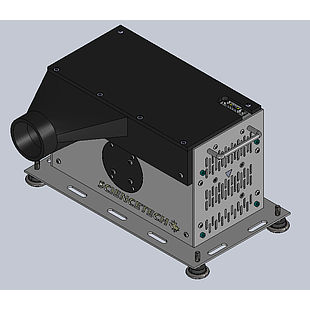

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 200 × 200 mm
Working Distance: 0.1-0.5m
Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 500 × 500 mm
Working Distance: 0.2-1.0 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <20 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.

$ 89,800.00
