The SSIVT is a complete electrical current-voltage measurement system used to characterize photovoltaic cell performance. This current-voltage tester works by sampling current at different voltages of the photovoltaic cell with a variable impedance load.
This IV measurement system has a separate terminal interface for voltage and current measurements. Each IV curve dataset is saved as a separate ASCII text file.
This I-V Testing Measurement System has a 4 wire Kelvin configuration to remove the resistance effects of the leads and bias the cell at specific voltages.

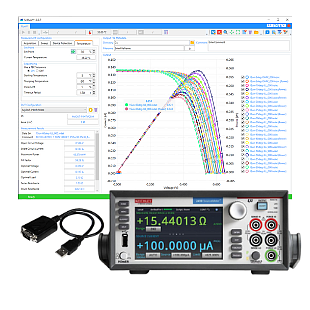

The I-V Measurement System SSIVT-T100C includes:
A) Keithly Model 2460 - Touchscreen
.Power: 100 W
.Max Voltage: 100V
.Current Range: 7A
B) Sciencetech's SciPV-IV Software for Windows-based control.
.Windows 7/10 32/64 bit
C) RS232 to USB dongle
Compatible with Steady State (Continuous) Solar Simulators only.
See brochure for more details.
