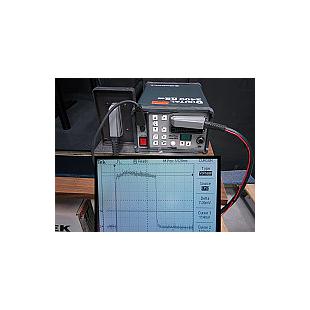

The FLASH-ST4 pulse stretcher integrates with Sciencetech flash light sources and solar simulators that operate with the 2400RS power pack.
The stretcher is connected in-line between the power pack and the flash light source or solar simulator housing. The FLASH-ST4 stretches pulses to 4ms +/-3% stabity level.
In most cases using the FLASH-ST4 reduces the maximum intensity level achievable by the light source. Typically maximum peak intensity levels are reduced by 1/2 of simulator or light sources peak specified Sun or intensity level.

Sciencetech can produce customer flash pulse stretchers depending on your design requirements. Please talk to a technical support representative for more information.
16,000.00
The FLASH-ST4 pulse stretcher integrates with Sciencetech flash light sources and solar simulators that operate with the 2400RS power pack.
The stretcher is connected in-line between the power pack and the flash light source or solar simulator housing. The FLASH-ST4 stretches pulses to 4ms +/-3% stabity level.
In most cases using the FLASH-ST4 reduces the maximum intensity level achievable by the light source. Typically maximum peak intensity levels are reduced by 1/2 of simulator or light sources peak specified Sun or intensity level.

Sciencetech can produce customer flash pulse stretchers depending on your design requirements. Please talk to a technical support representative for more information.
16,000.00 16000.0 USD
Price Valid only in North America

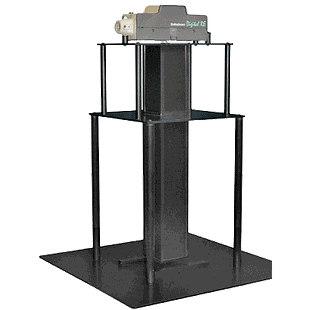

Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match: Class A
Spatial Non-Uniformity: Better than 2% at the target plane
Temporal Instability: Class A
Target Size: 5cm × 5cmm (up to 4000 Suns)
Working Distance: 3mm
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: Non-collimated
109,620.00
In stock
Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match: Class A
Spatial Non-Uniformity: Better than 2% at the target plane
Temporal Instability: Class A
Target Size: 5cm × 5cmm (up to 4000 Suns)
Working Distance: 3mm
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: Non-collimated
109,620.00 109620.0 USD
Price Valid only in North America
