Infrared Light Sources

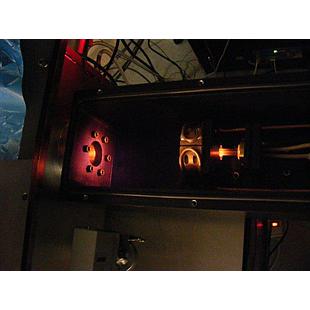

The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.

$ 8,100.00

Illuminates Fiber Bundles up to 13mm diameter
Visible Light Fiber Illuminator with built-in IR filter
100 W QTH lamp with integrated dichroic ellipsoidal reflector
Dichroic cold mirror and heat dump to eliminate infrared light
Collimating and condensing optics into a fiber
Filter drawer for interference filters
Regulated adjustable 100W DC power supply
Operation at 230VAC@50Hz or 120VAC@60Hz

$ 3,300.00

Includes 2 inch diameter fused silica collection optics that produce a collimated beam
Includes adapter for 250W QTH Lamp
Housing can Support xenon, mercury, mercury-xenon arc lamps and QTH lamps.
Includes spherical back reflector for increasing collected optical intensity
Forced Air Cooled
Refractive condensing optics attachments available
Variable power supply (purchased separately) with optical feedback (option)
Standard vertical orientation, horizontal mounting bracket for standard 3" optical height available.

$ 2,655.00

Includes 2 inch diameter glass collection optics that produce a collimated beam
Includes adapter for 50W QTH Lamp
Housing can Support xenon, mercury, mercury-xenon arc lamps and QTH lamps.
Includes spherical back reflector for increasing collected optical intensity
Forced Air Cooled
Refractive condensing optics attachments available
Variable power supply (purchased separately) with optical feedback (option)
Standard vertical orientation, horizontal mounting bracket for standard 3" optical height available.

$ 2,593.00

This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes an Elliptical reflector for focusing the output IR light to a point. The reflector is an F/4.5 reflector, Sciencetech part # 620-0205.

For the Parabolic reflector option, please see part number 100-9071.

$ 2,250.00

This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes a Gold Coated parabolic reflector.

For the Elliptical reflector option, please see part number 100-9074

$ 2,250.00

Includes 1 inch diameter fused silica collection optics that produce a collimated beam
Includes adapter for 100W QTH Lamp
Housing can Support xenon, mercury, mercury-xenon arc lamps and QTH lamps.
Includes spherical back reflector for increasing collected optical intensity
Forced Air Cooled
Refractive condensing optics attachments available
Variable power supply (purchased separately) with optical feedback (option)
Standard vertical orientation, horizontal mounting bracket for standard 3" optical height available.

$ 2,213.00

Includes 1 inch diameter glass collection optics that produce a collimated beam
Includes adapter for 250W QTH Lamp
Housing can Support xenon, mercury, mercury-xenon arc lamps and QTH lamps.
Includes spherical back reflector for increasing collected optical intensity
Forced Air Cooled
Refractive condensing optics attachments available
Variable power supply (purchased separately) with optical feedback (option)
Standard vertical orientation, horizontal mounting bracket for standard 3" optical height available.

$ 2,213.00
