Light Sources

A light source is a complete system capable of illumination, consisting of a lamp, a lamp housing, a power supply, and necessary optics, cables, and hardware.

Sciencetech manufactures a variety of light sources with applications for both research and industry. For more information about our light sources and capabilities select a product group below and contact us at sales contact today!

Sciencetech Light Sources

SCIENCETECH offers light sources from UV to Infrared. A complete light source typically includes the lamp mounted in a housing with condensing/coupling optics, a power supply and all the necessary cables and hardware. For spectroscopic applications, a DC stabilized power supply is required. Arc sources also include a stand-alone igniter to break down the gas and establish the plasma discharge. A full line of accessories such as light condensers and collimators, filters, optical feedback units output stabilization and light shutters are available.



We offer several standard types of light sources:

  • Xenon Arc lamp Light Sources.  Arc lamps contain plasma confined in a quartz envelope, which produces radiation from 200nm to 2.5um. They have a very strong ultraviolet output and, since the emitting plasma volume is very small, their brightness in the visible region is approximately one order of magnitude higher than that of QTH sources, making them excellent for illuminating small targets. The main arc bulb types are Xenon (Xe), Mercury (Hg), Mercury-Xenon (Hg-Xe) and metal halide under high pressure for maximum brightness.





    Quartz Tungsten Halogen. (QTH) Light from QTH lamps is emitted by a heated filament. The filament is enclosed in a quartz envelope filled with gases. The spectral distribution is close to that of a blackbody curve with a color temperature of approximately 3000°K. QTH lamps have a useful spectral output from 300nm to 2.7µm.





    Deuterium and Dual Deuterium Tungsten . Deuterium (D2) sources are ideal for UV spectroscopy since they have a high ultraviolet output with little visible and infrared emission. UV grade fused silica envelopes can also be used, instead of the standard UV glass envelope, for missions below 180 nm.





    Infrared Light Source. Sciencetech offers both IR emitter housing Elliptical Reflector or Parabolic Reflector.

  • Coupling our capabilities in light source manufacture and spectroscopy allows us to manufacture complete systems such as our Sciencetech Tunable Light Source.



    Our expertise extends to Sciencetech Solar Simulators which are broad band light sources with specific spectral and radiant intensity properties.

Contact us for more information or request a quote

X

Product Category

View Filter

x
Clear all x

Filter Option



The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

Designed for use in North America

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-220-B power supply designed for North America
Compatible with UPLH-E(F)-6500X-B lamp houses

Power Requirements:
200-240VAC, 50/60 Hz, 31.3A, 3 Phase (200-240V phase to phase) 4 wires (3P+E)

Includes hard wired 6 ft power cable with L15-50P termination.
Requires a minimum 40A 3-phase circuit, 200-240VAC (phase-phase), 4 wires (3P+E)
40,106.00
The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

Designed for use in North America

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-220-B power supply designed for North America
Compatible with UPLH-E(F)-6500X-B lamp houses

Power Requirements:
200-240VAC, 50/60 Hz, 31.3A, 3 Phase (200-240V phase to phase) 4 wires (3P+E)

Includes hard wired 6 ft power cable with L15-50P termination.
Requires a minimum 40A 3-phase circuit, 200-240VAC (phase-phase), 4 wires (3P+E)
40,106.00 40106.0 USD
Price Valid only in North America


The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes a 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

This system is designed for global use.

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-480-B power supply designed for North America
380-480VAC, 50/60 Hz, 16.8-13.3A 3 Phase
(380-480 V phase to phase , 4 wire)

Requires one L16 power cable selection.
40,106.00
The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes a 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

This system is designed for global use.

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-480-B power supply designed for North America
380-480VAC, 50/60 Hz, 16.8-13.3A 3 Phase
(380-480 V phase to phase , 4 wire)

Requires one L16 power cable selection.
40,106.00 40106.0 USD
Price Valid only in North America

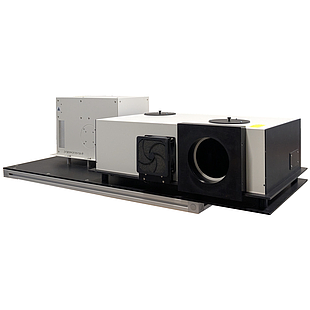

Sciencetech also offers a tunable light source solar simulator combination instrument. This combination system allows a selectable output at the target plane of spatially uniform sun light or monochromatic light.

The tunable light source—solar simulator combination system adds a homogenization unit to the exit port of the monochromator that includes and electronic shutter and 2 position filter tray.

The tunable light source functions the same as the other models in Sciencetech’s tunable light source line but adds the extra functionality of a solar simulator with broadband spatially uniform white light.

For technical specifications, please contact a Sciencetech Representative.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
29,280.00
Sciencetech also offers a tunable light source solar simulator combination instrument. This combination system allows a selectable output at the target plane of spatially uniform sun light or monochromatic light.

The tunable light source—solar simulator combination system adds a homogenization unit to the exit port of the monochromator that includes and electronic shutter and 2 position filter tray.

The tunable light source functions the same as the other models in Sciencetech’s tunable light source line but adds the extra functionality of a solar simulator with broadband spatially uniform white light.

For technical specifications, please contact a Sciencetech Representative.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
29,280.00 29280.0 USD
Price Valid only in North America


Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00
In stock
Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00 25975.0 USD
Price Valid only in North America

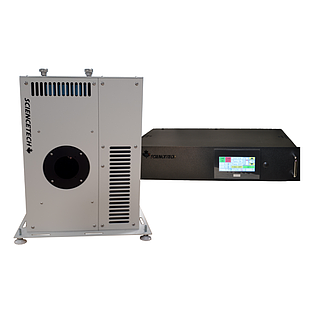

2500 W Focused Beam High Power Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focused image of the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, one lamp and digital copies of instrument test report, operating instructions and software.
23,000.00
In stock
2500 W Focused Beam High Power Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focused image of the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, one lamp and digital copies of instrument test report, operating instructions and software.
23,000.00 23000.0 USD
Price Valid only in North America


2500 W Collimated High Powered Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, One 2500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.
22,500.00
In stock
2500 W Collimated High Powered Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, One 2500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.
22,500.00 22500.0 USD
Price Valid only in North America

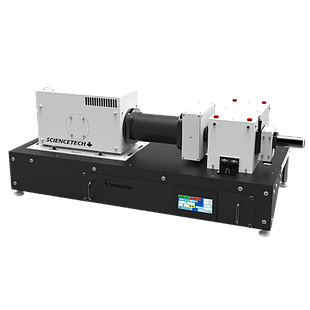

The TLS-55-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300W Xe lamp, 601-300 touchscreen power supply, 9055 monochromator (1/4 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-X300 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
20,341.00
The TLS-55-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 300W Xe lamp, 601-300 touchscreen power supply, 9055 monochromator (1/4 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-X300 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
20,341.00 20341.0 USD
Price Valid only in North America


The TLS-55-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS).  This plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9055 monochromator (1/4 meter), motorized filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-Q250 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00
The TLS-55-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS).  This plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9055 monochromator (1/4 meter), motorized filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
The TLS-55-Q250 is an advanced system with optical bandpass as small as 0.2 nm over UV and VIS spectral range, and 0.4 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00 19400.0 USD
Price Valid only in North America

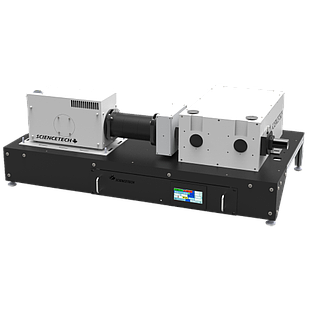

The TLS-72-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with Xe lamp, 601-300 touchscreen power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
TLS-72-X300 is advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00
The TLS-72-X300 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with Xe lamp, 601-300 touchscreen power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.
TLS-72-X300 is advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
19,400.00 19400.0 USD
Price Valid only in North America


The TLS-72-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

The TLS-72-Q250 is an advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
17,400.00
The TLS-72-Q250 is a representative of a large series of Sciencetech Tunable Light Sources (TLS). This complete plug and play system consists of a lamp housing with 250W QTH lamp, power supply, 9072 monochromator (1/8 meter), filter wheel (with 4 filters) mounted to a metal baseplate to create a compact, fully assembled illuminator.
SciSpec Software is included for controlling the monochromator and filter wheel.
Each system is pre-aligned during production and packaged with system’s test data and detailed manual.

The TLS-72-Q250 is an advanced system with optical bandpass as small as 0.5 nm over UV and VIS spectral range, and 0.7 over NIR. The overall spectral range is 300-1800 nm. Output bandpass can be varied using included adjustable slits.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
17,400.00 17400.0 USD
Price Valid only in North America


The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30W deuterium light source and a 50W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

The system has a 1" output (with the combined light) with Fused Silica lenses.
This product includes two stabilized power supplies (to operate the two bulbs), UV to IR transmissive optics, the housing itself and reflective/refractive optics for UV to IR transmission
15,000.00
In stock
The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30W deuterium light source and a 50W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

The system has a 1" output (with the combined light) with Fused Silica lenses.
This product includes two stabilized power supplies (to operate the two bulbs), UV to IR transmissive optics, the housing itself and reflective/refractive optics for UV to IR transmission
15,000.00 15000.0 USD
Price Valid only in North America


The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30W deuterium light source and a 50W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

The system has a 1" output (with the combined light) with Fused Silica lenses.
This product includes two stabilized power supplies (to operate the two bulbs), UV to IR transmissive optics, the housing itself and reflective/refractive optics for UV to IR transmission
15,000.00
In stock
The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30W deuterium light source and a 50W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

The system has a 1" output (with the combined light) with Fused Silica lenses.
This product includes two stabilized power supplies (to operate the two bulbs), UV to IR transmissive optics, the housing itself and reflective/refractive optics for UV to IR transmission
15,000.00 15000.0 USD
Price Valid only in North America


Lamp Power: 1600W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

14,765.00
Lamp Power: 1600W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

14,765.00 14765.0 USD
Price Valid only in North America


Lamp Power: 1600W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

14,580.00
Lamp Power: 1600W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

14,580.00 14580.0 USD
Price Valid only in North America


Lamp Power: 1000W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

13,650.00
Lamp Power: 1000W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

13,650.00 13650.0 USD
Price Valid only in North America


Lamp Power: 1000W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
13,500.00
Lamp Power: 1000W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
13,500.00 13500.0 USD
Price Valid only in North America


Lamp Power: 500W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

12,300.00
Lamp Power: 500W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

12,300.00 12300.0 USD
Price Valid only in North America


Lamp Power: 500W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
12,100.00
Lamp Power: 500W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
12,100.00 12100.0 USD
Price Valid only in North America


The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.
8,100.00
The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.
8,100.00 8100.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
7,370.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
7,370.00 7370.0 USD
Price Valid only in North America
Copyright © Sciencetech
