All Sciencetech systems incorporate adherence to industry standards. Sciencetech PV Testing System equipment are designed and manufactured according to.  High Intensity, Uniform Illumination of artificial solar irradiation.

Steady state solar simulators are light sources similar to natural sunlight that offer the advantage of consistent light output over a period of hours or more.

Sciencetech solar simulators are highly configurable and with an impressive range of solar simulator options, our systems have been serving multiple researches and testing applications. Our solar simulator systems comply with standards such as ASTM, IEC and JIS and provides variability is design to accommodate researcher’s requirements. With over 30 years of experience in the solar simulator designing and manufacturing field, our systems provide


1) Spectral emission closest to the sun’s spectrum

2) High spatial uniformity

3) High temporal stability

4) Configurable orientations in illumination direction

5) Variety of output collimation angles

6) Variable illumination areas

7) Easy to use, turn-key systems with full software control

8) Multiple add-ons and accessories such as fiber optic cables, beam turning units, filters and more.

X

Product Category

View Filter

x
Clear all x

Filter Option



A system of 48 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
784,400.00
In stock
A system of 48 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
784,400.00 784400.0 USD
Price Valid only in North America


A system of 36 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.

592,200.00
In stock
A system of 36 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.

592,200.00 592200.0 USD
Price Valid only in North America


A system of 16 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
272,400.00
In stock
A system of 16 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
272,400.00 272400.0 USD
Price Valid only in North America


Sciencetech is proud to offer our new line of Ultra-High Efficiency solar simulators.
By utilizing a completely new design for the beam homogenizer, the UHE systems are capable of far more efficiency and power unit than previously possible. All this without sacrificing temporal stability, spatial uniformity, or spectral matching.
This Class AAA Solar Simulator is specifically designed for the Concentrated Photovoltaic (CPV) characteristic testing market, and for any other application where a highly collimated beam (0.5 degrees) of Class A solar radiation is required.
It is capable of illuminating a 45 x 45 cm area, and includes an integrated housing area which sets your samples at the proper distance from the source.
The simulator comes with an integrated power supply and arc lamp. Sciencetech recommends our AM1.0D Air Mass Filter (sold separately) as an excellent choice for this system.
Optional extended spectral matching in the ranges of 300 to 400nm and 1100 to 1800nm is available. Please speak with your authorized Sciencetech technical sales staff member for more information.

Please note that this device requires a (minimum) of 3.5m of vertical space, and a (minimum) of 3.5m of horizontal space. The footprint is approximately 3.5 x 1 x 3.5m
Sciencetech is proud to offer our new line of Ultra-High Efficiency solar simulators.
By utilizing a completely new design for the beam homogenizer, the UHE systems are capable of far more efficiency and power unit than previously possible. All this without sacrificing temporal stability, spatial uniformity, or spectral matching.
This Class AAA Solar Simulator is specifically designed for the Concentrated Photovoltaic (CPV) characteristic testing market, and for any other application where a highly collimated beam (0.5 degrees) of Class A solar radiation is required.
It is capable of illuminating a 45 x 45 cm area, and includes an integrated housing area which sets your samples at the proper distance from the source.
The simulator comes with an integrated power supply and arc lamp. Sciencetech recommends our AM1.0D Air Mass Filter (sold separately) as an excellent choice for this system.
Optional extended spectral matching in the ranges of 300 to 400nm and 1100 to 1800nm is available. Please speak with your authorized Sciencetech technical sales staff member for more information.

Please note that this device requires a (minimum) of 3.5m of vertical space, and a (minimum) of 3.5m of horizontal space. The footprint is approximately 3.5 x 1 x 3.5m
205,750.00 205750.0 USD
Price Valid only in North America


Sciencetech is proud to offer our new line of Ultra-High Efficiency solar simulators.
By utilizing a completely new design for the beam homogenizer, the UHE systems are capable of far more efficiency and power unit than previously possible. All this without sacrificing temporal stability, spatial uniformity, or spectral matching.
This Class AAA Solar Simulator is capable of illuminating a 10 x10cm area and includes an integrated housing to allow the user to simply place their samples at the appropriate distance. It also includes the required optics to increase the collimation to 0.5 degrees, allowing the testing of large Concentrated Photovoltaic (CPV) cells, and for other applications requiring highly collimated solar light.
The simulator comes complete with an AM1.0D air mass filter (optional other AM filters are also available), power supply and arc lamp.
Sciencetech also offers extended spectral matching, both in the 300-400nm range and 1100-1800nm. Please speak to your authorized technical sales staff member for more information.

Please note that this device requires a 3m (minimum) vertical space, and 3m (minimum) horizontal space (the footprint is 3m x 1m x 3m).
172,750.00
In stock
Sciencetech is proud to offer our new line of Ultra-High Efficiency solar simulators.
By utilizing a completely new design for the beam homogenizer, the UHE systems are capable of far more efficiency and power unit than previously possible. All this without sacrificing temporal stability, spatial uniformity, or spectral matching.
This Class AAA Solar Simulator is capable of illuminating a 10 x10cm area and includes an integrated housing to allow the user to simply place their samples at the appropriate distance. It also includes the required optics to increase the collimation to 0.5 degrees, allowing the testing of large Concentrated Photovoltaic (CPV) cells, and for other applications requiring highly collimated solar light.
The simulator comes complete with an AM1.0D air mass filter (optional other AM filters are also available), power supply and arc lamp.
Sciencetech also offers extended spectral matching, both in the 300-400nm range and 1100-1800nm. Please speak to your authorized technical sales staff member for more information.

Please note that this device requires a 3m (minimum) vertical space, and 3m (minimum) horizontal space (the footprint is 3m x 1m x 3m).
172,750.00 172750.0 USD
Price Valid only in North America

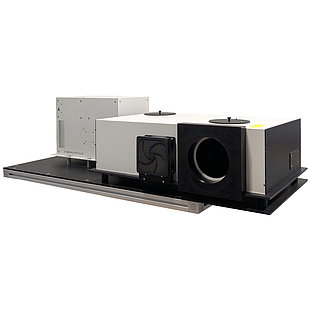

The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 200 × 200 mm
Working Distance: 1-3 m
Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
Collimation (half angle): 0.1 - 0.5 m
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00
The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 200 × 200 mm
Working Distance: 1-3 m
Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
Collimation (half angle): 0.1 - 0.5 m
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00 89800.0 USD
Price Valid only in North America


The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 500 × 500 mm
Working Distance: 0.2-1.0 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <20 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00
The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 500 × 500 mm
Working Distance: 0.2-1.0 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <20 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00 89800.0 USD
Price Valid only in North America


The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <8 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00
The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <8 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00 89800.0 USD
Price Valid only in North America


The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): 0.9 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00
The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): 0.9 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00 89800.0 USD
Price Valid only in North America


The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 150 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): < 0.9 degrees
Lamp Power: 2500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 200-240VAC, 50/60 Hz, 20A (max current), L6-30 plug.
74,800.00
The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 150 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): < 0.9 degrees
Lamp Power: 2500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 200-240VAC, 50/60 Hz, 20A (max current), L6-30 plug.
74,800.00 74800.0 USD
Price Valid only in North America


A system of 4 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
72,360.00
In stock
A system of 4 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
72,360.00 72360.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
70,125.00
In stock
Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
70,125.00 70125.0 USD
Price Valid only in North America


The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 100 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <0.5 degrees
Lamp Power: 1600 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable. The region-specific version must be selected at the time of placing an order.
The cable requires 200-240VAC, 50/60 Hz, 15A (max current), plug type must be specified by country.
60,800.00
The BigSun series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 100 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <0.5 degrees
Lamp Power: 1600 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the CON variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each BigSun includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable. The region-specific version must be selected at the time of placing an order.
The cable requires 200-240VAC, 50/60 Hz, 15A (max current), plug type must be specified by country.
60,800.00 60800.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 2.35º half angle
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
58,600.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 2.35º half angle
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
58,600.00 58600.0 USD
Price Valid only in North America


This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 621-3kW
Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

200-240VAC, 20A
Requires 1 NEMA 6-30P power cord

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order
50,050.00
In stock
This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 621-3kW
Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

200-240VAC, 20A
Requires 1 NEMA 6-30P power cord

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order
50,050.00 50050.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 2.6º half angle
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
40,490.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 2.6º half angle
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
Requires 1 IEC 60320 C20 compatible power cables
40,490.00 40490.0 USD
Price Valid only in North America


Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
38,230.00
Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
38,230.00 38230.0 USD
Price Valid only in North America


Class: ABA
Target Size: 160mm (6.2”) diameter
Working Distance: 900mm (36”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1.6k

Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
37,230.00
In stock
Class: ABA
Target Size: 160mm (6.2”) diameter
Working Distance: 900mm (36”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1.6k

Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
37,230.00 37230.0 USD
Price Valid only in North America


This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 8" diameter, igniter.

200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
requires 1 IEC 60320 C19 power cable

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

* Systems can be built for downfacing operation if specified at time of order
35,750.00
In stock
This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 8" diameter, igniter.

200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
requires 1 IEC 60320 C19 power cable

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

* Systems can be built for downfacing operation if specified at time of order
35,750.00 35750.0 USD
Price Valid only in North America


Class: AAA
Collimation Angle: 3.85º half angle
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
30,750.00
In stock
Class: AAA
Collimation Angle: 3.85º half angle
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
30,750.00 30750.0 USD
Price Valid only in North America
Copyright © Sciencetech
