Highly Collimated Flash Solar Simulators

Sciencetech's line of large area highly collimated flash solar simulators are capable of illuminating targets of 1.8 x 1.5m with uniform solar illumination. Our flash system is manufactured to achieve Class AAA by ASTM standards for targets within that area (IEC and JIS are available upon request). This makes our system one of the largest, most uniform solar simulators currently available on the market. Our highly collimated flash solar simulators illuminate targets with a collimation angle of +-0.5 degrees. This makes them ideal tools for studying concentrating photovoltaics and concentrating solar thermal devices.





X

Product Category

View Filter

x
Clear all x

Filter Option

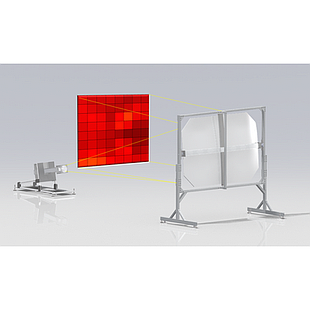

Sciencetech’s FSSP-HC-A highly collimated flash solar simulator is capable of illuminating targets up to 1.8 × 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation. Within the illuminated area, the central 1 × 1m or larger meets Class A uniformity requirements. Please speak with your Sciencetech technical support staff for Class A uniformity matching over the entire illumination area. The default spectral match is to ASTM AM1.5D.

This product includes a flash system, power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A (Central 1m × 1m)
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
150,000.00
In stock
Sciencetech’s FSSP-HC-A highly collimated flash solar simulator is capable of illuminating targets up to 1.8 × 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation. Within the illuminated area, the central 1 × 1m or larger meets Class A uniformity requirements. Please speak with your Sciencetech technical support staff for Class A uniformity matching over the entire illumination area. The default spectral match is to ASTM AM1.5D.

This product includes a flash system, power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class A (Central 1m × 1m)
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
150,000.00 150000.0 USD
Price Valid only in North America


Sciencetech’s FSSP-HC-B highly collimated flash solar simulator is capable of illuminating targets up to 1.8 x 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation.

This product includes a power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
130,000.00
In stock
Sciencetech’s FSSP-HC-B highly collimated flash solar simulator is capable of illuminating targets up to 1.8 x 1.5m (or 1.5m diameter) with highly collimated light (up to 0.5° half angle). This allows testing of concentrated photovoltaics (CPV) or other applications requiring extremely high collimation.

This product includes a power supply, collimating mirror, and lamp. Air mass filters are available separately (AM1.5D and AM1.5G, with additional filters available upon request). Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options. Please inquire with Sciencetech technical support staff about our automation and assembly line manufacturing partners.

Spectral Match: Class A
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 1.8m × 1.5m (1 Sun)
Working Distance: 5m
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: 0.5° half angle
130,000.00 130000.0 USD
Price Valid only in North America


The FLASH-ST4 pulse stretcher integrates with Sciencetech flash light sources and solar simulators that operate with the 2400RS power pack.
The stretcher is connected in-line between the power pack and the flash light source or solar simulator housing. The FLASH-ST4 stretches pulses to 4ms +/-3% stabity level.
In most cases using the FLASH-ST4 reduces the maximum intensity level achievable by the light source. Typically maximum peak intensity levels are reduced by 1/2 of simulator or light sources peak specified Sun or intensity level.

Sciencetech can produce customer flash pulse stretchers depending on your design requirements. Please talk to a technical support representative for more information.
16,000.00
The FLASH-ST4 pulse stretcher integrates with Sciencetech flash light sources and solar simulators that operate with the 2400RS power pack.
The stretcher is connected in-line between the power pack and the flash light source or solar simulator housing. The FLASH-ST4 stretches pulses to 4ms +/-3% stabity level.
In most cases using the FLASH-ST4 reduces the maximum intensity level achievable by the light source. Typically maximum peak intensity levels are reduced by 1/2 of simulator or light sources peak specified Sun or intensity level.

Sciencetech can produce customer flash pulse stretchers depending on your design requirements. Please talk to a technical support representative for more information.
16,000.00 16000.0 USD
Price Valid only in North America
