Accessories / Parts

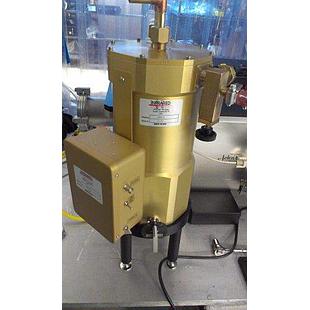

Liquid Helium Cooled Bolometers are 10^2 to 10^4 (two to four orders magnitude) more sensitive than room temperature pyro-electric detectors
Liquid Helium Cooled 1.6K
5u - 2000u spectral range
Liquid Nitrogen required in outer jacket (dual stage cooling)
2.5 mm diameter diamond absorber
0.5" F/3.8 diameter condensing cone as input optics
Preamp circuitry generates +/-14V max
5" Diameter Dewar Included

Filterwheel Position #1 - Long pass 5micron cut-on
Position #2 - Wedged P13 filter (13micron cut-on long pass)
Position #3 - Wedged C103 filter (103 micron cut-on long pass filter)
Wedged Diamond window Diameter = 25.0mm

$ 54,340.00

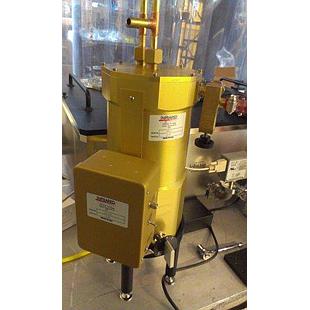

The Hot e- HEB detector system includes:
• HDL5 Helium dewar with Liquid Nitrogen cooled heat shield
• Liquid Helium Capacity -1.2 liters
• Liquid Nitrogen Capacity - 0.8 liters
• LHe hold time >20 hours
• Field of view baffle installed on heat shield
• Vacuum valve with burst disc and KF25 vacuum fitting
• Liquid Nitrogen fill and removal attachments
• Liquid Helium pumping/safety attachment
• Enhanced InSb Hot-e detector (HEB)
• Electrical Responsivity >5kV/W
• Detector Optical responsivity >3.5kV/W
• Detector electrical NEP < 500 fW.Hz-1/2
• Useful Frequency range 200- 5000 microns
• Frequency response ~ 500 kHz (-3dB)
• Operating resistance 5kOhms to 20 kOhms
• Operating Temperature 4.2K
• DC coupled response
• Physical size of element 5 mm x 4.7 mm x 300 um
• Detector installed in gold-plated copper substrate
• Cone optic assembly
• Entrance = 0.5”
• Exit = 0.196”
• Length = 0.813”
• 1" diameter wedged, Teflon window with diamond powder coating
• C285 wedged filter, 0.75” diameter, installed in front of cone entrance
• ULN6 preamplifier

$ 50,000.00

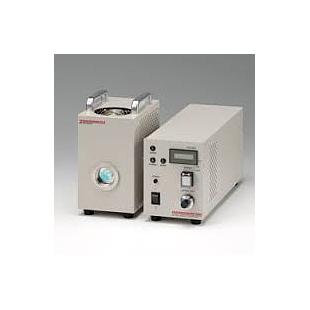

The NIR-PMT is contained in a thermally insulated, sealed-off housing evacuated to a high vacuum. Simple operation by air cooled TE cooler. It is a high sensitivity detector with a large detection area of 18mm for collimated light. It includes a HV power supply with interlock function.
Fast response time
Rise Time: 900 ps
TTS: 300 ps
This unit includes the housing, power supply, and detector components, but does not include mounting to a monochromator or sample chamber. Please include mounting separately.

$ 44,625.00

This Sample Chamber will operate at either 77K or at room temperature, but does not include any mechanism to regulate the temperature between those points.
It requires a supply of liquid nitrogen in order to operate (sold separately).

Contact for Pricing

A custom built sample chamber capable of both vacuum operation and a choice of temperature ranges between 77K and room temperature.
The system requires liquid nitrogen, but does not include it.

While the system will be constructed for this temperature range, the mechanisms, pumps, and other equipment is sold separately.
This Sample Chamber requires EITHER 188-8901 OR 188-8903 to complete the sample chamber. Please ask your authorized Sciencetech technical sales staff member for further information.

Contact for Pricing

Liquid Helium Cooled Bolometers are 10^2 to 10^4 (two to four orders of magnitude) more sensitive than room temperature pyro-electric detectors
Liquid Helium Cooled to 4.2K
Liquid Nitrogen required in outer jacket (dual stage cooling)
Response for 20~100um, with some sensitivity up to 300um
0.5" diameter condensing cone as input optics
Preamp circuitry generates +/-14V max
5" Diameter Dewar Included

See below for more specifications.

Contact for Pricing

A custom temperature control system to allow operation at 77K or room temperature.
This system will come with a sample holder capable of holding 2 samples simultaneously. The cryostat can rotate the sample from 0 degrees to 360 degrees, and move the sample up and down in a range of 2". Sciencetechl provides two of these sample holders with this system.

Contact for Pricing

This broadband IR area detector has a sensor size of 320 x 240 pixels and a spectral range of 2-14 μm. The pixel size is 48.5μm square. The sensor is an uncooled pyroelectric BST (Barium, Strontium, Titanate) array. Because of the nature of pyroelectric sensors, there is an internal Archimedes spiral chopper that recalibrates the image. However, this calibration system, called an Auto Image Calibration, is actually a benefit for the user. The detector self calibrates to a reference 60 times per second, which in turn causes the system to be extremely stable and to have very little fixed pattern noise.

$ 21,121.00

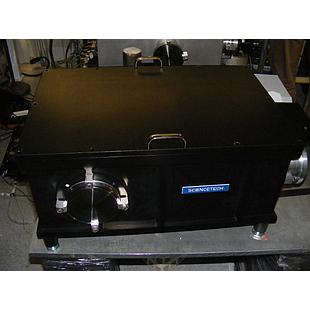

This external transmission/reflectance sample chamber can be mated to the output port of a Sciencetech FTIR system. This chamber allows small samples to be studied in both transmission and reflectance modes, at temperatures ranging from approximately -20° Celsius to room temperature. The sample chamber utilizes gold coated aspheric optics for excellent signal in the infrared and terahertz region.

Contact for Pricing

A temperature control system to allow operation between 77K or room temperature.
This sisytem will come with two separate holders, each capable of holding a specific size and type of sample. They will not have the ability to rotate or moved, but will come prealigned for a fixed angle reflectivity, or transmission, through a motorized flipping mirror.

$ 17,805.00

This is an external transmission and reflectance sample chamber that can be mated to an output port of the SPS-series FTIRs. This sample chamber allows small samples (such as cuvettes or thin films) to be studied in both reflection and transmission. The sample chamber shares the vacuum environment with the FTIR, but an optional window or vacuum gate (sold separately) allows the chamber to be isolated from the FTIR. The sample chamber utilizes reflective aspheric optics with gold coating for excellent far infrared and terahertz operation.

Contact for Pricing

This is a microscope accessory that allows a point on the microscope field of view to be singled out for intensity or spectroscopy measurement while the light from the other areas in the field of view are physically blocked out.
A proprietary 4 curtain mechanism allows the user to crop any rectangular region of any size and any aspect ratio in the field of view to be measured while the remaining regions are blocked out. The cropped field of view can be seen through an observation eye piece. A filter drawer allows the use of color glass or interferometric filters for the rejection of undesired wavelengths.
Light transmitted through the cropped region is then directed to an output port where its intensity can be measured by an optional detector or broken down further into its constituent wavelengths via an optional monochromator attachment.
The system is light tight allowing for the use of a photon counting detector. A second output port is also available as an option for dual simultaneous measurements with a dichroic mirror or flipping mirror separating the two ports.

Technical Specifications
Filter Drawer: Accepts 1" diameter or square filters
Output Signal: 0 to 13 V
Output Connection: BNC connector
Usage: With DVM or A/D to computer
Modes: Analog or photon counting
Analytical Area Selector: 4 blade independent slit (or optional iris)
Dimensions: 266.7 x 63.5 x 279.4mm

$ 11,027.00

The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.

Contact for Pricing

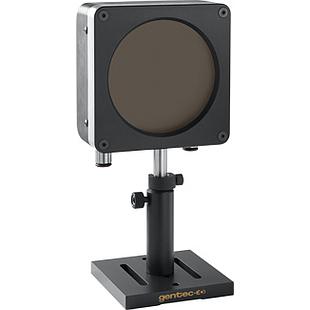

4kW max average power, 100mm aperture, water-cooled. Doesn't require monitor, includes USB cable and PC-HP application software.

Sensitivity 0.4 mW/W,
rise time 7 sec,
spectral range 0.19-20um.

$ 7,911.00

This Lock-in Amplifier is specifically designed to work with IR Detectors and choppers, with a dual-phase lock-in. Includes all necessary components including software.
The device has 100 dB of true dynamic reserve without the need for input pre-filtering, time constants from 10 µs to 30 ks with 6, 12, 18 and 24 dB/octave filter rolloff, and includes a precision synthesized reference source with 25 ppm frequency accuracy and <-80 dBc distortion.
There are two data displays, allowing the simultaneous display of X and Y, or R and θ. RS-232 and GPIB interfaces capable of reading and setting all instrument functions.

For a full list of technical specifications and to determine if this Lock-in Amplifier is appropriate for your system or detector, please speak with your authorized Sciencetech technical sales staff member.

$ 7,583.00

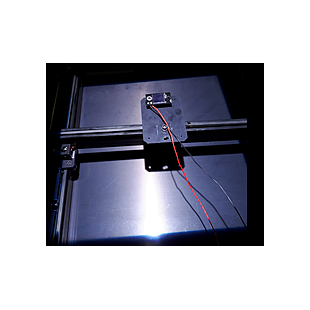

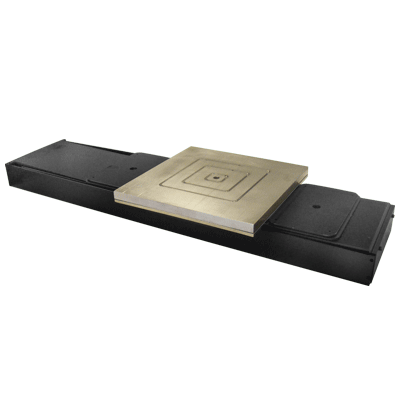

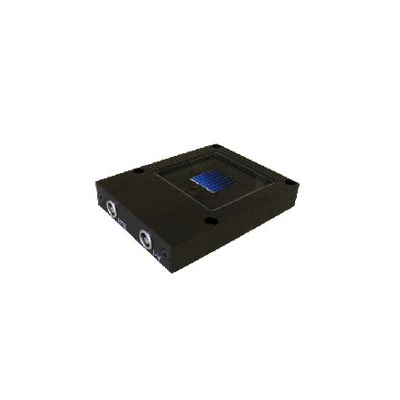

Target size: 500x500mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 800x800x125

$ 7,475.00

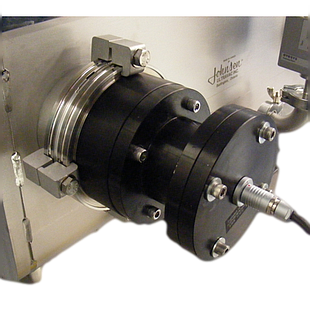

This is a room-temperature detector for use with the SPS-300. This includes the DTGS detector with a mounting flange, but requires the use of a dual-phase lock-in amplifier (sold separately).

Element size: 2.0mm diameter
Spectral bandwidth: Limited by selection of window
Sensitivity: 133,000 V/W (HDPE window)
Frequency Response: 8.8 - 265HZ (-3db points)
NEP: 1x10^-10 W (100Hz, 1Hz BW)

Contact for Pricing

An external shutter appropriate for LH and XLH series lamp houses. This high speed shutter is computer controlled. The shutter includes a power supply, electronics module, and cable. Clear Aperture = 50mm
Minimum exposure time = 70ms
Maximum exposure time = several minutes
Opening time = 43ms

$ 6,982.00

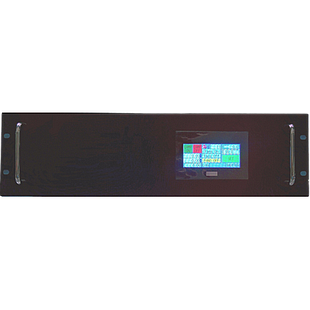

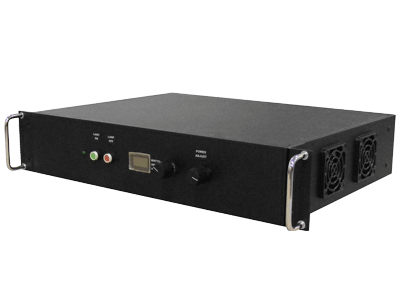

Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-500 is designed to power 500W Xenon and Hg-Xenon arc lamps. The 611-500 Power Supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock (optional upgrade)
- Temperature monitor (optional upgrade)
- Monitor Output (optional upgrade)
- Auto Lamp Start (optional upgrade)

Power Requirements
100-240 VAC input, 9.1-3.8A, 50/60Hz
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).


Includes a USB to serial adapter.

$ 6,805.00

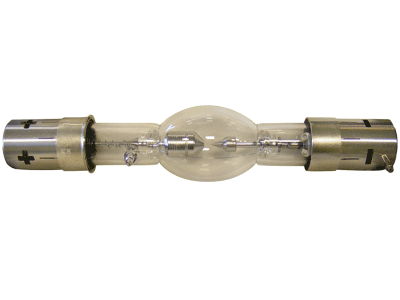

An adjustable power supply for Sciencetech's line of 1.6kW Mercury (Hg) Lamps. Includes a USB to serial adapter.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.

$ 6,804.00
