    Large Area Solar Simulators





    Solar simulators that simulate sun light over larger target areas in the scale of 1m x 1m or more has become an essential and import requirement for many research and industrial usages. Depending on the customer requirements, Sciencetech Large Area Solar simulator systems employ Xenon short arc lamps, LEDs or metal halide lamps as the base of the illumination system to mimic solar illumination.


    Large Area Solar Simulator Specifications

    Sciencetech Large Area Solar Simulators are often designed from scratch to accomplish customers’ exact research and industry requirements. Below are some of the most requested specifications met by Sciencetech large area solar simulators:

    • Variable illumination areas up to 5mx5m
    • Class AAA solar simulation (according to standards such as ASTM, IES, JIS, MIL, etc.)
    • AM0, AM1.5G or other specialty spectral matches
    • Various degrees of collimation, depending on customer requirements
    • Stepwise/ continuous irradiance attenuations
    • Multiple mounting options, in varying orientations, including ceiling
    • Install inside hazardous locations upon customer request


    Large Area Solar Simulator Applications

    Sciencetech's Large Solar Simulation Systems could be used, notably to:

    • Test large solar panels
    • Incorporate into wind tunnels and climatic chambers
    • Use in the automotive and railway industries
    • Military and aerospace industry


    Large Area Solar Simulator Complying Standards

    Sciencetech Solar Simulators reproduce the sun irradiance according to:

    • ASTM E927 - Specification for Solar Simulation for Photovoltaic Testing
    • IEC 60904-9 - Solar Simulator performance requirements
    • JIS C 8912 - Solar simulators for crystalline solar cells and modules
    • IEC 61215 - Crystalline silicon terrestrial photovoltaic (PV) modules - Design qualification and type approval
    • IEC 61646 - Thin-film terrestrial photovoltaic (PV) modules - Design qualification and type approval
    • US Military Standard MIL-STD810

    Read more about our previous large area solar simulator projects here:

    Sciencetech Custom Solutions >>

    Sciencetech has designed and manufactured many large solar simulators and other large area illuminators for special (typically research) applications. Please contact one of Sciencetech's sales representatives today to discuss your needs.

    Contact us for more details

    sales@sciencetech-inc.com

    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
      Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    A system of 48 Large Area Solar Illuminator (LASI) units.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 48 Unit array can be arranged to illuminate an area of 2x6m.
    LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
    LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Power requirements for each unit (1 of 48): 200-240 VAC, 12.1 to 9.0 A.
    Base system does not include a mount, see brochure for product information.

    $ 784,400.00
    In stock
    A system of 48 Large Area Solar Illuminator (LASI) units.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 48 Unit array can be arranged to illuminate an area of 2x6m.
    LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
    LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Power requirements for each unit (1 of 48): 200-240 VAC, 12.1 to 9.0 A.
    Base system does not include a mount, see brochure for product information.

    $ 784,400.00 784400.0 USD
    Price Valid only in North America

    A system of 36 Large Area Solar Illuminator (LASI) units.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 6x6 array of units (36) illuminates an area of 3x3m.
    LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
    LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Power requirements for each unit (1 of 36): 200-240 VAC, 12.1 to 9.0 A.
    Base system does not include a mount, see brochure for product information.
    $ 592,200.00
    In stock
    A system of 36 Large Area Solar Illuminator (LASI) units.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 6x6 array of units (36) illuminates an area of 3x3m.
    LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
    LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Power requirements for each unit (1 of 36): 200-240 VAC, 12.1 to 9.0 A.
    Base system does not include a mount, see brochure for product information.
    $ 592,200.00 592200.0 USD
    Price Valid only in North America

    This is for a sixteen unit set of LASI, designed to illuminate up to a 2x2m target with excellent three dimensional uniformity. All LASI systems operate with Xe arc lamps and therefore with the solar color temperature of 6,000 K. This allows the LASI to be used in applications that vary with depth, as opposed to generating only 2D uniformity on a single plane.
    This price does not include a basic frame to hold the LASI.
    This device is capable of Class C Spectral compliance and Class B temporal instability. Uniformity is typically ±15% over the central area.
    Each unit has a single phase power supply and requires 200 to 240 VAC, 12.1 to 9.0 A. The required plug type needs to be defined based on the equipment's intended location.
    Better performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    $ 272,400.00
    In stock
    This is for a sixteen unit set of LASI, designed to illuminate up to a 2x2m target with excellent three dimensional uniformity. All LASI systems operate with Xe arc lamps and therefore with the solar color temperature of 6,000 K. This allows the LASI to be used in applications that vary with depth, as opposed to generating only 2D uniformity on a single plane.
    This price does not include a basic frame to hold the LASI.
    This device is capable of Class C Spectral compliance and Class B temporal instability. Uniformity is typically ±15% over the central area.
    Each unit has a single phase power supply and requires 200 to 240 VAC, 12.1 to 9.0 A. The required plug type needs to be defined based on the equipment's intended location.
    Better performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    $ 272,400.00 272400.0 USD
    Price Valid only in North America

    A system of 4 Large Area Solar Illuminator (LASI) units.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 4 unit array illuminates up to 1x1m.
    LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
    LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Power requirements for each unit (1 of 4): 200-240 VAC, 12.1 to 9.0 A.
    Base system does not include a mount, see brochure for product information.
    $ 72,360.00
    In stock
    A system of 4 Large Area Solar Illuminator (LASI) units.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 4 unit array illuminates up to 1x1m.
    LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
    LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Power requirements for each unit (1 of 4): 200-240 VAC, 12.1 to 9.0 A.
    Base system does not include a mount, see brochure for product information.
    $ 72,360.00 72360.0 USD
    Price Valid only in North America

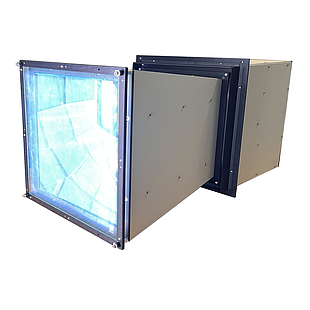

    A single Large Area Solar Illuminator (LASI) unit.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination.
    In certain applications a single LASI may be used on its own. However LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.
    A single LASI unit produces Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Base system does not include a mount, see brochure for product information.
    Power requirements: 200-240 VAC, 12.1 to 9.0 A.
    $ 18,900.00
    In stock
    A single Large Area Solar Illuminator (LASI) unit.
    Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination.
    In certain applications a single LASI may be used on its own. However LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.
    A single LASI unit produces Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
    Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
    Base system does not include a mount, see brochure for product information.
    Power requirements: 200-240 VAC, 12.1 to 9.0 A.
    $ 18,900.00 18900.0 USD
    Price Valid only in North America

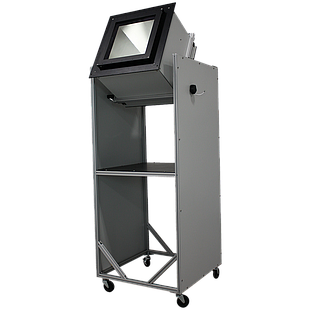

    Sciencetech's XE-LUM Luminaire is a low cost solution for researchers requiring large areas of illumination with good spectral matching but do not require high levels of spatial uniformity. The XE-LUM includes a 1.6kW Xenon arc lamp and efficient collection reflectors. At a working distance of 50cm an irradiance of 1 sun AM1.5G sun level can be achieved with an illumination area of 50x50cm. The area of illumination is up to 1.0m x 1.0m with a working distance of 1 meter.
    The XE-LUM can achieve better uniformity when paired with multiple units in an array to flood the illumination plane.

    The stand is an accessory that is sold separately. The XE-LUM can be arranged for vertical or horizontal illumination. In either configuration, the Luminaire can be rotated through 360 degrees in both sagittal and tangential planes.

    The Luminaire has a single phase power supply and requires 200 to 240 VAC, 12.1 to 9.0 A. The required plug type needs to be defined based on the equipment's intended location.

    Please speak with your authorized Sciencetech technical sales staff member for larger illumination areas, different spectral matches, or to have other customized options for this system.
    $ 10,150.00
    In stock
    Sciencetech's XE-LUM Luminaire is a low cost solution for researchers requiring large areas of illumination with good spectral matching but do not require high levels of spatial uniformity. The XE-LUM includes a 1.6kW Xenon arc lamp and efficient collection reflectors. At a working distance of 50cm an irradiance of 1 sun AM1.5G sun level can be achieved with an illumination area of 50x50cm. The area of illumination is up to 1.0m x 1.0m with a working distance of 1 meter.
    The XE-LUM can achieve better uniformity when paired with multiple units in an array to flood the illumination plane.

    The stand is an accessory that is sold separately. The XE-LUM can be arranged for vertical or horizontal illumination. In either configuration, the Luminaire can be rotated through 360 degrees in both sagittal and tangential planes.

    The Luminaire has a single phase power supply and requires 200 to 240 VAC, 12.1 to 9.0 A. The required plug type needs to be defined based on the equipment's intended location.

    Please speak with your authorized Sciencetech technical sales staff member for larger illumination areas, different spectral matches, or to have other customized options for this system.
    $ 10,150.00 10150.0 USD
    Price Valid only in North America
