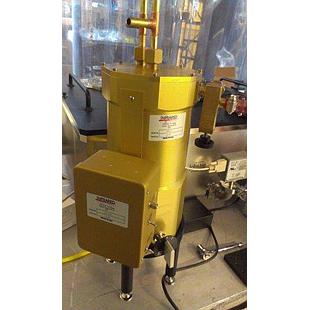

Detectors

Liquid Helium Cooled Bolometers are 10^2 to 10^4 (two to four orders magnitude) more sensitive than room temperature pyro-electric detectors
Liquid Helium Cooled 1.6K
5u - 2000u spectral range
Liquid Nitrogen required in outer jacket (dual stage cooling)
2.5 mm diameter diamond absorber
0.5" F/3.8 diameter condensing cone as input optics
Preamp circuitry generates +/-14V max
5" Diameter Dewar Included

Filterwheel Position #1 - Long pass 5micron cut-on
Position #2 - Wedged P13 filter (13micron cut-on long pass)
Position #3 - Wedged C103 filter (103 micron cut-on long pass filter)
Wedged Diamond window Diameter = 25.0mm

$ 54,340.00

The Hot e- HEB detector system includes:
• HDL5 Helium dewar with Liquid Nitrogen cooled heat shield
• Liquid Helium Capacity -1.2 liters
• Liquid Nitrogen Capacity - 0.8 liters
• LHe hold time >20 hours
• Field of view baffle installed on heat shield
• Vacuum valve with burst disc and KF25 vacuum fitting
• Liquid Nitrogen fill and removal attachments
• Liquid Helium pumping/safety attachment
• Enhanced InSb Hot-e detector (HEB)
• Electrical Responsivity >5kV/W
• Detector Optical responsivity >3.5kV/W
• Detector electrical NEP < 500 fW.Hz-1/2
• Useful Frequency range 200- 5000 microns
• Frequency response ~ 500 kHz (-3dB)
• Operating resistance 5kOhms to 20 kOhms
• Operating Temperature 4.2K
• DC coupled response
• Physical size of element 5 mm x 4.7 mm x 300 um
• Detector installed in gold-plated copper substrate
• Cone optic assembly
• Entrance = 0.5”
• Exit = 0.196”
• Length = 0.813”
• 1" diameter wedged, Teflon window with diamond powder coating
• C285 wedged filter, 0.75” diameter, installed in front of cone entrance
• ULN6 preamplifier

$ 50,000.00

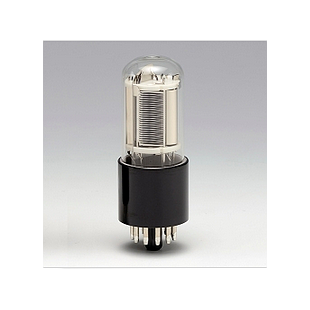

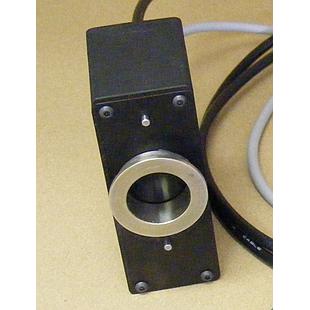

The NIR-PMT is contained in a thermally insulated, sealed-off housing evacuated to a high vacuum. Simple operation by air cooled TE cooler. It is a high sensitivity detector with a large detection area of 18mm for collimated light. It includes a HV power supply with interlock function.
Fast response time
Rise Time: 900 ps
TTS: 300 ps
This unit includes the housing, power supply, and detector components, but does not include mounting to a monochromator or sample chamber. Please include mounting separately.

$ 44,625.00

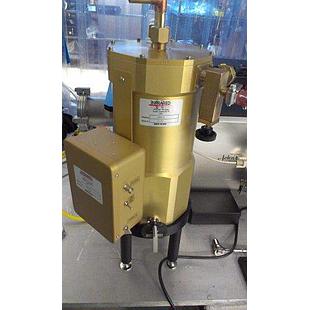

Liquid Helium Cooled Bolometers are 10^2 to 10^4 (two to four orders of magnitude) more sensitive than room temperature pyro-electric detectors
Liquid Helium Cooled to 4.2K
Liquid Nitrogen required in outer jacket (dual stage cooling)
Response for 20~100um, with some sensitivity up to 300um
0.5" diameter condensing cone as input optics
Preamp circuitry generates +/-14V max
5" Diameter Dewar Included

See below for more specifications.

Contact for Pricing

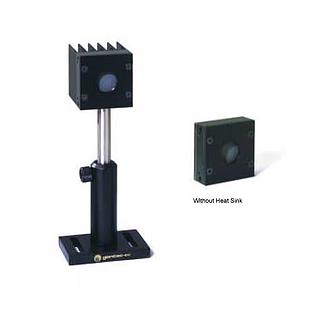

This broadband IR area detector has a sensor size of 320 x 240 pixels and a spectral range of 2-14 μm. The pixel size is 48.5μm square. The sensor is an uncooled pyroelectric BST (Barium, Strontium, Titanate) array. Because of the nature of pyroelectric sensors, there is an internal Archimedes spiral chopper that recalibrates the image. However, this calibration system, called an Auto Image Calibration, is actually a benefit for the user. The detector self calibrates to a reference 60 times per second, which in turn causes the system to be extremely stable and to have very little fixed pattern noise.

$ 21,121.00

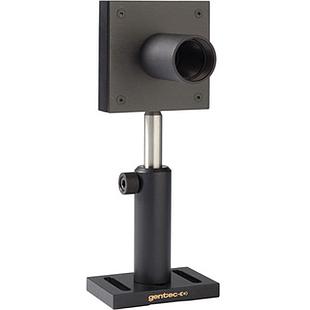

4kW max average power, 100mm aperture, water-cooled. Doesn't require monitor, includes USB cable and PC-HP application software.

Sensitivity 0.4 mW/W,
rise time 7 sec,
spectral range 0.19-20um.

$ 7,911.00

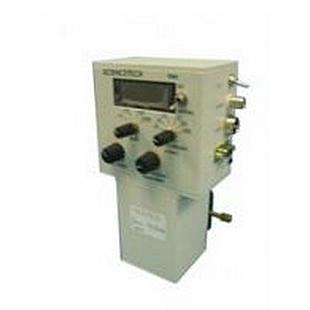

This is a room-temperature detector for use with the SPS-300. This includes the DTGS detector with a mounting flange, but requires the use of a dual-phase lock-in amplifier (sold separately).

Element size: 2.0mm diameter
Spectral bandwidth: Limited by selection of window
Sensitivity: 133,000 V/W (HDPE window)
Frequency Response: 8.8 - 265HZ (-3db points)
NEP: 1x10^-10 W (100Hz, 1Hz BW)

Contact for Pricing

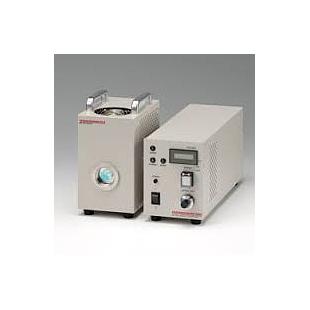

Integral HV power supply and display unit
4 digits LCD display
Analog BNC output
Available AD data acquisition system for capture to computer
Cooling temperature: -20°C. Warm-up time 10 minutes
Note: Cooling temperature is dependent on ambient temperature
Includes a small water recirculator (required for operation)

$ 6,697.00

Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers,
The spectral range is limited by high density polyethylene window.
The detector WILL saturate on the visible light from the lamp. After alignment, cover the entire input opening of the detector head with thin black polyethylene to prevent undesired visible light from overloading the detector.
This detector is suitable for direct connection to Stanford SR-830 lockin preamp power. When using the Stanford lock-in, the signal overload indicator will light just before the detector saturates.The SCIDTGS-PE detector is suitable for testing FTIR alignment and material transmission measurements without special cooling.
Upon installation, the optical system MUST be re-aligned to image the iris of the light source onto the detector element. This may require rotating the entire detector head to an optimum position and/or adjusting mirrors and re-focusing.
Element size 2.0 mm dia.
Spectral bandwidth Limited by High Density Polyethylene window
Sensitivity 133,000 volts per watt HDPE Window
Frequency response 8.8Hz - 265Hz (-3db points)
N.E.P. 1x10-10 watts (100Hz, 1Hz BW)

Power requirements: +/- 15 to +/- 24 volts max @ +/- 8 mA max.
Power connections: DB-9M Pins 2,3,4,5,9 no connection
+V In Pin 1
-V In Pin 6
Common Pin 7
Case GND Pin 8
Suitable for direct connection to Stanford SR-830 lockin preamp power (not included).

$ 6,200.00

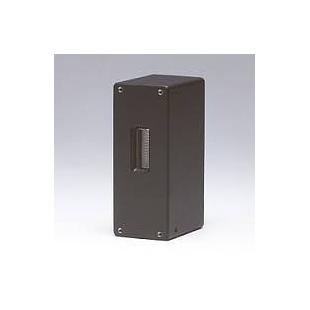

A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-1024 detector
Power supply
All cables and connections required for the system
A/D data acquisition board
Includes free version of SciRunLDA, a basic library for interfacing with other software. We recommend SciLDA, the full software package, for users who want a full feature system.

$ 5,571.00

A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-512 detector
Power supply
All cables and connections required for the system
A/D data acquisition board and basic software library

$ 5,459.00

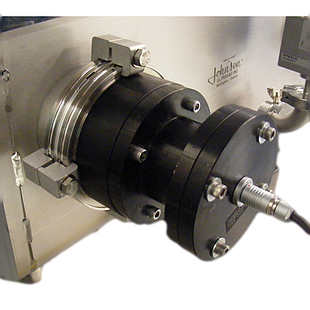

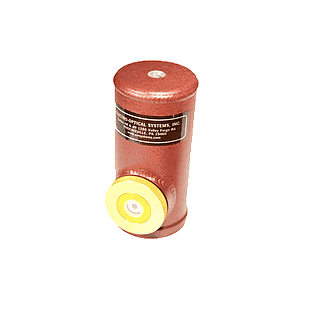

This single element detector is effective in sensing wavelengths between 1000 nm and 5500 nm. Please note that it is available in various sensor area sizes and includes a dewar to hold liquid nitrogen for significantly lower dark current and improved signal to noise. The output is an analog signal available through a BNC connector at the back of the detector housing. Since the signal is analog, an optional 12-bit and 16-bit data acquisition system and software is available to digitize its output into a computer. A DC power supply for this detector (sold separately) is also required. This detector is designed for use with scanning monochromators to capture the intensity of one wavelength at a time. An optional mount allows it to mate to any Sciencetech scanning monochromators. Sciencetech can also provide an optional custom mount for mating to non-Sciencetech monochromators and spectrographs.

$ 4,359.00

The Sciencetech PMH-01 Photon Counting Module is self-contained compact unit incorporating PMT tube, high-speed amplifier, discriminator, and high voltage power supply. The output signal (train of pulses, the number of which corresponds to the number of detected photons) can be sent via a BNC connector, to an external counting/displaying circuit. The PMH-01 outputs digital signal (pulses) only. There is no analog output port.

The photon counting head used has low power consumption (max 0.5W). It is already adjusted for best S/N ratio. There is no additional adjustment necessary to start the operation.

Parameter Value
Operating Temperature Range +5 to + 40 °C
Storage Temperature Range -20 to +50 °C
Effective Area 4 x 6 sq.mm
Spectral Response 185 to 900 nm
Dark Count (Typical) 400 cps
Dark Count (Max.) 800 cps
Counting Linearity 2.5 Mcps
Pulse Pair Resolution 35 ns
Output Pulse Width 30 ns
Output Logic TTL, positive
Input Voltage +5 V
Input Current at 2.5 Mcps Output max. 80 mA
Output Signal Cable RG-174/U

$ 4,000.00

Photon counting head using 28mm dia. Side on PMT. Spectral response range 185nm - 850nm. Low dark counts in UV to near IR range.
For full technical specifications, please contact your authorized Sciencetech technical sales staff member.

$ 3,663.00

Main Features:

Lithium tantalate sensor
Compatible with EOS PS-1 power supply or EOS LIA/PS-1 lock-in/power supply
Power requirements are ±15 volts to ± 24 volts at ± 5mA max.
Quartz or fused silica window allows essentially flat response (±3%) 300nm-2.1µm
Electrical response -3dB points typically 0.5Hz - 150Hz
Saturation Power: 30mW

Optional Features

Sapphire, germanium, silicon, CaF2, BaF2, or KBr windows are available instead of quartz at extra cost, please specify when ordering
Specialized calibration options at extra cost, please speak to a Sciencetech representative or write to sales@sciencetech-inc.com
Lockin module (price not included in standard detector package)

$ 3,230.00

Sciencetech's proprietary wideband detector design comes packaged in our standard "hockey puck" enclosure (2" diameter x 1" high) and is connectorized to be powered directly from the Stanford SR-810/830 type lock-in amplifiers and optimized to utilize the full input range of these
lock-ins for FTIR applications.
Features of our SCI425CMB0:
This detector is not hygroscopic and may be operated indefinitely under normal atmospheric conditions and at temperatures beyond 100oC. A selection of windows is available to limit spectral response.

$ 3,200.00

This is an H-Series pyroelectric / receiver, specifically for the 10 kHz Bandwidth. Comes with sapphire windows by default (good between 500nm to 6 microns, approximately). Various other windows are available at extra cost: please ask you Sciencetech Representative.

$ 3,000.00

This single element detector is effective at sensing wavelengths between 2,000nm and 12,000nm. Please note that it is available in various sizes and includes a dewar to hold liquid nitrogen (to lower dark current and improved signal to noise). To operate this detector, a supply of liquid nitrogren is required. As with most IR detectors, MCT detectors are coupled to AC preamplifiers which means they detect only changes in light levels. Generally the light signal being detected is modulated with a chopper or the source itself is modulated, such as a pulsed laser source. When using a chopper to modulate the input signal generally a lock-in amplifier is used to demodulate the signal. The output signal from the MCT is an analog signal available through a BNC on the back of the detector housing. Since the signal is analog, an optional 12-bit or 16-bit data acquistion system and software is available (sold separately).
This MCT detector includes a preamplier. This system also requires a power supply (sold separately, compatible with PS-1/LIA [590-0106] or PS-1 [590-0006] when another lock in amplifier is used).
To connect this detector to a Sciencetech monochromator use the cryogenic detector mount P/# 125-8016

Active Area: 1 mm x 1mm sq.
Operating Wavelength: 2 – 12um
Resistance -ohms [ typ ]: 20 - 100
Time Constant: 0.5 µs
Detectivity [ cm-Hz½/W ]: > 5 x 10^10
Package: LN Dewar

$ 2,935.00

This single element detector is effective at sensing wavelengths between 2,000nm and 12,000nm. Please note that it is available in various sizes and includes a dewar to hold liquid nitrogen (to lower dark current and improved signal to noise). To operate this detector liquid nitrogren is required. As with most IR detectors MCT detectors are coupled to AC preamplifiers which means they detect changes in light levels. Generally the light signal being detected is modulated with a chopper or the source itself is modulated, such as a pulsed laser source. When using a chopper to modulate the input signal generally a lock-in amplifier is used to demodulate the signal. The output signal from the MCT is an analog signal available through a BNC on the back of the detector housing. Since the signal is analog, an optional 12-bit or 16-bit data acquistion system and software is available (sold separately).
The MCT detector includes a preamplier. This system also requires a power supply (sold separately, compatible with the PS-1/LIA 590-0106 or PS-1 590-0006 when another lock in amplifier is used).
To connect this detector to a Sciencetech monochromator use the cryogenic detector mount P/# 125-8016

$ 2,835.00

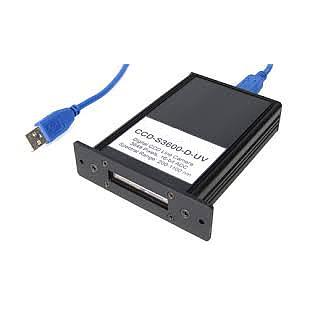

Alphalas 3648 pixel linear CCD.
UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0
Housing: 90 x 25 x 105 mm (W x H x D)
Comes with specific USB power/signal cable for interfacing to a computer.
Works with Sciencetech SciSpec Software integrating camera readout and monochromator position information. This camera is also compatible with LabView. A C++ programming library is available for this camera at extra cost.

This camera can also be triggered using TTL signals making it a perfect option for interfacing with Sciencetech's high speed shutters for decay measurements.

$ 2,717.00
