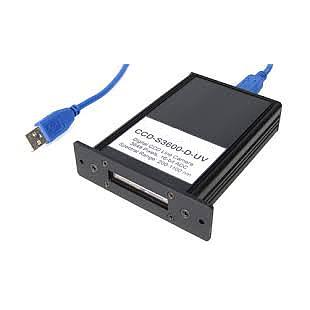

Alphalas 3648 pixel linear CCD.
UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0
Housing: 90 x 25 x 105 mm (W x H x D)
Comes with specific USB power/signal cable for interfacing to a computer.
Works with Sciencetech SciSpec Software integrating camera readout and monochromator position information. This camera is also compatible with LabView. A C++ programming library is available for this camera at extra cost.

This camera can also be triggered using TTL signals making it a perfect option for interfacing with Sciencetech's high speed shutters for decay measurements.
2,717.00
In stock
Alphalas 3648 pixel linear CCD.
UV to IR spectral range 200 - 1100 nm, 16-bit ADC, large 32 MB of fast DDR2 onboard RAM, max. 269.5 fps, high-speed USB 2.0
Housing: 90 x 25 x 105 mm (W x H x D)
Comes with specific USB power/signal cable for interfacing to a computer.
Works with Sciencetech SciSpec Software integrating camera readout and monochromator position information. This camera is also compatible with LabView. A C++ programming library is available for this camera at extra cost.

This camera can also be triggered using TTL signals making it a perfect option for interfacing with Sciencetech's high speed shutters for decay measurements.
2,717.00 2717.0 USD
Price Valid only in North America


A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-512 detector
Power supply
All cables and connections required for the system
A/D data acquisition board and basic software library
5,459.00
In stock
A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-512 detector
Power supply
All cables and connections required for the system
A/D data acquisition board and basic software library
5,459.00 5459.0 USD
Price Valid only in North America


A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-1024 detector
Power supply
All cables and connections required for the system
A/D data acquisition board
Includes free version of SciRunLDA, a basic library for interfacing with other software. We recommend SciLDA, the full software package, for users who want a full feature system.
5,571.00
In stock
A Linear array sensitive in the 200 to 1000nm range.
System includes:
Photodiode array LDA 2000-1024 detector
Power supply
All cables and connections required for the system
A/D data acquisition board
Includes free version of SciRunLDA, a basic library for interfacing with other software. We recommend SciLDA, the full software package, for users who want a full feature system.
5,571.00 5571.0 USD
Price Valid only in North America


This broadband IR area detector has a sensor size of 320 x 240 pixels and a spectral range of 2-14 μm. The pixel size is 48.5μm square. The sensor is an uncooled pyroelectric BST (Barium, Strontium, Titanate) array. Because of the nature of pyroelectric sensors, there is an internal Archimedes spiral chopper that recalibrates the image. However, this calibration system, called an Auto Image Calibration, is actually a benefit for the user. The detector self calibrates to a reference 60 times per second, which in turn causes the system to be extremely stable and to have very little fixed pattern noise.
21,121.00
This broadband IR area detector has a sensor size of 320 x 240 pixels and a spectral range of 2-14 μm. The pixel size is 48.5μm square. The sensor is an uncooled pyroelectric BST (Barium, Strontium, Titanate) array. Because of the nature of pyroelectric sensors, there is an internal Archimedes spiral chopper that recalibrates the image. However, this calibration system, called an Auto Image Calibration, is actually a benefit for the user. The detector self calibrates to a reference 60 times per second, which in turn causes the system to be extremely stable and to have very little fixed pattern noise.
21,121.00 21121.0 USD
Price Valid only in North America


Sciencetech's iCCD is a 1.5ns fast camera system. The complete gated iCCD camera system includes the software. A mount and spectrograph are suggested components for proper operation.
This detector has a built-in image intensifier in front of a CCD sensor to multiply the light signal. It is used in very low light applications where the raw light signal is too low to be detected by a regular CCD sensor.


77,117.00
In stock
Sciencetech's iCCD is a 1.5ns fast camera system. The complete gated iCCD camera system includes the software. A mount and spectrograph are suggested components for proper operation.
This detector has a built-in image intensifier in front of a CCD sensor to multiply the light signal. It is used in very low light applications where the raw light signal is too low to be detected by a regular CCD sensor.


77,117.00 77117.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-2.55 microns
Typical Dark Current: 500 pA
25,875.00
In stock
Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-2.55 microns
Typical Dark Current: 500 pA
25,875.00 25875.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-2.3 microns
Typical Dark Current: 200 pA
25,875.00
In stock
Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-2.3 microns
Typical Dark Current: 200 pA
25,875.00 25875.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-2.1 microns
Typical Dark Current: 30 pA
25,875.00
In stock
Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-2.1 microns
Typical Dark Current: 30 pA
25,875.00 25875.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-1.9 microns
Typical Dark Current: 15 pA
25,875.00
In stock
Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.9-1.9 microns
Typical Dark Current: 15 pA
25,875.00 25875.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.5mm
Total No. Pixels: 512
Active Pixels: 512
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 1 pA
20,675.00
In stock
Active Area: 12.8mm x 0.5mm
Total No. Pixels: 512
Active Pixels: 512
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 1 pA
20,675.00 20675.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.5mm
InGaAs linear image sensors are specifically designed for near infrared multichannel spectrophotometry. These linear image sensors consist of an InGaAs photodiode array, a charge amplifier array, an offset compensation circuit, a shift register and a timing generator formed on a CMOS chip. The charge amplifier array is
made up of CMOS transistors connected to each pixel of the InGaAs photodiode array. Signals from each pixel are read out in
charge integration mode to achieve high sensitivity and stable operation in the near infrared spectral range. The package is
hermetically sealed for high reliability.

Signal processing circuits on the CMOS chip can be selected from two conversion efficiencies (CE) by external voltage.

Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 500microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 4 pA
20,385.00
In stock
Active Area: 12.8mm x 0.5mm
InGaAs linear image sensors are specifically designed for near infrared multichannel spectrophotometry. These linear image sensors consist of an InGaAs photodiode array, a charge amplifier array, an offset compensation circuit, a shift register and a timing generator formed on a CMOS chip. The charge amplifier array is
made up of CMOS transistors connected to each pixel of the InGaAs photodiode array. Signals from each pixel are read out in
charge integration mode to achieve high sensitivity and stable operation in the near infrared spectral range. The package is
hermetically sealed for high reliability.

Signal processing circuits on the CMOS chip can be selected from two conversion efficiencies (CE) by external voltage.

Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 500microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 4 pA
20,385.00 20385.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.25mm
Total No. Pixels: 512
Active Pixels: 512
Pixel Size (H x V): 25microns x 250microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 1 pA
20,385.00
In stock
Active Area: 12.8mm x 0.25mm
Total No. Pixels: 512
Active Pixels: 512
Pixel Size (H x V): 25microns x 250microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 1 pA
20,385.00 20385.0 USD
Price Valid only in North America


Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 2 pA
20,094.00
In stock
Active Area: 12.8mm x 0.25mm
Total No. Pixels: 256
Active Pixels: 256
Pixel Size (H x V): 50microns x 250microns
Spectral Response: 0.8-1.7 microns
Typical Dark Current: 2 pA
20,094.00 20094.0 USD
Price Valid only in North America


High speed, high sensitivity CCD camera with broad spectral range from 200 to 1100 nm

Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter

Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Includes detector, head, and controller. Does not include mounting to spectrometer.

Total number of pixels 1044 x 128
Number of active pixels 1024 x 128
Pixel rate (MHz/port) 30
Line rate (kHz) 50
Window: Quartz glass
16,729.00
In stock
High speed, high sensitivity CCD camera with broad spectral range from 200 to 1100 nm

Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter

Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Includes detector, head, and controller. Does not include mounting to spectrometer.

Total number of pixels 1044 x 128
Number of active pixels 1024 x 128
Pixel rate (MHz/port) 30
Line rate (kHz) 50
Window: Quartz glass
16,729.00 16729.0 USD
Price Valid only in North America


Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head
Number of pixels 532x128
Number of active pixels 512x122
Window: AR-coated sapphire
TE cooled: cooling temperature -10 C

Includes detector, head, and controller. Does not include mounting to spectrometer.
14,856.00
In stock
Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head
Number of pixels 532x128
Number of active pixels 512x122
Window: AR-coated sapphire
TE cooled: cooling temperature -10 C

Includes detector, head, and controller. Does not include mounting to spectrometer.
14,856.00 14856.0 USD
Price Valid only in North America


Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 532x64
Number of active pixels 512x58
Window: AR-coated sapphire
TE cooled: cooling temperature -10 C

Includes detector, head, and controller. Does not include mounting to spectrometer.
14,230.00
In stock
Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 532x64
Number of active pixels 512x58
Window: AR-coated sapphire
TE cooled: cooling temperature -10 C

Includes detector, head, and controller. Does not include mounting to spectrometer.
14,230.00 14230.0 USD
Price Valid only in North America



Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 1044x64
Number of active pixels 1024x58
Window: Quartz
Uncooled

Includes detector, head, and controller. Does not include mounting to spectrometer.
13,309.00
In stock

Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 1044x64
Number of active pixels 1024x58
Window: Quartz
Uncooled

Includes detector, head, and controller. Does not include mounting to spectrometer.
13,309.00 13309.0 USD
Price Valid only in North America



Includes detector, head, and controller. Does not include mounting to spectrometer.

Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head


Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 532x128
Number of active pixels 512x122
Window: Quartz
Uncooled

Includes detector, head, and controller. Does not include mounting to spectrometer.
13,040.00
In stock

Includes detector, head, and controller. Does not include mounting to spectrometer.

Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head


Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 532x128
Number of active pixels 512x122
Window: Quartz
Uncooled

Includes detector, head, and controller. Does not include mounting to spectrometer.
13,040.00 13040.0 USD
Price Valid only in North America


Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 532x64
Number of active pixels 512x58
Window: AR-coated sapphire
Uncooled

Includes detector, head, and controller. Does not include mounting to spectrometer.
12,416.00
In stock
Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

Number of pixels 532x64
Number of active pixels 512x58
Window: AR-coated sapphire
Uncooled

Includes detector, head, and controller. Does not include mounting to spectrometer.
12,416.00 12416.0 USD
Price Valid only in North America


Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

pixel size 24x24 um
Low dark signal: 10 e/pixel/s @ 0 C
Number of pixels 1044x256
Number of active pixels 1024x252
Window: Quartz glass
One stage TE cooling

Includes detector, head, and controller. Does not include mounting to spectrometer.
16,255.00
In stock
Complete CCD detector system with sensor head, power supply, A/D data acquisition board for PCs, real-time data acquisition software, cables, and optional mechanical shutter
Line binning linear array mode
16-bit output
Windows based Active-X real-time data acquisition software for easy incorporation into custom software, and for flexible detector control and data acquisition
Low cost fully integrated detector system utilizing reliable Hamamatsu CCD sensor head

pixel size 24x24 um
Low dark signal: 10 e/pixel/s @ 0 C
Number of pixels 1044x256
Number of active pixels 1024x252
Window: Quartz glass
One stage TE cooling

Includes detector, head, and controller. Does not include mounting to spectrometer.
16,255.00 16255.0 USD
Price Valid only in North America
Copyright © Sciencetech
