This four slot filter-wheel was originally designed for the US military to work in a 10^(-7) Torr vacuum environment. Today, a standard non-vacuum version and the original vacuum version are available. The vacuum version can be manufactured in a Class 10,000 clean room, fully baked out, and meets Class A cleanliness standards, at a small additional cost. Please note that the optional external control electronics is not designed to operate in a vacuum. It must operate in ambient pressure environment.
5,127.00
In stock
This four slot filter-wheel was originally designed for the US military to work in a 10^(-7) Torr vacuum environment. Today, a standard non-vacuum version and the original vacuum version are available. The vacuum version can be manufactured in a Class 10,000 clean room, fully baked out, and meets Class A cleanliness standards, at a small additional cost. Please note that the optional external control electronics is not designed to operate in a vacuum. It must operate in ambient pressure environment.
5,127.00 5127.0 USD
Price Valid only in North America

The SS-84-M is a High Resolution motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS84 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.
3,300.00
In stock
The SS-84-M is a High Resolution motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS84 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.
3,300.00 3300.0 USD
Price Valid only in North America

The SS-80-M is a Motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders. The SS-80-M motorized slit comes with Sciencetech SciSlit software for controlling the slit. See the product brochure for more information on the slit accuracy and step size.
2,988.00
In stock
The SS-80-M is a Motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders. The SS-80-M motorized slit comes with Sciencetech SciSlit software for controlling the slit. See the product brochure for more information on the slit accuracy and step size.
2,988.00 2988.0 USD
Price Valid only in North America

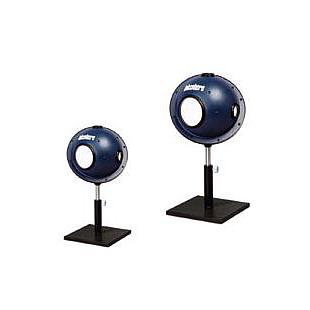

Spectralon Reflective Coating Standard,( Zenith White and Gold Coating available)
1.5" diameter entrance/exit port (1), 1" diameter application ports (3) (90 degree, North Pole and 180 degree)
Additional Ports and reduction of ports possible
Internal baffle on 90 deg port

2,880.00
In stock
Spectralon Reflective Coating Standard,( Zenith White and Gold Coating available)
1.5" diameter entrance/exit port (1), 1" diameter application ports (3) (90 degree, North Pole and 180 degree)
Additional Ports and reduction of ports possible
Internal baffle on 90 deg port

2,880.00 2880.0 USD
Price Valid only in North America

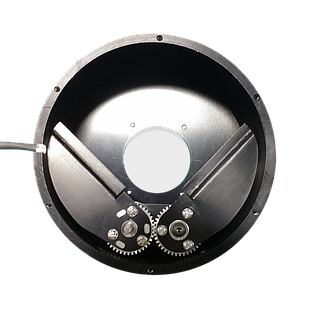

This is a 3" shutter designed to fit with one of Sciencetech's LH series lamp houses.
This product includes the controller. Shutter has a 3-D slip ring connection and is fully enclosed.
2,756.00
In stock
This is a 3" shutter designed to fit with one of Sciencetech's LH series lamp houses.
This product includes the controller. Shutter has a 3-D slip ring connection and is fully enclosed.
2,756.00 2756.0 USD
Price Valid only in North America

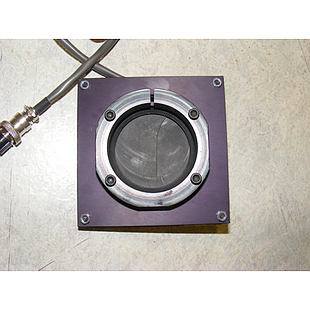

An external shutter appropriate for LH and XLH series lamp houses. This high speed shutter is computer controlled. The shutter includes a power supply, electronics module, and cable. Clear Aperture = 50mm
Minimum exposure time = 6ms (40Hz)
Maximum exposure time = several minutes
Opening time = 3ms
2,756.00
In stock
An external shutter appropriate for LH and XLH series lamp houses. This high speed shutter is computer controlled. The shutter includes a power supply, electronics module, and cable. Clear Aperture = 50mm
Minimum exposure time = 6ms (40Hz)
Maximum exposure time = several minutes
Opening time = 3ms
2,756.00 2756.0 USD
Price Valid only in North America

This component will attach a wide variety of CCDs directly to Sciencetech's line of monochromators and/or spectrometers. For CCDs that are made by Hamamatsu, please see part # 125-8009. Please confirm with a Sciencetech representative if you are uncertain if your system requires this mount for your CCD.
2,500.00
In stock
This component will attach a wide variety of CCDs directly to Sciencetech's line of monochromators and/or spectrometers. For CCDs that are made by Hamamatsu, please see part # 125-8009. Please confirm with a Sciencetech representative if you are uncertain if your system requires this mount for your CCD.
2,500.00 2500.0 USD
Price Valid only in North America

Sciencetech's 120-9045 high speed shutter is a recommended accessory with Sciencetech's area scan CCD detectors, but can also be used with Sciencetech's LDA photodiodes or InGaAs linear array detectors. This shutter mounts inside a Sciencetech spectrograph behind the input port. Due to its sturdy steel construction, it can withstand approximately 5W/mm^2 (up to about 200 degrees Celsius). This product includes both the shutter and the controller, and can be either manually controlled (via externally mounted button) or computer controlled.
2,200.00
In stock
Sciencetech's 120-9045 high speed shutter is a recommended accessory with Sciencetech's area scan CCD detectors, but can also be used with Sciencetech's LDA photodiodes or InGaAs linear array detectors. This shutter mounts inside a Sciencetech spectrograph behind the input port. Due to its sturdy steel construction, it can withstand approximately 5W/mm^2 (up to about 200 degrees Celsius). This product includes both the shutter and the controller, and can be either manually controlled (via externally mounted button) or computer controlled.
2,200.00 2200.0 USD
Price Valid only in North America

Couples a 1/4" Fiber bundle to the output port of a standard series monochromator. The coupler mounts to a standard series slit assembly such as an SS-80 or SS-82 slit.
The fiber is positioned close to the slit output to couple as much light as possible into the slit.
There is no optical coupling between the fiber and slit.
Please note that this is for the coupling for the fiber only; the slit must be included separately.

2,120.00
In stock
Couples a 1/4" Fiber bundle to the output port of a standard series monochromator. The coupler mounts to a standard series slit assembly such as an SS-80 or SS-82 slit.
The fiber is positioned close to the slit output to couple as much light as possible into the slit.
There is no optical coupling between the fiber and slit.
Please note that this is for the coupling for the fiber only; the slit must be included separately.

2,120.00 2120.0 USD
Price Valid only in North America

This product is specifically to upgrade a SS80-series slit to allow for motorized, computer control. The slit itself (sold separately as product 120-9038, 120-9043, and 120-9044) has straight, bilaterally adjustable jaws with spacing between 0 and 6.5mm. The motor used has a calculated minmum incremental motion of 9nm.
A manual curtain slider can be used to adjust the height of the slit: please speak with your authorized Sciencetech technical sales staff member to determine if a manual height slit is appropriate for your particular system.
2,097.00
In stock
This product is specifically to upgrade a SS80-series slit to allow for motorized, computer control. The slit itself (sold separately as product 120-9038, 120-9043, and 120-9044) has straight, bilaterally adjustable jaws with spacing between 0 and 6.5mm. The motor used has a calculated minmum incremental motion of 9nm.
A manual curtain slider can be used to adjust the height of the slit: please speak with your authorized Sciencetech technical sales staff member to determine if a manual height slit is appropriate for your particular system.
2,097.00 2097.0 USD
Price Valid only in North America

Rotating blade chopper
2 opening blade for frequency range of 4-200Hz.
Higher frequency ranges available with other blades.
Includes enclosure and driver
1-D slip ring with H4 hole pattern on input face, 2-D slip ring with S4 hole pattern on output face for integration with Sciencetech modular instruments.

This chopper is compatible with SciSpec and SciPV software. For integration into Sciencetech instruments or larger integrated systems see SciencetechCOM and SciAX software.

Third party control software is included with this chopper but is not supported by Sciencetech.
2,000.00
In stock
Rotating blade chopper
2 opening blade for frequency range of 4-200Hz.
Higher frequency ranges available with other blades.
Includes enclosure and driver
1-D slip ring with H4 hole pattern on input face, 2-D slip ring with S4 hole pattern on output face for integration with Sciencetech modular instruments.

This chopper is compatible with SciSpec and SciPV software. For integration into Sciencetech instruments or larger integrated systems see SciencetechCOM and SciAX software.

Third party control software is included with this chopper but is not supported by Sciencetech.
2,000.00 2000.0 USD
Price Valid only in North America

Sciencetech motorized filter wheels include an internal stepping motor for minimal footprint, as well as a microprocessor controller for USB communication with a host computer. It has six 1" filter positions, and accepts either 1" diameter or square filters.
Please note that filters are sold separately.
1,852.00
In stock
Sciencetech motorized filter wheels include an internal stepping motor for minimal footprint, as well as a microprocessor controller for USB communication with a host computer. It has six 1" filter positions, and accepts either 1" diameter or square filters.
Please note that filters are sold separately.
1,852.00 1852.0 USD
Price Valid only in North America

Sciencetech's FWG-8 motorized filter wheel has eight filter positions. Each filter position accepts 1” diameter round filters up to 5mm thick. The filter wheel is a compact pancake design with an exposed stepper motor mounted on one side.
1,852.00
In stock
Sciencetech's FWG-8 motorized filter wheel has eight filter positions. Each filter position accepts 1” diameter round filters up to 5mm thick. The filter wheel is a compact pancake design with an exposed stepper motor mounted on one side.
1,852.00 1852.0 USD
Price Valid only in North America

This upgrade allows a Manual 9030 to be operated by computer control. It has replaced Sciencetech's older MD100 motor controllers.

Only a single motorized upgrade is required for 9030DS, 9030DAs, or a single 9030.
Please speak with your authorized Sciencetech technical sales staff member.
1,806.00
In stock
This upgrade allows a Manual 9030 to be operated by computer control. It has replaced Sciencetech's older MD100 motor controllers.

Only a single motorized upgrade is required for 9030DS, 9030DAs, or a single 9030.
Please speak with your authorized Sciencetech technical sales staff member.
1,806.00 1806.0 USD
Price Valid only in North America

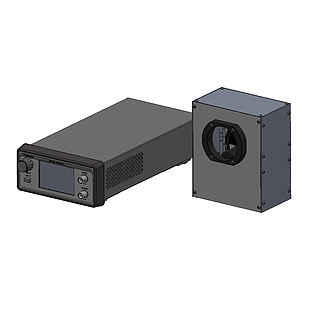

An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control, the shutter can be controlled via an interface on the power supply.

This shutter can be used with any mid-ranged powered light source and can effectivley block a 3" diameter beam. See the brochure information for a mounting pattern.

The shutter can also be controlled through Sciencetech's touch screen power supplies, including automated opening and closing of the shutter as well as preprogrammed exposure times. Ask your authorized Sciencetech technical sales staff member if you are uncertain whether your system includes one of our new power supplies.

Please note that leaving the shutter closed for extremely long periods of time while the arc lamp is on may cause damage to the motorized components.
1,756.00
In stock
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system inside the beam homogenizer. The electronic shutter is computer controlled with an activation time of <150ms. Software for the shutter controller is included with this item. The standard shutter controller connects to a computer via RS232. RS232-USB converters are available and work with this product. In addition to computer control, the shutter can be controlled via an interface on the power supply.

This shutter can be used with any mid-ranged powered light source and can effectivley block a 3" diameter beam. See the brochure information for a mounting pattern.

The shutter can also be controlled through Sciencetech's touch screen power supplies, including automated opening and closing of the shutter as well as preprogrammed exposure times. Ask your authorized Sciencetech technical sales staff member if you are uncertain whether your system includes one of our new power supplies.

Please note that leaving the shutter closed for extremely long periods of time while the arc lamp is on may cause damage to the motorized components.
1,756.00 1756.0 USD
Price Valid only in North America

For those concerned with price, a manual filter wheel can be an affordable way to allow the flexibility of a filter wheel at a lower cost than fully motorized options. This filter wheel has space for 6 filters of 1" size (either 1x1" squares or 1" diameter), up to 5mm thick. It is a compact pancake design with an easy to use manual control for switching the position of the filters.
1,550.00
In stock
For those concerned with price, a manual filter wheel can be an affordable way to allow the flexibility of a filter wheel at a lower cost than fully motorized options. This filter wheel has space for 6 filters of 1" size (either 1x1" squares or 1" diameter), up to 5mm thick. It is a compact pancake design with an easy to use manual control for switching the position of the filters.
1,550.00 1550.0 USD
Price Valid only in North America

Sciencetech FW-8 filter wheel has eight filter positions. Each filter position accepts 1” diameter round filters up to 5mm thick. The filter wheel is a compact pancake design. Please note that individual filters are also sold separately.
Supports 1" or 25mm diameter filters
The 1" diameter slots of the filter-wheel can also hold 25mm diameter filters since 25mm is slightly smaller than 1" (25.4mm). The filters are held in place by a top retaining ring which presses down onto the edge of the filter and works whether they are 1" or 25mm diameter. Due to the retaining ring, the clear aperture is reduced to 23mm diameter.
1,494.00
In stock
Sciencetech FW-8 filter wheel has eight filter positions. Each filter position accepts 1” diameter round filters up to 5mm thick. The filter wheel is a compact pancake design. Please note that individual filters are also sold separately.
Supports 1" or 25mm diameter filters
The 1" diameter slots of the filter-wheel can also hold 25mm diameter filters since 25mm is slightly smaller than 1" (25.4mm). The filters are held in place by a top retaining ring which presses down onto the edge of the filter and works whether they are 1" or 25mm diameter. Due to the retaining ring, the clear aperture is reduced to 23mm diameter.
1,494.00 1494.0 USD
Price Valid only in North America

An adjustable mount to attach CCDs to any of Sciencetech's line of monochromator/spectrometers. This mount will work specifically with Hamamatsu's line of CCDs: if you are uncertain if your CCD is a standard Hamamatsu CCD or not, please ask your Sciencetech representative.
1,365.00
In stock
An adjustable mount to attach CCDs to any of Sciencetech's line of monochromator/spectrometers. This mount will work specifically with Hamamatsu's line of CCDs: if you are uncertain if your CCD is a standard Hamamatsu CCD or not, please ask your Sciencetech representative.
1,365.00 1365.0 USD
Price Valid only in North America

The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00
In stock
The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00 1350.0 USD
Price Valid only in North America

This adapter couples light from a standard FC terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from fused silica giving good transmission over a wavelength range of 200nm-2000nm
1,210.00
In stock
This adapter couples light from a standard FC terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from fused silica giving good transmission over a wavelength range of 200nm-2000nm
1,210.00 1210.0 USD
Price Valid only in North America
