Small Series

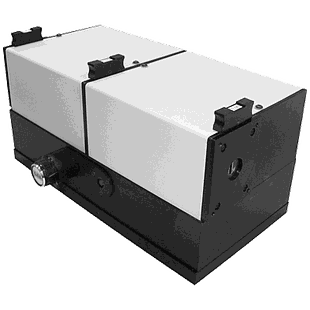

In the 9072DS, the grating in the second monochromator is arranged such that it reverses the spectral dispersion of the first monochromator. This leads to a spectrally homogenized beam at the output port of the second monochromator and greatly reduced stray light, ideal for spectroradiometry, Raman or UV measurements of solar radiation.
The arrangement of the 9072DS allows it to act either as a tunable bandpass filter or a tunable notch filter. Arranged as a tunable bandpass filter the bandpass of the device is determined by the width of an intermediate slit. When arranged as a tunable notch filter the width of the notch is determined by the physical width of an opaque notch placed at the intermediate slit position.
The 9072DS can also be used to pass or filter out several selected wavelengths by using a custom intermediate multi-slit mask instead of a single width intermediate slit.

One SS-80 slit is included, which can be attached to either the input or output port. A second slit can be added to the order if desired.
The fixed intermediate slit or notch filter is not included in the 9072DS and can be selected from any of Sciencetech's SF-series of fixed slits and added to the order. A custom multi-slit mask can be added to the order upon request.
Gratings and grating holders are not included. The 9072DS accommodates 30 × 30 mm gratings, with up to three gratings per turret. Two of each selected grating must be purchased to fill both monochromators. One grating holder is required for each grating.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 20,195.00

In the 9072DA, the inbound light is dispersed by the first grating then passed through a fixed intermediate slit where stray light is rejected and then spectrally dispersed again by the second grating.

The double dispersion of the double additive monochromators results in a doubling of the dispersion of a single monochromator, leading to better optical resolution. The bandpass is half that of a single 9072 monochromator.

One SS-80 slit is included, which can be attached to either the input or output port. A second slit can be added to the order if desired.
The fixed slit is not included in the 9072DA and can be selected from any of Sciencetech's FWS-series of fixed slits and added to the order.
Gratings are not included. The 9072DA accommodates 30 × 30 mm gratings, with up to three gratings per turret. Two of each selected grating must be purchased to fill both monochromators.

This system includes 2 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 20,195.00

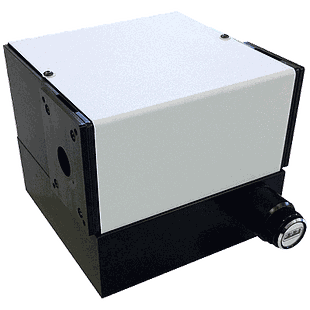

9072S is a small 1/8m scanning monochromator. The 9072S uses plane gratings 30mm x 30mm in size and utilizes a Czerny Turner optical configuration. The 9072S is designed to be used with single channel detectors or connected to another 9072S to form a double additive or subtractive system. The base 9072S system has a triple grating turret which is computer controlled. 4-grating turret is optional.

Gratings and Grating Holders (120-8512) are sold separately.
The 9072S is compatible with SS80 and SS84 adjustable slits and SS-F fixed slits. Comes with the adjustable slit.
It includes Sci-mono software for basic wavelength control. Our fully-featured spectroscopy package, SciSpec, is sold separately.

For applications requiring better signal to noise, reduced stray light and better resolution than the standard model a double additive model (9072DA) is available.
For applications requiring a tunable bandpass or notch filter light source, the double subtractive model (9072DS) is an ideal choice.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 7,159.00
