All Sciencetech systems incorporate adherence to industry standards. Sciencetech PV Testing System equipment are designed and manufactured according to.  High Intensity, Uniform Illumination of artificial solar irradiation.

Sciencetech solar simulators are highly configurable and with an impressive range of solar simulator options, our systems have been serving multiple researches and testing applications. Our solar simulator systems comply with standards such as ASTM, IEC and JIS and provides variability is design to accommodate researcher’s requirements. With over 30 years of experience in the solar simulator designing and manufacturing field, our systems provide



1) Spectral emission closest to the sun’s spectrum

2) High spatial uniformity

3) High temporal stability

4) Configurable orientations in illumination direction

5) Variety of output collimation angles

6) Variable illumination areas

7) Easy to use, turn-key systems with full software control

8) Multiple add-ons and accessories such as fiber optic cables, beam turning units, filters and more.

X

Product Category

View Filter

x
Clear all x

Filter Option

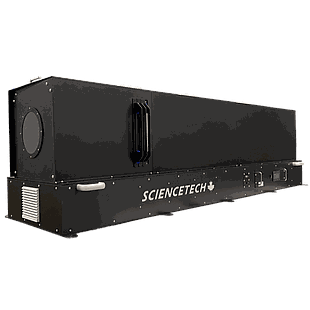

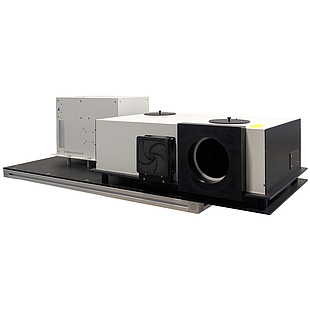

The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 200 × 200 mm
Working Distance: 1-3 m
Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
Collimation (half angle): 0.1 - 0.5 m
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
118,000.00
The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 200 × 200 mm
Working Distance: 1-3 m
Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
Collimation (half angle): 0.1 - 0.5 m
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
118,000.00 118000.0 USD
Price Valid only in North America


The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 500 × 500 mm
Working Distance: 0.2-1.0 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <20 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00
The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 500 × 500 mm
Working Distance: 0.2-1.0 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <20 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
89,800.00 89800.0 USD
Price Valid only in North America


The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <8 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
82,700.00
The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <8 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
82,700.00 82700.0 USD
Price Valid only in North America


The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): 0.9 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
82,700.00
The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class C
Temporal Instability: Class A
Target Size: 320 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): 0.9 degrees
Lamp Power: 6500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
82,700.00 82700.0 USD
Price Valid only in North America


The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 150 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): < 0.9 degrees
Lamp Power: 2500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 200-240VAC, 50/60 Hz, 20A (max current), L6-30 plug.
69,500.00
The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 150 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): < 0.9 degrees
Lamp Power: 2500 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable.
The cable requires 200-240VAC, 50/60 Hz, 20A (max current), L6-30 plug.
69,500.00 69500.0 USD
Price Valid only in North America


The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 100 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <0.5 degrees
Lamp Power: 1600 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable. The region-specific version must be selected at the time of placing an order.
The cable requires 200-240VAC, 50/60 Hz, 15A (max current), plug type must be specified by country.
56,600.00
The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

Specifications
AM1.5G Spectral Match: Class A
AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
Spatial Non-Uniformity: Class B
Temporal Instability: Class A
Target Size: 100 mm diameter
Working Distance: 1-3 m
Maximum Irradiance: 1.0 Suns (AM0), 1.2 Suns (AM1.5G), 1.5 Suns (Unfiltered)
Collimation (half angle): <0.5 degrees
Lamp Power: 1600 W
Illumination Direction: Horizontal (beam turner available)
Standard for Classification: ASTM E927-19

The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HFL variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

This system includes 1 power cable. The region-specific version must be selected at the time of placing an order.
The cable requires 200-240VAC, 50/60 Hz, 15A (max current), plug type must be specified by country.
56,600.00 56600.0 USD
Price Valid only in North America

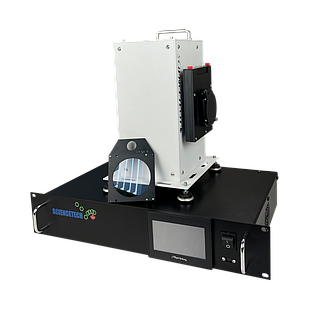

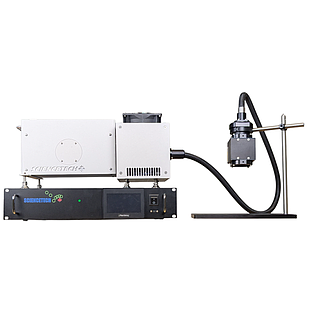

Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.

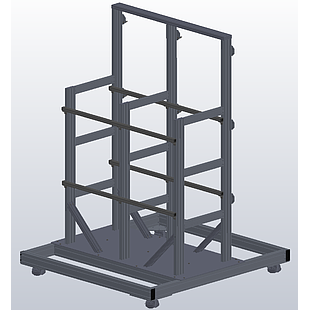

- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
13,930.00

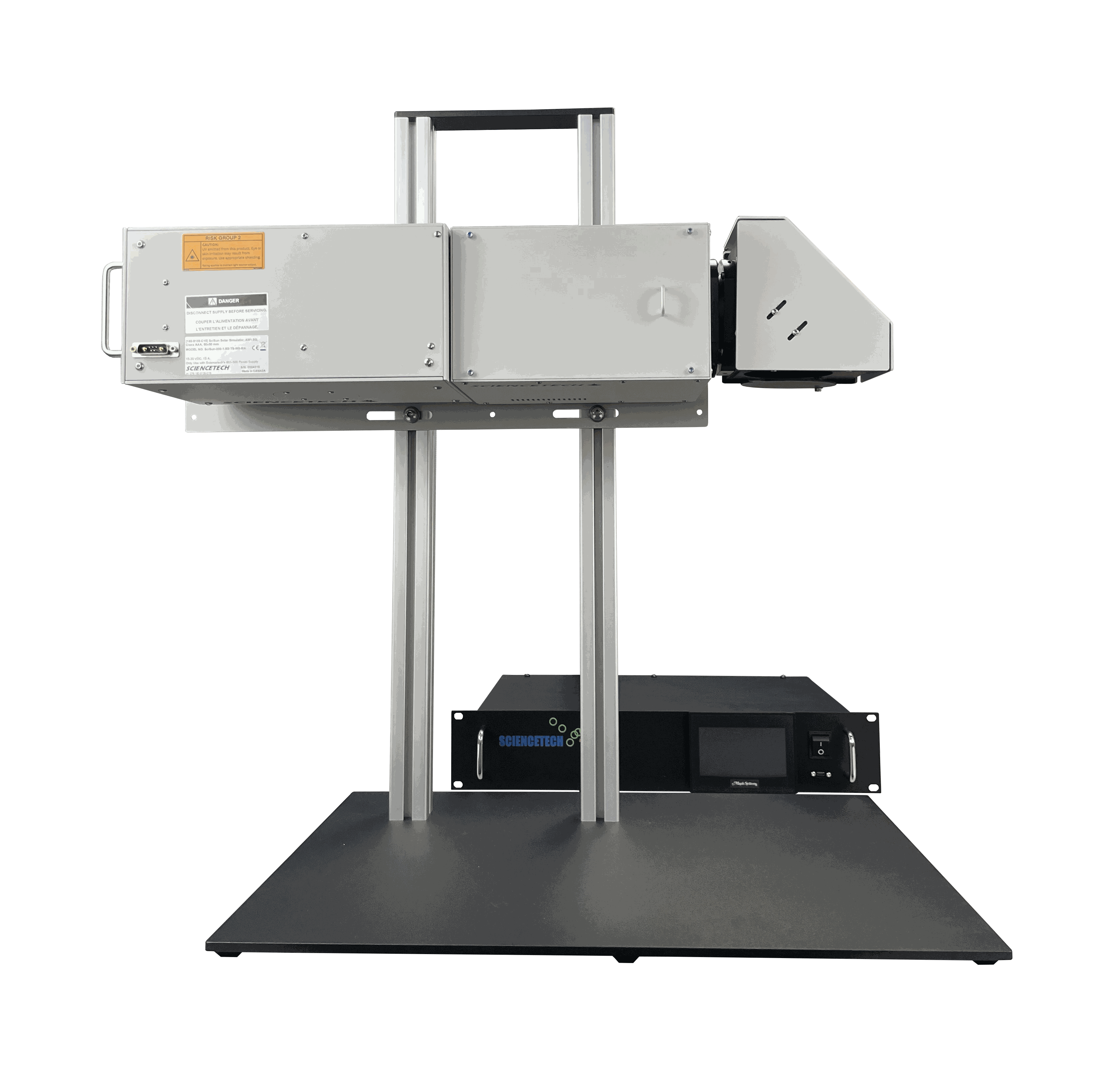

Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50 × 50 mm
Intensity: 1.5 Suns
ND filter for 1 sun operation included
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM0 spectral matching is the standard option. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 1.5 Suns (AM0 irradiance level).
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
13,930.00 13930.0 USD
Price Valid only in North America

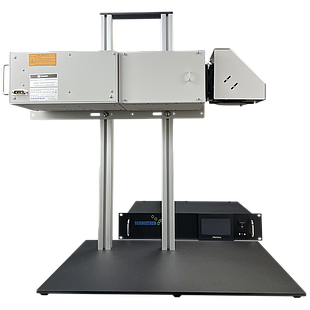

Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50×50 mm
Intensity: 2 Suns using 300W, 1 Sun using 150W
ND filter for 1 sun operation included with 300W version
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching is the standard option. For AM0 matching, please see the AM0 SciSun product. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 2 Suns, 150 W produces a maximum intensity of 1 Sun.
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the 300W SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
8,465.00
In stock
Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50×50 mm
Intensity: 2 Suns using 300W, 1 Sun using 150W
ND filter for 1 sun operation included with 300W version
Working distance: 380 mm (with beam turning unit CTBT-3)

The SciSun can be configured to precisely suit user requirements.

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching is the standard option. For AM0 matching, please see the AM0 SciSun product. Other filtering options are possible; please contact us for more details.
- Lamp: 300 W produces a maximum intensity of 2 Suns, 150 W produces a maximum intensity of 1 Sun.
- Power Supply: The included power supply can be a full-featured, adjustable touchscreen-controlled supply (CE compliant), or a simpler, manually-operated power supply (not CE compliant).
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature in all models.
- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. To control the motorized shutter from the power supply, the touchscreen power supply option is required.
- Attenuation: Manual or motorized variable attenuators are available optional accessories. If no variable attenuator is chosen, the 300W SciSun will still come with a removeable neutral density filter to permit 1 sun operation.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
8,240.00 8240.0 USD
Price Valid only in North America

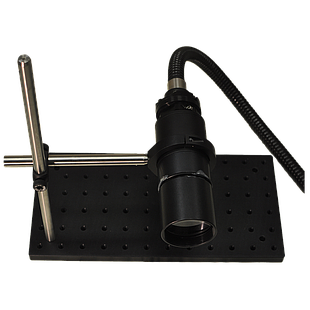

With the Sciencetech Solar LightLine you can direct the Class AAA solar light anywhere you want. Classic designs for solar simulators require you to bring your sample to the solar simulator. Now, you can bring the solar simulator to your sample! This makes the Sciencetech Solar LightLine series of fiberized solar simulators ideal for research that just can't accommodate traditional bulky solar simulators. The solar light can be easily integrated with a glove box without mounting the entire solar simulator in the glove box, saving space and adding flexibility. The standard 4-foot-long fiber makes the simulator ideal for doing spot checks of devices on manufacturing lines or in dedicated setups that can't accommodate a bulky solar simulator.

The Lightline includes space for fitting one internal accessory. Options are a motorized, 6-position filter wheel, with a variety of spectral or neutral density filters that can be supplied. Or a manual or motorized attenuation system that provides continuous control over intensity at the target from 10-100%. Internal accessories must be selected at the time of order and cannot be added at a later time.

Every Lightline includes an internal two-position filter tray that accommodates Sciencetech FT style filters. Model AX-100 and AX-200 come with a removeable FT-style filter that permits one sun operation. One filter location is reserved for the selected air mass filter. Air mass filters must be selected in the order for spectral match classification.

Classification is performed to ASTM E927-19. Classification to IEC 60904-9 and JIS C 08912 standards can be performed on request. Please contact your Sciencetech Technical Representative for details.

- Includes adjustable touchscreen 601-series power supply with current control from 80-100% of max current.
- Includes computer-controlled high intensity shutter.
- Length of light guide: 4 feet (other light guide lengths are possible) Light guides can be fitted with KF flanges for glovebox integration.
- Includes one 300W xenon short arc lamp.

This unit runs on 120/220VAC.
CE compliant.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
9,200.00
With the Sciencetech Solar LightLine you can direct the Class AAA solar light anywhere you want. Classic designs for solar simulators require you to bring your sample to the solar simulator. Now, you can bring the solar simulator to your sample! This makes the Sciencetech Solar LightLine series of fiberized solar simulators ideal for research that just can't accommodate traditional bulky solar simulators. The solar light can be easily integrated with a glove box without mounting the entire solar simulator in the glove box, saving space and adding flexibility. The standard 4-foot-long fiber makes the simulator ideal for doing spot checks of devices on manufacturing lines or in dedicated setups that can't accommodate a bulky solar simulator.

The Lightline includes space for fitting one internal accessory. Options are a motorized, 6-position filter wheel, with a variety of spectral or neutral density filters that can be supplied. Or a manual or motorized attenuation system that provides continuous control over intensity at the target from 10-100%. Internal accessories must be selected at the time of order and cannot be added at a later time.

Every Lightline includes an internal two-position filter tray that accommodates Sciencetech FT style filters. Model AX-100 and AX-200 come with a removeable FT-style filter that permits one sun operation. One filter location is reserved for the selected air mass filter. Air mass filters must be selected in the order for spectral match classification.

Classification is performed to ASTM E927-19. Classification to IEC 60904-9 and JIS C 08912 standards can be performed on request. Please contact your Sciencetech Technical Representative for details.

- Includes adjustable touchscreen 601-series power supply with current control from 80-100% of max current.
- Includes computer-controlled high intensity shutter.
- Length of light guide: 4 feet (other light guide lengths are possible) Light guides can be fitted with KF flanges for glovebox integration.
- Includes one 300W xenon short arc lamp.

This unit runs on 120/220VAC.
CE compliant.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
9,200.00 9200.0 USD
Price Valid only in North America

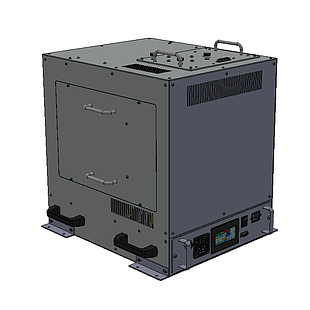

A system of 16 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
272,400.00
In stock
A system of 16 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
272,400.00 272400.0 USD
Price Valid only in North America

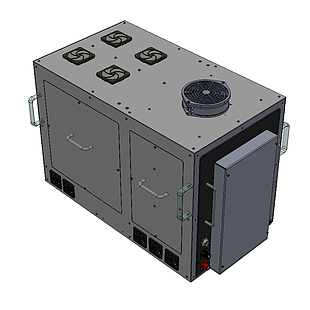

Class: AAA
Collimation Angle: 3.85º half angle
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
34,401.00
In stock
Class: AAA
Collimation Angle: 3.85º half angle
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
34,401.00 34401.0 USD
Price Valid only in North America


This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, igniter.

200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

* Systems can be built for downfacing operation if specified at time of order
22,000.00
This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, igniter.

200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

* Systems can be built for downfacing operation if specified at time of order
22,000.00 22000.0 USD
Price Valid only in North America


This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 621-3.0k adjustable touchscreen supply
Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, igniter.

200-240VAC, 20A
Requires 1 NEMA 6-30P power cord

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order
30,000.00
In stock
This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 621-3.0k adjustable touchscreen supply
Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, igniter.

200-240VAC, 20A
Requires 1 NEMA 6-30P power cord

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order
30,000.00 30000.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
70,125.00
In stock
Class: AAA (ASTM E927-10)
Non-uniformity < 3% over 36 measurement locations
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm +/- 100mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
70,125.00 70125.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 2.35º half angle
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
58,600.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 2.35º half angle
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 12.1-9.0A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
58,600.00 58600.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 2.6º half angle
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
40,490.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 2.6º half angle
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

Requires 220-240V/ 50/60Hz, 7.5-6.3A, Fused 15A, 250V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
40,490.00 40490.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19)
Collimation Angle: 3.95º half angle
Target Size: 150mm x 150 mm
Working Distance: 500mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
37,557.00
In stock
Class: AAA (ASTM E927-19)
Collimation Angle: 3.95º half angle
Target Size: 150mm x 150 mm
Working Distance: 500mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).
37,557.00 37557.0 USD
Price Valid only in North America


Class: AAA
Collimation Angle: 4.1º half angle
Target Size: 100mm x 100 mm
Working Distance: 300mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
31,270.00
In stock
Class: AAA
Collimation Angle: 4.1º half angle
Target Size: 100mm x 100 mm
Working Distance: 300mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
31,270.00 31270.0 USD
Price Valid only in North America


Class: AAA
Collimation Angle: 4.5º half angle
Target Size: 75mm x 75 mm
Working Distance: 225 mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
24,076.00
In stock
Class: AAA
Collimation Angle: 4.5º half angle
Target Size: 75mm x 75 mm
Working Distance: 225 mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
24,076.00 24076.0 USD
Price Valid only in North America

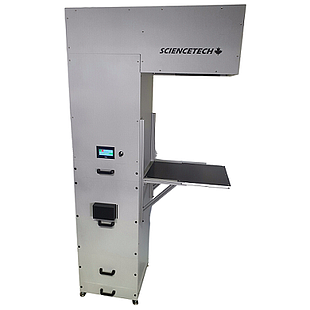

Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
38,230.00
Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
38,230.00 38230.0 USD
Price Valid only in North America
Copyright © Sciencetech
