Fully Reflective Solar Simulators



Fully Reflective Solar Simulator

The Fully Reflective Class ABA Solar Simulator


High Intensity, Uniform Illumination of artificial solar irradiation

Typically, high power solar simulators use an ellipsoidal reflector to capture light from an arc lamp source inside the reflector, an arrangement that results in a light pattern with a bright outer region and a dark center. This non-uniformity is unacceptable in many solar simulator applications and as a result, forces many of our solar simulator competitors to use designs involving diffusers to reduce the non-uniformity. This results in a reduction of intensity and a distortion of the spectrum on the target area.

Sciencetech’s solution to these problems is to use a unique system of mirrors that ‘fold’ the light onto the target plane, effectively reducing the light that is lost with little to no spectral distortion and also ensures no chromatic aberration in the output beam.

In addition, each of Sciencetech’s solar simulators are customizable to best suit your requirements. The design of the fully reflective solar simulator permits a trade-off between power and uniformity. Higher uniformity can be achieved with lower power; or power can be increased and uniformity reduced.

More Information


About Our Fully Reflective Class ABA Solar Simulators


Sciencetech manufactures four high power versions of Class ABA Fully Reflective Solar Simulators. Schiencetech's properietary fully reflective design uses metal coated mirrors and passes the whole spectrum, no compromise. This is a distinct advantage over refractive based systems that are limited by the properties of the transparent material used.

The fully reflective design utilizes a series of mirrors, including a special folding mirror that bends the light source without the drawbacks of refractive optics. This allows the simulator to direct the light beam from the arc lamp source to the target plane, producing a higher intensity, uniform illumination at the target plane than a competitor’s simulators.

In Sciencetech’s line of fully reflective solar simulators the power output will typically be 1.3 times more powerful when compared to simulators that use the same wattage of arc lamp with diffusers to make the light field uniform at the target.

The high pressure xenon lamp used in each simulator projects an excellent basic match for solar simulation. The solar spectral distribution at different Earth conditions can be simulated through use of Air Mass filters AM0 for Solar Simulator.

For more variation of where your test surface is located, several simulators can be mounted on a vertical stand, and if coupled with a beam turning accessory, enable the simulator’s ability to project towards a floor, wall, or ceiling, depending on your research requirements.

The air mass filters used with each simulator are 3" x 3" in size and can be easily switched in each model via a built-in access panel. There are two AM filter slots in each simulator; additional slots can be added upon consultation.

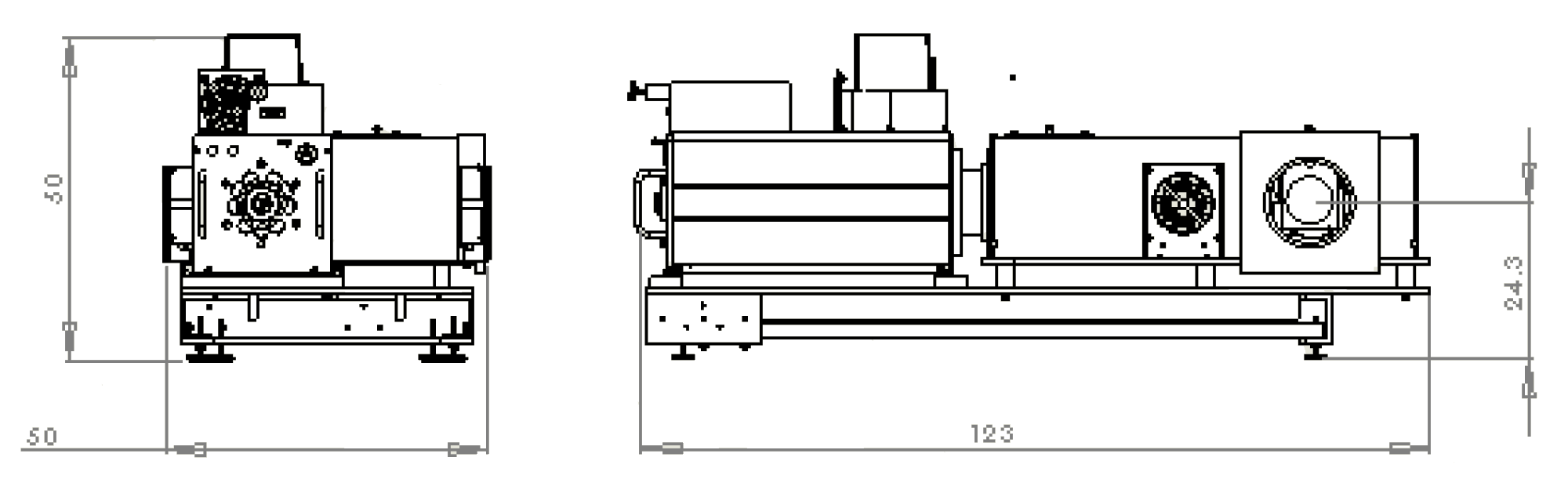

Sciencetech Fully Reflective Solar Simulator

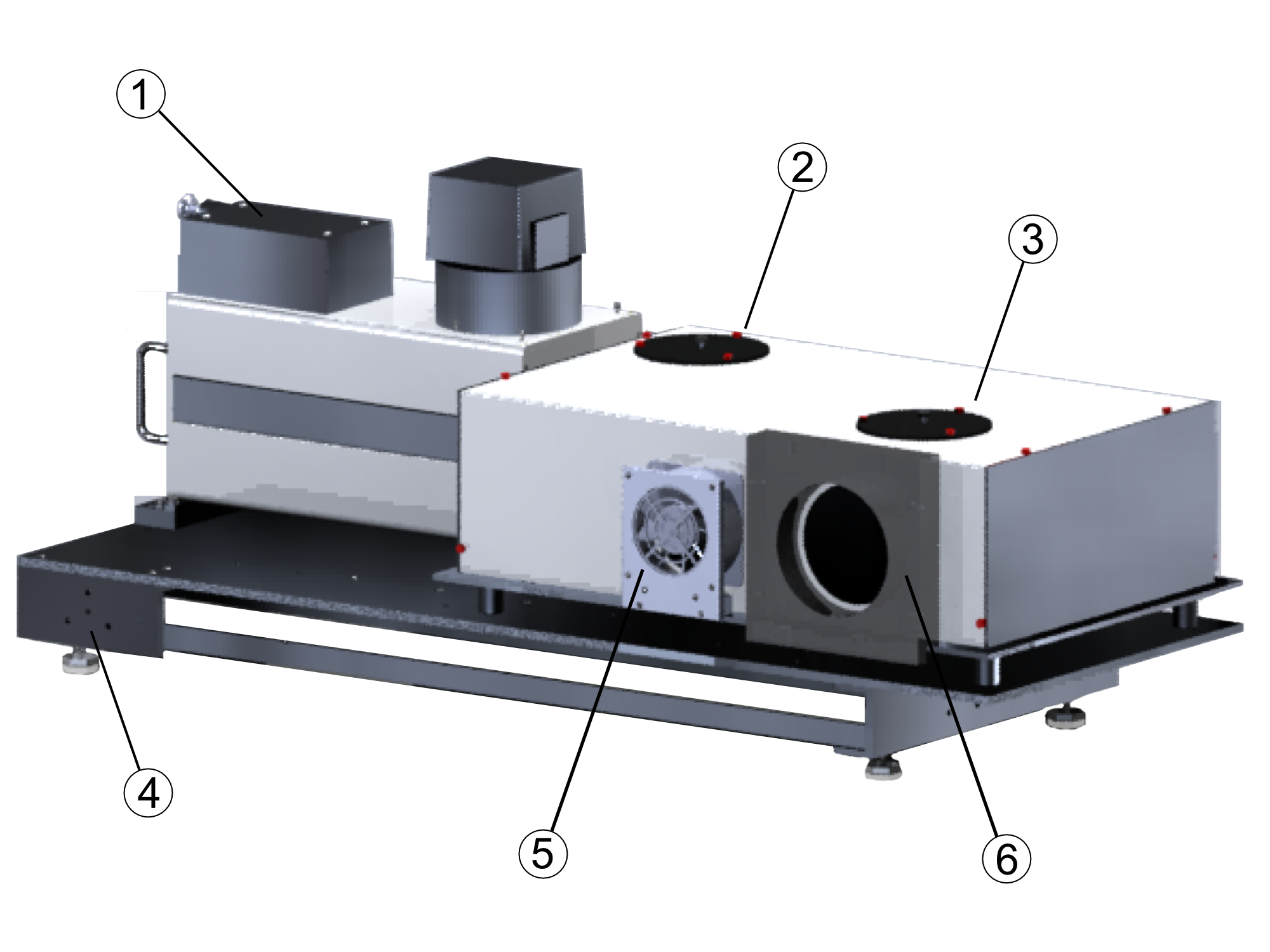

1. The modularity designed lamp house makes lamp replacement easy. The built in ignite and metal casing protects external equipment from Electromagnetic Interference.
2. IR Filter Location for the best IR filtering option available.
3. Filter Drawer allows the user to stack up to 4 filters including air mass filters or specific bandpass filters such as UV A/B and C filters.
4. Brackets for optional mounting let you integrate Sciencetech solar simulators into your custom application.
5. The air cooled beam homogenizer and lamp house extends the system lifetime, protecting your investment.
6. The output mounting flange allows you to attach various beam direction and fitlering options.
Contact Us Today
Get more information or request a quote.
X

Product Category

View Filter

x
Clear all x

Filter Option



Class: ABA
Target Size: 200mm (7.8”) diameter
Working Distance: 1050mm (42”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-3k

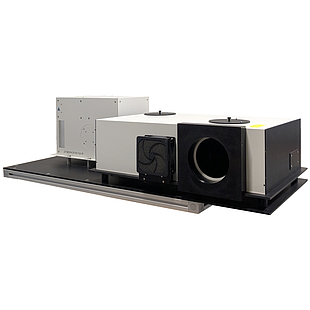

Sciencetech is pleased to offer the SS-2.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-2.5kW includes air-cooled arc lamp housing, 2.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
43,610.00
In stock
Class: ABA
Target Size: 200mm (7.8”) diameter
Working Distance: 1050mm (42”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-3k

Sciencetech is pleased to offer the SS-2.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-2.5kW includes air-cooled arc lamp housing, 2.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
43,610.00 43610.0 USD
Price Valid only in North America


Class: ABA
Target Size: 160mm (6.2”) diameter
Working Distance: 900mm (36”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1.6k

Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
37,230.00
In stock
Class: ABA
Target Size: 160mm (6.2”) diameter
Working Distance: 900mm (36”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1.6k

Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
37,230.00 37230.0 USD
Price Valid only in North America


Class: ABA
Target Size: 125mm (5”) diameter
Working Distance: 750mm (30”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1k
CE compliant
Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
29,024.00
In stock
Class: ABA
Target Size: 125mm (5”) diameter
Working Distance: 750mm (30”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1k
CE compliant
Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
29,024.00 29024.0 USD
Price Valid only in North America


Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00
In stock
Class: ABA
Target Size: 75mm (3”) diameter
Working Distance: 450mm (18”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-500

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
25,975.00 25975.0 USD
Price Valid only in North America


Class: ABA
Target Size: 50mm (2”) diameter
Working Distance: 760mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech 500-150
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
20,233.00
In stock
Class: ABA
Target Size: 50mm (2”) diameter
Working Distance: 760mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech 500-150
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
20,233.00 20233.0 USD
Price Valid only in North America


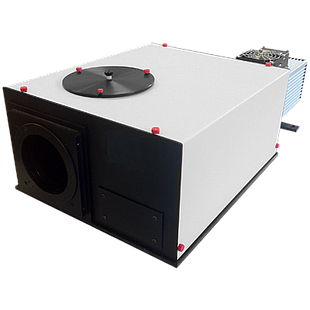

Every time the illumination target size of a Fully Reflective Solar Simulator changes, the reflective mirrors inside the solar simulator that direct the light from the source to the target need to be refocused. Although this can be performed manually, the procedure is a hassle should the user need to change the target spot size frequently. The solar simulator would need to be shut down and have each internal mirror re-adjusted to support a different focal spot size. With this variable focus option re-adjusting the internal mirrors of the solar simulator is performed through a single knob without having to shutdown the solar simulator. This feature can also be used to vary illumination intensity by spreading the light over a larger area or concentrating the light into a smaller area.
3,675.00
Every time the illumination target size of a Fully Reflective Solar Simulator changes, the reflective mirrors inside the solar simulator that direct the light from the source to the target need to be refocused. Although this can be performed manually, the procedure is a hassle should the user need to change the target spot size frequently. The solar simulator would need to be shut down and have each internal mirror re-adjusted to support a different focal spot size. With this variable focus option re-adjusting the internal mirrors of the solar simulator is performed through a single knob without having to shutdown the solar simulator. This feature can also be used to vary illumination intensity by spreading the light over a larger area or concentrating the light into a smaller area.
3,675.00 3675.0 USD
Price Valid only in North America

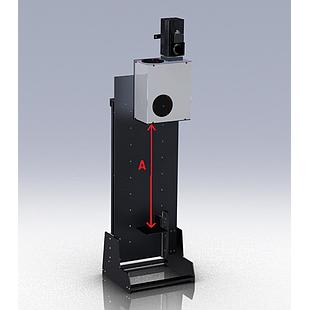

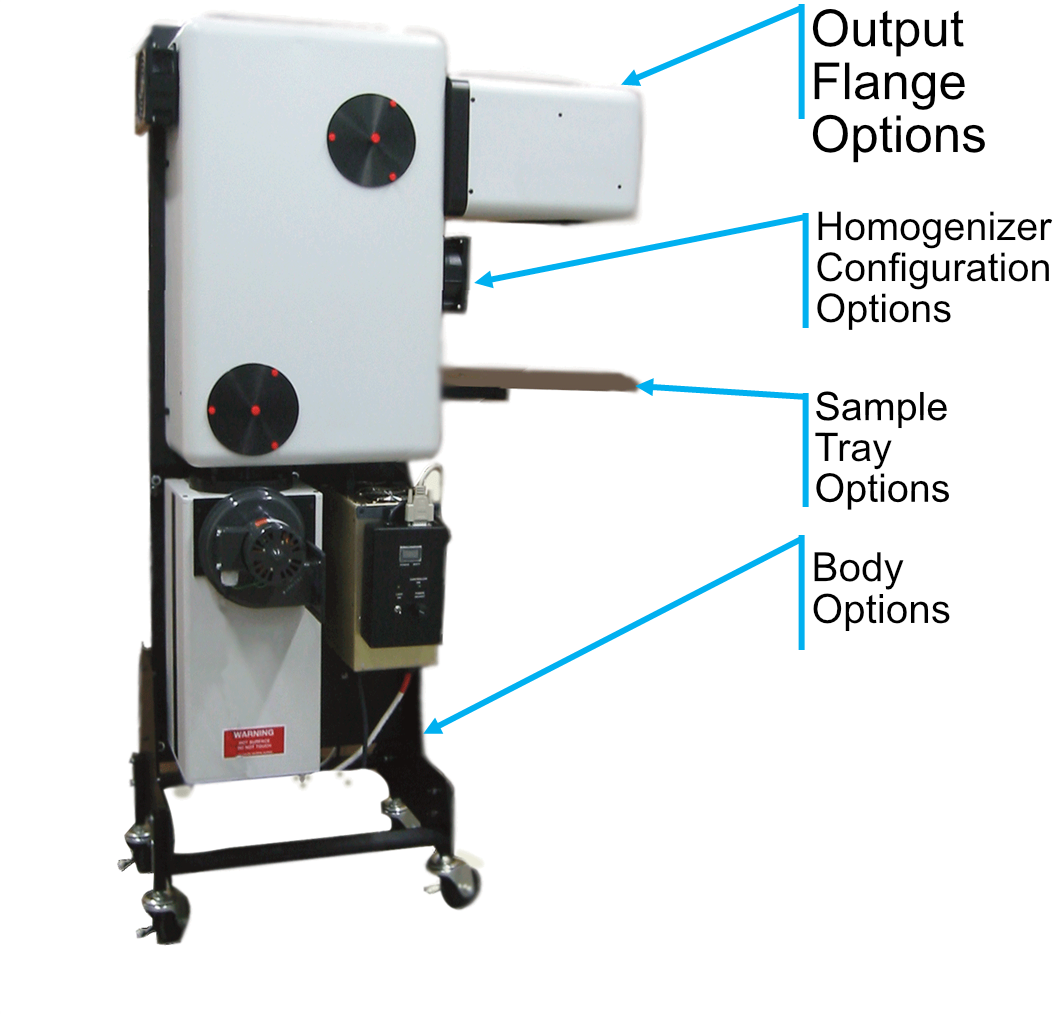

This stand enables 2.5k fully reflective solar simulators to project their output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The beam is projected down onto a built-in sample platform (not shown) where the sample such as a solar cell is placed. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).

Without the Downward Facing Vertical Stand, a Solar Simulator projects the beam parallel to the floor at cells mounted vertically.
Please speak with your authorized Sciencetech technical sales staff member to discuss any potential customization options you require.

Product may not be exactly as shown
2,700.00
This stand enables 2.5k fully reflective solar simulators to project their output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The beam is projected down onto a built-in sample platform (not shown) where the sample such as a solar cell is placed. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).

Without the Downward Facing Vertical Stand, a Solar Simulator projects the beam parallel to the floor at cells mounted vertically.
Please speak with your authorized Sciencetech technical sales staff member to discuss any potential customization options you require.

Product may not be exactly as shown
2,700.00 2700.0 USD
Price Valid only in North America


This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).
1,027.00
This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).
1,027.00 1027.0 USD
Price Valid only in North America


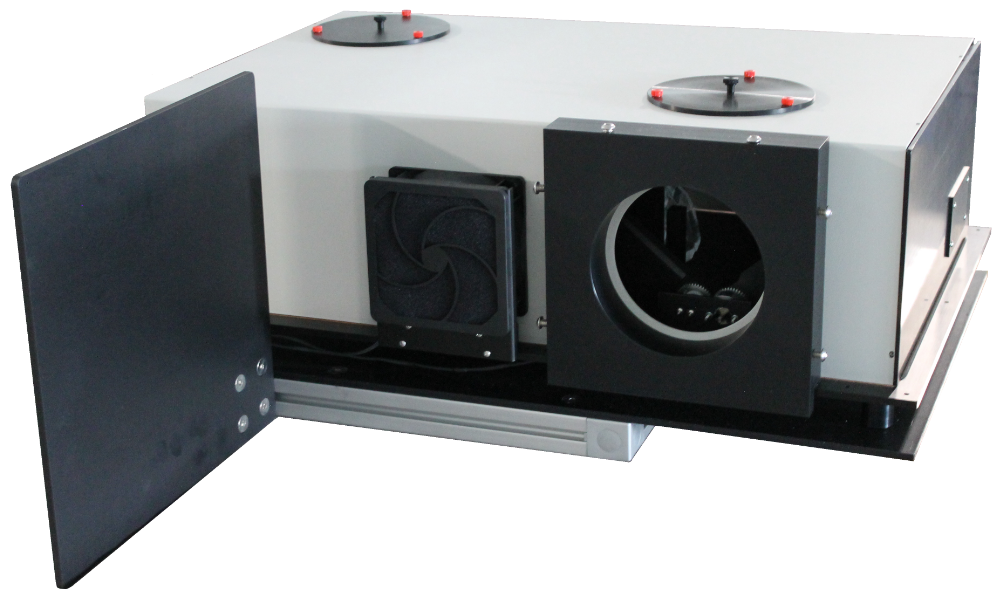

Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.

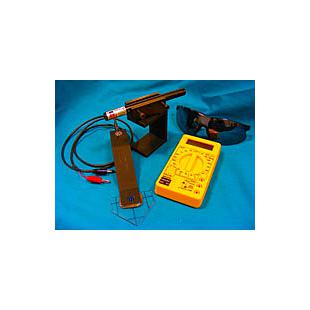

Sciencetech Solar Simulator System Alignment Kit includes:
