Light Sources

A light source is a complete system capable of illumination, consisting of a lamp, a lamp housing, a power supply, and necessary optics, cables, and hardware.

Sciencetech manufactures a variety of light sources with applications for both research and industry. For more information about our light sources and capabilities select a product group below and contact us at sales contact today!

Sciencetech Light Sources

SCIENCETECH offers light sources from UV to Infrared. A complete light source typically includes the lamp mounted in a housing with condensing/coupling optics, a power supply and all the necessary cables and hardware. For spectroscopic applications, a DC stabilized power supply is required. Arc sources also include a stand-alone igniter to break down the gas and establish the plasma discharge. A full line of accessories such as light condensers and collimators, filters, optical feedback units output stabilization and light shutters are available.



We offer several standard types of light sources:

  • Xenon Arc lamp Light Sources.  Arc lamps contain plasma confined in a quartz envelope, which produces radiation from 200nm to 2.5um. They have a very strong ultraviolet output and, since the emitting plasma volume is very small, their brightness in the visible region is approximately one order of magnitude higher than that of QTH sources, making them excellent for illuminating small targets. The main arc bulb types are Xenon (Xe), Mercury (Hg), Mercury-Xenon (Hg-Xe) and metal halide under high pressure for maximum brightness.





    Quartz Tungsten Halogen. (QTH) Light from QTH lamps is emitted by a heated filament. The filament is enclosed in a quartz envelope filled with gases. The spectral distribution is close to that of a blackbody curve with a color temperature of approximately 3000°K. QTH lamps have a useful spectral output from 300nm to 2.7µm.





    Deuterium and Dual Deuterium Tungsten . Deuterium (D2) sources are ideal for UV spectroscopy since they have a high ultraviolet output with little visible and infrared emission. UV grade fused silica envelopes can also be used, instead of the standard UV glass envelope, for missions below 180 nm.

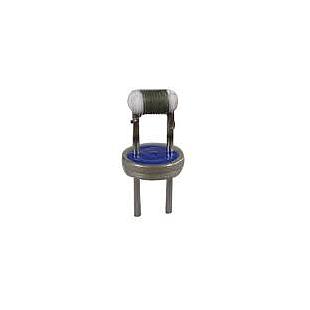

    Infrared Light Source. Sciencetech offers both IR emitter housing Elliptical Reflector or Parabolic Reflector.

  • Coupling our capabilities in light source manufacture and spectroscopy allows us to manufacture complete systems such as our Sciencetech Tunable Light Source.



    Our expertise extends to Sciencetech Solar Simulators which are broad band light sources with specific spectral and radiant intensity properties.

Contact us for more information or request a quote

X

Product Category

View Filter

x
Clear all x

Filter Option

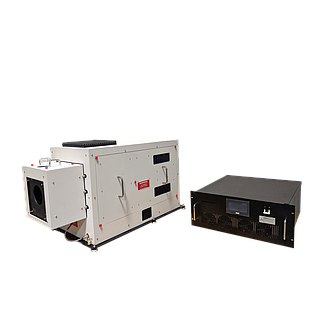

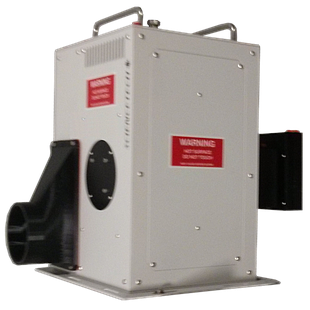

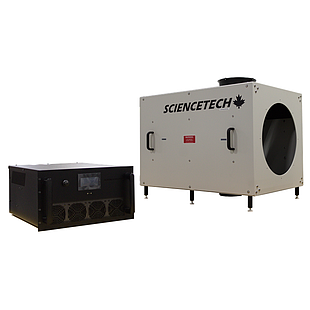

The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the 631 series touch screen computer controllable power supply, One 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

Designed for use in North America

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
- Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-220-B power supply designed for North America
Compatible with UPLH-6.5k-B lamp houses

Power Requirements:
200-240VAC, 50/60 Hz, 31A, 3 Phase (200-240V phase to phase) 4 wires (3P+E)

Includes hard wired 6 ft power cable with L15-50P termination.
Requires a minimum 40A 3-phase circuit, 200-240VAC (phase-phase), 4 wires (3P+E)
40,106.00
The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the 631 series touch screen computer controllable power supply, One 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

Designed for use in North America

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
- Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-220-B power supply designed for North America
Compatible with UPLH-6.5k-B lamp houses

Power Requirements:
200-240VAC, 50/60 Hz, 31A, 3 Phase (200-240V phase to phase) 4 wires (3P+E)

Includes hard wired 6 ft power cable with L15-50P termination.
Requires a minimum 40A 3-phase circuit, 200-240VAC (phase-phase), 4 wires (3P+E)
40,106.00 40106.0 USD
Price Valid only in North America


The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes a 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

This system is designed for global use.

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
- Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-480-B power supply designed for North America
380-480VAC, 50/60 Hz, 17.4-14.2A 3 Phase
(380-480 V phase to phase , 4 wire)

Requires one L16 power cable selection
40,106.00
The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes a 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

This system is designed for global use.

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
- Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-480-B power supply designed for North America
380-480VAC, 50/60 Hz, 17.4-14.2A 3 Phase
(380-480 V phase to phase , 4 wire)

Requires one L16 power cable selection
40,106.00 40106.0 USD
Price Valid only in North America


2500 W Focused Beam High Power Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focused image of the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, one lamp and digital copies of instrument test report, operating instructions and software.
23,000.00
In stock
2500 W Focused Beam High Power Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focused image of the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, one lamp and digital copies of instrument test report, operating instructions and software.
23,000.00 23000.0 USD
Price Valid only in North America


2500 W Collimated High Powered Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, One 2500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.
22,500.00
In stock
2500 W Collimated High Powered Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 621 series touch screen computer controllable power supply, One 2500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.
22,500.00 22500.0 USD
Price Valid only in North America


1600W Focused Beam Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focussed image of the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.
13,500.00
1600W Focused Beam Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focussed image of the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.
13,500.00 13500.0 USD
Price Valid only in North America


1600 W Collimated Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and software.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
13,000.00
1600 W Collimated Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and software.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
13,000.00 13000.0 USD
Price Valid only in North America


1000W Focused Beam Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focussed image of the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and software.
12,500.00
1000W Focused Beam Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focussed image of the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and software.
12,500.00 12500.0 USD
Price Valid only in North America


1000 W Collimated Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
12,000.00
1000 W Collimated Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
Includes 1 IEC 60320 C19 compatible power cable, select compatible cable for your region.
12,000.00 12000.0 USD
Price Valid only in North America


500 W Focused Beam Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focussed image of the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.
12,500.00
500 W Focused Beam Research Grade Arc Lamp Source. Utilizes a 3 lens fused silica lens assembly to produce an F/3 focussed image of the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.
12,500.00 12500.0 USD
Price Valid only in North America


500 W Collimated Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.
12,000.00
500 W Collimated Research Grade Arc Lamp Source. Utilizes a 2 lens F/1 fused silica lens assembly to collimate the light from the high intensity Xenon arc lamp. Includes 611 series touch screen computer controllable power supply, 1 lamp and digital copies of instrument test report, operating instructions and softare.
12,000.00 12000.0 USD
Price Valid only in North America


Sciencetech's 621 series power supplies are designed to work with Sciencetech HPLH series lamp houses. The 621-3k is designed to power 2.5kW and 3.0kW xenon and mercury-xenon arc lamps. The 621 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller (24VDC with 12VDC hold)
- RS232 Computer Control (USB to serial adapter included)
- Temperature monitor (optional upgrade)
- Monitor Output (optional upgrade)
- Auto Lamp Start (optional upgrade)
- Safety interlock (optional upgrade)

This product cannot be CE marked

Requires 1 NEMA 6-30P power cable
200-240VAC, 20A

Please see the technical datasheet for more information.
10,321.00
In stock
Sciencetech's 621 series power supplies are designed to work with Sciencetech HPLH series lamp houses. The 621-3k is designed to power 2.5kW and 3.0kW xenon and mercury-xenon arc lamps. The 621 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller (24VDC with 12VDC hold)
- RS232 Computer Control (USB to serial adapter included)
- Temperature monitor (optional upgrade)
- Monitor Output (optional upgrade)
- Auto Lamp Start (optional upgrade)
- Safety interlock (optional upgrade)

This product cannot be CE marked

Requires 1 NEMA 6-30P power cable
200-240VAC, 20A

Please see the technical datasheet for more information.
10,321.00 10321.0 USD
Price Valid only in North America


Collimated beam lamp housing for 1000W QTH lamps. The system features a spherical reflector. Collimating optics (ordered separately) must be selected according to the desired target size and lens material. Up to 76 mm (3") diameter optics can be accommodated by this model. Please see the COL-series of optics for a selection. Does not include a power supply.
2,750.00
In stock
Collimated beam lamp housing for 1000W QTH lamps. The system features a spherical reflector. Collimating optics (ordered separately) must be selected according to the desired target size and lens material. Up to 76 mm (3") diameter optics can be accommodated by this model. Please see the COL-series of optics for a selection. Does not include a power supply.
2,750.00 2750.0 USD
Price Valid only in North America


Focused beam lamp housing for 1000W xenon arc lamps. The system features an elliptical reflector for most efficient light collection.
3,850.00
Focused beam lamp housing for 1000W xenon arc lamps. The system features an elliptical reflector for most efficient light collection.
3,850.00 3850.0 USD
Price Valid only in North America

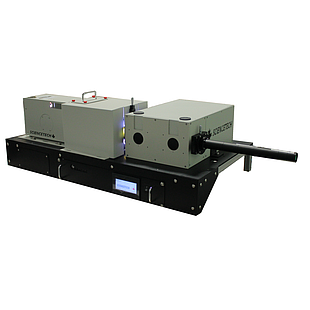

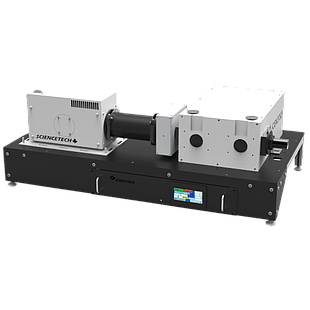

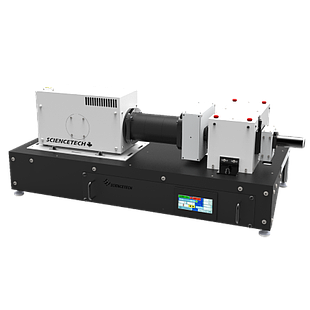

Sciencetech also offers a tunable light source solar simulator combination instrument. This combination system allows a selectable output at the target plane of spatially uniform sun light or monochromatic light.

The tunable light source—solar simulator combination system adds a homogenization unit to the exit port of the monochromator that includes and electronic shutter and 2 position filter tray.

The tunable light source functions the same as the other models in Sciencetech’s tunable light source line but adds the extra functionality of a solar simulator with broadband spatially uniform white light.

For technical specifications, please contact a Sciencetech Representative.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
29,280.00
Sciencetech also offers a tunable light source solar simulator combination instrument. This combination system allows a selectable output at the target plane of spatially uniform sun light or monochromatic light.

The tunable light source—solar simulator combination system adds a homogenization unit to the exit port of the monochromator that includes and electronic shutter and 2 position filter tray.

The tunable light source functions the same as the other models in Sciencetech’s tunable light source line but adds the extra functionality of a solar simulator with broadband spatially uniform white light.

For technical specifications, please contact a Sciencetech Representative.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
29,280.00 29280.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Focused
Output Beam Diameter: Focused, diameter dependent on working distance
Ozone Producing: No

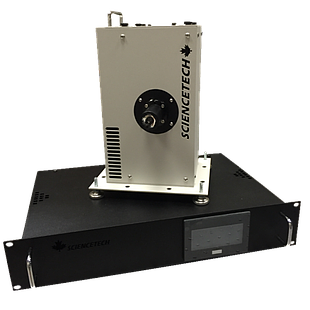

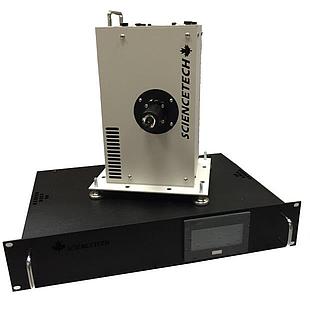

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality focused xenon arc lamp source: power supply, arc lamp housing and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

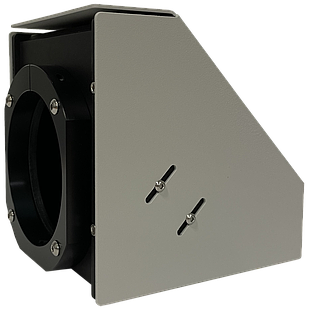

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,811.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Focused
Output Beam Diameter: Focused, diameter dependent on working distance
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality focused xenon arc lamp source: power supply, arc lamp housing and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,811.00 5811.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,677.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Three lens system
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Three fused silica lenses in the optical assembly give least possible spherical aberration and permit maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,677.00 6677.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

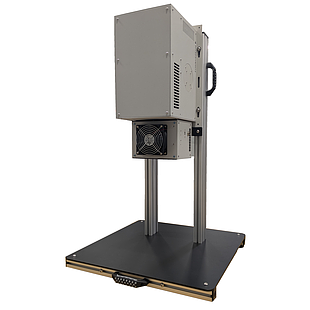

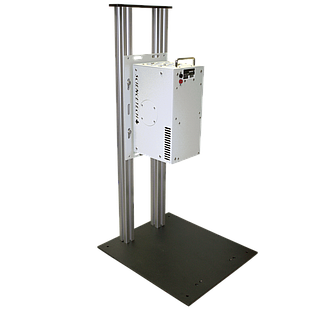

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,256.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

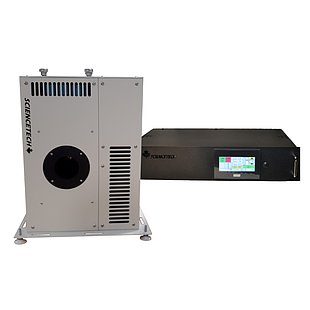

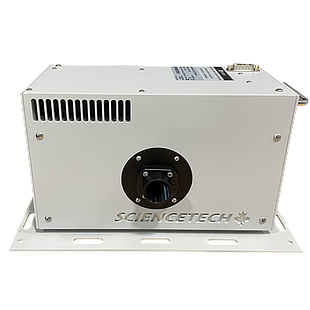

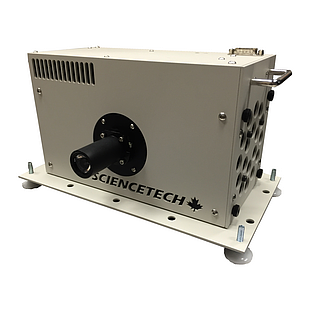

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

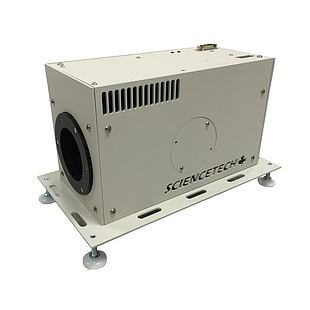

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,256.00 6256.0 USD
Price Valid only in North America


Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,115.00
In stock
Lamp Power: 300W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
6,115.00 6115.0 USD
Price Valid only in North America


Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,715.00
In stock
Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,715.00 5715.0 USD
Price Valid only in North America


Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,575.00
In stock
Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
5,575.00 5575.0 USD
Price Valid only in North America
Copyright © Sciencetech
