Sciencetech Low Cost Solar Simulators


Sciencetech is proud to offer our newly improved line of Low Cost Solar Simulator Systems, based on small area lenses. Sciencetech offers two lines (SF and SciSun) of solar simulators that produce up to 2 Sun (AM1.5G), depending on the selected model.

At the heart of a Sciencetech Solar Simulator, a xenon arc lamp, housing, a special optical assembly, power supply with igniter, filter holder and manual shutter are included. SF solar simulators also include UV fused silica lenses for higher UV emission.

These systems are complete plug-and-play operable and come with easily configurable, touchscreen power supply and control software. Class AAA Solar Simulator spectral matching, spatial non-uniformity, and temporal instability are conformed to ASTM, IEC and JIS standards.


SciSun Solar Simulator Series

(Previously Sciencetech SLB Solar Simulator series)


The most cost-effective solar simulator on the market. The SciSun comes with an adjustable beam turner mounted at the output to direct the beam at any 90 grades angle: down or up, left or right. Designed for 150 - 300W Xenon arc lamps.


Class AAA solar simulation in accordance with ASTM, IEC, and JIS
2 inch x 2 inch (50mm x 50mm) target area illumination
Up to 2 suns irradiance
Provides a manual variable attenuator to adjust from 0.1–2 suns



AM1.5G Spectral Match

SF Solar Simulator Series



Sciencetech SF Series offers Highly Collimated Beam Solar Simulators for applications requiring a more collimated beam or more UV production. Sciencetech SF Solar Simulator include an arc lamp housing, 1 arc lamp, touchscreen power supply with igniter, and filter holder.


Class AAA solar simulation (AM1.5G)
High collimation: 1 degree half angle collimation
Up to 2 inch (50mm) diameter target area
AM1.5G and AM0 spectral match

Low Cost Solar Simulator Configuration


Product Comparison

Click an image for larger version
Product Uniformity Target Size (mm) Collimation
(half angle)
Working Distance (mm)
With beam turner
Working Distance (mm)
Without beam turner
Power Typical Non-Uniformity Measurement
SF300A < 2 % Class A 25 1 degree 25 - 50 75 - 100 1 Sun AM1.5G SF300A Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SF150B < 5 % Class B 25 1 degree 25 - 50 75 - 100 1 Sun AM1.5G SF150B Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SF300B < 5 % Class B 50 1 degree 25 - 50 75 - 100 1 Sun AM1.5G SF300B Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SciSun150 < 2 % Class A 50 x 50 12 degree Use Vertical Stand 365 - 395 1 Sun AM1.5G SciSun-LP-150 Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SciSun-LP-150
Manual Power Supply
< 2 % Class A 50 x 50 12 degree Use Vertical Stand 365 - 395 1 Sun AM1.5G SciSun300 Solar Simulator Typical Non-Uniformity Measurement - Sciencetech
SciSun300 < 2 % Class A 50 x 50 12 degree Use Vertical Stand 365 - 395 2 Sun AM1.5G CONTACT
SciSun-LP-300
Manual Power Supply
< 2 % Class A 50 x 50 12 degree Use Vertical Stand 365 - 395 2 Sun AM1.5G CONTACT

Configuration SciSun (standard) SF Model
Arc Lamp Housing with integrated igniter
Xenon Arc Lamp
Filter Holder
Beam Turner
Continuous beam angle variations for 0-360°
Quality Control Report
Touchscreen power supply interface
Power supply control software
Manual variable attenuator
Height adjustable stand
Sciencetech Low Cost Solar Simulator Specifications
Contact Us Today
Get more information or request a quote.
X

Product Category

View Filter

x
Clear all x

Filter Option



Class: AAA
Target Size: 60mm × 60mm
Working Distance: 300mm
Spectral Range: 350nm - 1400nm
Lamp: 300W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-300 included

The SL-60A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
14,000.00
In stock
Class: AAA
Target Size: 60mm × 60mm
Working Distance: 300mm
Spectral Range: 350nm - 1400nm
Lamp: 300W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-300 included

The SL-60A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
14,000.00 14000.0 USD
Price Valid only in North America


Class: AAA
Target Size: 50mm × 50mm (up to 2 Suns)
(70mm × 60mm Class B at 1 Sun)
Working Distance: 250mm (typical)
Spectral Range: 350nm - 1400nm
Lamp: 300W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-300 included

The SL-50A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
12,965.00
In stock
Class: AAA
Target Size: 50mm × 50mm (up to 2 Suns)
(70mm × 60mm Class B at 1 Sun)
Working Distance: 250mm (typical)
Spectral Range: 350nm - 1400nm
Lamp: 300W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-300 included

The SL-50A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
12,965.00 12965.0 USD
Price Valid only in North America


Sun Level: 1.3 Suns AM0 max
Target size: 50x50mm at 1 sun
Spectral Match: ASTM E927-19. Class A from 350-1400nm
Non-uniformity : Class A <2% over 50x50mm
Temporal instability: Class A <2%
Working distance: 380mm +/- 30mm typical
Compliance: CE marked
300W Xenon lamp
Includes attenuator, HAS and 601 series supply
12,638.00
In stock
Sun Level: 1.3 Suns AM0 max
Target size: 50x50mm at 1 sun
Spectral Match: ASTM E927-19. Class A from 350-1400nm
Non-uniformity : Class A <2% over 50x50mm
Temporal instability: Class A <2%
Working distance: 380mm +/- 30mm typical
Compliance: CE marked
300W Xenon lamp
Includes attenuator, HAS and 601 series supply
12,638.00 12638.0 USD
Price Valid only in North America


Class: AAA
Target Size: 38mm × 38mm
Working Distance: 250mm
Spectral Range: 350nm - 1400nm
Lamp: 150W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-150 included

The SL-38A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
11,950.00
In stock
Class: AAA
Target Size: 38mm × 38mm
Working Distance: 250mm
Spectral Range: 350nm - 1400nm
Lamp: 150W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-150 included

The SL-38A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
11,950.00 11950.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50x50mm at 2 sun
ND filter for 1 sun operation included
Working distance: 380mm (with beam turning unit CTBT-3)
Included Power Supply: (601-300) 300W Adjustable Power with Touchscreen Control
CE compliant
Also included are a 300W xenon arc lamp, filter holder, height-adjustable stand, manual attenuator, manual shutter, beam turner, and testing report.

Available Air Mass filters include AM1.0, AM1.5D, and AM1.5G. Other spectral matches are possible. Please contact us for more information.
7,765.00
In stock
Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50x50mm at 2 sun
ND filter for 1 sun operation included
Working distance: 380mm (with beam turning unit CTBT-3)
Included Power Supply: (601-300) 300W Adjustable Power with Touchscreen Control
CE compliant
Also included are a 300W xenon arc lamp, filter holder, height-adjustable stand, manual attenuator, manual shutter, beam turner, and testing report.

Available Air Mass filters include AM1.0, AM1.5D, and AM1.5G. Other spectral matches are possible. Please contact us for more information.
7,765.00 7765.0 USD
Price Valid only in North America


Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50x50mm at 1 sun
Working distance: 380mm (with beam turning unit CTBT-3)
Included Power Supply: (601-150) 150W Adjustable Power with Touchscreen Control
CE Compliant
Also included are a 150W xenon arc lamp, filter holder, height-adjustable stand, manual attenuator, manual shutter, beam turner, and testing report.

Available Air Mass filters include AM1.0, AM1.5D, and AM1.5G. Other spectral matches are possible. Please contact us for more information.
7,539.00
In stock
Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50x50mm at 1 sun
Working distance: 380mm (with beam turning unit CTBT-3)
Included Power Supply: (601-150) 150W Adjustable Power with Touchscreen Control
CE Compliant
Also included are a 150W xenon arc lamp, filter holder, height-adjustable stand, manual attenuator, manual shutter, beam turner, and testing report.

Available Air Mass filters include AM1.0, AM1.5D, and AM1.5G. Other spectral matches are possible. Please contact us for more information.
7,539.00 7539.0 USD
Price Valid only in North America


Class: AAA
Spot size: 25 mm (1”) diameter at 1 sun*
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-2.5”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.
An option for fiber optic illumination is available, but requires an additional condenser and fiber mount.

*Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA. Power density on a target can be as high as 2.5 suns in the absence of an Air Mass filter.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,850.00
In stock
Class: AAA
Spot size: 25 mm (1”) diameter at 1 sun*
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-2.5”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.
An option for fiber optic illumination is available, but requires an additional condenser and fiber mount.

*Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA. Power density on a target can be as high as 2.5 suns in the absence of an Air Mass filter.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,850.00 6850.0 USD
Price Valid only in North America


Class: ABA
Spot size: 50 mm (2”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 50 mm (2”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-2.5”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.
An option for fiber optic illumination is available, but requires an additional condenser and fiber mount.

*Power density on a target can be as high as 2.5 suns in the absence of an Air Mass filter.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,495.00
In stock
Class: ABA
Spot size: 50 mm (2”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 50 mm (2”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-2.5”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.
An option for fiber optic illumination is available, but requires an additional condenser and fiber mount.

*Power density on a target can be as high as 2.5 suns in the absence of an Air Mass filter.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,495.00 6495.0 USD
Price Valid only in North America


Class: ABA
Spot size: 25 mm (1”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,314.00
In stock
Class: ABA
Spot size: 25 mm (1”) diameter at 1 sun
Working distance: 100-130mm (4-5”) from exit port
Spot size (with optional beam turner): 25 mm (1”) at 1 sun
Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
Collimation: 1 degree half angle
Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

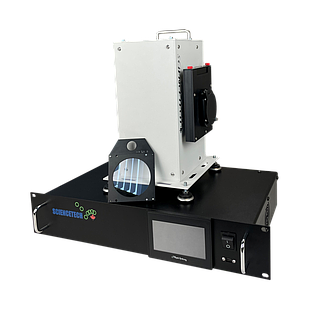

The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

*The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
6,314.00 6314.0 USD
Price Valid only in North America
Copyright © Sciencetech
