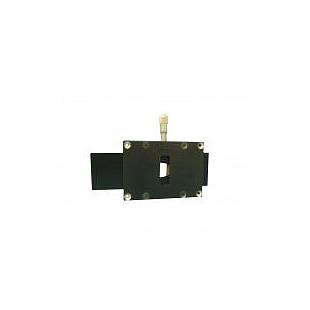

The SS-84-M is a High Resolution motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS84 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.
3,300.00
In Stock
The SS-84-M is a High Resolution motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS84 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.
3,300.00 3300.0 USD
Price Valid only in North America

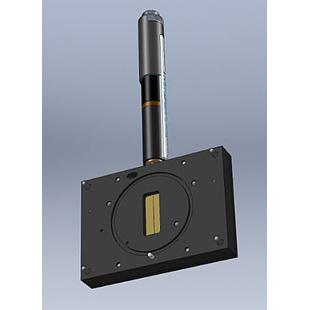

The SS-80-M is a Motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders. The SS-80-M motorized slit comes with Sciencetech SciSlit software for controlling the slit. See the product brochure for more information on the slit accuracy and step size.
2,988.00
In Stock
The SS-80-M is a Motorized adjustable slit for the input or output port of a Sciencetech monochromator. The slit width can be adjusted between 0-6mm using the computer controlled actuator. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders. The SS-80-M motorized slit comes with Sciencetech SciSlit software for controlling the slit. See the product brochure for more information on the slit accuracy and step size.
2,988.00 2988.0 USD
Price Valid only in North America

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

Please note that these slits are not designed to maximize throughput for extremely high resolution monochromators, due to the straight orientation of the slits. For maximum resolution, the slits need to be designed on a curve that corresponds to the curvature of the point of least confusion. However, this is only a significant factor for systems with optical pathlengths of 1m and greater. Please speak with your authorized Sciencetech technical sales staff member if you need maximum resolution for a long pathlength system.
1,030.00
In Stock
This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

Please note that these slits are not designed to maximize throughput for extremely high resolution monochromators, due to the straight orientation of the slits. For maximum resolution, the slits need to be designed on a curve that corresponds to the curvature of the point of least confusion. However, this is only a significant factor for systems with optical pathlengths of 1m and greater. Please speak with your authorized Sciencetech technical sales staff member if you need maximum resolution for a long pathlength system.
1,030.00 1030.0 USD
Price Valid only in North America

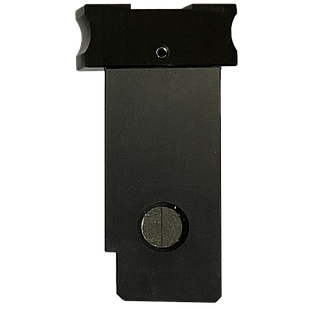

This holder is economical choice for slits for Sciencetech monochromators such as the 9055.
This slit holder is required when using the fixed slits designed for the 9030 (Product Numbers 120-9010, 120-9011, 120-9012, 120-9013, 120-9033, and 120-9034). This slit holder comes with one fixed width slit from these options. Only one slit holder is required per input/output; different slits can be exchanged using the same slit holder. Please specify the size of slit you would like at the time of ordering: sizes are available from 0.1mm (100um) up to 3mm. Slits are 8mm tall.
285.00
In Stock
This holder is economical choice for slits for Sciencetech monochromators such as the 9055.
This slit holder is required when using the fixed slits designed for the 9030 (Product Numbers 120-9010, 120-9011, 120-9012, 120-9013, 120-9033, and 120-9034). This slit holder comes with one fixed width slit from these options. Only one slit holder is required per input/output; different slits can be exchanged using the same slit holder. Please specify the size of slit you would like at the time of ordering: sizes are available from 0.1mm (100um) up to 3mm. Slits are 8mm tall.
285.00 285.0 USD
Price Valid only in North America

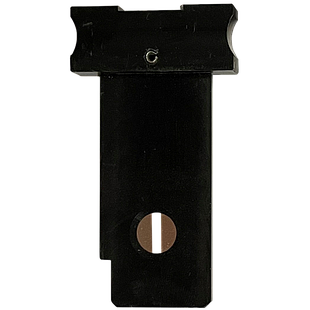

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 3mm.
158.00
In Stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 3mm.
158.00 158.0 USD
Price Valid only in North America

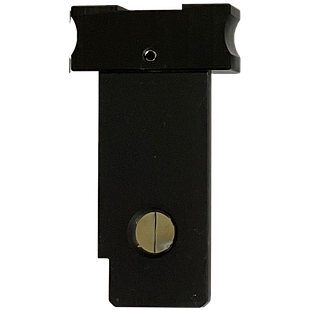

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 100μm.
158.00
In Stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 100μm.
158.00 158.0 USD
Price Valid only in North America

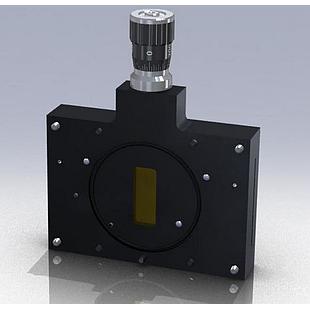

This product is specifically to upgrade a SS80-series slit to allow for motorized, computer control. The slit itself (sold separately as product 120-9038, 120-9043, and 120-9044) has straight, bilaterally adjustable jaws with spacing between 0 and 6.5mm. The motor used has a calculated minmum incremental motion of 9nm.
A manual curtain slider can be used to adjust the height of the slit: please speak with your authorized Sciencetech technical sales staff member to determine if a manual height slit is appropriate for your particular system.
2,097.00
In Stock
This product is specifically to upgrade a SS80-series slit to allow for motorized, computer control. The slit itself (sold separately as product 120-9038, 120-9043, and 120-9044) has straight, bilaterally adjustable jaws with spacing between 0 and 6.5mm. The motor used has a calculated minmum incremental motion of 9nm.
A manual curtain slider can be used to adjust the height of the slit: please speak with your authorized Sciencetech technical sales staff member to determine if a manual height slit is appropriate for your particular system.
2,097.00 2097.0 USD
Price Valid only in North America

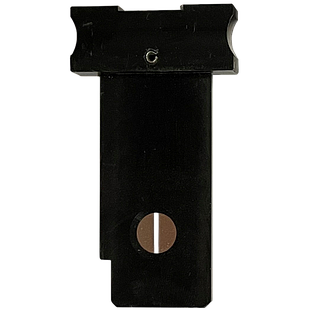

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 250μm.
158.00
In Stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 250μm.
158.00 158.0 USD
Price Valid only in North America

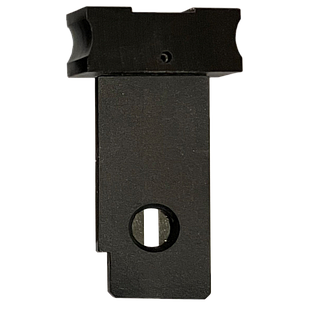

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 500μm.
158.00
In Stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 500μm.
158.00 158.0 USD
Price Valid only in North America

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 1mm.
158.00
In Stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 1mm.
158.00 158.0 USD
Price Valid only in North America

This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 2mm.
158.00
In Stock
This is a single fixed width slit for Sciencetech's 9030 monochromators. It can also be used with any other model monochromator, but requires a SS-F slit holder (120-9046) for each input/output. Multiple slits can be exchanged using a single slit holder.
Please note that the Model 9030 monochromator already includes a pair of removable fixed width slits.
The slit height is 8mm. The slit width is 2mm.
158.00 158.0 USD
Price Valid only in North America

The SS80 is a manual controlled bilaterally adjustable slit for the input or output port. Most Sciencetech monochromators/spectrograph models already include one SS80 slit at the input port but an additional one at the output port is usually required if the monochromator is mated to a single channel detector, PMT detector, or used as a tunable wavelength light source. If the dual port option is selected for a Sciencetech monochromator, an additional SS80 slit for the second port may also be required. The slit width can be adjusted between 0-6mm, in 10µm spacing using a micrometer thumbwheel. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.
761.00
In Stock
The SS80 is a manual controlled bilaterally adjustable slit for the input or output port. Most Sciencetech monochromators/spectrograph models already include one SS80 slit at the input port but an additional one at the output port is usually required if the monochromator is mated to a single channel detector, PMT detector, or used as a tunable wavelength light source. If the dual port option is selected for a Sciencetech monochromator, an additional SS80 slit for the second port may also be required. The slit width can be adjusted between 0-6mm, in 10µm spacing using a micrometer thumbwheel. The height of the SS80 slit can also be adjusted between 0-10mm, 10-20mm and 20-30mm through built-in manual curtain sliders.
761.00 761.0 USD
Price Valid only in North America
