Filters for Solar Simulation

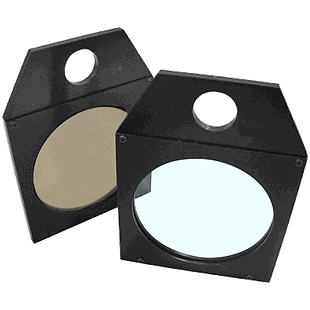

A 52x58mm air mass filter specifically designed for Sciencetech's SciSun solar simulators, including filter holder. The AM1.0D simulates the terrestrial solar spectrum on the ground when the sun's position is normal to the earth's surface. It includes only direct light from the sun, not diffuse light that is scattered by the atmosphere.

$ 4,133.00

An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

$ 4,133.00

A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series, including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 4,133.00

An AM0 filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

AM0 simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 1,380.00

An AM1.5D filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

Please note that for some simulator models the same filter is used to supply an AM1.5G spectral match. Purchasing separate AM1.5G and AM1.5D filters for the same model simulator may not provide a different spectrum.

$ 1,380.00

An AM1.5G filter compatible with Sciencetech solar simulators, including FT-style filter holder. Filter clear aperture is a diameter of 76 mm (3"). Please select the product line the filter is intended to be used with to ensure the proper spectral output.

If the filter is not intended to be used with a Sciencetech solar simulator, the product line "None" may be selected, but the spectral output cannot be guaranteed when paired with a non-Sciencetech source.

AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.

$ 1,380.00

This filter set consists of three wire-mesh neutral-density filters to be installed in the filter wheel. This filter set is designed to be used with the Sciencetech's Solar Lightline fiber-based solar simulator. Optical density of each filter is selected such that the final beam output from the light guide and collimator will be selectable at 1, 2, 3 or 4 suns for the A4 Lightline (no ND filter) or 0.25, 0.5, 0.75 and 1 Suns for the A1 and AX Lightline systems.

$ 350.00
