The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00
In stock
The CTBT-RF is designed to work with Sciencetech's line of SS solar simulators (between 500W and 2.5kW). The CTBT-RF is designed to hold 3" x 4" cold mirrors. A heat sink is mounted behind the dichroic turning mirror to capture transmitted light. The CTBT-RF turns the beam 90 degrees from the standard horizontal output.


Four different cold mirror options exist (purchased separately):
1) 275-375nm
2) 325-450nm
3) 350-550nm
4) 450-725nm
5) UV Enhanced aluminum mirror (250-3000nm)


Please speak with your Sciencetech representative for ordering information.
1,350.00 1350.0 USD
Price Valid only in North America

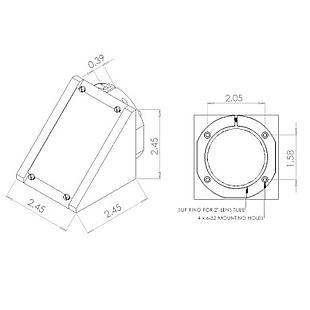

A Beam Turning Assembly can be mounted to the output port of many of Sciencetech's Solar Simulators to redirect the light downwards onto a sample platform. The Beam Turner may also be used to adjust the light path to any 90° angle perpendicular to the horizontal output beam.
1,200.00
In stock
A Beam Turning Assembly can be mounted to the output port of many of Sciencetech's Solar Simulators to redirect the light downwards onto a sample platform. The Beam Turner may also be used to adjust the light path to any 90° angle perpendicular to the horizontal output beam.
1,200.00 1200.0 USD
Price Valid only in North America


45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)
788.00
In stock
45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The UV cold mirror transmits IR (thermal) and some visible light on the sample (Transmission > 85% for the region 600 - 1200nm, Reflection >90% for the region 325 - 475nm)
788.00 788.0 USD
Price Valid only in North America


45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The cold mirror eliminates IR (thermal) light on the sample (Transmission > 85% for the region 800 - 1200nm, Reflection >90% for the region 425 - 650nm)


788.00
In stock
45 degree mirror to deflect the light 90 degrees, such that it points downwards for a horizontal target.
The cold mirror eliminates IR (thermal) light on the sample (Transmission > 85% for the region 800 - 1200nm, Reflection >90% for the region 425 - 650nm)


788.00 788.0 USD
Price Valid only in North America


Used to allow the SS150 to direct the beam downwards, upwards, or at 90 degrees to the usual output direction (horizontal). Not included in the Vertical Stand, due to the usual arrangement of allowing the beam to aim downwards (meaning in most cases this component is not required with the vertical stand option).
570.00
In stock
Used to allow the SS150 to direct the beam downwards, upwards, or at 90 degrees to the usual output direction (horizontal). Not included in the Vertical Stand, due to the usual arrangement of allowing the beam to aim downwards (meaning in most cases this component is not required with the vertical stand option).
570.00 570.0 USD
Price Valid only in North America
