Steady State Solar Simulator

A system of 48 Large Area Solar Illuminator (LASI) units.
Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 48 Unit array can be arranged to illuminate an area of 2x6m.
LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
Power requirements for each unit (1 of 48): 200-240 VAC, 12.1 to 9.0 A.
Base system does not include a mount, see brochure for product information.

$ 784,400.00

A system of 36 Large Area Solar Illuminator (LASI) units.
Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 6x6 array of units (36) illuminates an area of 3x3m.
LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
Power requirements for each unit (1 of 36): 200-240 VAC, 12.1 to 9.0 A.
Base system does not include a mount, see brochure for product information.

$ 592,200.00

This is for a sixteen unit set of LASI, designed to illuminate up to a 2x2m target with excellent three dimensional uniformity. All LASI systems operate with Xe arc lamps and therefore with the solar color temperature of 6,000 K. This allows the LASI to be used in applications that vary with depth, as opposed to generating only 2D uniformity on a single plane.
This price does not include a basic frame to hold the LASI.
This device is capable of Class C Spectral compliance and Class B temporal instability. Uniformity is typically ±15% over the central area.
Each unit has a single phase power supply and requires 200 to 240 VAC, 12.1 to 9.0 A. The required plug type needs to be defined based on the equipment's intended location.
Better performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.

$ 272,400.00

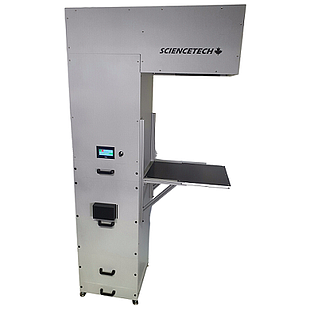

Sciencetech is proud to offer our new line of Ultra-High Efficiency solar simulators.
By utilizing a completely new design for the beam homogenizer, the UHE systems are capable of far more efficiency and power unit than previously possible. All this without sacrificing temporal stability, spatial uniformity, or spectral matching.
This Class AAA Solar Simulator is specifically designed for the Concentrated Photovoltaic (CPV) characteristic testing market, and for any other application where a highly collimated beam (0.5 degrees) of Class A solar radiation is required.
It is capable of illuminating a 45 x 45 cm area, and includes an integrated housing area which sets your samples at the proper distance from the source.
The simulator comes with an integrated power supply and arc lamp. Sciencetech recommends our AM1.0D Air Mass Filter (sold separately) as an excellent choice for this system.
Optional extended spectral matching in the ranges of 300 to 400nm and 1100 to 1800nm is available. Please speak with your authorized Sciencetech technical sales staff member for more information.

Please note that this device requires a (minimum) of 3.5m of vertical space, and a (minimum) of 3.5m of horizontal space. The footprint is approximately 3.5 x 1 x 3.5m

$ 205,750.00

Sciencetech is proud to offer our new line of Ultra-High Efficiency solar simulators.
By utilizing a completely new design for the beam homogenizer, the UHE systems are capable of far more efficiency and power unit than previously possible. All this without sacrificing temporal stability, spatial uniformity, or spectral matching.
This Class AAA Solar Simulator is capable of illuminating a 10 x10cm area and includes an integrated housing to allow the user to simply place their samples at the appropriate distance. It also includes the required optics to increase the collimation to 0.5 degrees, allowing the testing of large Concentrated Photovoltaic (CPV) cells, and for other applications requiring highly collimated solar light.
The simulator comes complete with an AM1.0D air mass filter (optional other AM filters are also available), power supply and arc lamp.
Sciencetech also offers extended spectral matching, both in the 300-400nm range and 1100-1800nm. Please speak to your authorized technical sales staff member for more information.

Please note that this device requires a 3m (minimum) vertical space, and 3m (minimum) horizontal space (the footprint is 3m x 1m x 3m).

$ 172,750.00

A system of 4 Large Area Solar Illuminator (LASI) units.
Each LASI unit illuminates up to 0.5x0.5m with a filtered Xenon Arc lamp producing 6,000K illumination. A 4 unit array illuminates up to 1x1m.
LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps. LASI units in arrays can produce a volumetric uniformity.
LASIs produce Class C Spectral match, Class A temporal instability. See the brochure for details about the system non-uniformity classification. Better optical performance is possible: please discuss your particular needs with your authorized Sciencetech technical support staff member.
Each unit has a single-phase power supply with a touch screen interface. Systems can be operated remotely through software.
Power requirements for each unit (1 of 4): 200-240 VAC, 12.1 to 9.0 A.
Base system does not include a mount, see brochure for product information.

$ 72,360.00

Class: AAA (ASTM)
Target Size: 300mm x 300 mm
Working Distance: 650mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 70,125.00

Class: AAA
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 58,600.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

$ 50,050.00

A 2.5kW Solar Simulator specifically designed to maximize UV radiation throughput. Utilizing Sciencetech's proprietary Fully Reflective design and specially designed UV filters, the SS2.5kW produces more UV energy while maintaining Class A solar spectrum for the rest of the spectral range.
Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
General Definition UVA 315nm-400nm UVB 280nm-315nm
Sunscreen definition UVA 320nm-400nm UVB 290nm-320nm
Please discuss your specific spectral needs when ordering from your authorized Sciencetech technical sales member.

$ 44,610.00

Class: ABA
Target Size: 200mm (7.8”) diameter
Working Distance: 1050mm (42”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-3k

Sciencetech is pleased to offer the SS-2.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-2.5kW includes air-cooled arc lamp housing, 2.5kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

$ 43,610.00

Class: AAA
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 40,490.00

Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

$ 38,230.00

Class: ABA
Target Size: 160mm (6.2”) diameter
Working Distance: 900mm (36”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1.6k

Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

$ 37,230.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: Class B
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 8" diameter, igniter.

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

$ 35,750.00

Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

$ 30,024.00

Class: AAA
Target Size: 150mm x 150 mm
Working Distance: 500mm
500W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 29,750.00

Class: ABA
Target Size: 125mm (5”) diameter
Working Distance: 750mm (30”)
Collimation: 3 degrees half angle
Power Supply: Sciencetech 500-1k
CE compliant
Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

$ 29,024.00

Class: AAA
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 28,750.00

Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. The smallest model of our standard line is the 500W system, allowing the researcher on a budget the ability to get high UV solar radiation. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

$ 26,975.00
