Optical Components

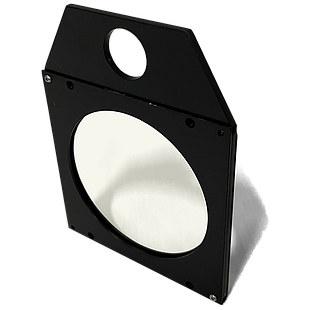

A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series, including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 4,133.00

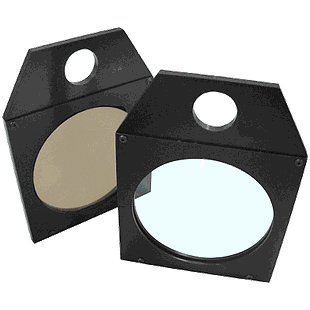

An AM0 3" x 3" air mass filter designed for Sciencetech's SF-series solar simulators, including filter holder. AM0 simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

This filters provides Class A spectral match for the following standards:
ASTM E927-19

$ 1,050.00

A 52x58mm air mass filter specifically designed for Sciencetech's SciSun and SL-WS solar simulators, including filter holder. The AM1.0D simulates the terrestrial solar spectrum on the ground when the sun's position is normal to the earth's surface. It includes only direct light from the sun, not diffuse light that is scattered by the atmosphere.

$ 4,133.00

An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

$ 4,133.00

An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-SF Series Solar Simulators
-UHE-NS Series Solar Simulators (Class A, ASTM E927-19)
-LightLine Series Solar Simulators (Class A, ASTM E927-19)
-Fully Reflective Series Solar Simulators (Class A, ASTM E927-19)
-PTS Bias Solar Simulator (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.

$ 1,050.00

An AM1.5G 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-SciSun Series Solar Simulators (Class A, ASTM E927-19 and Class A IEC 60904-9 Ed3.0)
-SL Series Solar Simulators (Class A, ASTM E927-19 and Class A IEC 60904-9 Ed3.0)
-UHE-NL Series Solar Simulators (Class A, ASTM E927-19 and Class A+ IEC 60904-9 Ed3.0)

AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.

$ 1,050.00

A 52x58mm air mass filter specifically designed for Sciencetech's SciSun and SL-WS solar simulators, including filter holder. The AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.

$ 1,050.00

An AM1.5G 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-SF Series Solar Simulators (Class A, ASTM E927-19 and Class A+ IEC 60904-9 Ed3.0)
-UHE-NS Series Solar Simulators (Class A, ASTM E927-19)
-LightLine Series Solar Simulators (Class A, ASTM E927-19)
-Fully Reflective Series Solar Simulators (Class A, ASTM E927-19)
-PTS Bias Solar Simulator (Class A, ASTM E927-19)

AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.

$ 1,050.00

Sciencetech's sample chambers can be connected to either the input or output port of a Sciencetech monochromator/spectrograph. The coupling tube that connects them together is 1" in diameter, and has one lens with a matching monochromator F number. When the sample chamber is connected to the input port of a monochromator/spectrograph, collimated light from the sample chamber is then focused into the slit of the monochromator matching its input F number using a single lens. When the sample chamber is connected to the output port of a monochromator, the output light of the monochromator is collected by a single lens with matching output F number and then collimated for entry into the sample chamber.
This product includes the F-matching lens, tubes, and mechanical connections required to couple the sample chamber to the monochromator. Please specify if this will be an input or output coupling when ordering. This product will only work for Sciencetech's line of sample chambers: for custom optical coupling, please speak with your authorized Sciencetech technical sales staff member.

$ 909.00

Sciencetech's sample chambers can be connected to either the input or output port of a Sciencetech monochromator/spectrograph. The coupling tube that connects them together is 1" in diameter, and has one lens with a matching monochromator F number. When the sample chamber is connected to the input port of a monochromator/spectrograph, collimated light from the sample chamber is then focused into the slit of the monochromator matching its input F number using a single lens. When the sample chamber is connected to the output port of a monochromator, the output light of the monochromator is collected by a single lens with matching output F number and then collimated for entry into the sample chamber.
This product includes the F-matching lens, tubes, and mechanical connections required to couple the sample chamber to the monochromator. Please specify if this will be an input or output coupling when ordering. This product will only work for Sciencetech's line of sample chambers: for custom optical coupling, please speak with your authorized Sciencetech technical sales staff member.

$ 909.00

This assembly is a custom F/# matched lens assembly. It is a double lens assembly of 1" diameter PCX lenses.
Lens material is Fused Quartz or Fused Silica depending on availability.
Specify required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
Lenses mounted in 1" diameter coupling tube. Accessories and adapters for coupling available.

$ 585.00

This assembly is a custom F/# matched lens assembly. It is a double lens assembly of 1" diameter PCX lenses.
Lens material is BK7 Glass.
Specify required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
Lenses mounted in 1" diameter coupling tube. Accessories and adapters for coupling available.

$ 459.00

This assembly is a custom F/# matched lens assembly. It is a single lens assembly of 2" diameter PCX lenses.
Lens material is Fused Quartz or Fused Silica depending on availability.
Specify required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
Lenses mounted in 2.2" diameter coupling tube. Accessories and adapters for coupling available.

$ 442.00

This assembly is a custom F/# matched lens assembly. It is a double lens assembly of 2" diameter PCX lenses.
Lens material is Fused Quartz or Fused Silica depending on availability.
Specify required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
Lenses mounted in 2.2" diameter coupling tube. Accessories and adapters for coupling available.

$ 881.00

This assembly is a custom F/# matched lens assembly. It is a double lens assembly of 2" diameter PCX lenses.
Lens material is BK7 Glass.
Specify required F/# at time of ordering. F/# can be set from F/0.8 to F/10.0
Lenses mounted in 2.2" diameter coupling tube. Accessories and adapters for coupling available.

$ 522.00

This adapter couples light from a standard SMA terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from BK7 glass giving good transmission over a wavelength range of 350nm-2000nm

$ 1,210.00

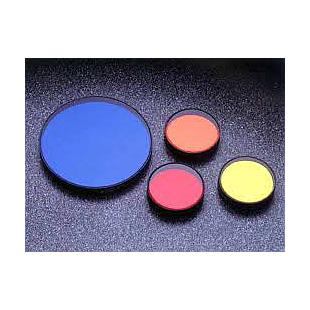

Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 260.00

Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 260.00

Red, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.

$ 260.00

A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.

$ 416.00
