Cell Chucks

Sciencetech Cell Chucks

Cell chucks are used to hold a sample and connect a sample to electronics for current-voltage (IV) measurement, as well as offering sample temperature control and sample positioning options.

Sciencetech offers a wide range of cell holding options for various cell sizes and budgets. We offer low-cost un-cooled cell holders with probe stations, or cooled options using either thermoelectric or liquid cooling and heating.

All cell chucks have 4 binding posts to connect probe assemblies to measurement electronics. Not all products are shown on the website.

Product Cooling Sample Size Vacuum Ready
SCI-SCC2 (175-9051) TE Up to 48 mm Dia Included
SCI-SCC3 (165-8201) None 9 x 9 cm (3.5 x 3.5") Yes
SCI-SCC3-TE (165-8202) TE 9 x 9 cm (3.5 x 3.5") Yes
SCI-SCC6 (165-8203) None 16.5 x 16.5 cm (6.5 x 6.5") Yes
SCI-SCC6-L (165-8204) Liquid 16.5 x 16.5 cm (6.5 x 6.5") Yes
SCI-SCC6-TE (165-8205) TE 16.5 x 16.5 cm (6.5 x 6.5") Yes
SCI-SCC12 (165-8206) None 30 x 30 cm (12 x 12") Yes
SCI-SCC12-L (165-8207) Liquid 30 x 30 cm (12 x 12") Yes
Cell Chuck

Sciencetech Probe Stations

Probe stations are used in conjunction with a cell chuck to provide electrical contact to the sample for current-voltage (IV) measurements.

Sciencetech cell chucks are designed to be used with our probe stations. All cell chucks can take measurements from the bottom of the test cell but we have a number of options for the for the top side probes as well.

Probe Station

Sciencetech Temperature Controllers

Sciencetech provides temperature controllers for all of our cooled cell chucks.

Temperature Controller

Sciencetech Vacuum Pumps

Sciencetech provides vacuum pumps for all Sciencetech cell chucks. All of Sciencetech's cell chucks are 'vacuum ready' which means you can simply plug in an adequate vacuum pump and have instant vacuum hold down capabilities.

Vacuum Pump
Contact Us Today
Get more information or request a quote.
X

Product Category

View Filter

x
Clear all x

Filter Option



Sciencetech's [130-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 500W of power from your light source.

-Dissipates up to 500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate
1,716.00
In stock
Sciencetech's [130-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 500W of power from your light source.

-Dissipates up to 500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate
1,716.00 1716.0 USD
Price Valid only in North America


Sciencetech's [160-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 900W of power from your light source.

-Dissipates up to 900W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate
2,016.00
In stock
Sciencetech's [160-REC] is a cooling water recirculator. It is designed to work with any of Sciencetech's liquid cooled solar cell chucks. This recirculator can maintain your sample at room temperature while sinking up to 900W of power from your light source.

-Dissipates up to 900W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate
2,016.00 2016.0 USD
Price Valid only in North America

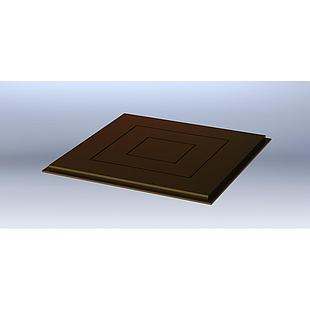

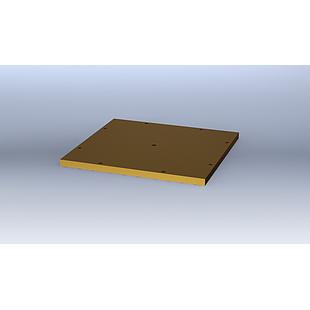

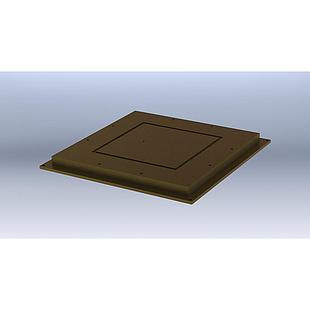

Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
400.00
In stock
Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
400.00 400.0 USD
Price Valid only in North America


Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
200.00
In stock
Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
200.00 200.0 USD
Price Valid only in North America


Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
300.00
In stock
Sciencetech's cell chucks are made from copper and plated with tin for good electrical conductivity, corrosion resistance, and durability. Our cell chucks can be upgraded to have an additional gold coating on request.
300.00 300.0 USD
Price Valid only in North America

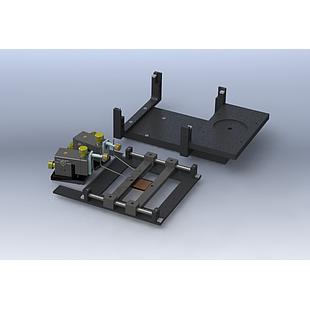

A sample platform designed to operate for any of Sciencetech's line of Fully Reflective solar simulators. The sample tray is intended to be used with SS0.5k-SS1.6k simulators with downward facing beams. For a complete downward facing package for your SS0.5k-SS10.6k fully reflective solar simulator please see product (DFS-SS).
This sample platform includes a clamp for maintaining its position. The sample platform can be used to mount a variety of cell chucks offered by Sciencetech. Please speak with your authorized Sciencetech technical sales staff member to discuss cell chucks, probes, vacuum, or water cooling options.
350.00
In stock
A sample platform designed to operate for any of Sciencetech's line of Fully Reflective solar simulators. The sample tray is intended to be used with SS0.5k-SS1.6k simulators with downward facing beams. For a complete downward facing package for your SS0.5k-SS10.6k fully reflective solar simulator please see product (DFS-SS).
This sample platform includes a clamp for maintaining its position. The sample platform can be used to mount a variety of cell chucks offered by Sciencetech. Please speak with your authorized Sciencetech technical sales staff member to discuss cell chucks, probes, vacuum, or water cooling options.
350.00 350.0 USD
Price Valid only in North America

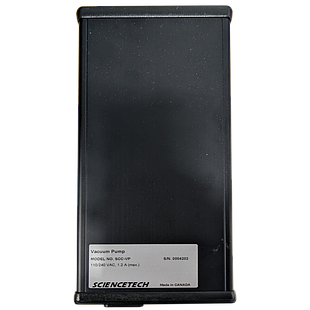

The SCC-VP vacuum pump is designed for use with Sciencetech's solar cell chucks and provides ~10 psi of vacuum in a light, and inexpensive package.
The SCC-VP produces considerable vibration noise.
For a quiet vacuum pump see the SCC-VPME1.
685.00
In stock
The SCC-VP vacuum pump is designed for use with Sciencetech's solar cell chucks and provides ~10 psi of vacuum in a light, and inexpensive package.
The SCC-VP produces considerable vibration noise.
For a quiet vacuum pump see the SCC-VPME1.
685.00 685.0 USD
Price Valid only in North America

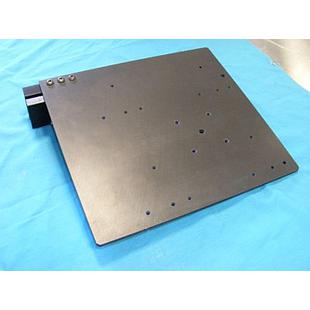

The SCI-SCC12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 x 30 cm (12" x 12")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
3,200.00
In stock
The SCI-SCC12 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 30 x 30 cm (12" x 12")
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
3,200.00 3200.0 USD
Price Valid only in North America


The SCI-SCC12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 12" x 12"
Temperature Range: 1 – 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
4,900.00
In stock
The SCI-SCC12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 12" x 12"
Temperature Range: 1 – 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
4,900.00 4900.0 USD
Price Valid only in North America


The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 3.5" x 3.5"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
743.00
In stock
The SCI-SCC3 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 3.5" x 3.5"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
743.00 743.0 USD
Price Valid only in North America


The SCI-SCC3-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.
This cell chuck can be used with Sciencetech's PTS systems
Working Area: 3" x 3"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: N/A
698.00
In stock
The SCI-SCC3-B cell chuck is an economical way of providing electrical connection to the back of your test cells. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.
This cell chuck can be used with Sciencetech's PTS systems
Working Area: 3" x 3"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: N/A
698.00 698.0 USD
Price Valid only in North America


The SCI-SCC3-L-B cell chuck is an economical way of providing electrical connection to the back of your test cells and liquid cooling. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 3" x 3"
Temperature Range: dew point - 80 ºC
Power Input: N/A
Power Usage: N/A
Options: Water Recirculator or Temperature Control Unit
3,599.00
In stock
The SCI-SCC3-L-B cell chuck is an economical way of providing electrical connection to the back of your test cells and liquid cooling. It is compatible with all of Sciencetech's probe systems except the SCP-MP-T and SCP-MP-G. It is not capable of vacuum hold down.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Working Area: 3" x 3"
Temperature Range: dew point - 80 ºC
Power Input: N/A
Power Usage: N/A
Options: Water Recirculator or Temperature Control Unit
3,599.00 3599.0 USD
Price Valid only in North America


The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

Cooling area: 3.5" x 3.5"
Temperature Range: 10 - 60 ºC
Power Input: 115-240VAC
Power Usage: 80W
Options: Vacuum Pump

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,180.00
In stock
The SCI-SCC3-TE cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and has an integrated thermoelectric controller that can heat or cool your test cells from dew point to 60 ºC.

This product is not compatible with PTS systems. For PTS systems add the SCI-SCC3-TE-PTS version of this cell chuck

Cooling area: 3.5" x 3.5"
Temperature Range: 10 - 60 ºC
Power Input: 115-240VAC
Power Usage: 80W
Options: Vacuum Pump

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).
2,180.00 2180.0 USD
Price Valid only in North America


The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 6" x 6"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
840.00
In stock
The SCI-SCC6 cell chuck is an economical way of providing electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold down (vacuum pump sold separately).

Working Area: 6" x 6"
Temperature Range: N/A
Power Input: N/A
Power Usage: N/A
Options: Vacuum Pump
840.00 840.0 USD
Price Valid only in North America

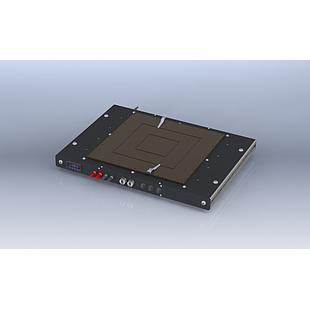

The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W (not including recirculator or temp control unit)
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
1,400.00
In stock
The SCI-SCC6-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W (not including recirculator or temp control unit)
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
1,400.00 1400.0 USD
Price Valid only in North America

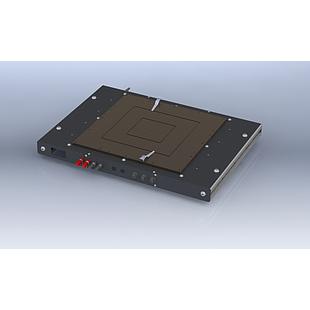

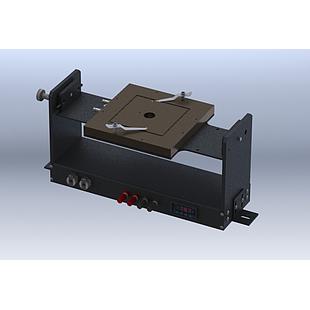

The SCI-SCC6-L-F cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

The SCI-SCC6-L-F is a reversible chuck that allows you to make electrical contacts to the back of your device under test and flip the chuck for back-illumination.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
3,400.00
In stock
The SCI-SCC6-L-F cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells from dew point to 80 ºC.

The SCI-SCC6-L-F is a reversible chuck that allows you to make electrical contacts to the back of your device under test and flip the chuck for back-illumination.

This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

Cooling area: 6" x 6"
Temperature Range: 1 - 80 ºC
Power Input: 115-240VAC
Power Usage: 2W
Options: Vacuum Pump and Water Recirculator or Temperature Control Unit
3,400.00 3400.0 USD
Price Valid only in North America

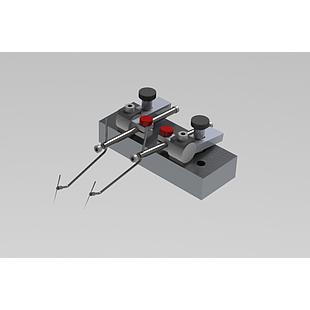

Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
898.00
In stock
Sciencetech's (SCP-2G) is an economical probe station that provides 2 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
898.00 898.0 USD
Price Valid only in North America

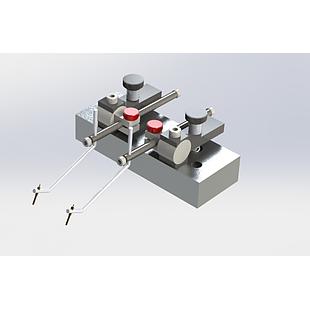

Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.
1,029.00
In stock
Sciencetech's (SCP-2T) is an economical probe station that provides 2 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
Please note: Tungsten needle-tip probes are very sharp and might not be suitable for some cell technologies. For such application, Gold spring loaded probes such as SCP-2G is recommended.
1,029.00 1029.0 USD
Price Valid only in North America

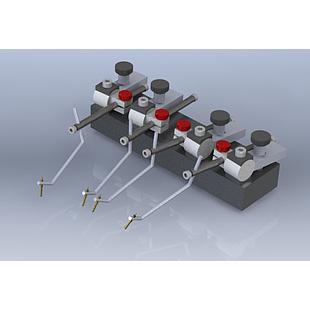

Sciencetech's (SCP-4G) is an economical probe station that provides 4 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
1,529.00
In stock
Sciencetech's (SCP-4G) is an economical probe station that provides 4 gold plated spring-tip probes to provide contacts to the top surface of your test device.

Gold spring probes are an excellent choice for most applications, with the probe tip gently contacting the surface of your test device. For applications requiring finer probe placement, please see our tungsten needle-tip probe stations.
1,529.00 1529.0 USD
Price Valid only in North America


Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
1,629.00
In stock
Sciencetech's (SCP-4T) is an economical probe station that provides 4 tungsten needle-tip probes to provide contacts to the top surface of your test device.

Tungsten needle-tip probes are an excellent choice for applications requiring highly accurate, fine probe placement.
1,629.00 1629.0 USD
Price Valid only in North America
