Adapters and Connectors

This mount will attach cryogenic detectors directly to a Sciencetech monochromator or spectrometer. Please note that this mount is designed specifically for cryogenically cooled detectors, and may not function for other types of detectors. If you are uncertain about whether you need this mount or not, please contact your Sciencetech Representative.

$ 525.00

This is a quick release mount for many of Sciencetech's standard single element detectors or PMTs. It allows the user to easily replace one detector with another, and remain confident in the ability of the system to hold and align various detectors properly with minimal effort. This will not work with either LDA or CCD systems or Cryogenic detectors. Please speak to your Technical Sales member at Sciencetech for more information.

$ 200.00

A standard single-element detector mount for Sciencetech's line of monochromators and/or spectrometers. This quick release mount comes complete with Sciencetech's quick release mount (125-8012) as well as a quick release flange which mounts to a detector or component. The quick release flange has an internal 1.035-40 thread which can be used to mount Sciencetech's 525-5 line of detectors as well as other common optical components such as Thorlabs 1" lens tubes.

Please note that this mount will not work with dewer style detectors. If you are uncertain about what type of detector mount your system needs, please contact your Sciencetech representative.

$ 181.00

This component will attach a wide variety of CCDs directly to Sciencetech's line of monochromators and/or spectrometers. For CCDs that are made by Hamamatsu, please see part # 125-8009. Please confirm with a Sciencetech representative if you are uncertain if your system requires this mount for your CCD.

$ 2,500.00

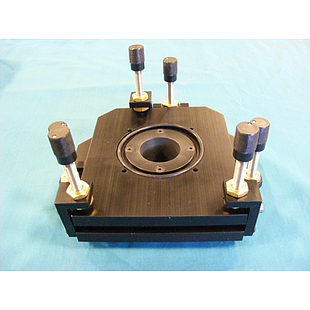

An adjustable mount to attach CCDs to any of Sciencetech's line of monochromator/spectrometers. This mount will work specifically with Hamamatsu's line of CCDs: if you are uncertain if your CCD is a standard Hamamatsu CCD or not, please ask your Sciencetech representative.

$ 1,365.00

$ 1,000.00

The C230X Chopper is a Sciencetech manufactured chopper for high precision applications requiring a vacuum-grade polarizing chopper and better accuracy than is available through most commercially available chopper systems.
This product is the enclosure required to mount one of these choppers to any system. Please discuss the exact desired location of the chopper relative to the rest of your system with your authorized Sciencetech technical sales staff member to ensure that your system meets all technical specifications and requirements.

$ 650.00

Many systems require choppers for modulating signals (either inputs or outputs, depending on the system and detector, and the specific needs for modulation for the system). A chopper is normally the most effective way to do this.
However, the chopper normally requires a housing to hold the chopper in the proper position in the system. This particular housing is designed to allow a chopper to be mounted to either the input or output port of a Sciencetech monochromator or spectrograph.
If you have any questions about how this mounting may affect your system, please speak with your authorized Sciencetech technical sales staff member.

$ 600.00

This adapter couples light from a standard FC terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from fused silica giving good transmission over a wavelength range of 200nm-2000nm

$ 1,210.00

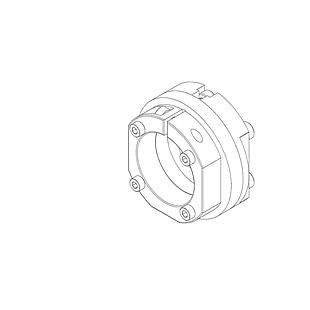

This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

$ 200.00

This adapter couples light from a standard SMA terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from fused silica giving good transmission over a wavelength range of 200nm-2000nm

$ 1,210.00

This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.

$ 50.00

Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.

$ 50.00

This Fiber Bundle Coupler mates a Sciencetech Beam Condensing Assembly or Light Source Optical Coupling Unit to the input end of a fiber bundle such that the light collected is focused into the fiber bundle with great efficiency. The Fiber Bundle Coupler screws onto the output end of the Beam Condensing Assembly or Light Source Coupling Unit. Once screwed on, the input tip of the fiber bundle would be positioned at the output focal spot for optimum light collection.

$ 430.00

This Fiber Bundle Coupler mates a Sciencetech Beam Condensing Assembly or Light Source Optical Coupling Unit to the input end of a fiber bundle such that the light collected is focused into the fiber bundle with great efficiency. The Fiber Bundle Coupler screws onto the output end of the Beam Condensing Assembly or Light Source Coupling Unit. Once screwed on, the input tip of the fiber bundle would be positioned at the output focal spot for optimum light collection.

$ 430.00

This SMA Fiber Coupler mates a Sciencetech Beam Condensing Assembly to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source will be very low.

$ 228.00

This SMA Fiber Coupler mates a Sciencetech 2" Beam Condensing Assembly (such as IO2 model condensors) to the input end of an SMA fiber such that the light collected is focused into the SMA fiber tip with great efficiency. The SMA Fiber Coupler screws onto the output end of the 2" Beam Condensing Assembly. Once screwed on, the input tip of the fiber bundle is positioned at the output focal spot for optimum light collection. This assembly also includes an X-Y optical coupler that can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. There are two flange sizes of the Fiber Bundle Coupler available to match the 1 and 2 inch diameter sizes of the Beam Condensing Assembly. Please note that the SMA Fiber Coupler should not be used on its own without the beam condensing assembly as otherwise the light collection efficiency from the light source is very low.

$ 437.00

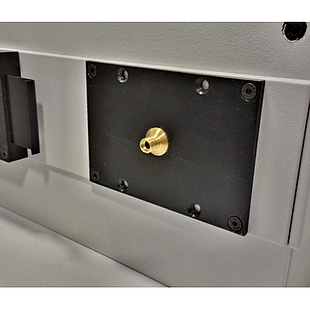

This is an SMA fiber coupler (FC style also available) with an interface flange mount to the input port of a Sciencetech monochromator or spectrograph (fiber not included). Please note two versions are available. One version is for the Sciencetech 9030 monochromator which utilizes its own slit interface flange design. The other version is for all other Sciencetech Series 9000 and 8000 monochromators and spectrographs which use a common slit interface flange design. With an FIB1 at the input port, a slit (fixed or adjustable) is not necessary as the width of the input fiber typically defines the input slit width. Please note that this fiber connection does not address the f number matching issue between the fiber and the monochromator or spectrograph. Hence if it is used at the input port of the monochromator or spectrograph, significant light loss can be expected with the fiber having an f number closer to 1. If this is an issue, please speak to a Sciencetech Applications Specialist about using a condensing lens assembly with the FIB4 or FIB5 instead.

$ 230.00

This is an SMA fiber coupler (FC style also available) with an interface flange mount to the input port of a Sciencetech monochromator or spectrograph (fiber not included). Please note two versions are available. One version is for the Sciencetech 9030 monochromator which utilizes its own slit interface flange design. The other version is for all other Sciencetech Series 9000 and 8000 monochromators and spectrographs which use a common slit interface flange design. With an FIB1 at the input port, a slit (fixed or adjustable) is not necessary as the width of the input fiber typically defines the input slit width. Please note that this fiber connection does not address the f number matching issue between the fiber and the monochromator or spectrograph. Hence if it is used at the input port of the monochromator or spectrograph, significant light loss can be expected with the fiber having an f number closer to 1. If this is an issue, please speak to a Sciencetech Applications Specialist about using a condensing lens assembly with the FIB4 or FIB5 instead

$ 220.00

This coupling tube connects the Model 200-1K arc lamp housing to the Model FH-AC air-cooled dual filter holder box. Its length is designed specifically to place the air-cooled filter holder with 2" diameter filters in the converging beam of the light source. A mating flange connects this input extension coupling tube with the Model 200-1K arc lamp housing.

$ 576.00
