Low Power Xe 75W - 150W

Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 25mm (1")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

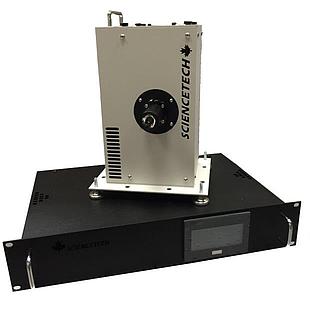

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

$ 5,780.00

Lamp Power: 150W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 50mm (2")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

$ 5,920.00

This lamp housing design is optimized for 75W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 75W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

This lamp housing design is optimized for 150W xenon arc lamps. It features a F/4.5 elliptical reflector.

Lamp Power: 150W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

This lamp housing design is optimized for 75W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 75W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 3,420.00

This lamp housing design is optimized for 150W xenon arc lamps. It features a F/1.2 elliptical reflector.

Lamp Power: 150W
Reflector Type: Elliptical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 3,420.00

This lamp housing design is optimized for 75W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 75W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

This lamp housing design is optimized for 150W xenon arc lamps. It features a parabolic reflector.

Lamp Power: 150W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

This lamp housing design is optimized for 75W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 75W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-075 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,700.00

This lamp housing design is optimized for 150W xenon arc lamps. It features a spherical back reflector.

Lamp Power: 150W
Reflector Type: Spherical
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-150 (sold separately)
Compatible Collimated Beam Output Optics: COL-series
Compatible Focused Beam Output Optics: Combined COL-series and IO-series

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,700.00
