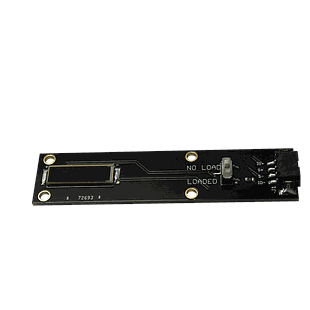

The SCI-MO reference cell is a robust PCB-mounted solar cell with an active area of 22 × 7mm. The SCI-MO is intended to be used as a reference monitor for determining solar simulator sun level. These reference cells are calibrated for 1 Sun AM1.5G using a Sciencetech Class AAA (ASTM E927-19) solar simulator. Two calibration values (Isc) in mA/Sun and mV/Sun are provided. The SCI-MO is used as the reference cell in PTS-series instruments.

Readout options for the SCI-MO require accessories. They are:
Current (in mA): in no load mode, requires a source meter (such as in SSIVT-series current-voltage measurement systems) to read out.
Voltage (in mV): in loaded mode, requires a simple voltmeter/multimeter (such as MULTIMETER), or a source meter (such as in SSIVT-series current-voltage measurement systems) to read out.
Suns: in no load mode, requires SOL-METER to read out (using current, an integrated load resistor, and a pre-loaded calibration value to display Suns).

Readout accessories, such as SOL-METER, MULTIMETER, and SSIVT-series instruments are sold separately.

The reference cell can be switched into loaded or unloaded mode via a surface mounted switch on the top of the detector PCB. A calibration value is provided for each mode of operation.
A disconnectable 1.2m long cable assembly with 4 color coded banana plugs is provided with each device.

The SCI-MO reference cell is RoHS compliant.
315.00
The SCI-MO reference cell is a robust PCB-mounted solar cell with an active area of 22 × 7mm. The SCI-MO is intended to be used as a reference monitor for determining solar simulator sun level. These reference cells are calibrated for 1 Sun AM1.5G using a Sciencetech Class AAA (ASTM E927-19) solar simulator. Two calibration values (Isc) in mA/Sun and mV/Sun are provided. The SCI-MO is used as the reference cell in PTS-series instruments.

Readout options for the SCI-MO require accessories. They are:
Current (in mA): in no load mode, requires a source meter (such as in SSIVT-series current-voltage measurement systems) to read out.
Voltage (in mV): in loaded mode, requires a simple voltmeter/multimeter (such as MULTIMETER), or a source meter (such as in SSIVT-series current-voltage measurement systems) to read out.
Suns: in no load mode, requires SOL-METER to read out (using current, an integrated load resistor, and a pre-loaded calibration value to display Suns).

Readout accessories, such as SOL-METER, MULTIMETER, and SSIVT-series instruments are sold separately.

The reference cell can be switched into loaded or unloaded mode via a surface mounted switch on the top of the detector PCB. A calibration value is provided for each mode of operation.
A disconnectable 1.2m long cable assembly with 4 color coded banana plugs is provided with each device.

The SCI-MO reference cell is RoHS compliant.
315.00 315.0 USD
Price Valid only in North America

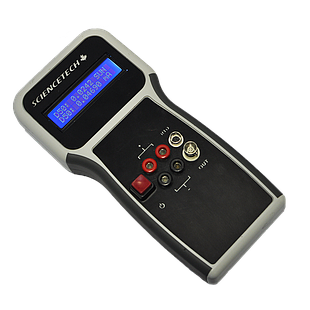

The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications. CE compliant.
Please refer to the technical datasheet for additional information.
2,212.00
In stock
The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications. CE compliant.
Please refer to the technical datasheet for additional information.
2,212.00 2212.0 USD
Price Valid only in North America

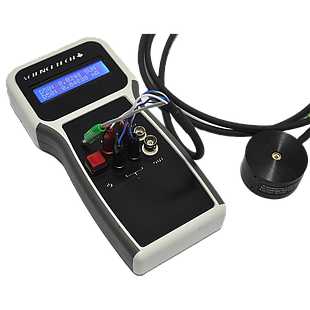

This product consists of the Sciencetech SOL-METER and our SSIVT-REF sun calibrated reference detector. The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications.

The Sciencetech Reference Detector, which is an integral part of solar simulator calibration and solar cell I-V characterization, consists of a single element silicon detector and is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device. CE compliant.

Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm
2,800.00
In stock
This product consists of the Sciencetech SOL-METER and our SSIVT-REF sun calibrated reference detector. The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications.

The Sciencetech Reference Detector, which is an integral part of solar simulator calibration and solar cell I-V characterization, consists of a single element silicon detector and is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device. CE compliant.

Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm
2,800.00 2800.0 USD
Price Valid only in North America


The Sciencetech SSIVT-REF single element silicon detector is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. The SSIVT-REF detector can be used with Sciencetech SSIVT measurement system or Sciencetech SOL-METER solar power meter. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device such as a source meter or Sciencetech SOL-METER. CE compliant.


Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm
625.00
In stock
The Sciencetech SSIVT-REF single element silicon detector is designed to be used for monitoring and verifying the Sun level of solar simulators. The SSIVT-REF detector is used effective in sensing wavelengths between 190 nm and 1100 nm and is calibrated at Sciencetech against a NIST traceable calibrated reference cell. The SSIVT-REF detector can be used with Sciencetech SSIVT measurement system or Sciencetech SOL-METER solar power meter. Comes with a detachable cable with 4 banana plugs for connecting to a measurement device such as a source meter or Sciencetech SOL-METER. CE compliant.


Rise time: 0.2 μs
Effective active area: 5.7 sqmm
Dimensions: 50.8 x 50.8 x 25.4 mm
625.00 625.0 USD
Price Valid only in North America
