An AM0 3" x 3" air mass filter designed for Sciencetech's SF-series solar simulators, including filter holder. AM0 simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

This filters provides Class A spectral match for the following standards:
ASTM E927-19
1,050.00
In stock
An AM0 3" x 3" air mass filter designed for Sciencetech's SF-series solar simulators, including filter holder. AM0 simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

This filters provides Class A spectral match for the following standards:
ASTM E927-19
1,050.00 1050.0 USD
Price Valid only in North America


An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.
4,133.00
In stock
An AM1.5D 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-Flash Series Solar Simulators (Class A, ASTM E927-19)

AM1.5D simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes only direct light from the sun, and not the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the direct radiation which reaches the ground.
4,133.00 4133.0 USD
Price Valid only in North America


An AM1.5G 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-SciSun Series Solar Simulators (Class A, ASTM E927-19 and Class A IEC 60904-9 Ed3.0)
-SL Series Solar Simulators (Class A, ASTM E927-19 and Class A IEC 60904-9 Ed3.0)
-UHE-NL Series Solar Simulators (Class A, ASTM E927-19 and Class A+ IEC 60904-9 Ed3.0)

AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.
1,370.00
In stock
An AM1.5G 3x3" air mass filter (including filter holder) designed for Sciencetech's:
-SciSun Series Solar Simulators (Class A, ASTM E927-19 and Class A IEC 60904-9 Ed3.0)
-SL Series Solar Simulators (Class A, ASTM E927-19 and Class A IEC 60904-9 Ed3.0)
-UHE-NL Series Solar Simulators (Class A, ASTM E927-19 and Class A+ IEC 60904-9 Ed3.0)

AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.
1,370.00 1370.0 USD
Price Valid only in North America


A 52x58mm air mass filter specifically designed for Sciencetech's SciSun and SL-WS solar simulators, including filter holder. The AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.
1,050.00
In stock
A 52x58mm air mass filter specifically designed for Sciencetech's SciSun and SL-WS solar simulators, including filter holder. The AM1.5G simulates the terrestrial solar spectrum on the ground when the sun is at a zenith angle of 48.2°. It includes both direct light from the sun, and the diffuse light that is scattered by the atmosphere. As a result, this filter simulates the total radiation, known as global radiation, which reaches the ground.
1,050.00 1050.0 USD
Price Valid only in North America

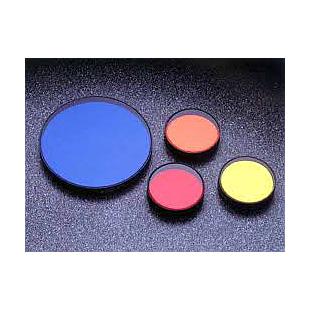

Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00
In stock
Blue, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00 260.0 USD
Price Valid only in North America


Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00
In stock
Green, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00 260.0 USD
Price Valid only in North America


Red, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00
In stock
Red, 72mm diameter filter, including holder.
Please speak with your authorized Sciencetech technical sales staff member for additional information.
260.00 260.0 USD
Price Valid only in North America


A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.
416.00
In stock
A Longpass filter designed for use with Sciencetech systems in the Infrared range.
Diameter (mm) 25.0
Diameter Tolerance (mm) +0.0 / -0.1
Thickness (mm) 1.0
Thickness Tolerance (mm) ±0.2
Clear Aperture (%) 90
Surface Accuracy (λ) 3 - 5
Surface Quality 60-40
Parallelism (arcminutes) <10
Transmission (%) >90
Transmission Wavelength (μm) 2.52 - 4.80
Optical Density OD >3.0
Cut-On Wavelength (μm) 2.40
Cut-On Wavelength Tolerance (μm) 0.09
Cut-On Tolerance (%) 5 of Peak Transmission
Slope Factor (%) <6
Substrate Germanium
Operating Temperature (°C) -62 to +71
RoHS Compliant

Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.
416.00 416.0 USD
Price Valid only in North America


Sciencetech cold mirrors reflect visible energy and transmit the infrared (heat energy). The cold mirrors are vacuum deposited and all dielectric.
UV cold mirror is specially designed to reflect more than 95% average of ultra-violet rays from 350-450nm and transmit more than 90% average 550-1200nm at 45 degrees angle of incidence. Custom angles of incidence can be designed to specification.

Substrate borofloat 1.4762
Transmits >85% 600-1200nm
Reflects >90% 325-475nm.
Cut to 2.25" x 3.5" +0/-0.1"
1,500.00
Sciencetech cold mirrors reflect visible energy and transmit the infrared (heat energy). The cold mirrors are vacuum deposited and all dielectric.
UV cold mirror is specially designed to reflect more than 95% average of ultra-violet rays from 350-450nm and transmit more than 90% average 550-1200nm at 45 degrees angle of incidence. Custom angles of incidence can be designed to specification.

Substrate borofloat 1.4762
Transmits >85% 600-1200nm
Reflects >90% 325-475nm.
Cut to 2.25" x 3.5" +0/-0.1"
1,500.00 1500.0 USD
Price Valid only in North America


IR broad band pass filter, operating in approximately 2.5um to 5.0um.
This price includes the filter only; it does not include a holder, which must be purchased separately.

1,150.00
In stock
IR broad band pass filter, operating in approximately 2.5um to 5.0um.
This price includes the filter only; it does not include a holder, which must be purchased separately.

1,150.00 1150.0 USD
Price Valid only in North America


Interference type Infrared IR Longpass filter with wavelength cutoff of 1500 nm
> 80% Transmission Starts : 1792nm
Maximum Wavelength Suggested: 3080nm
372.00
Interference type Infrared IR Longpass filter with wavelength cutoff of 1500 nm
> 80% Transmission Starts : 1792nm
Maximum Wavelength Suggested: 3080nm
372.00 372.0 USD
Price Valid only in North America


Sciencetech's standard 75 mm (3") neutral density mesh filter, transmitting 34% of incident light, mounted in an FT style holder.
350.00
In stock
Sciencetech's standard 75 mm (3") neutral density mesh filter, transmitting 34% of incident light, mounted in an FT style holder.
350.00 350.0 USD
Price Valid only in North America


Sciencetech's standard 75 mm (3") neutral density mesh filter, transmitting 49% of incident light, mounted in an FT style holder.
310.00
In stock
Sciencetech's standard 75 mm (3") neutral density mesh filter, transmitting 49% of incident light, mounted in an FT style holder.
310.00 310.0 USD
Price Valid only in North America


Sciencetech's standard 75 mm (3") neutral density mesh filter, transmitting 71% of incident light, mounted in an FT style holder.
310.00
In stock
Sciencetech's standard 75 mm (3") neutral density mesh filter, transmitting 71% of incident light, mounted in an FT style holder.
310.00 310.0 USD
Price Valid only in North America


Set of 6 optical density filters in values of 0.15, 0.3, 0.4, 0.6, 0.9, and 2.5. Each is 25mm diameter and unmounted.
These are absorption filters (as opposed to reflective neutral density).
350.00
In stock
Set of 6 optical density filters in values of 0.15, 0.3, 0.4, 0.6, 0.9, and 2.5. Each is 25mm diameter and unmounted.
These are absorption filters (as opposed to reflective neutral density).
350.00 350.0 USD
Price Valid only in North America


This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.
20.00
In stock
This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.
20.00 20.0 USD
Price Valid only in North America


This bandpass filter has a transmission band surrounded by two blocking bands that allow only the UV part of the spectrum to pass.
This product includes the filter and a frame for mounting in a standard Sciencetech filter box.
302.00
In stock
This bandpass filter has a transmission band surrounded by two blocking bands that allow only the UV part of the spectrum to pass.
This product includes the filter and a frame for mounting in a standard Sciencetech filter box.
302.00 302.0 USD
Price Valid only in North America


Sun Screen Testing Industry standard filters for isolating UVA wavelengths (320-400nm)
Schott UG11 Filter for eliminating visible and infrared rays (>400nm)
Schott WG335/3mm or WG345/1mm filter for eliminating UVB and UVC rays (<320nm)
Used in the UVA Protection Factor Test Method (Persistent Pigment Darkening)
900.00
In stock
Sun Screen Testing Industry standard filters for isolating UVA wavelengths (320-400nm)
Schott UG11 Filter for eliminating visible and infrared rays (>400nm)
Schott WG335/3mm or WG345/1mm filter for eliminating UVB and UVC rays (<320nm)
Used in the UVA Protection Factor Test Method (Persistent Pigment Darkening)
900.00 900.0 USD
Price Valid only in North America


Four filter sort order filter set covers a spectral 200-1600nm range (UV-NIR).
Order sorting filters are used with diffractive equipment such as monochromators to filter out harmonic diffractive orders.
This absorbing glass sort order filter set provides modest harmonic blocking for spectroscopy systems.

Filters are 1" diameter

Note: absorbing glass type filters may exhibit flourescence. These filters cannot be used with high power light sources
450.00
In stock
Four filter sort order filter set covers a spectral 200-1600nm range (UV-NIR).
Order sorting filters are used with diffractive equipment such as monochromators to filter out harmonic diffractive orders.
This absorbing glass sort order filter set provides modest harmonic blocking for spectroscopy systems.

Filters are 1" diameter

Note: absorbing glass type filters may exhibit flourescence. These filters cannot be used with high power light sources
450.00 450.0 USD
Price Valid only in North America


A longpass filter has low transmission in the shortwave region (stopped) and high transmission in the longwave range (passband).
Size: 2" diameter
Material thickness: 3 mm
Surface Quality: 80-50
This filter includes the holder required to mount into Sciencetech's line of filter holders. For mounting into other applications, please speak with your authorized Sciencetech technical sales staff member.
360.00
In stock
A longpass filter has low transmission in the shortwave region (stopped) and high transmission in the longwave range (passband).
Size: 2" diameter
Material thickness: 3 mm
Surface Quality: 80-50
This filter includes the holder required to mount into Sciencetech's line of filter holders. For mounting into other applications, please speak with your authorized Sciencetech technical sales staff member.
360.00 360.0 USD
Price Valid only in North America
