Ultra High Power Xe 3000W - 7000W

Lamp Power: 2500W
Lamp Type: Xenon
Output Beam Type: Collimated
Output Beam Diameter: 76mm (3")
Lens Type: Single Plano-Convex Lens
Lens Material: Fused Silica
Ozone Producing: No

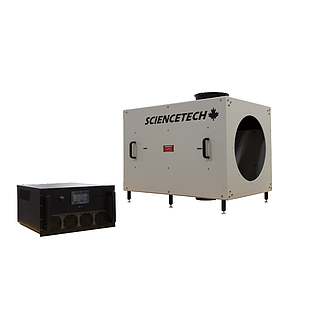

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 L6-30P compatible power cable. Region-specific version must be selected at the time of placing an order.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

$ 22,500.00

Lamp Power: 2500W
Lamp Type: Xenon
Output Beam Type: Focused, F/3
Lens Type: Two Single Plano-Convex Lenses
Lens Material: Fused Silica
Ozone Producing: No

Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

Two fused silica lenses in the optical assembly minimizes surfaces and permits maximum UV output.

This system includes 1 L6-30P compatible power cable. Region-specific version must be selected at the time of placing an order.

Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

$ 23,000.00

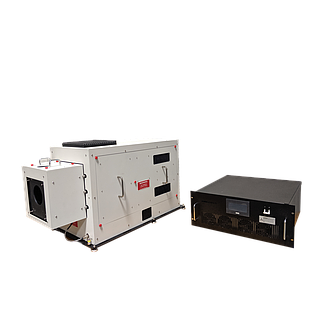

The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

Designed for use in North America

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-220-B power supply designed for North America
Compatible with UPLH-E(F)-6500X-B lamp houses

Power Requirements:
200-240VAC, 50/60 Hz, 31.3A, 3 Phase (200-240V phase to phase) 4 wires (3P+E)

Includes hard wired 6 ft power cable with L15-50P termination.
Requires a minimum 40A 3-phase circuit, 200-240VAC (phase-phase), 4 wires (3P+E)

$ 40,106.00

The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes a 631 series touch screen computer controllable power supply, one 6500W Xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

This system is designed for global use.

Includes Ultra high-powered, focused-beam arc-lamp housing UPLH-EF-6500X-B.
-Scientific research grade arc lamp housing
-High power focused beam
-Efficient ellipsoidal reflector for light collection
-f/2.4 ellipsoidal reflector aperture
-Uses 6500W Xenon short arc lamp
-Includes Annealed glass safety window (Fused quartz upgrade available)
-Horizontally operation, can be mounted for down facing operation (requires stand)

Includes 631-6.5k-480-B power supply designed for North America
380-480VAC, 50/60 Hz, 16.8-13.3A 3 Phase
(380-480 V phase to phase , 4 wire)

Requires one L16 power cable selection.

$ 40,106.00
