Infrared Lamps

Infrared (IR) lamps are specialty lamps that provides the consumable illumination component of a complete light source. IR lamps provide continuous radiation in the IR portion of the spectrum, with some varieties providing up to far IR and THz radiation.

X

Product Category

View Filter

x
Clear all x

Filter Option



This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes an Elliptical reflector for focusing the output IR light to a point. The reflector is an F/4.5 reflector, Sciencetech part # 620-0205.

For the Parabolic reflector option, please see part number 100-9071.
2,250.00
In stock
This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes an Elliptical reflector for focusing the output IR light to a point. The reflector is an F/4.5 reflector, Sciencetech part # 620-0205.

For the Parabolic reflector option, please see part number 100-9071.
2,250.00 2250.0 USD
Price Valid only in North America


This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes a Gold Coated parabolic reflector.

For the Elliptical reflector option, please see part number 100-9074
2,250.00
In stock
This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes a Gold Coated parabolic reflector.

For the Elliptical reflector option, please see part number 100-9074
2,250.00 2250.0 USD
Price Valid only in North America

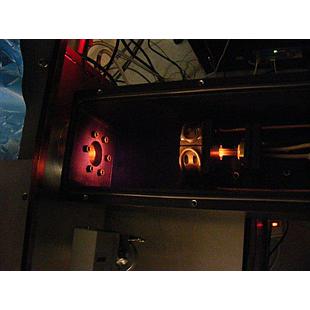

The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.
8,100.00
The Glow bar (Globar) is a typical infrared source for the THz researcher. The heating element itself is very low cost, allowing researchers to use them without worry about replacing expensive bulbs or components. The majority of the price for this unit consists of the water cooling (required for vacuum operation), large reflector to efficiently collect the radiation, and housing designed to withstand the high level of vacuum required for THz operation.
This model is specifically designed to mount to the optional External Input Port of the SPS300. If you wish to use a completed Globar unit for your own applications, please speak with a Technical Support specialist.
Please note that this device requires water cooling to operate under vacuum and includes all the lines, but not the water recirculator itself. If purchased as part of a complete SPS300 system, it is included.
8,100.00 8100.0 USD
Price Valid only in North America


The IRE-12 a coiled filament operating at approximately 900 degrees Celsius when powered with 10 watts. The radiating element is a coil of resistance wire which has a high emissivity in the Infrared spectral region. The coil is supported by a grooved cylindrical substrate of alumina, resulting in the windings being electrically insulated from each other. This contributes to a more uniform radiating source. The unit does not require operation in a sealed atmosphere. The header is fabricated from cold-rolled steel. The support pins are hermetically sealed in glass.
263.00
In stock
The IRE-12 a coiled filament operating at approximately 900 degrees Celsius when powered with 10 watts. The radiating element is a coil of resistance wire which has a high emissivity in the Infrared spectral region. The coil is supported by a grooved cylindrical substrate of alumina, resulting in the windings being electrically insulated from each other. This contributes to a more uniform radiating source. The unit does not require operation in a sealed atmosphere. The header is fabricated from cold-rolled steel. The support pins are hermetically sealed in glass.
263.00 263.0 USD
Price Valid only in North America
