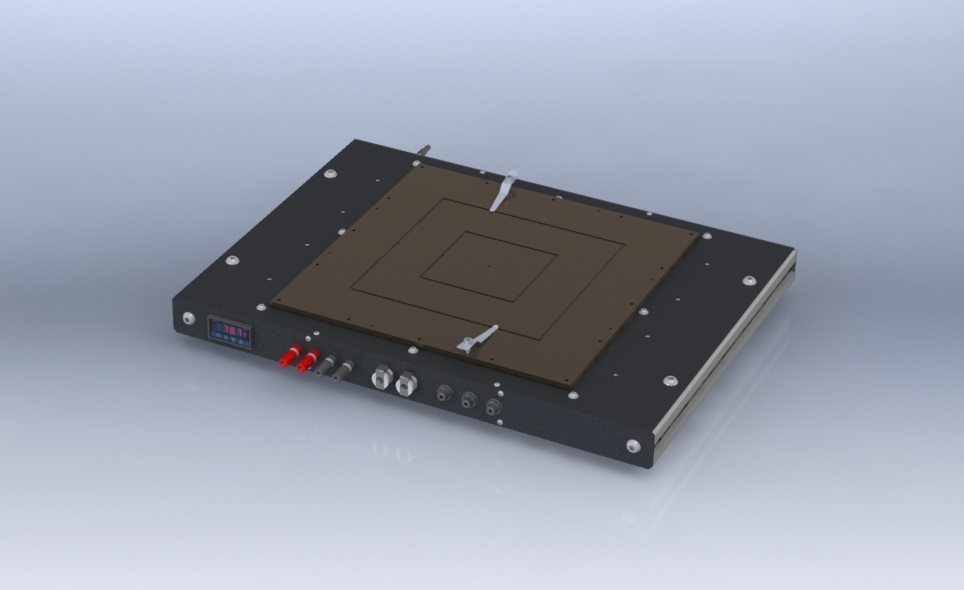

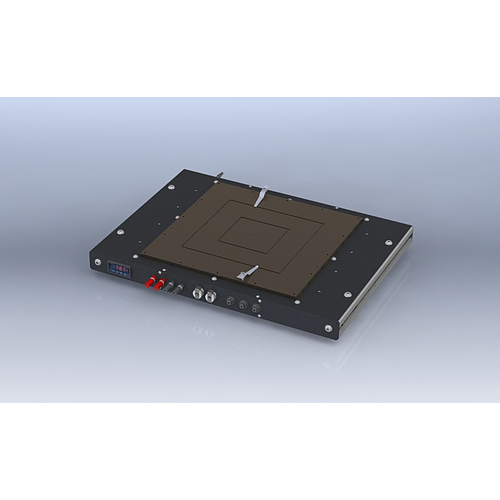

    (SCI-SCC12-L) 12" x 12" (30 x 30cm) Solar Cell Chuck, Liquid Cooled, Vacuum Ready

    The SCI-SCC12-L cell chuck is an economical way of providing temperature control and electrical connection to your test cells. It has a conductive tin-plated copper base plate (gold plating available) and is compatible with all of Sciencetech's probe systems. The cell chuck is capable of vacuum hold-down (vacuum pump sold separately) and requires an external system to provide liquid cooling or heating that can heat or cool your test cells between 1 and 80 ºC.

    This model requires a water recirculator (for cooling only) or temperature control unit for temperature control (both sold separately).

    Working Area: 12" x 12"
    Temperature Range: 1 – 80 ºC
    Power Input: 115-240VAC
    Power Usage: 2W
    Options: Vacuum Pump and Water Recirculator or Temperature Control Unit

    Price Unavailable

    SKU Unavailable

    This selection is an invalid combination.
    Please make another selection.

    $ 4,900.00 4900.0 USD

    $ 4,900.00

    SKU: 165-8207

    Category: Cell Chucks

    Price Valid in USD and only in North America

    Additional Information

    SKU 165-8207
    Name (SCI-SCC12-L) 12" x 12" (30 x 30cm) Solar Cell Chuck, Liquid Cooled, Vacuum Ready

    Customization:

    SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
