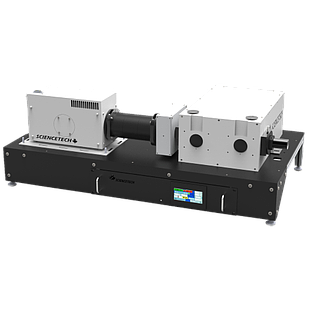

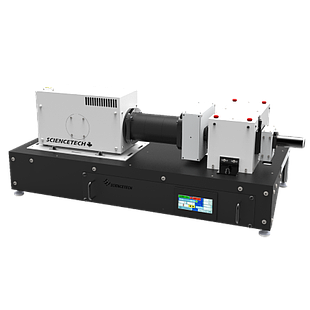

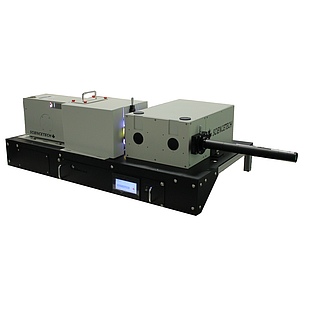

Sciencetech offers a series of turnkey computer-controlled Tunable Light Sources (TLS)
Sciencetech Tunable Light Sources provide monochromatic light from 300 nm to 1800 nm (extended ranges from 180 nm to 10 µm available with customizations) with optical resolution from 20 nm to 0.2 nm. Collimated light output is standard and, condensed or coupled output light options can be provided on request.
Sciencetech’s software, Sci-Spec, controls all components of the system. In the standard configuration, it controls the light source, shutter, filter wheel with order sorting filters, monochromator and gratings.
Sciencetech offers 4 base models of Tunable Monochromatic Light Sources:
|TLS Model||Lamp Type and Power||Spectral Range (nm)||Focal length (Monochromator)||Resolution|
|TLS 55-X300||Xe (300 W)||300 - 1800 nm||1 / 4 Meter||0.2 nm @ 300 - 700 nm0.4 nm @ 700 - 1800 nm|
|TLS-55-Q250||QTH (250 W)||300 - 1800 nm||1 / 4 Meter||0.2 nm @ 300 - 700 nm0.4 nm @ 700 - 1800 nm|
|TLS 72-X300||Xe (300 W)||300 - 1800 nm||1 / 8 Meter||0.5 nm @ 300 - 700 nm0.7 nm @ 700 - 1800 nm|
|TLS 72-Q250||QTH (250 W)||300 - 1800 nm||1 / 8 Meter||0.5 nm @ 300 - 700 nm0.7 nm @ 700 - 1800 nm|
Sciencetech also offers a tunable light source - solar simulator combination system. This system, allows a selectable output at the target plane of spatially uniform sun light or monochromatic light. Spectral matches can be provided in AM1.5G or AM0 (ASTM Standard).
All components of the system, including the light source and monochromator, can be customized. Available options include:
The standard models have a safety quartz window at the output port to eliminate UVB rays. This safety quartz window can be replaced with a UV grade fused silica window if the application requires UV light to pass through or BK7 glass window if no UV light is required.
If you do not see the upgrade you are looking for, contact firstname.lastname@example.org and let us know what upgrade you would like and we will design it just for you!
