This data acquisition module features 3 analog inputs via BNC connectors. The data acquisition board is 12-bit and can measure a single channel up to 50 kS/s. An additional BNC connector for a multi-purpose digital input/output can be used to time measurements and/or send signals to external hardware such as a high speed shutter.

This module includes 1 BNC cable and 1 USB cable so that it is ready to interface with a single channel detector such as a PMT or Si photodiode detector (sold separately). For spectroscopy systems the SciSpec Windows application software to interface with a Windows Based PC is required and is sold separately.

Multi-channel data acquisition is possible using SciSpec software, if this option is required please speak to a Sciencetech technical sales representative.

$ 1,099.00

Sciencetech’s FSSC flash solar simulator is designed to illuminate small photovoltaic devices up to 5cm × 5cm in size with up to 4000 Suns peak intensity. The default spectral match is to ASTM AM1.5G, using a heavy-duty xenon flash lamp and spectral filtering. The flash is 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity, but pulse stretching options are available for longer, flatter pulses (purchased separately). The uniformity of the system is better than 2% at the target plane.

This product includes a flash system, power supply, and lamp. Air mass filters are sold separately (AM1.5G). Other filters are available at additional cost. Available accessories include IV measurement systems, pre-configured host computers, and sample holding and cooling options.

Spectral Match: Class A
Spatial Non-Uniformity: Class A
Temporal Instability: Class A
Target Size: 5cm × 5cm (up to 4000 Suns)
Working Distance: 3mm
Pulse Length: 500µs at 90% of peak intensity, and 2.5ms at 50% of peak intensity
Collimation: Non-collimated

$ 109,620.00

The Sciencetech 9055F is a 250 mm focal length modified Czerny-Turner monochromator, with a flat field output for spectrograph use. This is designed as a faster version of the 9055 with larger optics for higher light throughput and f/2.5 aperture. All 9055Fs have a computer controlled, motorized turret for automatic grating and wavelength selection. Both input and output ports are situated on the front faceplate of the monochromator/spectrograph, and the system includes one adjustable SS80 slit at the input port. The 9055F supports up to two 64 x 64 mm (clear aperture) gratings.

Please see technical datasheet for further information.

This system includes 1 IEC 60320 C13 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 11,339.00

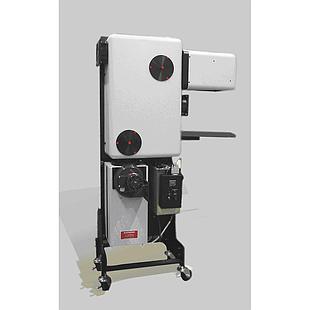

This vertical stand enables high powered fully reflective solar simulators to project their output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The beam is projected down onto a built-in sample platform where the sample such as a solar cell is placed. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).

Without the Downward Facing Vertical Stand, a Solar Simulator projects the beam parallel to the floor at cells mounted vertically.
Please speak with your authorized Sciencetech technical sales staff member to discuss any potential customization options you require.

$ 2,700.00

This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing.

$ 1,149.00

Class: ABA
Target Size: 50 mm (2”) diameter
Working Distance: 760 mm (31”) ± 25mm (1”)
Collimation: 2.5 degrees half angle
Power Supply: Sciencetech PS-XE150-A-T
Spectral Range 180 - 4400 nm

Sciencetech is pleased to offer the SS-150 model 150 W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

The SS-150 includes air-cooled arc lamp housing, 150 W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder mounting one 76 × 76mm (3" × 3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters, such as dichroic filters and bandpass filters, are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 20,233.00

Class: BBA, ASTM E927-19
Target Size: 76 mm diameter
Working Distance: 450 mm
Collimation: 3 degrees, half angle
Power Supply: PS-XE500-A-T (included)
Lamp: 500 W Xenon Arc Lamp, Ozone free (included)
Air Mass Filter: AM1.5G (included)

Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-0.5kW includes air-cooled arc lamp housing, 500 W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

Requires 100-240 V/ 50/60 Hz, 9.1-3.8 A, Fused 15 A, 250 V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 45,999.00

Class: BBA, ASTM E927-19
Target Size: 127 mm diameter
Working Distance: 750 mm
Collimation: 3 degrees, half angle
Power Supply: PS-XE1000-A-T (included)
Lamp: 1000 W Xenon Arc Lamp, Ozone free (included)
Air Mass Filter: AM1.5G (included)

Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target, maximizing UV throughput. The SS-1.0kW includes air-cooled arc lamp housing, 1000 W ozone free xenon bulb, and adjustable power supply with igniter.

This solar simulator has one filter holder for Sciencetech's FT style filters. AM1.5G air mass filter included. For other options (i.e. AM0), please speak to a Sciencetech Representative. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum.

This instrument features standard horizontal operation, but vertical operation is optional (please see Sciencetech's DFS-SS, 160-8016).

Class AAA available upon request. Please speak with your authorized Sciencetech Representative for further details and a full range of options.

Requires 220-240 V/ 50/60 Hz, 7.5-6.3 A, Fused 15 A, 250 V
This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 45,999.00

A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series (SHC-), including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.

$ 7,995.00

The Sciencetech 9030 monochromator is a compact, single grating, scanning monochromator with 100 mm focal length (both output and input). It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port. However, it can be used as an excitation wavelength tunable light source.

Mirror coatings have been chosen for this model to enhance performance in the VIS-IR region. There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS/IR mirror coatings on this model.

Please add a minimum of two slits (for the input and output) separately. Several removable fixed-width slit sizes are available to choose from ranging from 50 μm to 3 mm width. Please note that a 50μm slit may introduce some artifacts when used with the 9030 - this model is recommended to be used with slits of 100μm or larger for best performance in most applications. Additional removable slits and custom width slits can also be purchased.
Available slits include:
Model Slit Width
SF005 - 50 μm
SF010 - 100μm
SF025 - 250μm
SF050 - 500μm
SF100 - 1mm
SF200 - 2mm
SF300 - 3mm

$ 3,539.00

SciSpec is a fully featured Windows application specifically designed to control Sciencetech stepping monochromators. SciSpec is designed to control and coordinate the operation of Sciencetech modular spectroscopy components. These include:
• stepping monochromators
• motorized filter wheels for a long pass, bandpass, short pass, or neutral density filtering
• motorized beam path selection mirrors
• beam line modulators such as motorized iris or chopper
• detectors and data acquisition components such as A/D boards, lock-in amplifiers, and source meters.
• linear diode arrays
• sources such as research arc lamps, LED, and incandescent light sources

Generally, all the components in a modular spectroscopy system must be configured by wavelength to optimize the system operation. SciSpec stores and reads system configurations to provide an optimized system operation and user experience.

Requires Windows 7/10 64bit operating system

$ 610.00

28 mm (1-1/8 inch) transmission mode S-1 photocathode, Side-on type.
Spectral Response: 400 - 1200nm
Wavelength of Maximum Response: 800nm
Minimum Effective Area (HxW): 16 x 18

Quantum Efficiency (at 25 degrees): 0.04% (Typical)
Anode Dark Current (after 30 min storage in darkness): 350 (typical), 1000 (max) nA

$ 1,946.00

Multialkali high sensitivity side-on PMT
Spectral range: 185-900 nm,
Peak sensitivity wavelength: 400nm
Glass UV Envelope

Photocathode Area Size 8 x 24 mm
Photocathode Material Multialkali
Window Material UV glass
Dynode Structure Circular-cage
Anode to Cathode Voltage 1250 V
Average Anode Current 0.1 mA
Anode to Cathode Supply Voltage 1000 V
Luminous Sensitivity Min. 140 μA/lm
Luminous Sensitivity Typ. 250 μA/lm
Radiant Sensitivity Typ. 74 mA/W
Anode Luminous Sensitivity Min. 400 A/lm
Anode Luminous Sensitivity Typ. 2500 A/lm
Anode Radiant Sensitivity Typ. 7.4e5 A/W
Anode Dark Current (after 30min.) Typ. 3 nA
Anode Dark Current (after 30min.) Max. 50 nA
Time Response Rise Time Typ. 2.2 ns
Time Response Transit Time Typ. 22 ns

$ 1,299.00

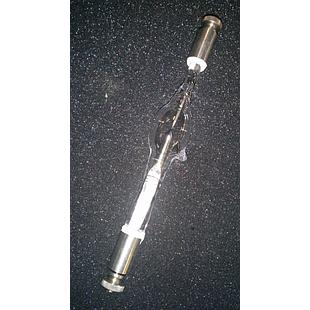

Osram brand Xenon short arc lamp,
Burning Positions: Vertical, horizontal
Envelope Diameter: 46.0 mm
Total Length: 235.0 mm
Length, cathode base to arc: 95.0 mm
arc gap length: 3.8 mm
Length, base to base: 205 mm
Lifespan: 2500 h
Nominal wattage: 1600.00 W
Lamp voltage: 23 V
Nominal current: 65.0 A
Current control range: 50-75 A

Note a XE1600-O lamp may be used in a system previously using an XE1600-U lamp.
Due to the 3.5 mm difference in cathode base to arc position, some adjustment in lamp position may be necessary.

$ 1,620.00

Ozone free
Vertical and horizontal operation
Average Life: 1500h
Light Center Length - LCL: 95 mm
Overall Length: 235 mm

$ 1,138.00

This 150W Xe bulb is recommended for Sciencetch solar simulator model SS150 only. It is a specially designed lamp to improve the uniformity of the SS150.

$ 957.00

This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
Please see the technical datasheet for additional information.

$ 30.00

Wavelength range: 300-1200nm
Dispersion: 12nm/mm (When used with 9030 monochromator)

$ 1,450.00

.

$ 730.00

.

$ 500.00
