This is an adjustable power supply for Sciencetech's line of 500W Mercury (Hg) Lamps.

$ 3,959.00

The Sciencetech 500-1K is a variable DC power supply for Xenon (Xe) and Mercury Xenon (Hg-Xe) arc lamps from 500 W to 1kW. It can drive lamps with a voltage of up to 25V and currents up to 50A. This power supply can be used with an internal or external igniter (not included). This power supply is compatible with FS-02 optical feedback unit.
This power supply is compatible with Sciencetech models 200-1K and 201-1K arc lamp housings.

Digital display: power in watts, current in amps, voltage in volts
Manual current adjustment
Operates as a constant current source

As the current setting is adjustable, the actual value of power, voltage or current of the lamp is shown on a LCD digital display.
Input Voltage Requirements
Please note that this power supply requires 100-240VAC input voltage with line current 12A from input voltage 115V line or line current 6A from 240V line.
Preliminary Specifications
Input Voltage: 100VAC-240VAC
Power: 500W-1KW
Output Current: 10A-50A

Boost Voltage: 250V
Boost Energy: 10 Joules
Ignition Voltage: >30KV (~1usec rise time)
Ignition Energy: 0.5 Joules

Lamp Connectors: PS50GR/PS50GB Superior Electric Supercon

Line Regulation: <0.02% of maximum output current
Current Regulation: <0.5% of maximum output current
Current Ripple: <0.5% of maximum output current
Power Limit: Limited to maximum power with power fold-back circuit
Power factor correction: >98%
Overall efficiency: >80%
Input line frequency range: 47-63Hz

Operating Temp: 0 to 40
Storage: -25 to 85
Humidity: 0 to 95% non-condensing

Cooling: Forced air with internal fans

Weight: 6kg
Size: 5.5” (H) x 13” x 17”
Rack mountable standard

$ 4,875.00

This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.

$ 50.00

Slip ring for coupling 2" diameter lens tubes to a Sciencetech S4 hole pattern.

$ 50.00

The C230X Chopper is a Sciencetech manufactured chopper for high precision applications requiring a vacuum-grade polarizing chopper and better accuracy than is available through most commercially available chopper systems.
This product is the enclosure required to mount one of these choppers to any system. Please discuss the exact desired location of the chopper relative to the rest of your system with your authorized Sciencetech technical sales staff member to ensure that your system meets all technical specifications and requirements.

$ 650.00

Many systems require choppers for modulating signals (either inputs or outputs, depending on the system and detector, and the specific needs for modulation for the system). A chopper is normally the most effective way to do this.

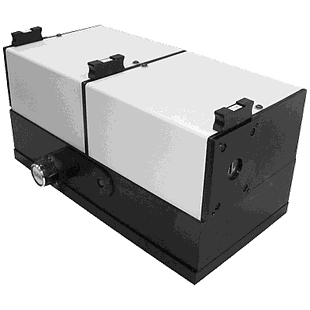

However, the chopper normally requires a housing to hold the chopper in the proper position in the system. This particular housing is designed to allow a chopper to be mounted to either the input or output port of a Sciencetech monochromator or spectrograph.
If you have any questions about how this mounting may affect your system, please speak with your authorized Sciencetech technical sales staff member.

$ 600.00

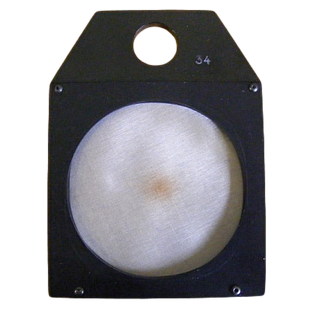

This filter set consists of three wire-mesh neutral-density filters to be installed in the filter wheel. This filter set is designed to be used with the Sciencetech's Solar Lightline fiber-based solar simulator. Optical density of each filter is selected such that the final beam output from the light guide and collimator will be selectable at 1, 2, 3 or 4 suns for the A4 Lightline (no ND filter) or 0.25, 0.5, 0.75 and 1 Suns for the A1 and AX Lightline systems.

$ 350.00

Sciencetech's Model [210-REC] is a Cooling Water Recirculator. It sink up to 2500W of heat.

-Dissipates up to 2500W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

Contact for Pricing

This product consists of the Sciencetech SOL-METER and our SSIVT-REF sun calibrated reference detector. The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications.
The Sciencetech Reference Detector, which is an integral part of solar simulator calibration and solar cell I-V characterization, consists of a calibrated solar detector made of silicon.
The Reference Detector comes with calibration data taken by Sciencetech, calibrating it to a NIST-certified solar cell, on an accompanying certificate. It reads solar simulator irradiance in "sun" units; one sun is equal to 1,000 W/m^2, at 25 degrees Celsius and Air Mass 1.5 Global.
This tool's primary use is the testing of photovoltaic cells under standard conditions.

$ 1,675.00

The SOL-METER is a digital meter for use with solar calibrated detectors such as detector models SSIVT-REF or SC-LT. The meter converts detector measurements to a Sun value. It has a handheld meter that is compact, has a sturdy design, and is appropriate for indoor or outdoor applications. CE compliant.
Please refer to the technical datasheet for additional information.

$ 1,250.00

An adjustable power supply for Sciencetech's line of 1kW Mercury (Hg) Lamps.

$ 6,804.00

Sciencetech is proud to offer a wide range of gratings in various sizes.
We are also happy to find custom gratings for highly specialized applications. If you feel one of the standard gratings we offer will not be sufficient for your specific application, please speak with one of our authorized Sciencetech technical sales staff members about your needs!

$ 1,100.00

Sciencetech's Model [200-REC] is a Cooling Water Recirculator. It is designed to work with any of Sciencetech's Cooled PMT Housings and can sink up 400W of heat from the Thermoelectric cooling element.

-Dissipates up to 400W of thermal heat
-External fan cooled radiator system
-Cools to ambient temperature
-Real time sample temperature display (in °C or °F)
-Adjustable cooling rate

$ 555.00

The Sciencetech Polarizing variable frequency optical chopper is used with the detectors during Martin-Puplett mode. The chopper is positioned in front of the output port, and captures the output at 45 degrees from the two planes of polarization. This facilitates the retrieval of the Fourier Transform Interferogram during M-P mode. The chopper itself is designed for high stability and a broad range of frequency control (from 0.5Hz to 100Hz). The price includes the servo motor and software controller.

$ 4,908.00

.

$ 5,500.00

.

$ 5,500.00

.

$ 5,500.00

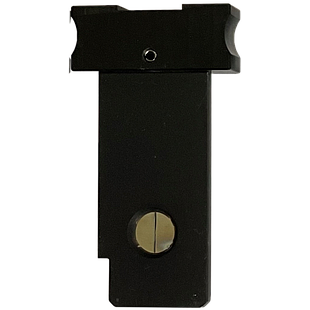

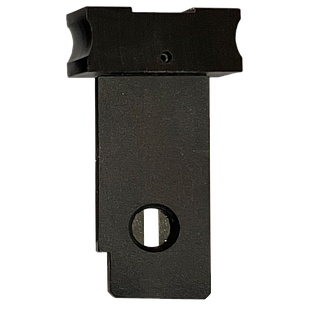

This holder is economical choice for slits for Sciencetech monochromators such as the 9055.
This slit holder is required when using the fixed slits designed for the 9030 (Product Numbers 120-9010, 120-9011, 120-9012, 120-9013, 120-9033, and 120-9034). This slit holder comes with one fixed width slit from these options. Only one slit holder is required per input/output; different slits can be exchanged using the same slit holder. Please specify the size of slit you would like at the time of ordering: sizes are available from 0.1mm (100um) up to 3mm. Slits are 8mm tall.

$ 285.00

This is a housing designed for Sciencetech's 188-8060 IR Sources. It includes an Elliptical reflector for focusing the output IR light to a point. The reflector is an F/4.5 reflector, Sciencetech part # 620-0205.

For the Parabolic reflector option, please see part number 100-9071.

$ 2,250.00

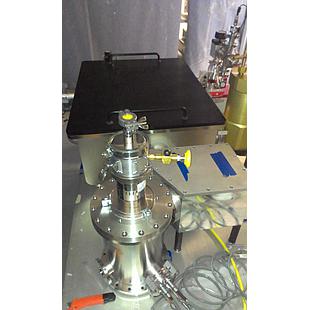

This mount will attach cryogenic detectors directly to a Sciencetech monochromator or spectrometer. Please note that this mount is designed specifically for cryogenically cooled detectors, and may not function for other types of detectors. If you are uncertain about whether you need this mount or not, please contact your Sciencetech Representative.

$ 525.00
