Low Power Xe 30-300 W

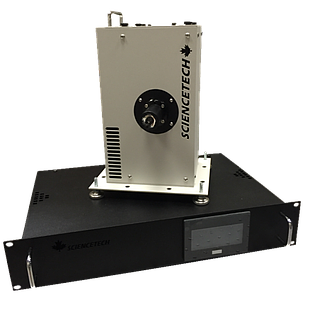

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

This lamp housing design accommodates light sources from 30 to 300 W, with a range of options for light source, back reflector shape, and power supply options. Options with a spherical reflector (LH-S-options) require output optics to be used. See the SLCOL/IO product to select the compatible optics of your choice.

Each system includes the lamp housing, power supply, and lamp.

Light Source Options:
- XE075 - Xenon, 75 W
- XE150 - Xenon, 150 W
- XE300 - Xenon, 300 W
- QT250 - Quartz Tungsten Halogen, 250 W
- IR037 - IR Element, 37 W
- DT030 - Deuterium, 30 W

Reflector Options:
- Spherical - for high-quality collimated or focused output, requires SLCOL output optics.
- Elliptical - for efficient focused light output, F/4.5.
- Extra-Fast Elliptical - for efficient focused light output, F/1.2.
- Parabolic - for efficient collimated light, has a toroidal intensity profile.

Power Supply Options:
- For xenon arc lamps:
Adjustable Touchscreen Control
Adjustable Manual Control (XE150 and XE300 only)
- For quartz tungsten halogen lamps:
Adjustable Touchscreen Control
Fixed Manual Control
- For IR elements:
Adjustable Touchscreen Control
- For deuterium:
Fixed Manual Control

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 4,746.00

General purpose beam turning assembly for 50 mm (2" ) diameter beams. Includes a beam turning assembly with high reflectivity first surface aluminum mirror.
2" slip rings are mounted on each face of the turning assembly in order to attach the beam turning unit to 2" diameter lens tubes.
Designed to work with LH-S light sources

Mirror reflectance is ~85% from 350 nm to 20,000 nm at 45 degrees. Reduced reflectance from 200 nm to 320 nm.

$ 576.00
