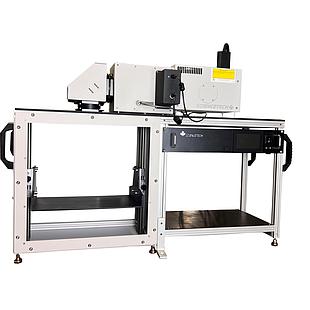

(SCISUN-A+-TS-MS-NA) SciSun Solar Simulator, AM1.5G, Class A+A+A+, 50 × 50 mm

Class: A+A+A+ (IEC 60904-9 Ed.3-2020)
Target size: 50 × 50 mm
Intensity: 1 Sun
Lamp Power: 300 W
Working distance: 380 mm (with included beam turner)

The following features can be selected to provide the best SciSun for your application (see brochure for full details):
- Air Mass Filter: AM1.5G spectral matching included.
- Power Supply: The included power supply is a full-featured, adjustable touchscreen-controlled supply, with included software for power supply control.
- Beam Turner: A 360-degree adjustable beam turner is included as a standard feature. The beam turner is required for Class A+A+A+ operation.

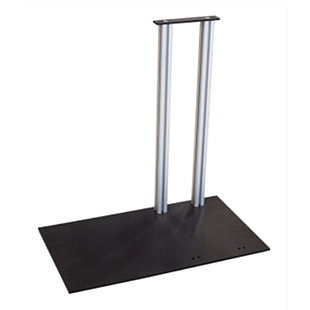

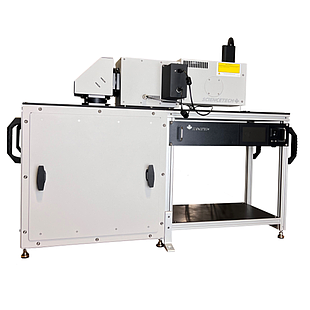

- Stand: Three stand options are available as optional accessories: a simple, economical, height-adjustable stand for downward-facing use (in conjunction with a beam turner), a workstation with adjustable sample tray, and a workstation with adjustable sample tray within a dark chamber. If the system is ordered with no stand, it sits on the tabletop and the beam can be rotated to the desired direction using the beam turner.
- Shutter: A manual shutter is an economical option, while a motorized shutter is available as an optional replacement if computer control of the shutter is required. The touchscreen power supply controls the shutter, or both can be controlled through the included software.
-Attenuators are not compatible with this model. For attenuation, please use manual attenuating filters. Contact Sciencetech for more details or recommendations.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Also included are a xenon arc lamp, filter holder, and testing report.
