    All Sciencetech systems incorporate adherence to industry standards. Sciencetech PV Testing System equipment are designed and manufactured according to.  High Intensity, Uniform Illumination of artificial solar irradiation.

    Steady state solar simulators are light sources similar to natural sunlight that offer the advantage of consistent light output over a period of hours or more.

    Sciencetech solar simulators are highly configurable and with an impressive range of solar simulator options, our systems have been serving multiple researches and testing applications. Our solar simulator systems comply with standards such as ASTM, IEC and JIS and provides variability is design to accommodate researcher’s requirements. With over 30 years of experience in the solar simulator designing and manufacturing field, our systems provide


    1) Spectral emission closest to the sun’s spectrum

    2) High spatial uniformity

    3) High temporal stability

    4) Configurable orientations in illumination direction

    5) Variety of output collimation angles

    6) Variable illumination areas

    7) Easy to use, turn-key systems with full software control

    8) Multiple add-ons and accessories such as fiber optic cables, beam turning units, filters and more.

    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. The smallest model of our standard line is the 500W system, allowing the researcher on a budget the ability to get high UV solar radiation. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

    Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
    This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
    Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
    $ 26,975.00
    Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. The smallest model of our standard line is the 500W system, allowing the researcher on a budget the ability to get high UV solar radiation. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

    Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
    This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
    Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
    $ 26,975.00 26975.0 USD
    Price Valid only in North America

    Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

    Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
    This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
    Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
    $ 30,024.00
    Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

    Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
    This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
    Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.
    $ 30,024.00 30024.0 USD
    Price Valid only in North America

    Class: ABA
    Target Size: 160mm (6.2”) diameter
    Working Distance: 900mm (36”)
    Collimation: 3 degrees half angle
    Power Supply: Sciencetech 500-1.6k

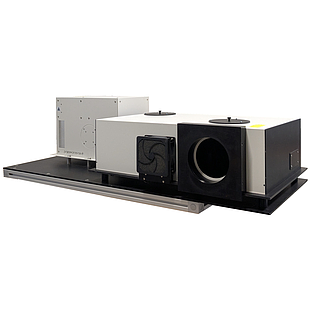

    Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 37,230.00
    In stock
    Class: ABA
    Target Size: 160mm (6.2”) diameter
    Working Distance: 900mm (36”)
    Collimation: 3 degrees half angle
    Power Supply: Sciencetech 500-1.6k

    Sciencetech is pleased to offer the SS-1.6kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-1.6kW includes air-cooled arc lamp housing, 1.6kW ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 37,230.00 37230.0 USD
    Price Valid only in North America

    This option for SS0.5K, SS1.0K and SS1.6K solar simulators makes the solar simulator vertical standing. With this option the output from the solar simulator will be parallel to the floor it is standing on.
    $ 400.00
    This option for SS0.5K, SS1.0K and SS1.6K solar simulators makes the solar simulator vertical standing. With this option the output from the solar simulator will be parallel to the floor it is standing on.
    $ 400.00 400.0 USD
    Price Valid only in North America

    A system of 48 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

    Non-uniformity is not tested, and typical values are quoted.
    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
    $ 784,400.00
    In stock
    A system of 48 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

    Non-uniformity is not tested, and typical values are quoted.
    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
    $ 784,400.00 784400.0 USD
    Price Valid only in North America

    A system of 36 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

    Non-uniformity is not tested, and typical values are quoted.
    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.

    $ 592,200.00
    In stock
    A system of 36 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

    Non-uniformity is not tested, and typical values are quoted.
    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.

    $ 592,200.00 592200.0 USD
    Price Valid only in North America

    A system of 4 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

    Non-uniformity is not tested, and typical values are quoted.
    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
    $ 72,360.00
    In stock
    A system of 4 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

    Non-uniformity is not tested, and typical values are quoted.
    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.
    $ 72,360.00 72360.0 USD
    Price Valid only in North America

    A single LASI unit. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination. Non-Uniformity is not tested, and typical values are quoted.

    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    200 to 240 VAC, 12.1 to 9.0 A.
    Requires 1 IEC 60320 C19 power cord
    $ 18,900.00
    In stock
    A single LASI unit. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination. Non-Uniformity is not tested, and typical values are quoted.

    LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
    LASI units include one high-quality 1.6kW xenon short arc lamp.

    Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

    In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

    LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

    200 to 240 VAC, 12.1 to 9.0 A.
    Requires 1 IEC 60320 C19 power cord
    $ 18,900.00 18900.0 USD
    Price Valid only in North America

    Class: ABA
    Spot size: 50 mm (2”) diameter at 1 sun
    Working distance: 100-130mm (4-5”) from exit port
    Spot size (with optional beam turner): 50 mm (2”) at 1 sun
    Collimation: 1 degree half angle
    Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

    The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

    Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 6,495.00
    In stock
    Class: ABA
    Spot size: 50 mm (2”) diameter at 1 sun
    Working distance: 100-130mm (4-5”) from exit port
    Spot size (with optional beam turner): 50 mm (2”) at 1 sun
    Collimation: 1 degree half angle
    Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

    The SF-300-B is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-300-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

    Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 6,495.00 6495.0 USD
    Price Valid only in North America

    This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

    Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

    Target: up to 28 cm (11") diameter (depends on required irradiance level)
    Collimation: 0.7° half angle (70% of irradiance is within)
    Non-uniformity: Class B
    Lamp: 3.0kW ozone-free Xe short arc
    Lamp Housing: air cooled
    Illumination Direction: horizontal*
    Power Supply: 621-3kW
    Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

    Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

    200-240VAC, 20A
    Requires 1 NEMA 6-30P power cord

    Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
    * Systems can be built for downfacing operation if specified at time of order
    $ 50,050.00
    In stock
    This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

    Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

    Target: up to 28 cm (11") diameter (depends on required irradiance level)
    Collimation: 0.7° half angle (70% of irradiance is within)
    Non-uniformity: Class B
    Lamp: 3.0kW ozone-free Xe short arc
    Lamp Housing: air cooled
    Illumination Direction: horizontal*
    Power Supply: 621-3kW
    Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

    Includes: 30 cm (12") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 11" diameter, igniter.

    200-240VAC, 20A
    Requires 1 NEMA 6-30P power cord

    Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
    * Systems can be built for downfacing operation if specified at time of order
    $ 50,050.00 50050.0 USD
    Price Valid only in North America

    Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.

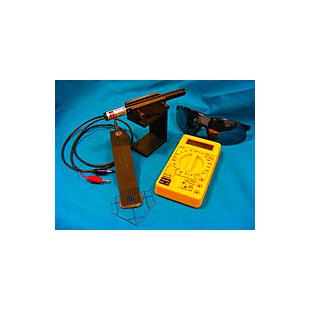

    Sciencetech Solar Simulator System Alignment Kit includes:
    1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
    Can be used on all of Sciencetech's fully reflective Solar Simulators.
    $ 550.00
    Sciencetech Inc. fully reflective solar simulators have the unparalleled ability to be realigned to allow the solar simulator to be used in many different customized scenarios. This allows the end user to reconfigure the simulator to provide a larger or smaller target with varying degrees of non-uniformity and power output. Most other simulators on the market today do not allow the end user to do this.
    Sciencetech Solar Simulator System Alignment Kit includes:
    1 sun calibrated alignment Silicon detector, laser and holder, UV protection glasses, Sciencetech multimeter.
    Can be used on all of Sciencetech's fully reflective Solar Simulators.
    $ 550.00 550.0 USD
    Price Valid only in North America

    This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).
    $ 1,027.00
    This vertical stand enables the SS150 fully reflective solar simulator to project its output beam downwards onto a horizontal illumination table which makes it ideal for solar cell testing. The stand assures the distance between the output port of the solar simulator to the sample platform produces exactly 1 SUN intensity (100mW/cm2 using an AM1.5G filter).
    $ 1,027.00 1027.0 USD
    Price Valid only in North America

    Class: AAA
    Spot size: 25 mm (1”) diameter at 1 sun*
    Working distance: 100-130mm (4-5”) from exit port
    Spot size (with optional beam turner): 25 mm (1”) at 1 sun
    Collimation: 1 degree half angle
    Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

    The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

    Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    *Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 6,850.00
    In stock
    Class: AAA
    Spot size: 25 mm (1”) diameter at 1 sun*
    Working distance: 100-130mm (4-5”) from exit port
    Spot size (with optional beam turner): 25 mm (1”) at 1 sun
    Collimation: 1 degree half angle
    Sciencetech Power Supply: (601-300) 300W Adjustable Power Supply with Touchscreen Control

    The SF-300-A is a low cost 300W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SciSun series. The SF-300-A includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

    Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    *Spot size can be increased to 50mm (2") but will reduce the specifications to Class ABA.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 6,850.00 6850.0 USD
    Price Valid only in North America

    Class: ABA
    Spot size: 25 mm (1”) diameter at 1 sun
    Working distance: 100-130mm (4-5”) from exit port
    Spot size (with optional beam turner): 25 mm (1”) at 1 sun
    Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
    Collimation: 1 degree half angle
    Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

    The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

    Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    *The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 6,314.00
    In stock
    Class: ABA
    Spot size: 25 mm (1”) diameter at 1 sun
    Working distance: 100-130mm (4-5”) from exit port
    Spot size (with optional beam turner): 25 mm (1”) at 1 sun
    Working distance (with optional beam turner): 40-70mm (1.5-3”) from output port
    Collimation: 1 degree half angle
    Sciencetech Power Supply: (601-150) Adjustable Power Supply with Touchscreen Control

    The SF-150-B is a low cost 150W solar simulator system for applications requiring a more collimated beam or more UV production than provided by our SLB series. The SF-150-B includes arc lamp housing, bulb, power supply with igniter, filter holder, manual shutter, and UV fused silica lenses.

    Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    *The SF-150B can produce up to 50mm (2") diameter spot size at 1 sun, but will reduce the specifications to Class CBA, with a working distance <25mm (1") from exit port.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 6,314.00 6314.0 USD
    Price Valid only in North America

    Class: ABA
    Target Size: 50mm (2”) diameter
    Working Distance: 760mm (31”) ± 25mm (1”)
    Collimation: 2.5 degrees half angle
    Power Supply: Sciencetech 500-150
    Spectral Range 180 - 4400 nm

    Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 20,233.00
    In stock
    Class: ABA
    Target Size: 50mm (2”) diameter
    Working Distance: 760mm (31”) ± 25mm (1”)
    Collimation: 2.5 degrees half angle
    Power Supply: Sciencetech 500-150
    Spectral Range 180 - 4400 nm

    Sciencetech is pleased to offer the SS-150W solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-150W includes air-cooled arc lamp housing, 150W ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 20,233.00 20233.0 USD
    Price Valid only in North America

    Class: ABA
    Target Size: 75mm (3”) diameter
    Working Distance: 450mm (18”)
    Collimation: 3 degrees half angle
    Power Supply: Sciencetech 500-500

    Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 25,975.00
    In stock
    Class: ABA
    Target Size: 75mm (3”) diameter
    Working Distance: 450mm (18”)
    Collimation: 3 degrees half angle
    Power Supply: Sciencetech 500-500

    Sciencetech is pleased to offer the SS-0.5kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-0.5kW includes air-cooled arc lamp housing, 0.5kW ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 25,975.00 25975.0 USD
    Price Valid only in North America

    Class: ABA
    Target Size: 125mm (5”) diameter
    Working Distance: 750mm (30”)
    Collimation: 3 degrees half angle
    Power Supply: Sciencetech 500-1k
    CE compliant
    Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 29,024.00
    In stock
    Class: ABA
    Target Size: 125mm (5”) diameter
    Working Distance: 750mm (30”)
    Collimation: 3 degrees half angle
    Power Supply: Sciencetech 500-1k
    CE compliant
    Sciencetech is pleased to offer the SS-1.0kW solar simulator. This model is free of chromatic aberration and uses a fully reflective design to create uniformity on target spots, maximizing UV throughput.

    The SS-1.0kW includes air-cooled arc lamp housing, 1.0kW ozone free xenon bulb, and adjustable power supply with igniter.

    This solar simulator has one filter holder mounting one 76x76mm (3"x3") filter. Available Air Mass filters include AM0, AM1.0, AM1.5 direct and global, and AM2.0. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

    This instrument features standard horizontal operation, but vertical operation is optional. A folding mirror to change output beam direction is optional.

    Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.
    $ 29,024.00 29024.0 USD
    Price Valid only in North America

    This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

    Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

    Target: up to 20 cm (8") diameter (depends on required irradiance level)
    Collimation: 0.7° half angle (70% of irradiance is within)
    Non-uniformity: Class B
    Lamp: 1.6kW ozone-free Xe short arc
    Lamp Housing: air cooled
    Illumination Direction: horizontal*
    Power Supply: 611-1.6k adjustable touchscreen supply
    Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

    Includes: 20 cm (8") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 8" diameter, igniter.

    200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
    requires 1 IEC 60320 C19 power cable

    Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

    * Systems can be built for downfacing operation if specified at time of order
    $ 35,750.00
    In stock
    This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

    Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

    Target: up to 20 cm (8") diameter (depends on required irradiance level)
    Collimation: 0.7° half angle (70% of irradiance is within)
    Non-uniformity: Class B
    Lamp: 1.6kW ozone-free Xe short arc
    Lamp Housing: air cooled
    Illumination Direction: horizontal*
    Power Supply: 611-1.6k adjustable touchscreen supply
    Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

    Includes: 20 cm (8") diameter UV transmitting Fresnel lens, intensity mask to produce class B (<5%) non-uniformity up to 8" diameter, igniter.

    200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A
    requires 1 IEC 60320 C19 power cable

    Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

    * Systems can be built for downfacing operation if specified at time of order
    $ 35,750.00 35750.0 USD
    Price Valid only in North America

    Every time the illumination target size of a Fully Reflective Solar Simulator changes, the reflective mirrors inside the solar simulator that direct the light from the source to the target need to be refocused. Although this can be performed manually, the procedure is a hassle should the user need to change the target spot size frequently. The solar simulator would need to be shut down and have each internal mirror re-adjusted to support a different focal spot size. With this variable focus option re-adjusting the internal mirrors of the solar simulator is performed through a single knob without having to shutdown the solar simulator. This feature can also be used to vary illumination intensity by spreading the light over a larger area or concentrating the light into a smaller area.
    $ 3,675.00
    Every time the illumination target size of a Fully Reflective Solar Simulator changes, the reflective mirrors inside the solar simulator that direct the light from the source to the target need to be refocused. Although this can be performed manually, the procedure is a hassle should the user need to change the target spot size frequently. The solar simulator would need to be shut down and have each internal mirror re-adjusted to support a different focal spot size. With this variable focus option re-adjusting the internal mirrors of the solar simulator is performed through a single knob without having to shutdown the solar simulator. This feature can also be used to vary illumination intensity by spreading the light over a larger area or concentrating the light into a smaller area.
    $ 3,675.00 3675.0 USD
    Price Valid only in North America
    Copyright © Sciencetech
