Steady State Solar Simulator

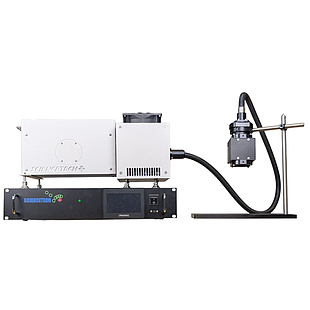

With the Sciencetech Solar LightLine you can direct the Class AAA solar light anywhere you want. Classic designs for solar simulators require you to bring your sample to the solar simulator. Now, you can bring the solar simulator to your sample! This makes the Sciencetech Solar LightLine series of fiberized solar simulators ideal for research that just can't accommodate traditional bulky solar simulators. The solar light can be easily integrated with a glove box without mounting the entire solar simulator in the glove box, saving space and adding flexibility. The standard 4-foot-long fiber makes the simulator ideal for doing spot checks of devices on manufacturing lines or in dedicated setups that can't accommodate a bulky solar simulator.

The Lightline includes space for fitting one internal accessory. Options are a motorized, 6-position filter wheel, with a variety of spectral or neutral density filters that can be supplied. Or a manual or motorized attenuation system that provides continuous control over intensity at the target from 10-100%. Internal accessories must be selected at the time of order and cannot be added at a later time.

Every Lightline includes an internal two-position filter tray that accommodates Sciencetech FT style filters. Model AX-100 and AX-200 come with a removeable FT-style filter that permits one sun operation. One filter location is reserved for the selected air mass filter. Air mass filters must be selected in the order for spectral match classification.

Classification is performed to ASTM E927-19. Classification to IEC 60904-9 and JIS C 08912 standards can be performed on request. Please contact your Sciencetech Technical Representative for details.

- Includes adjustable touchscreen 601-series power supply with current control from 80-100% of max current.
- Includes computer-controlled high intensity shutter.
- Length of light guide: 4 feet (other light guide lengths are possible) Light guides can be fitted with KF flanges for glovebox integration.
- Includes one 300W xenon short arc lamp.

This unit runs on 120/220VAC.
CE compliant.

$ 9,200.00

Sun Level: 1.3 Suns AM0 max
Target size: 50x50mm at 1 sun
Spectral Match: ASTM E927-19. Class A from 350-1400nm
Non-uniformity : Class A <2% over 50x50mm
Temporal instability: Class A <2%
Working distance: 380mm +/- 30mm typical
Compliance: CE marked
300W Xenon lamp
Includes attenuator, HAS and 601 series supply

$ 12,638.00

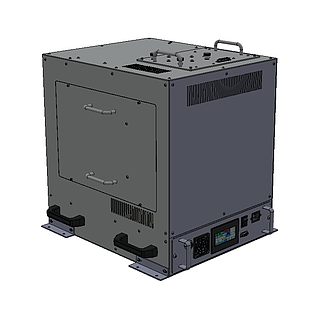

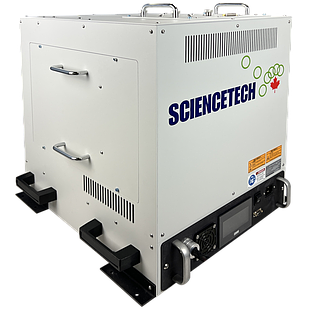

A system of 16 LASI units. Each LASI unit illuminates up to 0.5x0.5m with a filtered xenon short arc lamp producing 6,000K illumination.

Non-uniformity is not tested, and typical values are quoted.
LASI units are tested for spectral match compliance to ASTM E927-19 AM1.5G class C and temporal instability compliance to ASTM E927-19 class A.
LASI units include one high-quality 1.6kW xenon short arc lamp per unit purchased.

Each unit includes an integrated single-phase power supply with a touch screen interface that requires 220VAC. Systems can be operated remotely through Sciencetech PowerControl software. C++/ Python control is possible with an additional SciencetechCOM module. Labview control is possible with additional SciAX module.

In certain applications a single LASI may be used on its own. However, LASIs are best used in arrays of multiple units, as the optical performance improves when the light from multiple units overlaps.

LASI units have a mounting flange but do not include a stand to hold the LASI unit. LASI units are intended to operate vertically facing downwards. See the brochure for additional product information and available accessories.

Power requirements: 200-240 VAC, 12.1 to 9.0 A per unit.

$ 272,400.00

Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50x50mm at 1 sun
Working distance: 380mm (with beam turning unit CTBT-3)
Included Power Supply: (601-150) 150W Adjustable Power with Touchscreen Control
CE Compliant
Also included are a 150W xenon arc lamp, filter holder, height-adjustable stand, manual attenuator, manual shutter, beam turner, and testing report.

Available Air Mass filters include AM1.0, AM1.5D, and AM1.5G. Other spectral matches are possible. Please contact us for more information.

$ 7,539.00

Class: AAA (ASTM E927-19, IEC 60904-9)
Target size: 50x50mm at 2 sun
ND filter for 1 sun operation included
Working distance: 380mm (with beam turning unit CTBT-3)
Included Power Supply: (601-300) 300W Adjustable Power with Touchscreen Control
CE compliant
Also included are a 300W xenon arc lamp, filter holder, height-adjustable stand, manual attenuator, manual shutter, beam turner, and testing report.

Available Air Mass filters include AM1.0, AM1.5D, and AM1.5G. Other spectral matches are possible. Please contact us for more information.

$ 7,765.00

Class: AAA
Collimation Angle: 3.85º half angle
Target Size: 125mm x 125 mm
Working Distance: 300mm
550W Xe Arc Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 30,750.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 1.6kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 20 cm (8") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 1.6kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 7.6 × 7.6 cm (3" × 3") filter (not included)

Includes: 20 cm (8") diameter UV transmitting Fresnel lens, igniter.

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter

* Systems can be built for downfacing operation if specified at time of order

$ 22,000.00

This solar simulator is based on a Fresnel lens to collimate the light beam from the 3.0kW Xe ozone-free arc lamp source, resulting in highly collimated illumination of the target spot. The spectral distribution of the xenon light source, along with the use of specially calibrated air mass filters, closely simulates the sun’s true spectral distribution in various conditions on Earth.

Works best with 1 Sun AM1.5D filters (not included). Other AM filters are available but they may change the target size achievable. Contact a Sciencetech technical sales representative for details.

Target: up to 28 cm (11") diameter (depends on required irradiance level)
Collimation: 0.7° half angle (70% of irradiance is within)
Non-uniformity: ±25% (not classified)
Lamp: 3.0kW ozone-free Xe short arc
Lamp Housing: air cooled
Illumination Direction: horizontal*
Power Supply: 611-1.6k adjustable touchscreen supply
Filter Mounting: for one 15 × 15 cm (6" × 6") filter (not included)

Includes: 30 cm (12") diameter UV transmitting Fresnel lens, igniter.

Optional accessories: vertical beam turning unit, light intensity stabilizer, integrated motorized shutter
* Systems can be built for downfacing operation if specified at time of order

$ 30,000.00

Class: AAA (ASTM)
Collimation Angle: 2.2º half angle
Target Size: 300mm x 300 mm
Working Distance: 650mm
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 70,125.00

Class: AAA
Collimation Angle: 2.35º half angle
Target Size: 250mm x 250 mm
Working Distance: 650mm
1600W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 58,600.00

Class: AAA
Collimation Angle: 2.6º half angle
Target Size: 200mm x 200 mm
Working Distance: 575mm
1000W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 40,490.00

Class: AAA
Collimation Angle: 3.95º half angle
Target Size: 150mm x 150 mm
Working Distance: 500mm
500W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 29,750.00

Class: AAA
Collimation Angle: 4.1º half angle
Target Size: 100mm x 100 mm
Working Distance: 300mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 26,800.00

Class: AAA
Collimation Angle: 4.5º half angle
Target Size: 75mm x 75 mm
Working Distance: 225 mm
300W Lamp Included
Integrated touch screen control unit
RS232 interface and software for remote operation included
Includes air mass filter AM1.5G (160-8023) and computer-controlled shutter.

$ 18,506.00

Class: AAA
Target Size: 60mm × 60mm
Working Distance: 300mm
Spectral Range: 350nm - 1400nm
Lamp: 300W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-300 included

The SL-60A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

$ 14,000.00

Class: AAA
Target Size: 50mm × 50mm (up to 2 Suns)
(70mm × 60mm Class B at 1 Sun)
Working Distance: 250mm (typical)
Spectral Range: 350nm - 1400nm
Lamp: 300W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-300 included

The SL-50A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

$ 12,965.00

Class: AAA
Target Size: 38mm × 38mm
Working Distance: 250mm
Spectral Range: 350nm - 1400nm
Lamp: 150W
Available AM Filtering: AM1.5G, AM1.5D (AM0 not available)
Power Supply 601-150 included

The SL-38A-WS is a Class AAA solar simulator with an integrated testing workstation, ideal for the benchtop. The system includes arc lamp housing, bulb, integrated power supply with igniter, adjustable testing stage, accessories rack, automatic shutter, beam turner, 2-position filter holder, and testing report. The beam is projected vertically by default or the end plate can be removed for horizontal operation.

Available air mass filters include AM1.5G and AM1.5D. AM0 is not available for this model due to limited UV output. Other filters such as dichroic filters and bandpass filters are available for further modification of the spectrum. Filters are sold separately; please specify which filters should be sent with the solar simulator when ordering.

Conformity with IEC and JIS standards for spectral matching, non-uniformity, and temporal instability is available. Please contact your Sciencetech Technical Representative for details.

Please speak with your authorized Sciencetech Technical Sales Staff for further details and a full range of options.

$ 11,950.00

Sciencetech’s high powered fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

$ 38,230.00

Sciencetech’s fully reflective solar simulators can be used for UV applications by replacing the solar filters with UV filters. Sciencetech's proprietary Fully Reflective design allows the system to get far more UV power on target than our competitor's systems of equal size.

Please note that the wavelength definition of UVA and UVB in the COLIPA sun screen testing community is slightly different from the general scientific community.
This solar simulator includes testing and filters to verify the system meets COLIPA and USFDA spectral requirements.
Please discuss your specific spectral needs with your authorized Sciencetech technical sales staff.

Main Features:
Class ABA Solar Simulator
Fully reflective design instead of diffusing lens to create uniformity on target spot
No Chromatic Aberration
150W xenon arc lamp
Air cooled lamp housing
Adjustable power supply, includes igniter
Standard horizontal operation, vertical option
Optional folding mirror to redirect output beam

$ 20,233.00

This accessory is a base and post assembly designed to work with 2" diameter optical assemblies. The PM90 allows a 2" optical assembly to be held vertically or horizontally and rotated through any angle, and is adjustable to any height above the included base plate from 0 to 12". The included 6x12" base plate can be secured to a standard optical table or left free standing. This accessory can be used with Sciencetech's A1 and A4 Solar LightLine solar simulators to allow for horizontal or vertical operation (and at any angle) by holding to output optic at the end of the 4 foot light guide.

$ 400.00
