CIMPS Add-on for QE/IPCE/PCS Measurements
TLS03
-Wavelength range: 365-1020 nm
-Typ. res.: 1 nm@430-720 nm, 15 nm@365-420 nm, 40 nm@735-1020 nm
-Typ. line width: 10 nm@365-720 nm, 50 nm@735-1020 nm
-Calibration for 1 mm distance
-Calibration for PECC-1/2 required, optional
-CIMPS-QE/IPCE software

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

CIMPS Add-on for QE/IPCE/PCS Measurements
TLS03/UV
-Wavelength range: 295-1020 nm
-Typ. res.: 1 nm@430-720 nm, 15 nm@295-420 nm, 40 nm@735-1020 nm
-Typ. line width: 10 nm@295-720 nm, 50 nm@735-1020 nm
-Calibration for 1 mm distance
-Calibration for PECC-1/2 required, optional
-CIMPS-QE/IPCE software

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

CIMPS Add-on for Photo-Electrochemical Light Emission
-SEL033 NIST traceable sensor
-CIMPS-emit software for integral measurements

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

CIMPS Add-on for Photo-Electrochemical Light Emission
-SEL033 NIST traceable sensor
-ILT-960 spectrometer
-Integral & spectrally resolved measurements
-CIMPS-emit software for integral and spectral resolved measurements

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

CIMPS Add-on for Photo-Electrochemical Transmittance/Absorbance
-Backthinned-CCD fiber optic spectrometer
-PECC-slide with 2 x PECC-2 Q
-Balanced tungsten-deuterium light source (220-1100 nm)
-CIMPS-abs software

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

CIMPS Add-on for Photo-Electrochemical Transmittance/Absorbance
-ILT-960 spectrometer
-PECC-slide with 2 x PECC-2
-LSW-1 LED (420-730 nm) or WOW01 tungsten light source (360-1000 nm)
-CIMPS-abs software

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

CIMPS-QE/IPCE is an extended CIMPS system with the capability to measure quantum efficiency (QE) or incident photon to current efficiency (IPCE). The CIMPS-QE/IPCE extension consists of an easily mountable and portable tuneable light source (TLS). The TLS contains dynamic LEDs, a monochromator and a feedback control which allow accurate light illumination during the measurements without any warm up time.

Multiple LEDs in the TLS provide higher light intensity across the broad wavelength range and longer operational lifetime as compared to any traditional Xe-lamp. This high light intensity is crucial for IPCE measurements on DSSC, perovskites or organic solar cells or photoelectrodes.

Like the modular LEDs used in the CIMPS system, the TLS is also able to carry out sine-wave modulation for IPCE measurements and does not require a mechanical chopper. During IPCE measurements, a special indicator is also provided which indicates if the measurement parameters are optimum for IPCE measurement or not. Further information about IPCE measurement is provided in our application note CIMPS-IPCE.

Fully Integrated QE/IPCE Photo-Electrochemical Workstation with UV
Extension
-Zennium pro workstation
-Frequency range: 10 µHz to 8 MHz
-Max. current: ± 3 A
-Controlled voltage: ± 15 V / ± 5 V
-Compliance voltage: ± 28 V
-HDP technology for outstanding dynamic accuracy
-ADF technology for high-precision/high-speed CV (option)
-Floating & grounded mode switchable
-5 slots for additional hardware modules
-EPC42 extension card for controlling PP212
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-Tunable light source TLS03 UV
-Wavelength range: 295-1020 nm
-typ. res.: 1 nm@430-720 nm, 15 nm@295-420 nm, 40 nm@735-1020 nm
-typ. line width: 10 nm@295-720 nm, 50 nm@735-1020 nm
-Calibration for 1 mm distance
-Calibration for PECC-2 q required, optional
-ThalesXT software package
-TestBox, SIMPECC, CIMPS cable set, calibration data
-System is controlled by a Windows8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Photo-Electrochemical Cell

The PECC-1/PECC-2 are specially tailored for testing electrode materials with photoelectrochemical techniques. Several mounting options for samples offer flexibility for various tasks.

Front and rear window 18 mm diam., BK7 or quartz
Solid material: PCTFE
Gas-proof with gas-in/outlet
Ag/AgCl reference electrode & Pt counter-electrode
Cable set
Dimensions: 60 x 25 x 80 mm

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Corrosion Cell Kit

The corrosion measuring cell KMZ3 is a triple electrode non-water-jacketed cell for standard electrochemical measurements.

The measuring cell has different cell tops with standard taper joints (NS) for the insertion of the working and the counter electrodes, as well as the intermediate vessel with reference electrode and liquid junction tube including a ""Haber Luggin capilary"". All electrodes have glass bodies with standard tapers. The cell features a user-friendly handling and a wide range of applications.

KMZ3 comes with: specimen holder (WE), counter electrode, reference electrode (Calomel), liquid junction tube, intermediate vessel, gas in- and outlet.

Glass vessel
3-electrode configuration
Pt counter electrode
Ag/AgCl reference electrode
Sample holder

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Corrosion Cell Kit

The corrosion measuring cell KMZ5 is a triple electrode water-jacket cell for standard electrochemical measurements with a cell container suitable for connection to constant temperature circulators.

The measuring cell has different cell tops with standard taper joints (NS) for the insertion of the working and the counter electrodes, as well as the intermediate vessel with reference electrode and liquid junction tube including a ""Haber Luggin capilary"". All electrodes have glass bodies with standard tapers. The cell features a user-friendly handling and a wide range of applications.

KMZ5 comes with: specimen holder (WE), counter electrode, reference electrode (Calomel), liquid junction tube, intermediate vessel, gas in- and outlet.

Double-wall glass vessel for temperature control
3-electrode configuration
Pt counter electrode
Ag/AgCl reference electrode
Sample holder
Thermometer

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

High Impedance Probe

The HiZ probe set is specially designed for high impedance measurements and raise the input impedance up to 1000 TΩ || 1 pF.

U- and I-probe come in two small boxes which can easily be placed near by the sample. By this, electrical noise artifacts are minimized. Typical applications are investigations on passive layers, oxydes, nitrides, dielectric films, ceramic substrates, low conductive electrolytes, lacquers, coatings, microelectrodes etc.
The HiZ Probe set is connected to the Probe I and the Probe E terminals of the IM6 or Zennium. No additional hardware is needed.

Input impedance: 5 pF//10 T (typ.)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

CIMPS-X Photo-Electrochemical Workstation
-Zennium X workstation
-Frequency range: 10 µHz to 12 MHz
-Max. current: ± 4 A
-Controlled voltage: ± 15 V / ± 5 V
-Compliance voltage: ± 32 V
-HDP technology for outstanding dynamic accuracy
-ADF technology for high-precision high-speed CV
-Floating & grounded mode switchable
-10 slots for additional hardware modules
-EPC42 extension card for controlling PP212
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-ThalesXT software package
-TestBox, SIMPECC, CIMPS cable set, calibration data
-System is controlled by a Windows8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

The EL1002 single-quadrant potentiostat was designed as an extension for the Zennium series to perform measurements on high power electrochemical systems such as PEM or solid oxide fuel cells. This highly dynamic electronic load was optimized for EIS measurements on frequencies on the order of 10 µHz to 100 kHz at high current densities.

The EL1002 is suited for power dissipation up to 1 kW at voltages up to 100 V. It can modulate and control currents of up to 200 A. Due to the innovative connection concept of the EL1002, additional power supplies or electronic loads can extend the current range up to 680 A. The EXT-concept allows for outstanding EIS quality at high currents and conserves a good value to price ratio.

The versatile interconnection capabilities of the EL1002 gives access to measurements at high currents on large-scale batteries, electrolyzers or fuel cells.


-Power extension of ZENNIUM potentiostat for battery, fuel cells, or electrolyzer stack measurements up 68 kW
-Dynamic EIS measurements at high power from 10 µHz bis 100 kHz
-High bandwitdh and outstanding EIS data quality

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

The XPOT2 as a high precision auxiliary potentiostat adds an additional channel to the ZENNIUM series potentiostat for bi-potentiostat functionality. The combination of ZENNIUM and XPOT2 enables rotating ring disk electrode (RRDE) measurements or hydrogen permeation in Devanathan cells. The XPOT2 provides up to ±500 mA output current and up to ±25 V compliance voltage. The XPOT2 contains 9 current ranges which enable it to carry out outstandingly precise and accurate measurements.

In addition, the XPOT2 potentiostat can also be used as a standalone potentiostat and can be controlled by Zahner-Lab.

The Zahner's potentiostats can be incorporated in a Python lab environment and can be used as stand-alone or in multi-channel configurations. A GitHub repository with examples is available for developing Python applications.

-Standalone operation and possible integration in a Python work environment
-Extension for bipotentiostat applications

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

The Zahner PAD4 card provides 4 additional voltage or current input channels which can be used for parallel DC or EIS measurements on segments connected in series. The PAD4 card is an optimal addition to the ZENNIUM potentiostat for stack measurements or segmented cells.

The PAD4 card is used in the fuel cell, electrolyzer stack and battery-pack investigations. In addition, it is used in measurements involving a reference electrode in a 3-electrode cell connection scheme.

Parallel EIS measurements on each segment in a stack enable highly detailed measurement system behavior either in-plane or throughout the stack. Up to 17 EIS signals can be recorded in a frequency range of 10 µHz to 250 kHz. 18-bit AD converters ensure high-quality EIS data.

Overview of PAD4 card variants:
PAD4-HC: for investigation of individual cells in a stack of up to ±100V
PAD4-LC: for investigation of segmented cells in a stack of up to ±25 V
PAD4-HZ: for investigation of batteries with high-resistance reference electrodes or high-resistance objects

-Parallel EIS stack measurements
-Up to 17 channels for ZENNIUM X
-Up to 5 channels for ZENNIUM PRO
-Customizable voltage range for PAD4 channels
-Incorporated with external potentiostats and electronic loads
-3 different models for stacks and segmented cells

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Zahner's CIMPS is a highly dynamic LED-based system with an active light feedback loop that ensures a controlled and constant light intensity during the photoelectrochemical or photovoltaic measurements. Fast light sources enable dynamic photoelectrochemical measurements like IMPS/IMVS. The robust control of light intensity allows accurate IMPS/IMVS measurements, giving the system its iconic name ""controlled intensity-modulated photo spectroscopy (CIMPS)"". Further information on our light feedback loop and its benefits is provided in the manuscript ""C in CIMPS"".

CIMPS-pro Photo-Electrochemical Workstation
-Zennium pro workstation
-Frequency range: 10 µHz to 8 MHz
-Max. current: ± 3 A
-Controlled voltage: ± 15 V / ± 5 V
-Compliance voltage: ± 28 V
-HDP technology for outstanding dynamic accuracy
-ADF technology for high-precision high-speed CV (option)
-Floating & grounded mode switchable
-5 slots for additional hardware modules
-EPC42 extension card for controlling PP212
-LED potentiostat: PP212
-Current range: ± 10 A
-Voltage range: ± 20 V
-Frequency range: DC - 200 kHz
-LDA2 Light source setup
-Optical bench
-Calibrated feedback sensor
-LSW-1 plug-in LED
-CIMPS aligner bar
-ThalesXT software package
-TestBox, SIMPECC, CIMPS cable set, calibration data
-System is controlled by a Windows8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

The MIO addon card provides four analog output channels with a voltage range of ±10 V. In addition the MIO card is also equipped with four isolated digital input and four isolated digital relay output channels. The MIO addon card is used to receive and send trigger signals between the ZENNIUM potentiostats and a third party device.

-Remote Integration possible
-Can be controlled in Thales or script software

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Zahner's TEMP-U2 enables the temperature measurements by direct connection of two thermocouples. Two additional voltage input channels are available and provide the opportunity to record additional variables during the electrochemical measurement. For example, the voltage channels can be configured with a pH electrode or a pressure chamber to record the pH value or chamber pressure during the measurement.

Unless otherwise requested, the TEMP-U is delivered pre-configured for two NiCrNi (type K) thermocouples and two voltage inputs in the range of ±8 V.

-2 thermocouple inputs
-2 analog voltage inputs

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

Electrochemical Workstation

The Zennium pro is a modular electrochemical workstation including a potentiostat / galvanostat and a frequency response analyzer (FRA) unit with a frequency range up to 8 MHz at ±3 A and at a compliance voltage of up to ±28 V. With an input impedance of more than 10 TΩ || 5 pF the workstation is suitable for a wide range of electrochemical tasks.

The electrochemical measurement capabilites of the ZENNIUM pro workstation can be extented by adding up to five additional plug-in cards such as TEMP/U or EPC42. For example, the latter makes it possible to control up to four additional external devices such as power potentiostats of the PP/XPot-series (boosters) or electrical loads of the EL-series. Thus, our Zennium pro electrochemical workstation is able to provide even more advanced measurement methods and allows us to satisfy any of your electrochemical research requirements.

Frequency range: 10 μHz to 8 MHz
Max. current: 3 A
Controlled voltage: 15 V / 5 V
Compliance voltage: 28 V
HDP technology for outstanding dynamic accuracy
ADF technology for high-precision/high-speed CV (option)
Floating & grounded mode switchable 5 slots for additional hardware modules
Accessories: TestBox, cell cable set, calibration data
ThalesXT software package
System is controlled by a Windows7/8/10-PC (not included)

For pricing information, please request a quotation from sales@sciencetech-inc.com.

Contact for Pricing

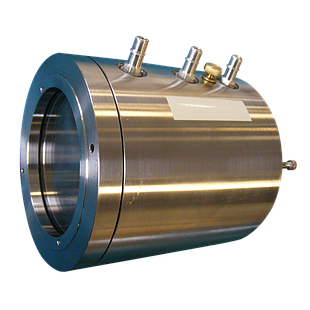

This standard IR absorbing water filter is equipped with Fused Quartz windows which transmit UV light. This allows extended UV applications. Horizontal operation only.
Aluminum has superior heat tansfer to Stainless Steel but should not be used in corrosive environments.

$ 1,785.00
