Accessories / Parts

6500W Xenon arc lamp
Ozone Free
Compatible with Sciencetech Ultra-High Power Lamp Houses.

Nominal Wattage 6500 W
Nominal Voltage 39 V
Current (A) 165 A
Current Control Range (A) 133-173 A

Physical attributes
Base Anode SFAx30-14
Base Cathode SFa30-7.9

Contact for Pricing

The SCC-VPME1 is a quiet vacuum pump intended for use with Sciencetech's SCC-series cell chucks. The pump is capable of providing vacuum hold down for cells up to 30 × 30 cm (12" × 12"). It runs quietly, minimizing disruption to the testing environment. This pump is required for cells over 90 × 90 mm (3.5" × 3.5").

Maximum cell size: 30 × 30 cm (12" × 12")
Max vacuum (torr): 75
Noise level @50Hz (dBA) = 45

Contact for Pricing

Contact for Pricing

Sciencetech's PG-HG500 to PS-HG1600 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-HG500-A-T is designed to power 500 W Hg arc lamps. The PS-HG500-A-T Power Supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
100-240 VAC input, 9.1-3.8 A, 50/60 Hz

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Contact for Pricing

Sciencetech's PS-HG1600-A-T series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-HG1600-A-T is designed to power 1600 W Hg arc lamps. The PS-HG1600-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock
Please see the technical datasheet for more information.

Power Requirements
200-240 VAC input, 12.1-9.0 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Contact for Pricing

Sciencetech's PS-HG500 to PS-HG-1600 series power supplies are designed to work with Sciencetech XLH-series lamp houses. Includes a USB to serial adapter.
The PS-HG1000-A-T is designed to power 1000 W Hg arc lamps. The PS-HG1000-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
200-240 VAC input, 7.5-6.3 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

Contact for Pricing

Target size: 500x500mm
DAQ: 16 bit
Detector size : 20x20mm
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 800x800x125

Contact for Pricing

Target size: 350 × 350mm
DAQ: 16 bit
Detector size : 20 × 20mm
Detector Type: SCI-REF-LR
Connectivity: 1 × USB2.0
Power Requirements: 120 VAC × 4 A / 220 VAC × 2 A
Dimensions: 600 × 600 × 125

Includes SciMeasurementStage software.

Contact for Pricing

Target size: 100x100mm
DAQ: 16 bit
Detector size : 20x20mm (apertured to 12.5x12.5mm)
Detector Type: SCI-REF-LR
Connectivity: 1 x USB2.0
Power Requirements: 120VAC x 4A / 220VAC x 2A
Dimensions: 200x200x125

Contact for Pricing

Sciencetech's PS-XE500 to PS-XE1600 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-XE1600-A-T is designed to power 1600 W xenon and mercury-xenon arc lamps. The PS-XE1600-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements: 200-240 VAC, 50/60 Hz, 12.1 A. This system requires 1 IEC 60320 C19 compatible power cables. Please select one region-specific power cable (see product 491-9003) at no cost.

$ 7,171.00

Sciencetech's PS-XE500 to PS-XE1600 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-XE1000-A-T is designed to power 1000 W xenon and mercury-xenon arc lamps. The PS-XE1000-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
200-240 VAC input, 7.5-6.3 A, 50/60 Hz, Fused 15 A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 6,949.00

Sciencetech's PS-XE500 to PS-XE1600 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The PS-XE500-A-T is designed to power 500 W xenon and mercury-xenon arc lamps. The PS-XE500-A-T power supply is CE compliant.
This power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
100-240 VAC input, 9.1-3.8 A, 50/60 Hz
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

$ 6,873.00

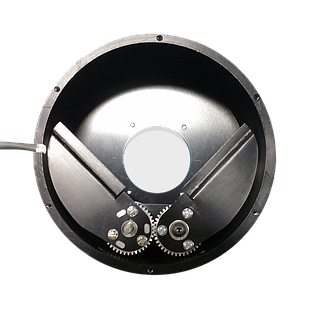

The SH-XLH-B is a computer controlled shutter for 201, LH-S, XLH-S lamp houses and SF/SLB solar simulators. Based on the successful SSES lines of blade shutters for Sciencetech's line of high powered solar simulators.
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000 V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system with the lamp house or solar simulator. This electronic shutter has an activation time of <150 ms.

The SH-XLH-B can be controlled using Sciencetech PS-XE-series of computer-controlled touchscreen power supplies (e.g PS-XE300-A-T). This includes automated exposure time control. Manual models of the PS-XE (e.g. PS-XE300-A-M) cannot control this shutter. Alternatively, a shutter controller model SH-C and SCI-SHUTTER Software are available for controlling the shutter. The SH-C controller is not included with this shutter.

This shutter can be used with any high powered light source and can effectively block a 2" diameter beam.
This shutter is closed frame and the shutter mechanism is not exposed. For an open frame shutter please see the SH-2-B-OF product.

$ 1,010.00

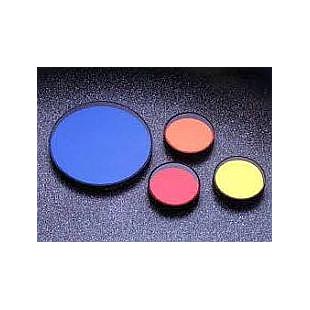

Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes.
For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adaptor is required.

No filter holders are included and filter holders are dependent on the size of the filters to be used.

Compatible filter holders are the FT-series (e.g. FT-75).

$ 414.00

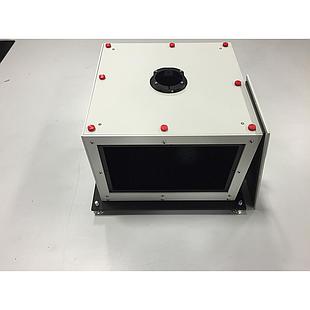

Downward-facing stand for the LH- series lamp housing and SF solar simulators.
This stand allows for downwards illumination as well as adjusting the location of the uniform plane relative to the baseplate of the downward-facing stand. Note that this does not change the actual working distance of the solar simulator.
The light source can also be positioned for upwards or horizontal beam directions.
This stand includes two sets of holes for mounting the vertical supports. This permits mounting an LH housing using either base plate and in any orientation. Please see the product information for recommended orientations for each housing type.

$ 576.00

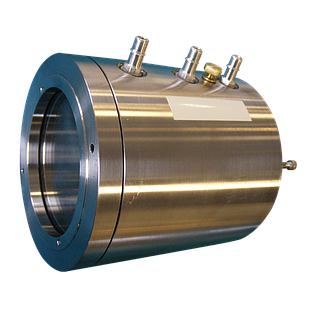

This standard IR absorbing water filter is equipped with Fused Quartz windows which transmit UV light. This allows extended UV applications. Horizontal operation only.
Aluminum has superior heat tansfer to Stainless Steel but should not be used in corrosive environments.

Contact for Pricing

This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light and can be used for UV applications. It can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Aluminum provides superior heat transfer compared to stainless steel but should not be used in corrosive environments.

Contact for Pricing

Sciencetech's touchscreen 75 W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

PS-XE075-A-T power supplies accept 110-240 VAC input. Includes a USB to serial adapter.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks

Optional Upgrades
-RS232 computer control with GUI
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 2,795.00

Sciencetech's touchscreen 150 W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

PS-XE150-A-T power supplies accept 110-240 VAC input.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
Includes a USB to serial adapter.

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks

Optional Upgrades
-RS232 computer control with GUI
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 3,495.00

Sciencetech's touchscreen 300 W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

PS-XE300-A-T power supplies accept 110-240 VAC input.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Includes a USB to serial adapter.

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks
-RS232 software GUI included, shown below

Optional Upgrades
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 3,495.00
