Accessories / Parts

This upgrade includes the necessary hardware and software modifications to Sciencetech's SSIVT line of IV testers to allow real-time measurement of temperature, irradiance, and calculations of thermal co-efficients [ISC (α), Voc (β) & PM (γ)] for each point of the IV curve.
Please note that this upgrade requires a Sciencetech IV tester in order to function, and will not work if a 3rd party tester is purchased from a different supplier.
Please speak with your authorized Sciencetech technical support staff member to discuss specifications and any additional details required.

$ 3,000.00

This adapter couples light from a standard SMA terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from BK7 glass giving good transmission over a wavelength range of 350nm-2000nm

$ 1,210.00

The cuvette holder inside the sample chamber can be replaced with an optional thin film holder. This thin film holder is 2" x 2" square, although other sizes are available (please enquire). The thin film holder is placed at an angle to the input port such that the angle of incidence is 45 degrees. Should the optional TE sample cooling pad be ordered, this cooler connects directly to the thin film holder frame at the base, hence cooling of the sample is done through physical contact with the frame.

$ 300.00

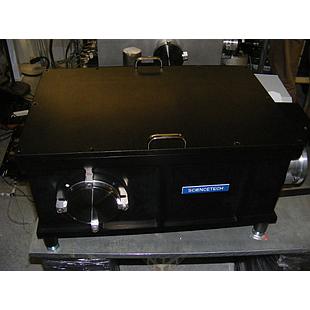

The SC-12 is a general purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12 includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.
Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs including electrical, liquid and gas.

The SC-12 can be configured for spectroscopy applications such as diffuse reflection and transmission spectroscopy, or as a light tight reaction chamber for photoelectrolysis research. The 2.2" diameter opening on the top port of the sample chamber is designed to mate to Sciencetech's line of lens based solar simulators such as the SF or SLB series simulators, the Solar LightLine solar simulator, as well as Sciencetech's line of 201-100 lamp houses.

The base of the sample chamber is an imperial optical breadboard with 1/4-20 tapped holes. For the metric version see model SC-12-M.

The SC-12 is 311x 311x 219mm (12.5" x 12.5" x 8.625")(LxWxH) with internal dimensions of approximately 298 x 298 x 200mm (11.75" x 11.75" x 7.8").
Side inputs have a 3" optical height which can be increased using the included baseplate and levelling feet.
The baseplate is 355 x 355 x 6.3mm (14" x 14" x 1/4")

The standard system does not come with a sample holder. See the product literature for more information on how to configure the sample chamber.

Please see our detailed product literature for more information or contact a technical sales representative to discuss how we can help you with your specific application.

Options (not included)
- Valved water inlet and outlet ports
- Push to connect hose feedthrough (standard for Sciencetech vacuum chucks)
- AC power entry module
- Binding posts for electrical feedthrough
- Gas inlet and outlet ports (6mm Swagelok)
- Height adjustable sample tray
- Temperature controlled sample platform

Discuss your full technical needs with an authorized Sciencetech Technical Sales Staff member for further details.

$ 1,650.00

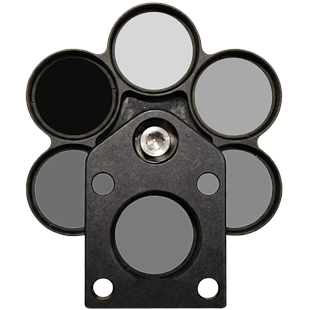

A motorized 6 position filter wheel capable of holding 25mm (1") filters (either square or circular). The filter wheel connects via USB 2.0 to a computer. The filter wheel software includes a stand alone application but also includes development examples for integrating the filter wheel with LabView or C++ software.

$ 1,750.00

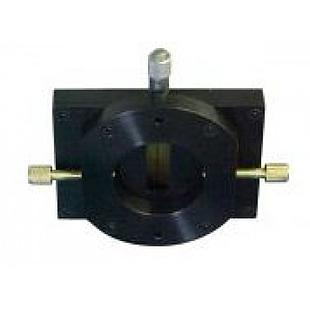

This optical coupler can be used to couple beam line components and allows for independent adjustment of +-3mm along each of two orthogonal axis. This coupler is intended to mate one end to either a 1-D or 4S connection. The other end accepts any component with a 1.035-40 thread. With the CON1-XY-T1 the optical alignment of optical elements such as optical fibers can be optimized to monochromator input slits or target locations.

$ 200.00

The Sciencetech PMH-01 Photon Counting Module is self-contained compact unit incorporating PMT tube, high-speed amplifier, discriminator, and high voltage power supply. The output signal (train of pulses, the number of which corresponds to the number of detected photons) can be sent via a BNC connector, to an external counting/displaying circuit. The PMH-01 outputs digital signal (pulses) only. There is no analog output port.

The photon counting head used has low power consumption (max 0.5W). It is already adjusted for best S/N ratio. There is no additional adjustment necessary to start the operation.

Parameter Value
Operating Temperature Range +5 to + 40 °C
Storage Temperature Range -20 to +50 °C
Effective Area 4 x 6 sq.mm
Spectral Response 185 to 900 nm
Dark Count (Typical) 400 cps
Dark Count (Max.) 800 cps
Counting Linearity 2.5 Mcps
Pulse Pair Resolution 35 ns
Output Pulse Width 30 ns
Output Logic TTL, positive
Input Voltage +5 V
Input Current at 2.5 Mcps Output max. 80 mA
Output Signal Cable RG-174/U

$ 4,000.00

Sciencetech's Compact 1.75" Optical Liquid Filter is designed to filter wavelengths 1000nm and greater (if distilled water is used). The compact size allows it to be installed in one of Sciencetech's FH- style filter boxes. This filter requires a cooling water recirculator (sold separately).

$ 850.00

Substrate dimensions: 68 x 68 x 9.5 mm
Clear aperture: 64 x 64 mm

$ 850.00

The Sciencetech variable focus assembly is coupled to the output port of Model 201-1K arc lamp housing for refocusing its collimated light into a divergent spot. An adjustable lever is used to move the 4 lens assembly along the optical axis. The output beam can be refocused at any f number from infinity (collimated) to f/2. This feature can be used as an intensity controller as the light can be concentrated to any size spot larger or smaller than the 2" diameter of the output port.

To adjust the focus simply use the handles provided to slide the lens tube in or out of the lamp housing. Note that the lens tube has approximately 1” of travel. Stoppers on either end of the lens tube prevent the lens tube from contacting the lamp or from being pulled out of the lamp house.

This assembly uses UV-Fused Silica lenses for optimal UV light transmission.

$ 1,870.00

This is a microscope accessory that allows a point on the microscope field of view to be singled out for intensity or spectroscopy measurement while the light from the other areas in the field of view are physically blocked out.
A proprietary 4 curtain mechanism allows the user to crop any rectangular region of any size and any aspect ratio in the field of view to be measured while the remaining regions are blocked out. The cropped field of view can be seen through an observation eye piece. A filter drawer allows the use of color glass or interferometric filters for the rejection of undesired wavelengths.
Light transmitted through the cropped region is then directed to an output port where its intensity can be measured by an optional detector or broken down further into its constituent wavelengths via an optional monochromator attachment.
The system is light tight allowing for the use of a photon counting detector. A second output port is also available as an option for dual simultaneous measurements with a dichroic mirror or flipping mirror separating the two ports.

Technical Specifications
Filter Drawer: Accepts 1" diameter or square filters
Output Signal: 0 to 13 V
Output Connection: BNC connector
Usage: With DVM or A/D to computer
Modes: Analog or photon counting
Analytical Area Selector: 4 blade independent slit (or optional iris)
Dimensions: 266.7 x 63.5 x 279.4mm

$ 11,027.00

Main Features:

Lithium tantalate sensor
Compatible with EOS PS-1 power supply or EOS LIA/PS-1 lock-in/power supply
Power requirements are ±15 volts to ± 24 volts at ± 5mA max.
Quartz or fused silica window allows essentially flat response (±3%) 300nm-2.1µm
Electrical response -3dB points typically 0.5Hz - 150Hz
Saturation Power: 30mW

Optional Features

Sapphire, germanium, silicon, CaF2, BaF2, or KBr windows are available instead of quartz at extra cost, please specify when ordering
Specialized calibration options at extra cost, please speak to a Sciencetech representative or write to sales@sciencetech-inc.com
Lockin module (price not included in standard detector package)

$ 3,230.00

This adapter couples light from a standard SMA terminated fiber (0.22NA) to an F/3 monochromator input port. The fiber can be adjusted +- 6mm in X and Y directions to optimize the alignment. The optical lenses are made from fused silica giving good transmission over a wavelength range of 200nm-2000nm

$ 1,210.00

A 300W xenon short arc lamp bulb, using a fused silica glass envelope. Please note that this lamp produces ozone.

$ 1,350.00

This is a high resolution slit designed to have 2um resolution. The slits are manufactured from stainless steel to maximize mechanical accuracy.

Please note that these slits are not designed to maximize throughput for extremely high resolution monochromators, due to the straight orientation of the slits. For maximum resolution, the slits need to be designed on a curve that corresponds to the curvature of the point of least confusion. However, this is only a significant factor for systems with optical pathlengths of 1m and greater. Please speak with your authorized Sciencetech technical sales staff member if you need maximum resolution for a long pathlength system.

$ 1,030.00

This standard optical liquid filter is equipped with BK7 windows (350 to 2000 nm). Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.

$ 1,910.00

This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light. This allows it to be used for UV applications. Can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Stainless steel provides superior corrosion resistance compared to aluminum for corrosive liquids.

$ 1,941.00

This is an adjustable power supply for Sciencetech's line of 500W Mercury (Hg) Lamps.

$ 3,959.00

The Sciencetech 500-1K is a variable DC power supply for Xenon (Xe) and Mercury Xenon (Hg-Xe) arc lamps from 500 W to 1kW. It can drive lamps with a voltage of up to 25V and currents up to 50A. This power supply can be used with an internal or external igniter (not included). This power supply is compatible with FS-02 optical feedback unit.
This power supply is compatible with Sciencetech models 200-1K and 201-1K arc lamp housings.

Digital display: power in watts, current in amps, voltage in volts
Manual current adjustment
Operates as a constant current source

As the current setting is adjustable, the actual value of power, voltage or current of the lamp is shown on a LCD digital display.
Input Voltage Requirements
Please note that this power supply requires 100-240VAC input voltage with line current 12A from input voltage 115V line or line current 6A from 240V line.
Preliminary Specifications
Input Voltage: 100VAC-240VAC
Power: 500W-1KW
Output Current: 10A-50A

Boost Voltage: 250V
Boost Energy: 10 Joules
Ignition Voltage: >30KV (~1usec rise time)
Ignition Energy: 0.5 Joules

Lamp Connectors: PS50GR/PS50GB Superior Electric Supercon

Line Regulation: <0.02% of maximum output current
Current Regulation: <0.5% of maximum output current
Current Ripple: <0.5% of maximum output current
Power Limit: Limited to maximum power with power fold-back circuit
Power factor correction: >98%
Overall efficiency: >80%
Input line frequency range: 47-63Hz

Operating Temp: 0 to 40
Storage: -25 to 85
Humidity: 0 to 95% non-condensing

Cooling: Forced air with internal fans

Weight: 6kg
Size: 5.5” (H) x 13” x 17”
Rack mountable standard

$ 4,875.00

This is a coupling tube, without optics, designed to hold lenses for integrating systems. In most cases, a customer will require [120-8036] as it includes the optical components required to couple effectively.

$ 50.00
