Monochromators and Spectrographs

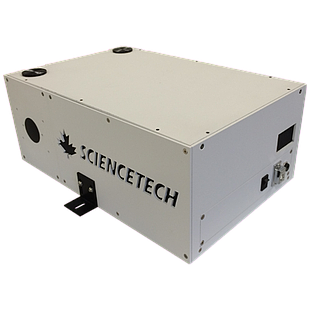

The Sciencetech 9055 is a 250mm asymmetric focal length modified Czerny-Turner monochromator. It has a flat field output for use as a spectrograph. This model has an f/3.5 aperture (for the "Fast" version with f/2.5, please see the 9055F). It has a computer-controlled interchangeable turret for automatic grating and wavelength selection.

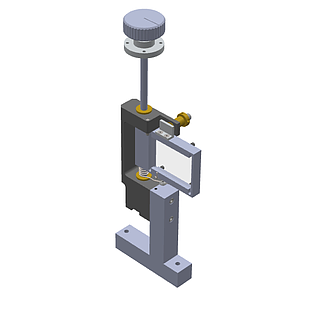

Both the input and output ports are located on the front faceplate of the monochromator, and the system includes one SS80 slit at the input port. CE compliant.

It Includes a Sci-Mono, a Windows based software module with a simple graphical user interface for controlling Sciencetech stepping monochromator wavelength selection. SciMono is provided free of charge with a Sciencetech motorized monochromator when SciSpec software has not been purchased.

Sciencetech Software (Sci-Spec) is available at an additional cost. It is a standalone data acquisition and allows controlling the monochromator by itself.

This system does not include gratings or a host computer. If you require any of these components, please speak with your technical sales staff member.

Refer to the technical datasheet for additional information.

$ 7,020.00

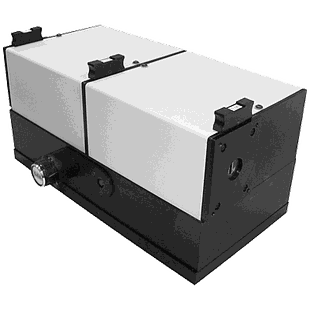

The 9030DA double additive monochromator consists of two 9030 monochromators placed in series. Stray light is drastically reduced in a double monochromator, and in the 9030DA it is further minimized by the use of concave holographic gratings. The inbound light is dispersed by the first grating and again by the second. Both gratings rotate simultaneously in the same direction, and in the DA the monochromators are coupled so that the dispersion is double that of a single 9030 monochromator. Bandpass is half of the corresponding 9030 monochromator for the same output slit, and resolution using a 100 µm slit is 0.4 nm.
This includes one set of standard slits, but the grating must be selected/specified separately.
Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR region.

$ 4,628.00

The 9150 is Sciencetech's longest single path length monochromator with a 1.5 m focal length. Under optimum conditions with a 2400 l/mm grating it can achieve a resolution of 0.004 nm in single pass mode. This model of monochromator accomodates a grating on a removable kinematic mount, allowing the user to manually swap one grating for another without losing alignment. Please note that this product includes one slit, but does not include any additional slits or a grating. These must be purchased separately. Please speak with a technical sales member for assistance in selecting the right components for your system.
Please see the technical datasheet for additional information.

$ 61,057.00

The 9030DS consists of two 100 mm scanning monochromators placed in series in subtractive mode. Bandpass is determined by the width of an intermediate slit, but the 9030DS has a net output dispersion of zero because the monochromators are optically coupled so that the dispersion of the second grating cancels that of the first. This leads to homogenized wavelengths at the output port - there is no spectrum, only a single undispersed slit image - which allows the unit to act as a tunable bandpass or notch filter.
Stray light of all sorts is drastically reduced in a double monochromator, and in the 9030DS it is further minimized by the use of concave holographic gratings. It is ideal for applications where stray light is a problem - where there may be a strong scattered background, such as in spectroradiometry, Raman or UV measurements of solar radiation.
This price includes a standard set of slits including a standard intermediate (inverted) slit, but does not include gratings. We also offer customized intermediate (inverted) slits; please speak with your authorized Sciencetech technical support staff member.
Please see technical datasheet for additional information.

$ 4,628.00

The Sciencetech 9055F is a 250 mm focal length modified Czerny-Turner monochromator, with a flat field output for spectrograph use. This is designed as a faster version of the 9055 with larger optics for higher light throughput and f/2.5 aperture. All 9055Fs have a computer controlled, motorized turret for automatic grating and wavelength selection. Both input and output ports are situated on the front faceplate of the monochromator/spectrograph, and the system includes one adjustable SS80 slit at the input port. The 9055F supports up to two 64 x 64 mm (clear aperture) gratings.
Please see technical datasheet for further information.

$ 7,530.00

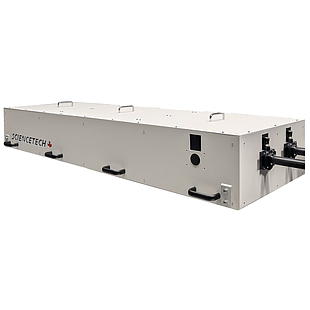

This is an Echelle Spectrometer designed for diffraction limit operation, that provides a full spectrum coverage without gaps over a tunable 150nm range at a resolution of ~2pm in single pass mode. The spectrometer uses two gratings, two 1.5m f.l. parabolic reflectors and a corrector lens to produce a cross-dispersed echellegram that is recorded on a 3k x 3k cooled CCD camera with 12u pixels, at a dispersion of 1 pm/pixel. The long, thin echellegram is fit to the square CCD format using a 3 section image slicer, to maximize wavelength coverage and resolution.
Input optics include a micrometer adjustable rectangular input slit and a computer controlled source selector that can switch between four available input ports, useful in calibration.
Operational specifications are (for 31.5 l/mm 150x50 mm echelle, single pass)

* Dispersion: 1pm/pixel; (diffraction limit = 1pm)
* Wavelength coverage: 150nm band, position continuously selectable.
No gap coverage up to 800nm. Camera coverage 300nm-900nm.
* Aperture f/25.
* Input slit: rectangular, continuously adjustable 0-500um.
* Source selector to switch between four inputs.
* Calibration facilities for wavelength and intensity.
* Software to transfer raw images to permanent storage at the maximum possible rate, to transform and store as spectra corrected for wavelength & intensity.
Please note that for full frame digitization at 12 bits the transfer rate is 10seconds per frame. Smaller frame sections can be transferred at correspondingly faster rates.

$ 197,506.00

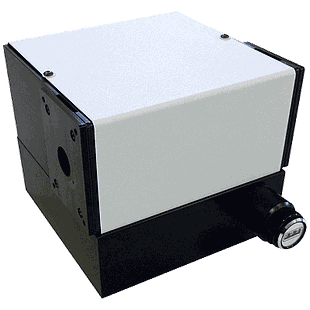

The Sciencetech 9030 monochromator is a compact, single grating scanning monochromator. It has a manual wavelength selector dial with an optional external motor drive for computerized control. The compact design is made possible by its Seya-Namioka optical layout, using a single holographic concave grating and f/3.2 aperture. A pair of removable fixed-width slits are included for the input and output ports. Additional removable slits and custom width slits can also be purchased separately.
Mirror coatings have been chosen for this model to enhance performance in the VIS-NIR region.
There are 5 grating choices (sold separately) covering from UV to near-IR; choose a VIS to NIR range to pair with the VIS-NIR mirror coatings on this model. The 9030 monochromator cannot be used as a spectrograph and therefore only accepts single channel and PMT detectors; however, it can be used as an excitation wavelength tunable light source.
The 9030 is Sciencetech's most economical monochromator with a manual control wavelength selector and removable, fixed-width slits. The input and output ports are purposely placed optically in-line, making it a simple addition to a straight line beam in an optical system. Being a scanning monochromator, it does not have a flat output field and hence cannot be operated as a spectrograph with a multi-channel detector mounted at the output port.

$ 2,291.00

The 9055DA consists of two 250mm scanning monochromators placed in series in additive mode. Bandpass is determined by the width of an intermediate slit, but the dispersion will be approximately twice that of a single 9055 with a lower cost than larger monochromator systems.
Please see technical datasheet for additional information.

Please note that the 9055DA has been replaced by the 9055DX, with the capability to operate in either Double Additive or Double Subractive modes.

$ 17,710.00

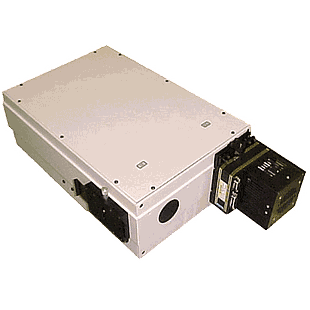

An imaging 1/4m Monochromator/spectrograph. It has f/3.5 aperture and a 2D flat field output for multi-channel use. It has a nominal resolution of 0.15 nm.
Special toroidal mirror makes additional astigmatism correction. This spectrograph provides superior image quality over area 25 mm wide and 12 mm high
The unique layout with mirrors of unequal input and output (200mm and 250 mm) focal length is optimized for minimum coma while allowing high throughput and minimum stray light and vignetting
Please contact a technical sales member to discuss coupling options.
For more information, please see the technical datasheet.

$ 10,020.00

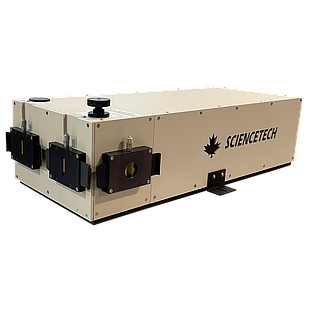

The 9057 is a half meter monochromator and spectrograph with an f/8 aperture. This system is a Czerny-Turner design optimized to reduce aberrations.
This monochromator supports up to three 50x50mm gratings on a computer controlled turret. It includes a single input slit by default; please select appropriate output mounting (slit, detector or CCD mounting, etc...) when ordering.
A fast version of the 9057, the 9057F, operates with 64x64mm gratings and offers better throughput with the same optical pathlength. Please discuss with your Sciencetech technical sales staff member to find if the 9057F is a better choice for your particular application.

$ 8,082.00
