    The FHV filter box is multifunctional, configurable filter box designed to work with Sciencetech's LH and XLH lamp housings or any system that uses 2" or 3" lens tubes.

    The filter box has two available configurable sections - each section can be outfitted with a two-position filter bracket to hold two filters in FT filter holders, or the filter bracket can be omitted to hold one WF-1Q liquid filter. This filter box can consequently hold, in total, either:
    - 4 filters in FT-style holders or
    - 2 filters in FT-style holders and one WF-1Q water filter.

    The filter box can also be configured for forced air cooling or uncooled performance. For the forced air cooling to work, the filter box needs to be paired with a PS-XXXXX-A-T type power supply. The filter box can be configured for 2" or 3" lens tube coupling.

    Air Cooled Dimensions (L × W × H): 121 × 94.5 × 141 mm (4.78" × 3.72" × 5.54")
    Uncooled Dimensions (L × W × H): 113 × 94.5 × 141 mm (4.46" × 3.72" × 5.54")
    The FHV filter box is multifunctional, configurable filter box designed to work with Sciencetech's LH and XLH lamp housings or any system that uses 2" or 3" lens tubes.

    The filter box has two available configurable sections - each section can be outfitted with a two-position filter bracket to hold two filters in FT filter holders, or the filter bracket can be omitted to hold one WF-1Q liquid filter. This filter box can consequently hold, in total, either:
    - 4 filters in FT-style holders or
    - 2 filters in FT-style holders and one WF-1Q water filter.

    The filter box can also be configured for forced air cooling or uncooled performance. For the forced air cooling to work, the filter box needs to be paired with a PS-XXXXX-A-T type power supply. The filter box can be configured for 2" or 3" lens tube coupling.

    Air Cooled Dimensions (L × W × H): 121 × 94.5 × 141 mm (4.78" × 3.72" × 5.54")
    Uncooled Dimensions (L × W × H): 113 × 94.5 × 141 mm (4.46" × 3.72" × 5.54")
    $ 1,221.00 1221.0 USD

    Price Valid only in North America

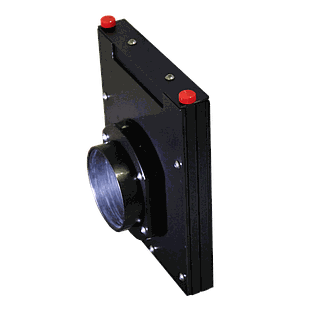

    Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
    The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes.
    For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adaptor is required.

    No filter holders are included and filter holders are dependent on the size of the filters to be used.

    Compatible filter holders are the FT-series (e.g. FT-75).
    $ 414.00
    Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
    The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes.
    For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adaptor is required.

    No filter holders are included and filter holders are dependent on the size of the filters to be used.

    Compatible filter holders are the FT-series (e.g. FT-75).
    $ 414.00 414.0 USD

    Price Valid only in North America

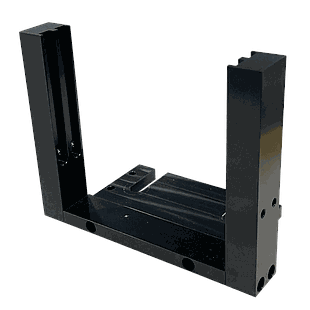

    This option adds an additional 2 filter positions to the FH-SS filter holder. The FH-SS and FH-SS-ADD option are designed to be used with Sciencetech FT-75-3 type blank filter holders as well as filters that include the -FT option. The FH-SS filter holder is used with Sciencetech's line of Fully Reflective solar simulators as well as the Solar Lightline and SciSun solar simulators.
    $ 354.00
    This option adds an additional 2 filter positions to the FH-SS filter holder. The FH-SS and FH-SS-ADD option are designed to be used with Sciencetech FT-75-3 type blank filter holders as well as filters that include the -FT option. The FH-SS filter holder is used with Sciencetech's line of Fully Reflective solar simulators as well as the Solar Lightline and SciSun solar simulators.
    $ 354.00 354.0 USD

    Price Valid only in North America
