    Light Sources

    Xe Arc Lamp Light Source
    Deuterium Light Sources
    QTH Light Sources
    Tunable Light Sources
    Calibration Light Sources
    Infrared Light Sources

    A light source is a complete system capable of illumination, consisting of a lamp, a lamp housing, a power supply, and necessary optics, cables, and hardware.

    Sciencetech manufactures a variety of light sources with applications for both research and industry. For more information about our light sources and capabilities select a product group below and contact us at sales contact today!

    Sciencetech Light Sources

    SCIENCETECH offers light sources from UV to Infrared. A complete light source typically includes the lamp mounted in a housing with condensing/coupling optics, a power supply and all the necessary cables and hardware. For spectroscopic applications, a DC stabilized power supply is required. Arc sources also include a stand-alone igniter to break down the gas and establish the plasma discharge. A full line of accessories such as light condensers and collimators, filters, optical feedback units output stabilization and light shutters are available.



    We offer several standard types of light sources:

    • Xenon Arc lamp Light Sources.  Arc lamps contain plasma confined in a quartz envelope, which produces radiation from 200nm to 2.5um. They have a very strong ultraviolet output and, since the emitting plasma volume is very small, their brightness in the visible region is approximately one order of magnitude higher than that of QTH sources, making them excellent for illuminating small targets. The main arc bulb types are Xenon (Xe), Mercury (Hg), Mercury-Xenon (Hg-Xe) and metal halide under high pressure for maximum brightness.





      Quartz Tungsten Halogen. (QTH) Light from QTH lamps is emitted by a heated filament. The filament is enclosed in a quartz envelope filled with gases. The spectral distribution is close to that of a blackbody curve with a color temperature of approximately 3000°K. QTH lamps have a useful spectral output from 300nm to 2.7µm.





      Deuterium and Dual Deuterium Tungsten. Deuterium (D2) sources are ideal for UV spectroscopy since they have a high ultraviolet output with little visible and infrared emission. UV grade fused silica envelopes can also be used, instead of the standard UV glass envelope, for missions below 180 nm.





      Infrared Light Source. Sciencetech offers both IR emitter housing Elliptical Reflector or Parabolic Reflector.

    • Coupling our capabilities in light source manufacture and spectroscopy allows us to manufacture complete systems such as our Sciencetech Tunable Light Source.



      Our expertise extends to Sciencetech Solar Simulators which are broad band light sources with specific spectral and radiant intensity properties.

    Contact us for more information or request a quote

    sales@sciencetech-inc.com

    Fill form to request a quote

    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    This accessory can be added to an XLH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all XLH-series housings for 500-1600 W xenon short arc lamps.
    This accessory can be added to an XLH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all XLH-series housings for 500-1600 W xenon short arc lamps.
    $ 499.00 499.0 USD
    Price Valid only in North America

    This accessory can be added to an LH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all LH-series housings for 75-300 W xenon short arc lamps.
    This accessory can be added to an LH-style lamp housing to vent ozone produced by UV-enhanced xenon arc lamp sources. This product is compatible with all LH-series housings for 75-300 W xenon short arc lamps.
    $ 499.00 499.0 USD
    Price Valid only in North America

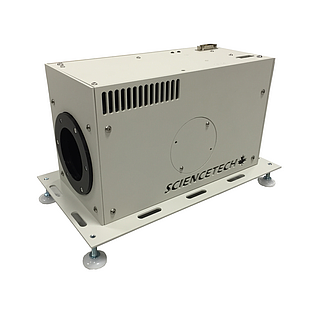

    This light source package contains all components necessary to operate this 37 W IR source. This product can produce wavelengths from 2400 nm to 20,000 nm.

    Lamp Power: 37 W
    Lamp Type: IR037 silicon carbide element (included)
    Output Beam Type: Focused
    Reflector F/#: 4.5
    Power Supply: PS-QT250-A-T (included)

    Sciencetech's Research Grade IR Source Package comes with all the components required to operate a research-quality IR source: power supply, lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

    Optional accessories include a downward facing stand, mirrors, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 6,299.00
    This light source package contains all components necessary to operate this 37 W IR source. This product can produce wavelengths from 2400 nm to 20,000 nm.

    Lamp Power: 37 W
    Lamp Type: IR037 silicon carbide element (included)
    Output Beam Type: Focused
    Reflector F/#: 4.5
    Power Supply: PS-QT250-A-T (included)

    Sciencetech's Research Grade IR Source Package comes with all the components required to operate a research-quality IR source: power supply, lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

    Optional accessories include a downward facing stand, mirrors, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 6,299.00 6299.0 USD
    Price Valid only in North America

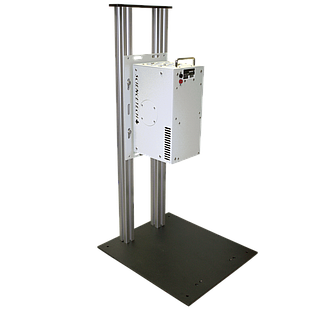

    Downward facing stand for the XLH- series lamp housing .
    This stand allows for downwards illumination as well as adjusting the location of the uniform plane relative to the baseplate of the downward facing stand.
    $ 899.00
    Downward facing stand for the XLH- series lamp housing .
    This stand allows for downwards illumination as well as adjusting the location of the uniform plane relative to the baseplate of the downward facing stand.
    $ 899.00 899.0 USD
    Price Valid only in North America

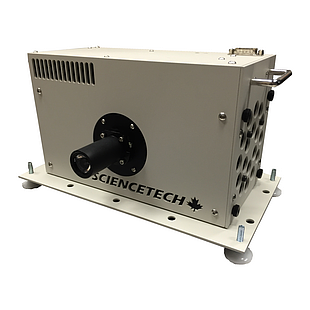

    Lamp Power: 30 W
    Lamp Type: Deuterium, DT030 (included)
    Output Beam Type: Collimated
    Output Beam Diameter: 25 mm (1")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Power Supply: PS-DT030-A-M (included)

    Sciencetech's Research Grade Deuterium Source Packages come with all the components required to operate a research-quality D2 source: power supply, lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 5,649.00
    Lamp Power: 30 W
    Lamp Type: Deuterium, DT030 (included)
    Output Beam Type: Collimated
    Output Beam Diameter: 25 mm (1")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Power Supply: PS-DT030-A-M (included)

    Sciencetech's Research Grade Deuterium Source Packages come with all the components required to operate a research-quality D2 source: power supply, lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 5,649.00 5649.0 USD
    Price Valid only in North America

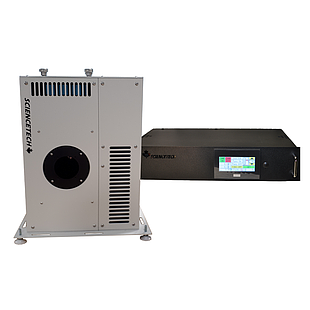

    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the PS-XE6500-A-T-220 computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    Designed for use in North America

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500.
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Includes PS-XE6500-A-T-220 power supply designed for North America
    Compatible with UPLH-E(F)-XE6500 lamp houses

    Power Requirements:
    200-240 VAC, 50/60 Hz, 31.3 A, 3 Phase (200-240 V phase to phase) 4 wires (3P+E)

    Includes hard wired 6 ft power cable with L15-50P termination.
    Requires a minimum 40 A 3-phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)
    $ 40,106.00
    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500W Xenon short arc lamp. This packages includes the PS-XE6500-A-T-220 computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    Designed for use in North America

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500.
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Includes PS-XE6500-A-T-220 power supply designed for North America
    Compatible with UPLH-E(F)-XE6500 lamp houses

    Power Requirements:
    200-240 VAC, 50/60 Hz, 31.3 A, 3 Phase (200-240 V phase to phase) 4 wires (3P+E)

    Includes hard wired 6 ft power cable with L15-50P termination.
    Requires a minimum 40 A 3-phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)
    $ 40,106.00 40106.0 USD
    Price Valid only in North America

    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500 W xenon short arc lamp. This packages includes a PS-XE6500-A-T touchscreen computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    This system is designed for global use.

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Includes PS-XE6500-A-T-480 power supply designed for North America
    380-480 VAC, 50/60 Hz, 16.8-13.3 A 3 Phase
    (380-480 V phase to phase , 4 wire)

    Requires one L16 power cable selection.
    $ 40,106.00
    The UPLH-EF lamp house uses an electroformed F/2.4 elliptical reflector to efficiently collect and focus the output of a 6500 W xenon short arc lamp. This packages includes a PS-XE6500-A-T touchscreen computer-controllable power supply, one 6500 W xenon short arc lamp and digital copies of instrument test report, operating instructions and software.

    This system is designed for global use.

    Includes ultra high-powered, focused-beam arc-lamp housing UPLH-EF-XE6500
    -Scientific research grade arc lamp housing
    -High power focused beam
    -Efficient ellipsoidal reflector for light collection
    -f/2.4 ellipsoidal reflector aperture
    -Uses 6500 W xenon short arc lamp
    -Includes annealed glass safety window (Fused quartz upgrade available)
    -Horizontally operated, can be mounted for downward-facing operation (requires stand)

    Includes PS-XE6500-A-T-480 power supply designed for North America
    380-480 VAC, 50/60 Hz, 16.8-13.3 A 3 Phase
    (380-480 V phase to phase , 4 wire)

    Requires one L16 power cable selection.
    $ 40,106.00 40106.0 USD
    Price Valid only in North America

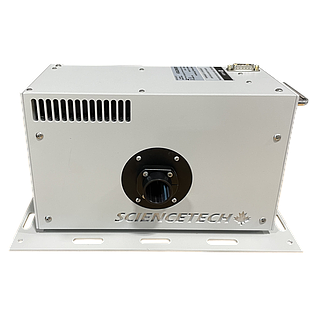

    Lamp Power: 2500W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    Two fused silica lenses in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 L6-30P compatible power cable. Region-specific version must be selected at the time of placing an order.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 23,000.00
    In Stock
    Lamp Power: 2500W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    Two fused silica lenses in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 L6-30P compatible power cable. Region-specific version must be selected at the time of placing an order.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 23,000.00 23000.0 USD
    Price Valid only in North America

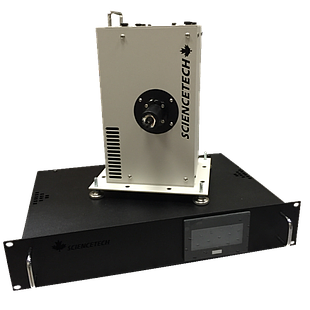

    Lamp Power: 2500W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 76mm (3")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 L6-30P compatible power cable. Region-specific version must be selected at the time of placing an order.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 22,500.00
    In Stock
    Lamp Power: 2500W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 76mm (3")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 L6-30P compatible power cable. Region-specific version must be selected at the time of placing an order.

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 22,500.00 22500.0 USD
    Price Valid only in North America

    Lamp Power: 1600 W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 14,765.00
    Lamp Power: 1600 W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 14,765.00 14765.0 USD
    Price Valid only in North America

    Lamp Power: 1600 W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 50 mm (2")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward-facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 14,580.00
    Lamp Power: 1600 W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 50 mm (2")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward-facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 14,580.00 14580.0 USD
    Price Valid only in North America

    Lamp Power: 1000W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 13,650.00
    Lamp Power: 1000W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 13,650.00 13650.0 USD
    Price Valid only in North America

    Lamp Power: 1000W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 50mm (2")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 13,500.00
    Lamp Power: 1000W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 50mm (2")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 13,500.00 13500.0 USD
    Price Valid only in North America

    Lamp Power: 500W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 12,300.00
    Lamp Power: 500W
    Lamp Type: Xenon
    Output Beam Type: Focused, F/3
    Lens Type: Two Single Plano-Convex Lenses
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.

    $ 12,300.00 12300.0 USD
    Price Valid only in North America

    Lamp Power: 500W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 50mm (2")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 12,100.00
    Lamp Power: 500W
    Lamp Type: Xenon
    Output Beam Type: Collimated
    Output Beam Diameter: 50mm (2")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica
    Ozone Producing: No

    Sciencetech's Research Grade Arc Lamp Source Packages come with all the components required to operate a research-quality xenon arc lamp source: power supply, arc lamp housing, output optics, and lamp.

    These systems feature a configurable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A single fused silica lens in the optical assembly minimizes surfaces and permits maximum UV output.

    This system includes 1 IEC 60320 C19 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9003).

    Optional accessories include a downward facing stand, beam turner, alternative optical packages, optical filter holders and filter boxes, and filters.
    $ 12,100.00 12100.0 USD
    Price Valid only in North America

    This lamp housing design is optimized for 250 W QTH lamps. It features a F/4.5 elliptical reflector.

    Lamp Power: 250 W
    Reflector Type: Elliptical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,721.00
    This lamp housing design is optimized for 250 W QTH lamps. It features a F/4.5 elliptical reflector.

    Lamp Power: 250 W
    Reflector Type: Elliptical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,721.00 2721.0 USD
    Price Valid only in North America

    This lamp housing design is optimized for 100 W QTH lamps. It features a F/4.5 elliptical reflector.

    Lamp Power: 100 W
    Reflector Type: Elliptical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,753.00
    This lamp housing design is optimized for 100 W QTH lamps. It features a F/4.5 elliptical reflector.

    Lamp Power: 100 W
    Reflector Type: Elliptical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,753.00 2753.0 USD
    Price Valid only in North America

    This lamp housing design is optimized for 50 W QTH lamps. It features a F/4.5 elliptical reflector.

    Lamp Power: 50 W
    Reflector Type: Elliptical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,755.00
    This lamp housing design is optimized for 50 W QTH lamps. It features a F/4.5 elliptical reflector.

    Lamp Power: 50 W
    Reflector Type: Elliptical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,755.00 2755.0 USD
    Price Valid only in North America

    This lamp housing design is optimized for 250 W QTH lamps. It features a spherical back reflector.

    Lamp Power: 250 W
    Reflector Type: Spherical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)
    Compatible Collimated Beam Output Optics: COL-series
    Compatible Focused Beam Output Optics: Combined COL-series and IO-series

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,475.00
    This lamp housing design is optimized for 250 W QTH lamps. It features a spherical back reflector.

    Lamp Power: 250 W
    Reflector Type: Spherical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)
    Compatible Collimated Beam Output Optics: COL-series
    Compatible Focused Beam Output Optics: Combined COL-series and IO-series

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,475.00 2475.0 USD
    Price Valid only in North America

    This lamp housing design is optimized for 100 W QTH lamps. It features a spherical back reflector.

    Lamp Power: 100 W
    Reflector Type: Spherical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)
    Compatible Collimated Beam Output Optics: COL-series
    Compatible Focused Beam Output Optics: Combined COL-series and IO-series

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,475.00
    This lamp housing design is optimized for 100 W QTH lamps. It features a spherical back reflector.

    Lamp Power: 100 W
    Reflector Type: Spherical
    Lamp Type: QTH (included)
    Power Supply: PS-QT250-A-T (sold separately)
    Compatible Collimated Beam Output Optics: COL-series
    Compatible Focused Beam Output Optics: Combined COL-series and IO-series

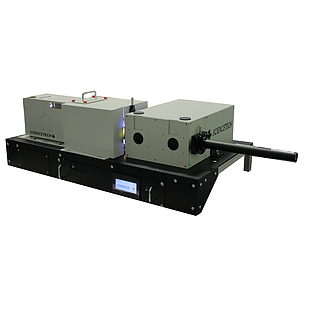

    All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position. Each housing comes with adjustable base plates for both configurations, allowing easy alignment of the lamp to the rest of the optical system.

    Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

    A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.
    $ 2,475.00 2475.0 USD
    Price Valid only in North America
    Copyright © Sciencetech
