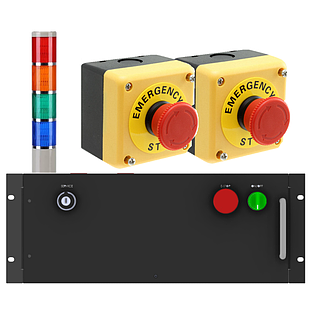

    The Global Safe Control Box is a single control unit for up to 12 HFSS power supplies. The control box allows for seamless control and increased safety. All power supplies can be turned on and off at once from the Global Safe Control box.

    Also Included with the Global Safe Control Box:

    - Two E-STOP buttons that can be located in and around the HFSS. Pressing either E-STOP will immediately cut power to all power supplies connected to the Global Safe Control Box.
    - One Proximity Door Sensor (along with a defeater if you do not need to use a door sensor). The inductive door sensor can be easily placed on any door that should not be opened during nominal operation of the system.
    - 1 Stack Light (4 colours) to indicate the status of the system (GREEN - System ON and Software Initialized, BLUE - Lamp(s) ON, YELLOW - Active Software Error, RED - E-STOP pressed).
    The Global Safe Control Box is a single control unit for up to 12 HFSS power supplies. The control box allows for seamless control and increased safety. All power supplies can be turned on and off at once from the Global Safe Control box.

    Also Included with the Global Safe Control Box:

    - Two E-STOP buttons that can be located in and around the HFSS. Pressing either E-STOP will immediately cut power to all power supplies connected to the Global Safe Control Box.
    - One Proximity Door Sensor (along with a defeater if you do not need to use a door sensor). The inductive door sensor can be easily placed on any door that should not be opened during nominal operation of the system.
    - 1 Stack Light (4 colours) to indicate the status of the system (GREEN - System ON and Software Initialized, BLUE - Lamp(s) ON, YELLOW - Active Software Error, RED - E-STOP pressed).
    $ 4,699.00 4699.0 USD
    Price Valid only in North America

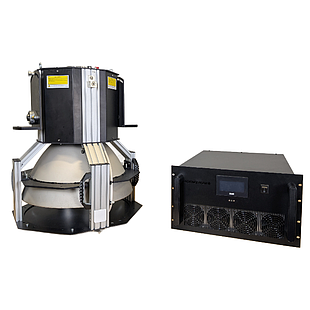

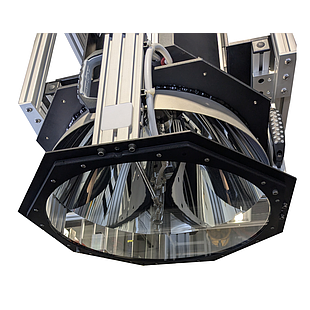

    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 200-240 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    200-240 VAC, 50/60 Hz, 31 A , 3 phase (200-240 V phase-to-phase), 4 wires (3P+E)
    Includes hardwired 6 ft power cable with L15-50P termination.
    Requires a minimum 40 A, 3 phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)
    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 200-240 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    200-240 VAC, 50/60 Hz, 31 A , 3 phase (200-240 V phase-to-phase), 4 wires (3P+E)
    Includes hardwired 6 ft power cable with L15-50P termination.
    Requires a minimum 40 A, 3 phase circuit, 200-240 VAC (phase-phase), 4 wires (3P+E)
    $ 36,999.00 36999.0 USD
    Price Valid only in North America

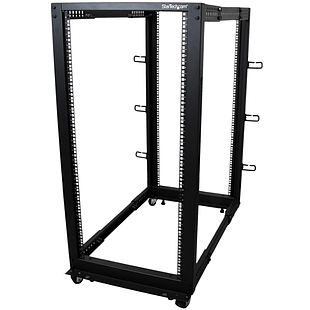

    A power supply rack for Sciencetech’s High Flux Solar Simulator system. Each rack can hold up to four power supplies.
    A power supply rack for Sciencetech’s High Flux Solar Simulator system. Each rack can hold up to four power supplies.
    $ 749.00 749.0 USD
    Price Valid only in North America

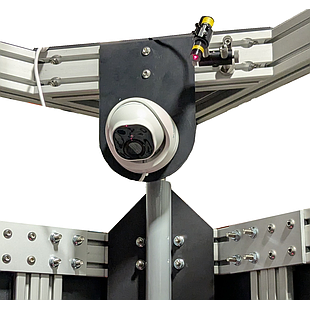

    The High Flux Solar Simulator (HFSS) Technology Package is a great addition to an HFSS system. It includes:
    - A network switch for connecting multiple power supplies and accessories (maximum five power supplies plus two accessories) to a single control computer.
    - A webpage-based camera for safely viewing inside the HFSS support structure
    - Alignment lasers for easily locating the target plane of the radiative modules.
    The High Flux Solar Simulator (HFSS) Technology Package is a great addition to an HFSS system. It includes:
    - A network switch for connecting multiple power supplies and accessories (maximum five power supplies plus two accessories) to a single control computer.
    - A webpage-based camera for safely viewing inside the HFSS support structure
    - Alignment lasers for easily locating the target plane of the radiative modules.
    $ 949.00 949.0 USD
    Price Valid only in North America

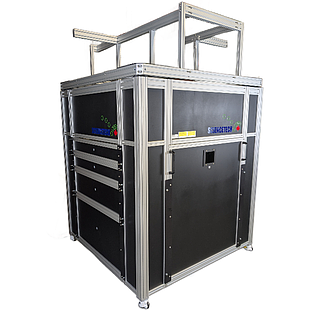

    A height-adjustable stand for downward-facing operation of Sciencetech’s line of High Flux Solar Simulators (HFSS). This stand holds up to four radiative modules (168-9000) when the High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022) is included. Each radiative module requires one High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022). The support structure includes two access doors, each with its own viewport; one on the front and one on the back. It also includes four access panels on each side of the support structure to allow for routing large cables, pipes, etc. in and out of the support structure based on the experiment to be conducted with the HFSS system.

    Key Dimensions
    Maximum Outer Dimensions (H x W x D)[mm]: 2913 x 1728 x 1728
    Interior Dimensions (H x D)[mm]: 1550 x 1550
    Four Access Panel Dimensions (H x W)[mm]: 558 x 1054, 305 x 1054, 177 x 1054, 177 x 1054
    Target Plane Location (no rotation on each radiative module, normal incidence): 420-825 mm off the floor
    Target Plane Location (all lamps angled to same focal point, 18.1° incidence): 505-910 mm off the floor
    A height-adjustable stand for downward-facing operation of Sciencetech’s line of High Flux Solar Simulators (HFSS). This stand holds up to four radiative modules (168-9000) when the High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022) is included. Each radiative module requires one High Flux Solar Simulator Lateral and Tilt Adjustment (168-8022). The support structure includes two access doors, each with its own viewport; one on the front and one on the back. It also includes four access panels on each side of the support structure to allow for routing large cables, pipes, etc. in and out of the support structure based on the experiment to be conducted with the HFSS system.

    Key Dimensions
    Maximum Outer Dimensions (H x W x D)[mm]: 2913 x 1728 x 1728
    Interior Dimensions (H x D)[mm]: 1550 x 1550
    Four Access Panel Dimensions (H x W)[mm]: 558 x 1054, 305 x 1054, 177 x 1054, 177 x 1054
    Target Plane Location (no rotation on each radiative module, normal incidence): 420-825 mm off the floor
    Target Plane Location (all lamps angled to same focal point, 18.1° incidence): 505-910 mm off the floor
    $ 23,699.00 23699.0 USD
    Price Valid only in North America

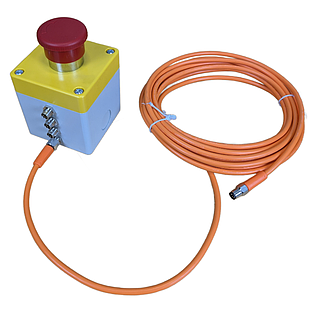

    An E-STOP button add-on for Sciencetech’s High Flux Solar Simulator systems. This E-STOP can be connected to up to four radiative modules.
    An E-STOP button add-on for Sciencetech’s High Flux Solar Simulator systems. This E-STOP can be connected to up to four radiative modules.
    $ 649.00 649.0 USD
    Price Valid only in North America

    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 380-480 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    380-480 VAC, 50/60 Hz, 17.4-14.2 A, 3 phase (380-480 V phase-to-phase), 4 wires (3P+E)
    Includes one L16-30 power cable.
    A High Flux Solar Simulator Radiative Module Package consisting of one 6500 W radiative module designed for 380-480 VAC 3 phase operation. This package comes with a power supply, radiative module, arc lamp, cooling system, and all necessary cables and tools. It does not include a support structure. Please see Sciencetech’s line of HFSS stands for a support structure (i.e. 168-8120). Sciencetech also offers various accessories to complement an HFSS system. For information regarding all available accessories and detailed performance specifications, please see the HFSS brochure or speak to a Sciencetech representative.

    Power Requirements:
    380-480 VAC, 50/60 Hz, 17.4-14.2 A, 3 phase (380-480 V phase-to-phase), 4 wires (3P+E)
    Includes one L16-30 power cable.
    $ 36,999.00 36999.0 USD
    Price Valid only in North America

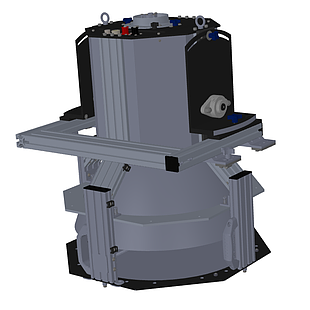

    An add-on to Sciencetech’s High Flux Solar Simulator Radiative Modules to provide lateral, rotational, and tilt adjustment of a single radiative module. This add-on is designed to interface with Sciencetech’s line of High Flux Solar Simulator Downward Facing Stands (i.e. 168-8120). Please add one HFSS-ADJUST-DF for each Radiative Module (i.e. 168-9000 or 168-9001) as well as one total HFSS stand (i.e. 168-8120).

    Lateral Adjustment [mm]: ±31
    Rotational Adjustment [°]: ±15
    Tilt Adjustment [°]: ±30

    Please note that the maximum lateral, rotational, and tilt adjustments achievable may be limited further depending on the system configuration. Please discuss your specific requirements with a Sciencetech technical representative.
    An add-on to Sciencetech’s High Flux Solar Simulator Radiative Modules to provide lateral, rotational, and tilt adjustment of a single radiative module. This add-on is designed to interface with Sciencetech’s line of High Flux Solar Simulator Downward Facing Stands (i.e. 168-8120). Please add one HFSS-ADJUST-DF for each Radiative Module (i.e. 168-9000 or 168-9001) as well as one total HFSS stand (i.e. 168-8120).

    Lateral Adjustment [mm]: ±31
    Rotational Adjustment [°]: ±15
    Tilt Adjustment [°]: ±30

    Please note that the maximum lateral, rotational, and tilt adjustments achievable may be limited further depending on the system configuration. Please discuss your specific requirements with a Sciencetech technical representative.
    $ 3,099.00 3099.0 USD
    Price Valid only in North America

    A single borofloat output window for an HFSS Radiative Module. This output window easily attaches to a radiative module using four screws. It does not completely seal the output of the radiative module due to the requirement for forced air cooling of the arc lamp, but it will protect the interior of the module from direct contamination.
    A single borofloat output window for an HFSS Radiative Module. This output window easily attaches to a radiative module using four screws. It does not completely seal the output of the radiative module due to the requirement for forced air cooling of the arc lamp, but it will protect the interior of the module from direct contamination.
    $ 949.00 949.0 USD
    Price Valid only in North America

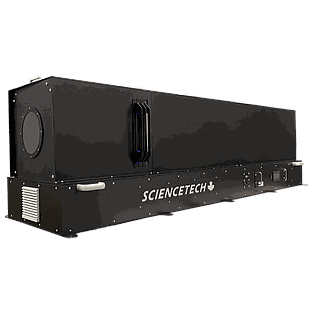

    The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

    Specifications
    AM1.5G Spectral Match: Class A
    AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
    Spatial Non-Uniformity: Class C
    Temporal Instability: Class A
    Target Size: 200 × 200 mm
    Working Distance: 0.1-0.5m
    Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
    Lamp Power: 6500 W
    Illumination Direction: Horizontal (beam turner available)
    Standard for Classification: ASTM E927-19

    The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

    Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

    This system includes 1 power cable.
    The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
    $ 89,800.00
    The SLP series of solar simulators are a highly flexible, highly customizable design that utilizes a light pipe to homogenize the beam. Available in AM0 or AM1.5G spectral matches as standard (select at the time of ordering), this system can be configured for additional spectral filtering, including custom filters.

    Specifications
    AM1.5G Spectral Match: Class A
    AM0 Spectral Match: Class A 350-1100 nm, Class C 1100-1400 nm
    Spatial Non-Uniformity: Class C
    Temporal Instability: Class A
    Target Size: 200 × 200 mm
    Working Distance: 0.1-0.5m
    Maximum Irradiance: 8.0 Suns (AM0), 10 Suns (AM1.5G), 15 Suns (Unfiltered)
    Lamp Power: 6500 W
    Illumination Direction: Horizontal (beam turner available)
    Standard for Classification: ASTM E927-19

    The COL variations focus on high collimation, the HOM variations on best spatial non-uniformity, the HF variations on high irradiance, and the LA variations on the most efficient large-area coverage. Each version can be modified to balance the most critical features. Please contact our sales team for more information about modifications and accessories.

    Each SLP includes a lamp housing, power supply, arc lamp, air mass filter, standard fixed frame, and testing report.

    This system includes 1 power cable.
    The cable requires 380-480VAC, 3 Phase, 50/60 Hz, 17A (max current), L16-30 plug.
    $ 89,800.00 89800.0 USD
    Price Valid only in North America

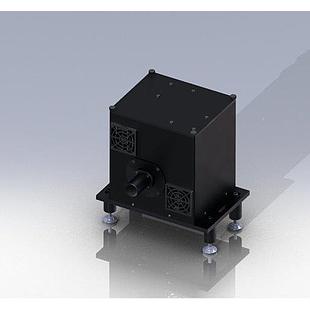

    The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30 W deuterium light source and a 50 W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

    Deuterium Source:
    Lamp Power: 30 W
    Lamp Type: Deuterium, DT030 (included)
    Power Supply: PS-DT030-A-M-V2 (included)

    QTH Source:
    Lamp Power: 50 W
    Lamp Type: QTH
    Power Supply: PS-QT250-A-T (Touchscreen, adjustable)

    Optics:
    Output Beam Type: Collimated
    Output Beam Diameter: 25 mm (1")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica

    This system includes 2 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 15,000.00
    In Stock
    The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30 W deuterium light source and a 50 W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

    Deuterium Source:
    Lamp Power: 30 W
    Lamp Type: Deuterium, DT030 (included)
    Power Supply: PS-DT030-A-M-V2 (included)

    QTH Source:
    Lamp Power: 50 W
    Lamp Type: QTH
    Power Supply: PS-QT250-A-T (Touchscreen, adjustable)

    Optics:
    Output Beam Type: Collimated
    Output Beam Diameter: 25 mm (1")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica

    This system includes 2 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 15,000.00 15000.0 USD
    Price Valid only in North America

    The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30 W deuterium light source and a 100 W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

    Deuterium Source:
    Lamp Power: 30 W
    Lamp Type: Deuterium, DT030 (included)
    Power Supply: PS-DT030-A-M-V2 (included)

    QTH Source:
    Lamp Power: 100 W
    Lamp Type: QTH
    Power Supply: PS-QT250-A-T (Touchscreen, adjustable)

    Optics:
    Output Beam Type: Collimated
    Output Beam Diameter: 25 mm (1")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica

    This system includes 2 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 15,000.00
    In Stock
    The Dual Deuterium and Quartz Tungsten Halogen Light Source consists of a separate 30 W deuterium light source and a 100 W QTH light source in one optical assembly. The deuterium source and the QTH source operate simultaneously and a cold mirror is used to combine the 2 beams into a single beam.

    Deuterium Source:
    Lamp Power: 30 W
    Lamp Type: Deuterium, DT030 (included)
    Power Supply: PS-DT030-A-M-V2 (included)

    QTH Source:
    Lamp Power: 100 W
    Lamp Type: QTH
    Power Supply: PS-QT250-A-T (Touchscreen, adjustable)

    Optics:
    Output Beam Type: Collimated
    Output Beam Diameter: 25 mm (1")
    Lens Type: Single Plano-Convex Lens
    Lens Material: Fused Silica

    This system includes 2 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
    $ 15,000.00 15000.0 USD
    Price Valid only in North America
