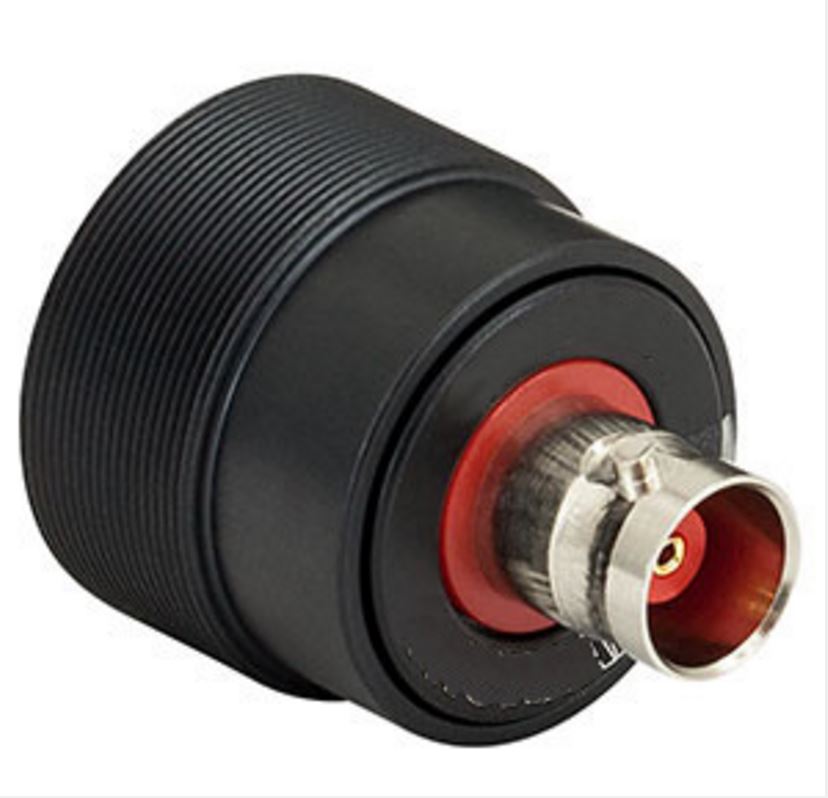

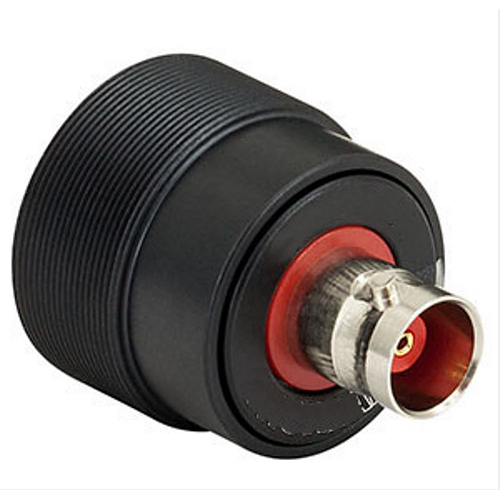

Mounted Silicon Photodiode, (350-1100 nm), Anode Grounded

Active Area: 13mm^2 (3.6 x 3.6mm)
Rise Time: 10ns @20V
NEP: 1.2 x 10^(-14) W/Hz^(1/2) @ 900nm, 20V
Dark Current: 20nA @ 20V
Junction capacitance: 40pF @ 10V

320.00 320.0 USD

320.00

SKU: 582-4010

Category: Detectors

Price Valid only in North America

Additional Information

SKU 582-4010
Name Mounted Silicon Photodiode, (350-1100 nm), Anode Grounded
Spectral Region 89,88
Active Area (diameter or square) 10+mm
Active Area (diameter or square) 10+mm
Temperature Control Non-cooled
AC or DC Coupling DC Coupled
Single or Multichannel Single
Detector Type 122
Spectral Range (nm) 350 - 1100
Detector Material 240
NEP 2.07 E-13
Detectivity (cm-Hz^1/2/W) not aplicapable
Responsivity 0.725 A/W
