(SSIVT-F) Current-Voltage Measurement System for Flash Solar Simulators (IV Tester)

The SSIVT is a complete electrical current-voltage measurement system used to characterize photovoltaic cell performance. This current-voltage tester works by sampling current at different voltages of the photovoltaic cell with a variable impedance load.

This IV measurement system has a separate terminal interface for voltage and current measurements. Each IV curve dataset is saved as a separate ASCII text file.

This I-V Testing Measurement System has a 4 wire Kelvin configuration to remove the resistance effects of the leads and bias the cell at specific voltages.

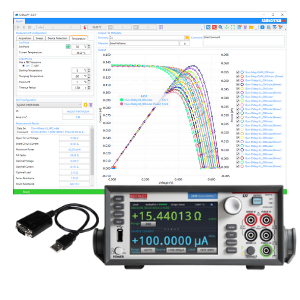

The I-V Measurement System SSIVT-F includes:

- Source Measure Unit (SMU) - See table for specifications depending on chosen model.
- Load Booster module to increase current measurement range of the SMU (model dependent)
- Sciencetech's SciPV-IV Software for Windows-based control.
- Windows 7/10 32/64 bit
- RS232 to USB dongle

Compatible with Flash (Pulsed) Solar Simulators only.

See brochure for more details.
